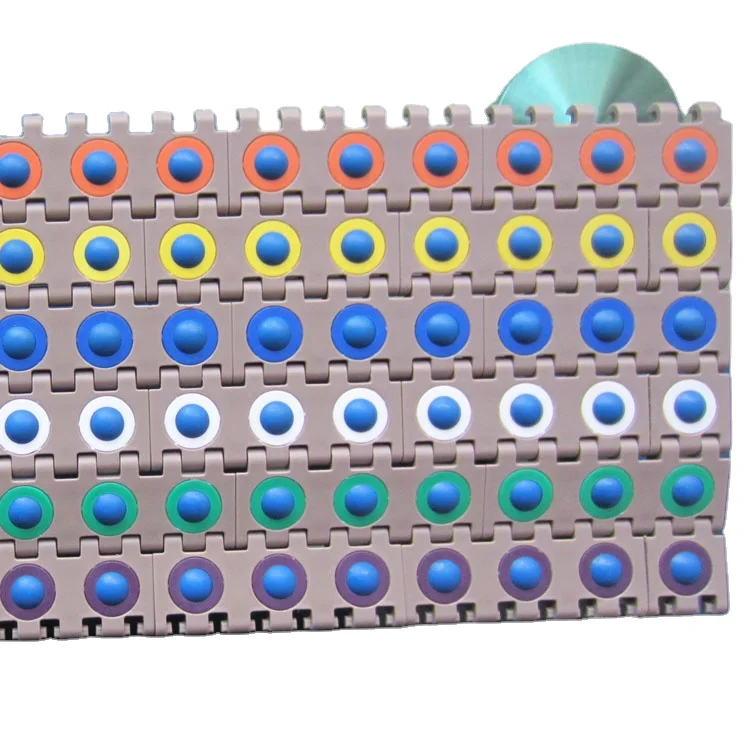

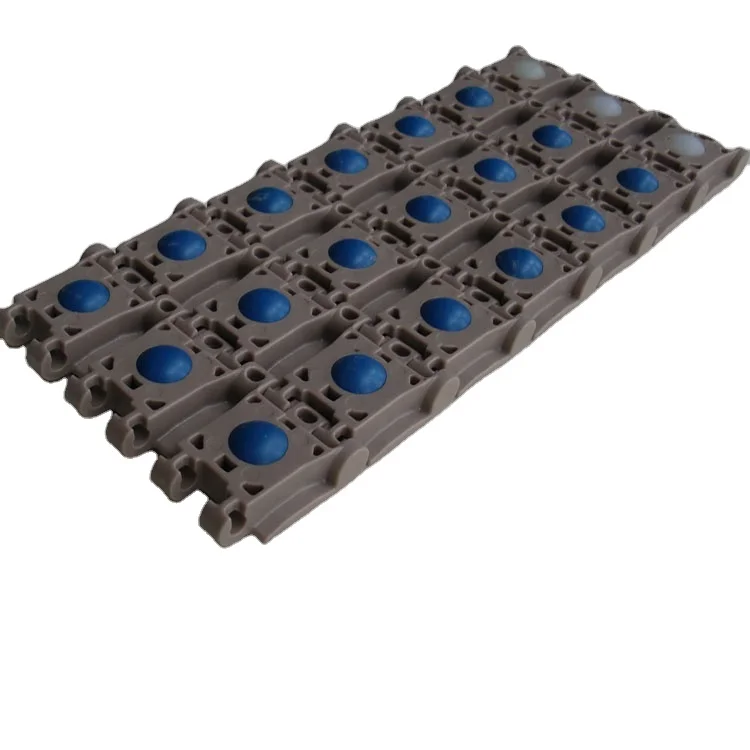

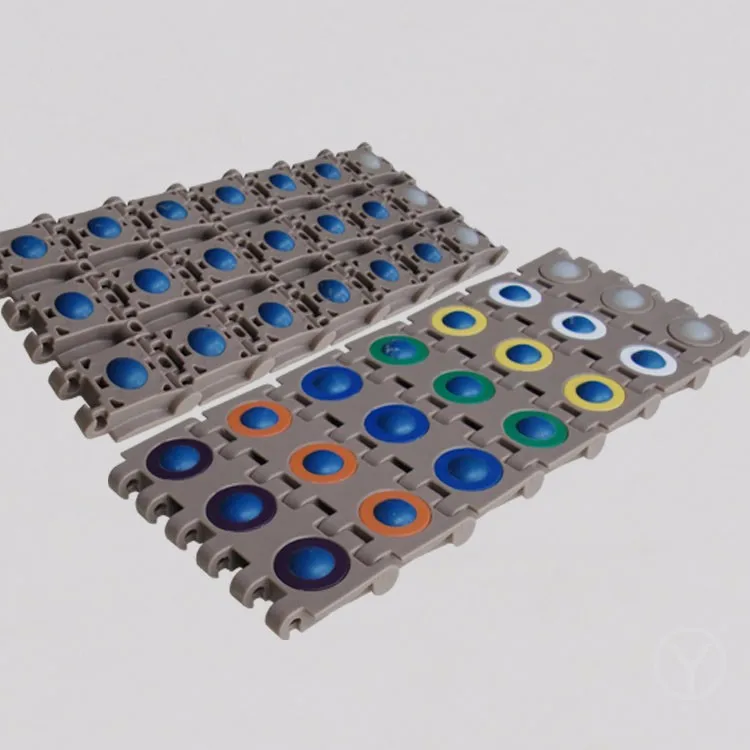

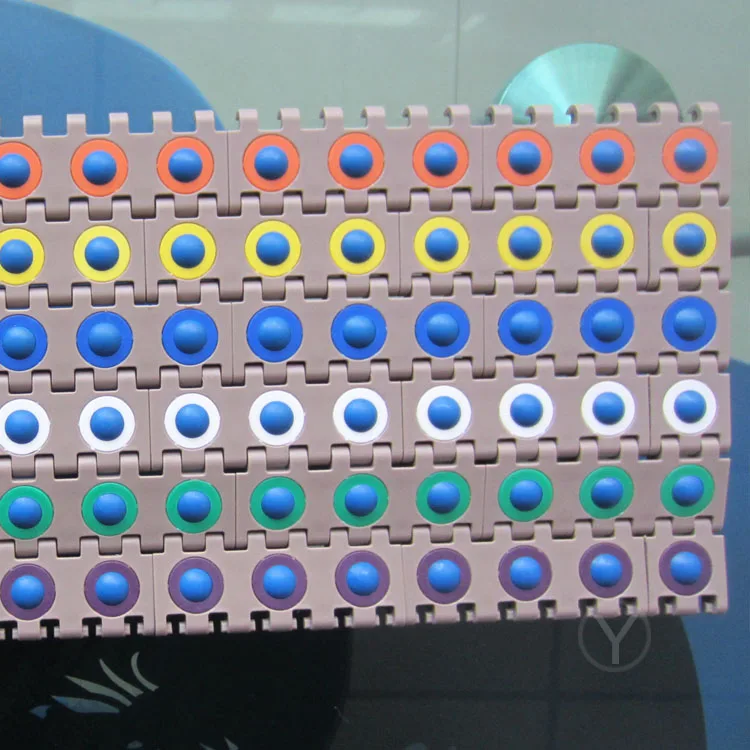

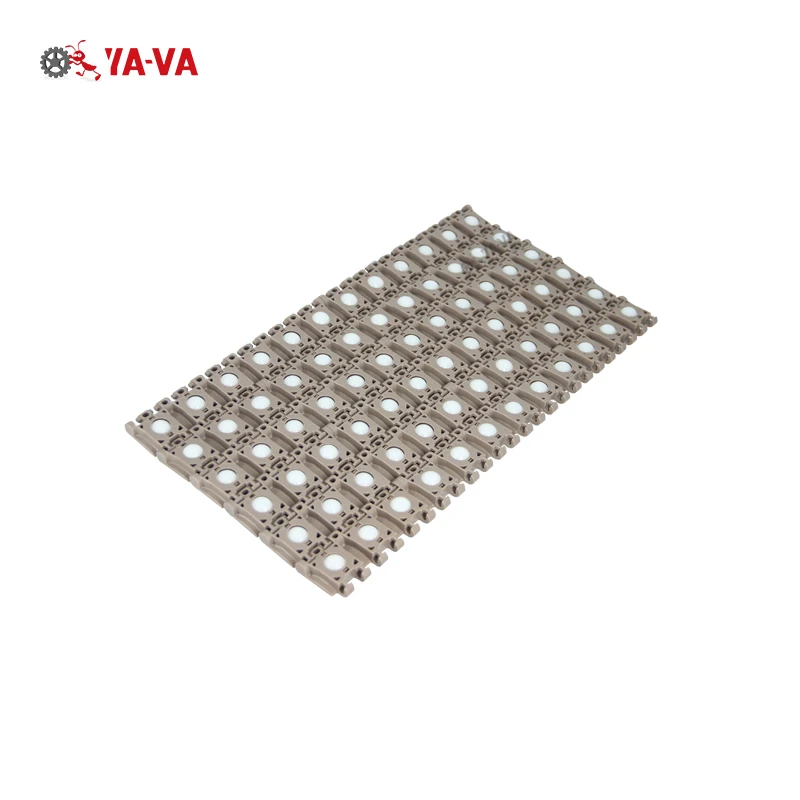

YS300 7 Factory ball bearing modular belt glass ball modular conveyor belt

Specification of universal ball modular belt
      1. Material: PP/POM/PE
      2. Pin or Alxed Material: PP
      3. Pitch: 25.4 mm
      4. Open Area: 0 %
      5. Brand: YA-VA
      6. Weight: POM= 7.86 Kg/Square meter
      7. Load capacity: POM=20000 N/M
      8. Packaging: Carton or wooden package
      9. Work temperature: POM: -40 ℃~90℃, PP: 1 ℃~98℃

Data & drawing of modular belt:

Special features:

• ISO9001:2008 certification


• Wear-resisting


• Oil & cutting resistance


• High temperature


• Non-stick


• Low coefficient of friction on top side and bottom side


• Oil skimmer belts are available in stock


• Dimensions as per international standards.


• With ultrasonically welded center guide


• Ultrasonically welded Side wall and lateral cleats as per customer requirements.


• easy instation and maintenance.


•


  High mechanical strength and wear resistance





•


  Excellent product handing.




Other models of conveyor belt

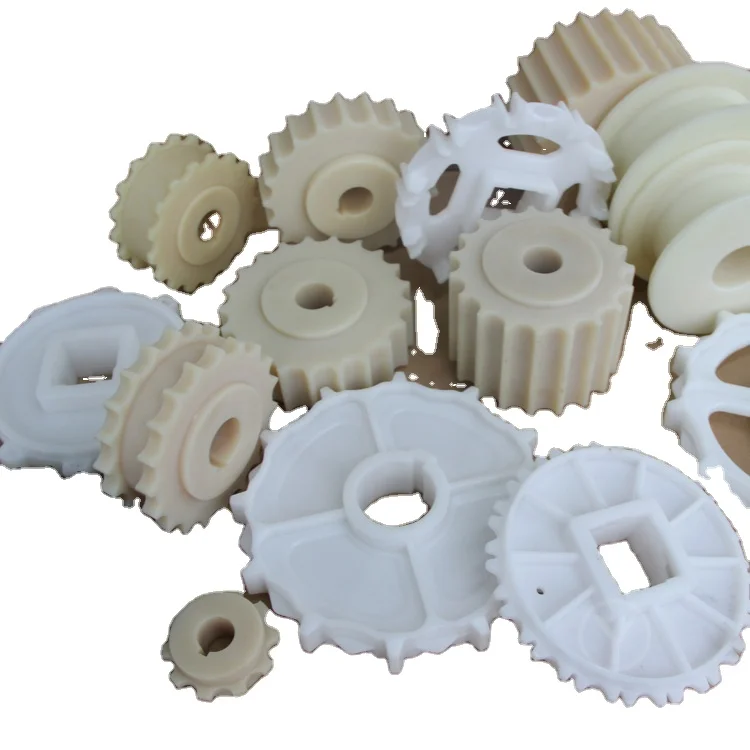

The sprockets for plastic modular belt:

Conveyor Components: Modular belt and Chain accessories, side guide rails, guie brackets and clamps, plasstic hinge, leveling feet, cross joint clamps, wear strip, conveyor roller, side roller guide, bearings and so on.

Conveyor Components: Aluminum Chain Conveyor System Parts ( support beam, drive end units, beam bracket, conveyor beam, vertical bend, wheel bend, hotizontal plain bend, idler end units, aluminum feet and so on)

BELTS & CHAINS: Made for all kind of products

YA-VA offers a wide range of conveyor chains. Our belts and chains are suitable to transport products and goods of any industry and customizable to widely varying requirements.

The belts and chains consist of plastic hinged links connected by plastic rods. They are woven together by links in a wide dimension range. The assembled chain or belt forms a wide, flat, and tight conveyor surface. Various standard widths and surfaces for different applications are available.

Our product offer ranges from plastic chains, magnetic chains, steel top chains, advanced safety chains, flocked chains, cleated chains, friction top chains, roller chains, modular belts, and more. Feel free to contact us for a consultation to find a suitable chain or belt for your production needs.

Conveyor Components: Pallets Conveyor System Parts ( tooth belt, hig-strength transmission flat belt, roller chain, dual drive unit, idler unit, wear strip, agnle bracket, support beams, support leg, adjustable feet and so on.)

YA-VA is one of leading professional manufacturer for CONVEYOR SYSTEM and CONVEYOR COMPONENTS for more than 24 years in Shanghai and have 30,000 square meters plant in Kunshan city (close to Shanghai city) and 5,000 square meters plant in Foshan city (close to Canton)



If you need some help for conveyor design and manufacture, pls feel free to contact us:
