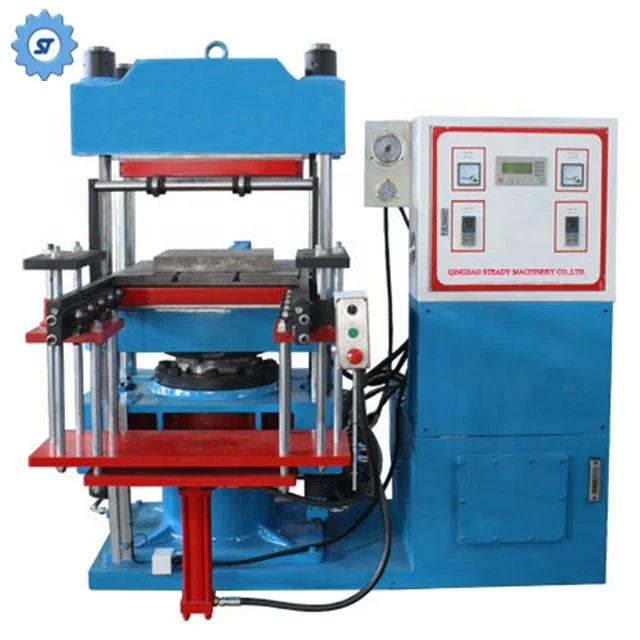

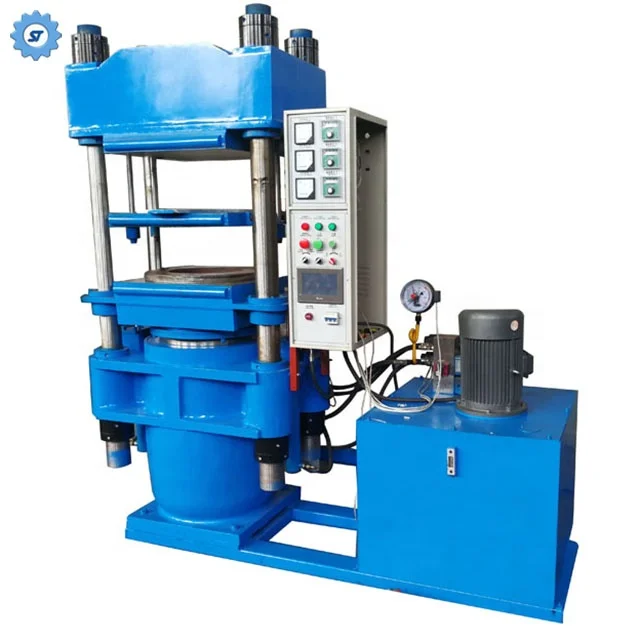

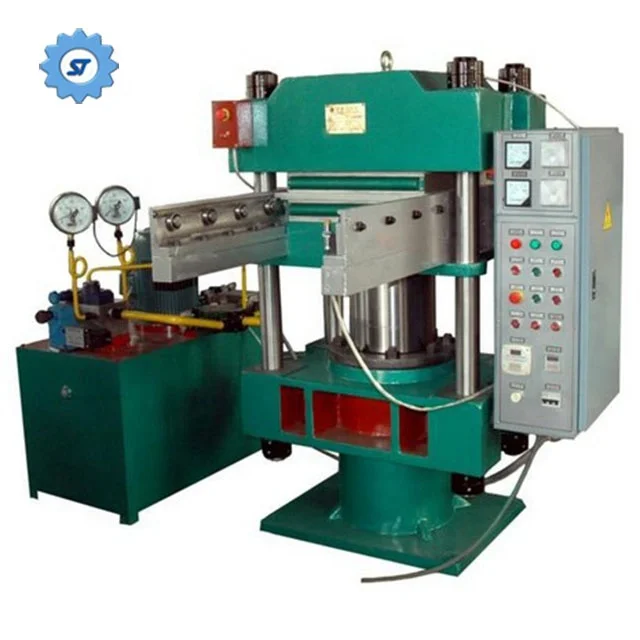

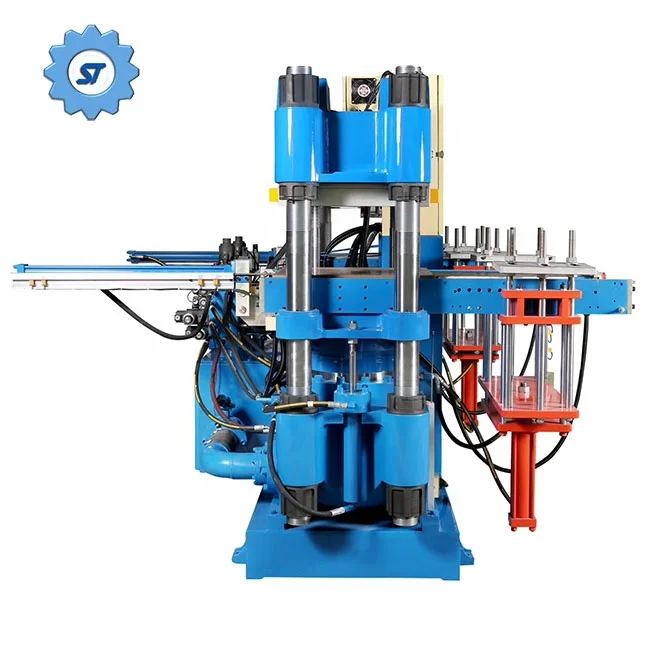

rubber flange gasket vulcanization making press machine
- Category: >>>
- Supplier: Qingdao Steady Machinery Co. Ltd.
Share on (60564964033):
Product Overview
Description
Company Profile
Product Description
Rubber flange gasket vulcanization making press machine is used to make rubber products. The machine can be used to make rubber molded products, as well as non-molded products. It also can be used as a cold press machine when don't heat it.
Machine Making Procedure brief Introduction
1. Design and making drawing.2. Processing machine parts strictly as per drawings, every process must have checking and control by
worker themselves.
3. QC team checking quality and precision degree.
4. Installaton the rubber hot press machine.
5. Commissioning
6. Packing while book shipping.
7. Delivery, loading container.
worker themselves.
3. QC team checking quality and precision degree.
4. Installaton the rubber hot press machine.
5. Commissioning
6. Packing while book shipping.
7. Delivery, loading container.
Rubber Production Procedure
Up mold and down mold consist a pair mold. When use the machine make the production. 1. Put rubber raw material into every cavity
of the down mold.
2. Press the mold close button on the machine.
3. The machine will close the mold, gives pressure and temperature.
4. When the set work time get out, the machine will open the mold automatically.
5. Workers get the finished rubber products out.
6. Do the next working cycle.
of the down mold.
2. Press the mold close button on the machine.
3. The machine will close the mold, gives pressure and temperature.
4. When the set work time get out, the machine will open the mold automatically.
5. Workers get the finished rubber products out.
6. Do the next working cycle.
Some rubber products pictures. The rubber products shape is decided by the mold shape.
Detailed Images
We pay all effort in every detail production, from parts machining to installation and commissioing, to delivery, this ensures our machines are popular in international market.
Casted Oil Cylinder
The oil cylinder is QT500 ductile iron casted. Piston adopts chiled hard alloy cast iron, seal adopts imported international quality sealing ring and dust proof ring, which ensures the service life and sealing effect.
Polishing
The Cylinder Inside is well polished, smooth environment ensures good reliable working effect.
Piston Processing
Piston adopts chilled hard cast iron, high precision machining and fine grinding treatment. Ensures the piston is super wear-resistant and durable in service life.
Heating Plate Technology
Heating plate machining, drilling, grinding and heat treatment, ensures surface hardness and quality in use.
Control Panel
There are temperature controller, current meter, control buttons and LCD display on the panel.
There are other type or configuratin for option.
Electronics
electronics adopts Schneider or CHNT brand. And our wire layout desing is very scientific.
So the machine electronics is very reliable even in the harsh working condition.
So the machine electronics is very reliable even in the harsh working condition.
Size Information
We have also other size for Choice, just tell us your needs.
Model | 350x350x2 | 400x400x2 | 500x500x2 | 600x600x2 | 750x850x2 | 600x600x2 |
Nominal Mold Clamping Force（MN） | 0.25 | 0.5 | 0.8 | 1.0 | 1.6 | 2 |
Heating Platen Size(mm) | 350x350 | 400x400 | 500x500 | 600x600 | 750x850 | 600x600 |
Working Layer | 2 | 2 | 2 | 2 | 2 | 2 |
Piston Diameter(mm) | ø150 | ø200 | ø250 | ø300 | ø360 | ø400 |
Piston Stroke（mm） | 250 | 250 | 250 | 250 | 500 | 300 |
Daylight/ Platen Spacing（mm） | 125 | 125 | 125 | 125 | 250 | 150 |
Unit Area Pressure（Mpa） | 2.1 | 3.1 | 3.2 | 2.78 | 2.5 | 5.6 |
Main Motor Power（KW） | 2.2 | 2.2 | 2.2 | 2.2 | 3.0 | 3.0 |
Dimension（L×W×H)mm | 1500x400x1350 | 1800x500x1600 | 1800x550x1700 | 2000x700x1700 | 2000x1000x1900 | 2550x960x2100 |
Weight（KG） | 500 | 950 | 1800 | 2300 | 3800 | 4800 |
Mold Closing Speed（mm/s) | ≥12 | ≥12 | ≥12 | ≥12 | ≥12 | ≥12 |
Mold Opening Speed（mm/s） | ≥12 | ≥12 | ≥12 | ≥12 | ≥12 | ≥12 |

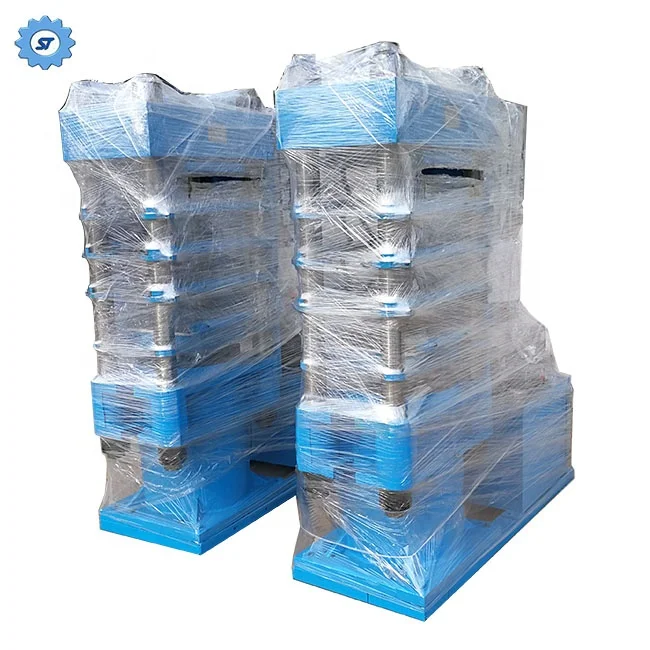

Packing&Shipping
If the ordered quantity is not enough to a full container load, we'll use fumigation free wooden box with pallet base to ship the machine. Which is strong in long time sea transportation even with transshipment. If the rubber press machine ordered get to full container load, we'll directly use container comet to my factory to load them.
Related Goods Loading
Customer Photos
After Sales Service
TRAINING
Training customers‘ how to use the machine and how to make the production. And machine maintenance. And according to customers'
condition, we can help customers decide what configuration machine to use.
condition, we can help customers decide what configuration machine to use.
