tractor UTV universal wiper motor

Product Overview

Description

12V / 24V DC Windshield Heavy Duty Wiper Motor





The most classic windshield heavy duty motors export to the global for over two decades.

Two speed, adjustable sweep angle, self-parking compose to be the most compatible wiper motor in the world. Also, this heavy duty motor capable to drive longer arms and blades in heavy weather.





Specification

Torque: 18 Nm

Max arm length: 24" (610mm)

Max blade length: 24" (610mm)

Sweep angle: 40~110, 10 increments

Two speeds: Low 40 sweeps/min; High 60 sweeps/min

Park position: Adjustable & Self-parking; Left or Right

Shaft length: 2.5” (63.5 mm) [Optional]

Shaft adapter: 13.85 mm, L9.8 mm, 72 teeth [Optional]

Voltage: 12V/24V

Isolated ground; suitable for steel, aluminum, wooden and GRP boat

Stainless drive shaft with nickel-plated brass socket

Aluminum case

CE Approval

3 years warranty

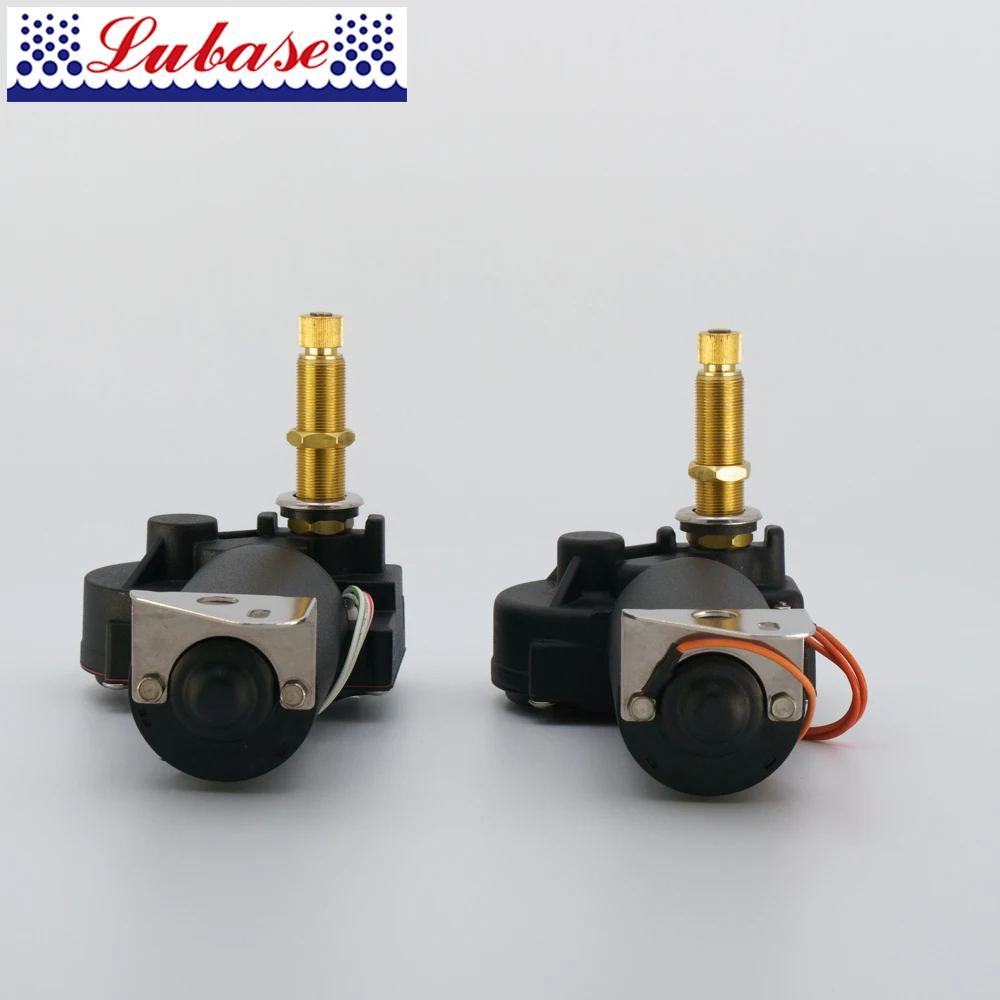

Left: 4 wires    Right: 3 wires model (isolated ground model)



Item name	Item Number	Shaft Length	Color	Voltage
1681 Series, isolated ground (3 wires)	168111-12 CEB	1.5" (38mm)	black	12V
	168121-12 CEB	2.5" (63mm)	black	12V
	168131-12 CEB	3.5" (89mm)	black	12V
	168111-24 CEB	1.5" (38mm)	black	24V
	168121-24 CEB	2.5" (63mm)	black	24V
	168131-24 CEB	3.5" (89mm)	black	24V

1671 Series, (4 wires)	167111-12 CEB	1.5" (38mm)	black	12V
	167121-12 CEB	2.5" (63mm)	black	12V
	167131-12 CEB	3.5" (89mm)	black	12V
	167111-24 CEB	1.5" (38mm)	black	24V
	167121-24 CEB	2.5" (63mm)	black	24V
	167131-24 CEB	3.5" (89mm)	black	24V







*All products are preset 110 degree & right parking. If you need other setting, please notify in advance.



If you need a quote, please provide 1. Item Number 2. Qtys 3. Your postal code. We will reply you with shipping ASAP.





All products

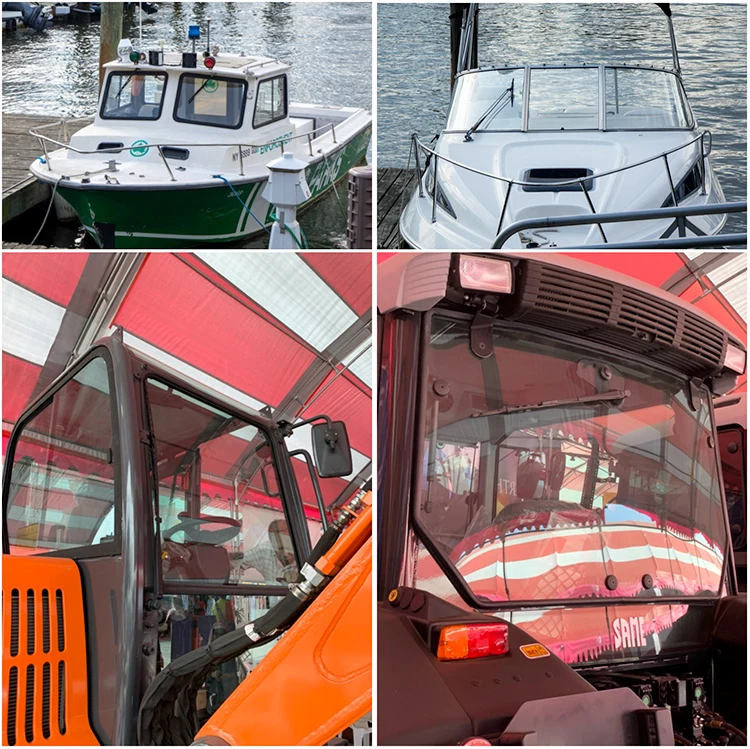

Applications
