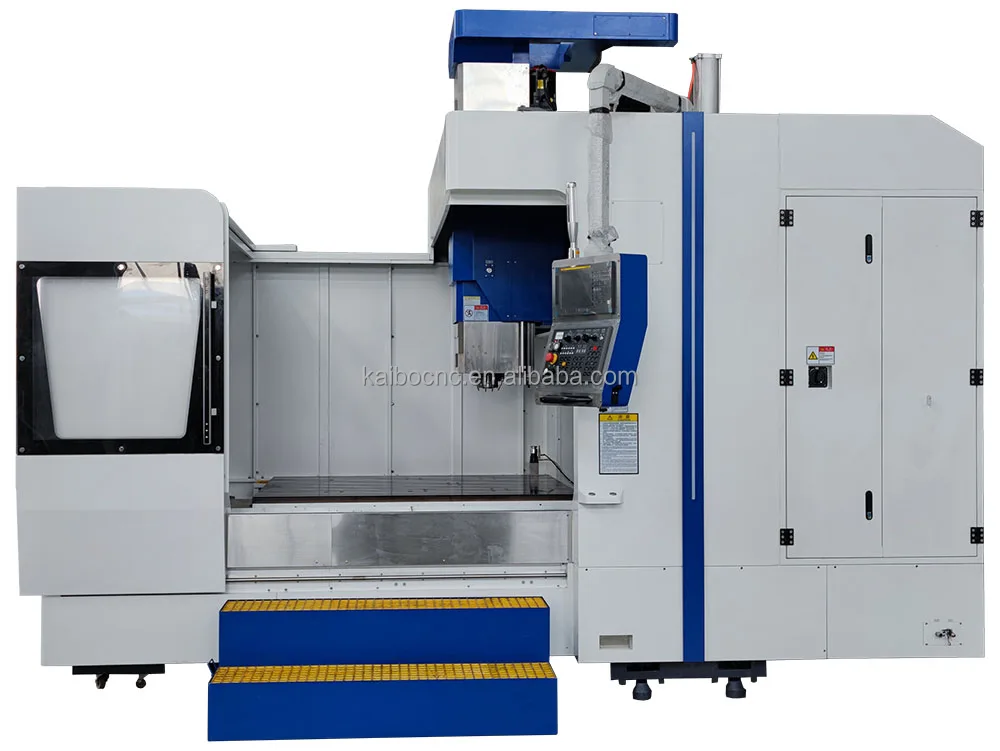

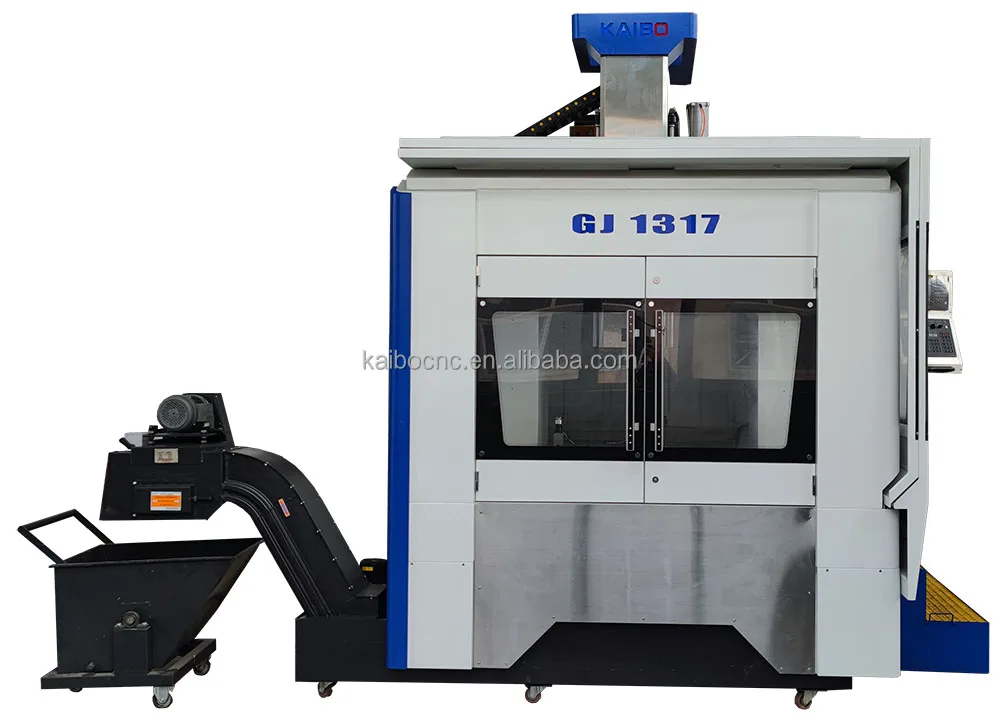

Kaibo cnc heavy duty VMC gantry type cnc milling machining center
- Category: >>>
- Supplier: Ningbo Kaibo CNC Machinery Co. Ltd.
Share on (60564970848):
Product Overview
Description

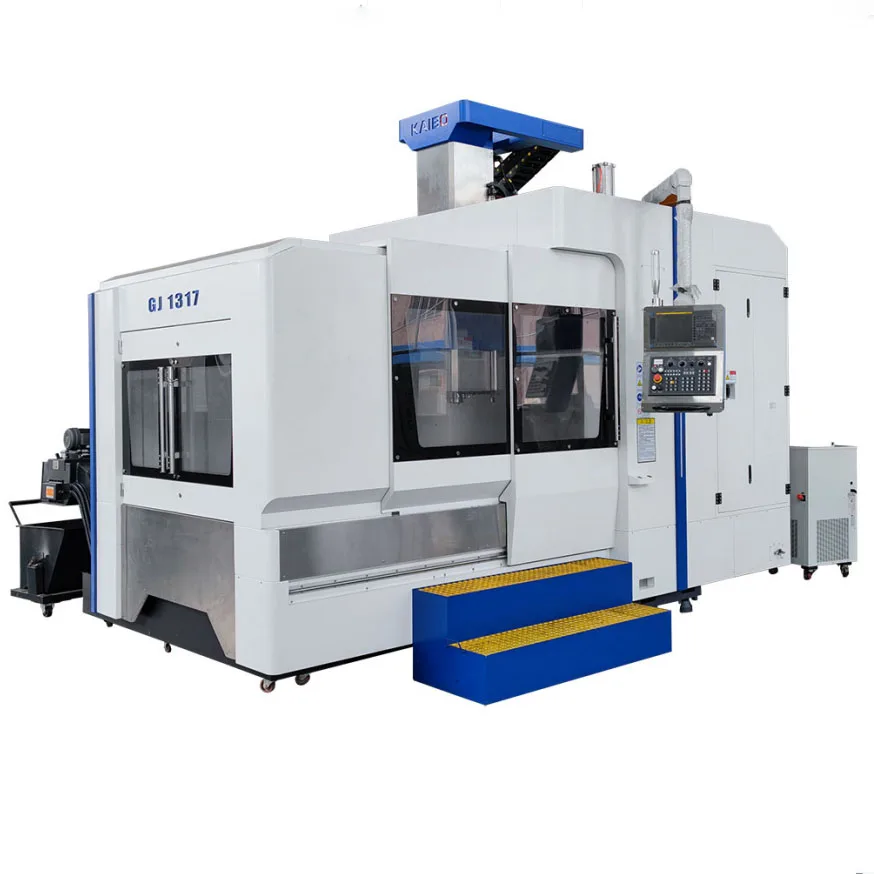

CNC MILLING MACHINE GJ1317
High speed CNC milling machine for metal GJ1317 is large size bridge design machining center, while the cutting speed and feed speed is faster than regular heavy duty machining center by equipped with HSK spindle, so the application of high-speed cutting can produce a smoother machining surface. High speed cutting can process hardened steel, with a hardness of more than 60HRC and roughness of r0.8um, and the efficiency is times higher than that of EDM. Mold processing generally uses a small-diameter ball-end milling cutter for high-speed milling. The rotating speed of the machine tool is required to reach 20000-40000 R / min, the feed speed is low and the rigidity of the machine tool is good.
MACHINING SAMPLE DISPLAY
PRODUCT FEATURES
Controller: Fanuc
X/Y/Z axis travel: 1300/1700/720mm

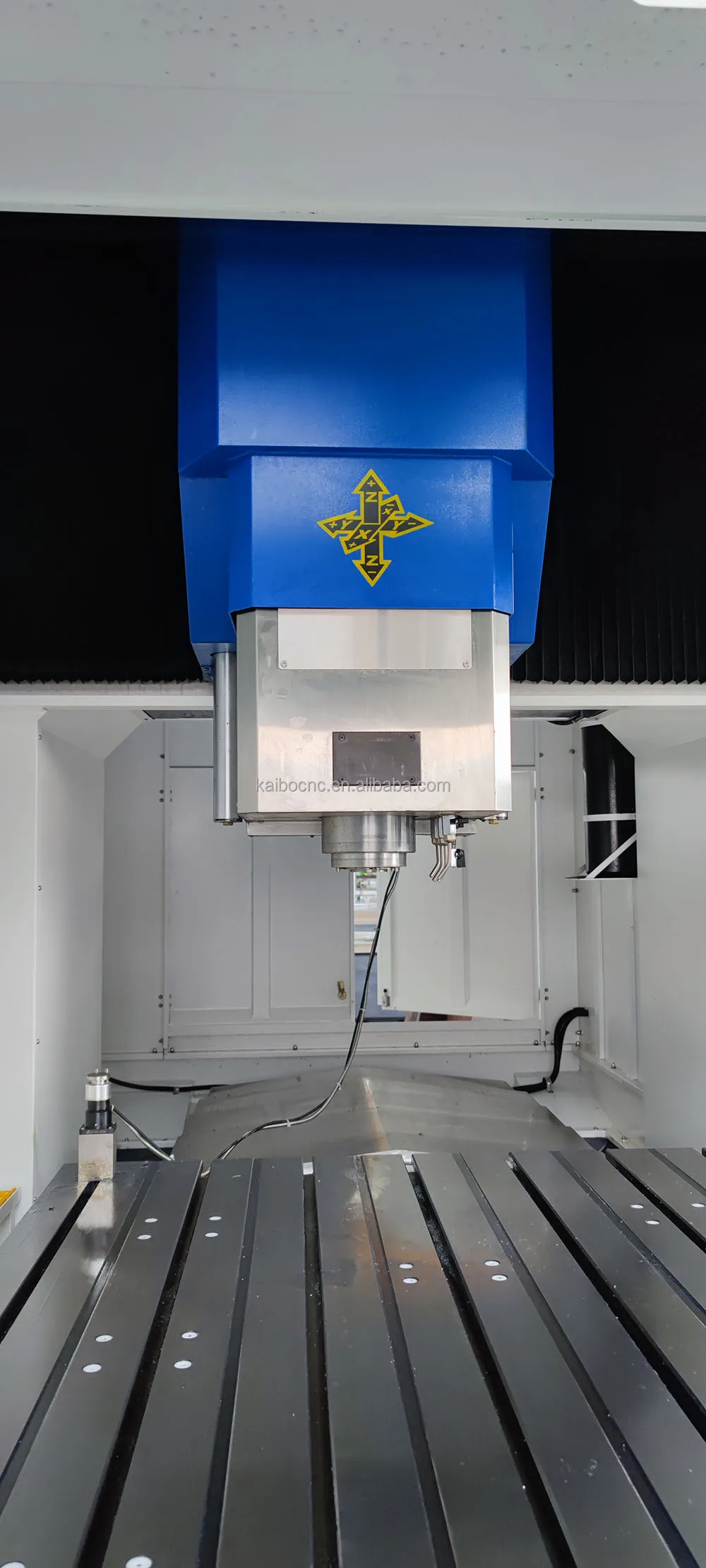

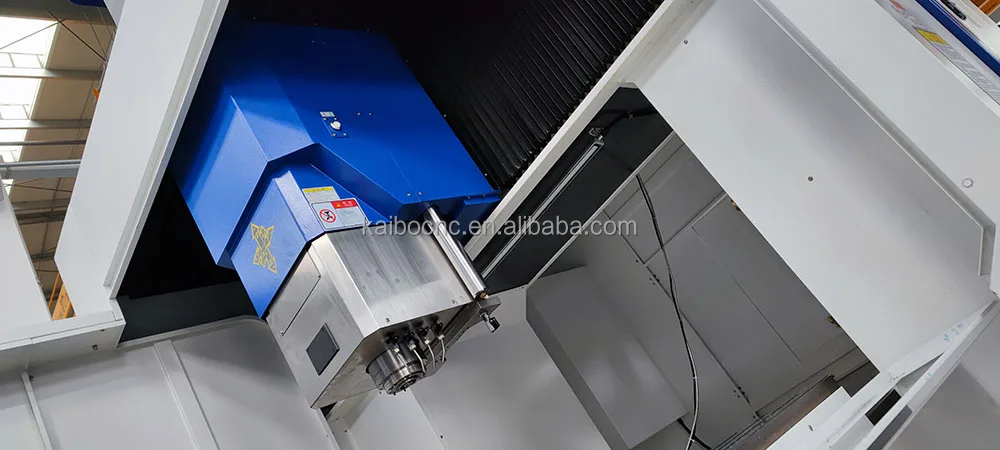

HSK/18.5KW/15000 rpm spindle
All linear guideways for enhanced rigidity and accuracy
Optional for 3/4/5axis
Optional for HPC function.
Optional for loading automatic tool changer
X/Y/Z axis travel: 1300/1700/720mm
HSK/18.5KW/15000 rpm spindle
All linear guideways for enhanced rigidity and accuracy
Optional for 3/4/5axis
Optional for HPC function.
Optional for loading automatic tool changer
PRODUCT PARAMENTERS
Parameter/Model | GJ1317 | DC1417 | ||
Accuracy | Positioning accuracy | 0.01mm | 0.01mm | |
Repeat positioning accuracy | 0.005mm | 0.005mm | ||

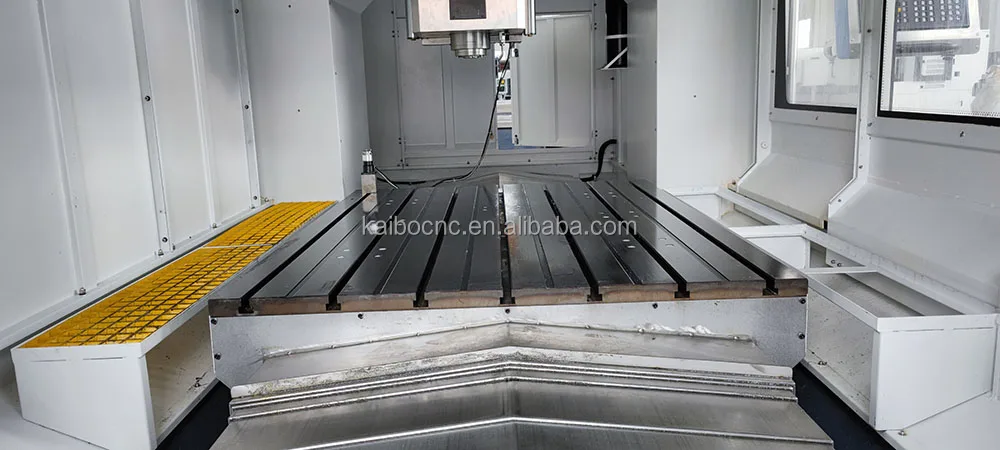

Worktable | Worktable size | 1300*1700mm | 1400*1700mm | |
T-slot size | 6T-18-185mm | 7T-18-190mm | ||
Max. load | 5000Kg | 2000Kg | ||
Travel | X/Y/Z axis travel | 1300/1700/700mm | 1400/1700/700mm | |
Gantry width | 1450mm | 1570mm | ||
Beam to worktable | 950mm | 900mm | ||
Spindle nose to worktable | 75-775mm | 150-650mm | ||
Door open width | 1800mm | 1460mm | ||
Feed | Max. feeding speed G00 | 30-30-15m/min | 15m/min | |
Max. working speed G01 | 10m/min | 10m/min | ||
X/Y/Z axis motor power | Bis22/2/bis22b (3000w/3000w/3000w) | 2900w/2900w/2900w | ||
Spindle | Spindle motor power | 11KW | 11KW | |
Spindle Max. speed | 15000rpm | 12000rpm | ||
Tool holder | HSK63A/Φ120 | BT40 | ||
Common | Power supply and total capacity | 3P/380V/50Hz/40KVA | 3P/380V/50Hz/30KVA | |
Machine weight | 17000Kg | 12000Kg | ||
Dimension | 4600*2600*3000mm | 4520*2600*2880mm | ||

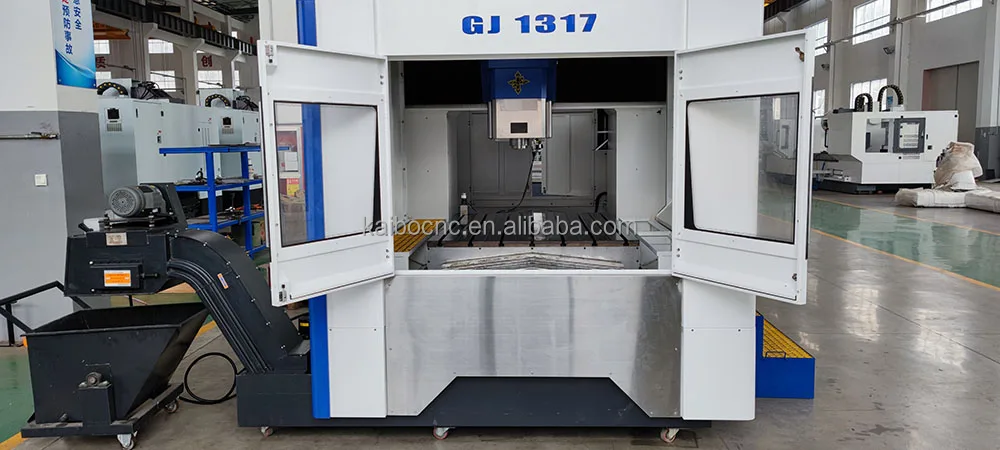

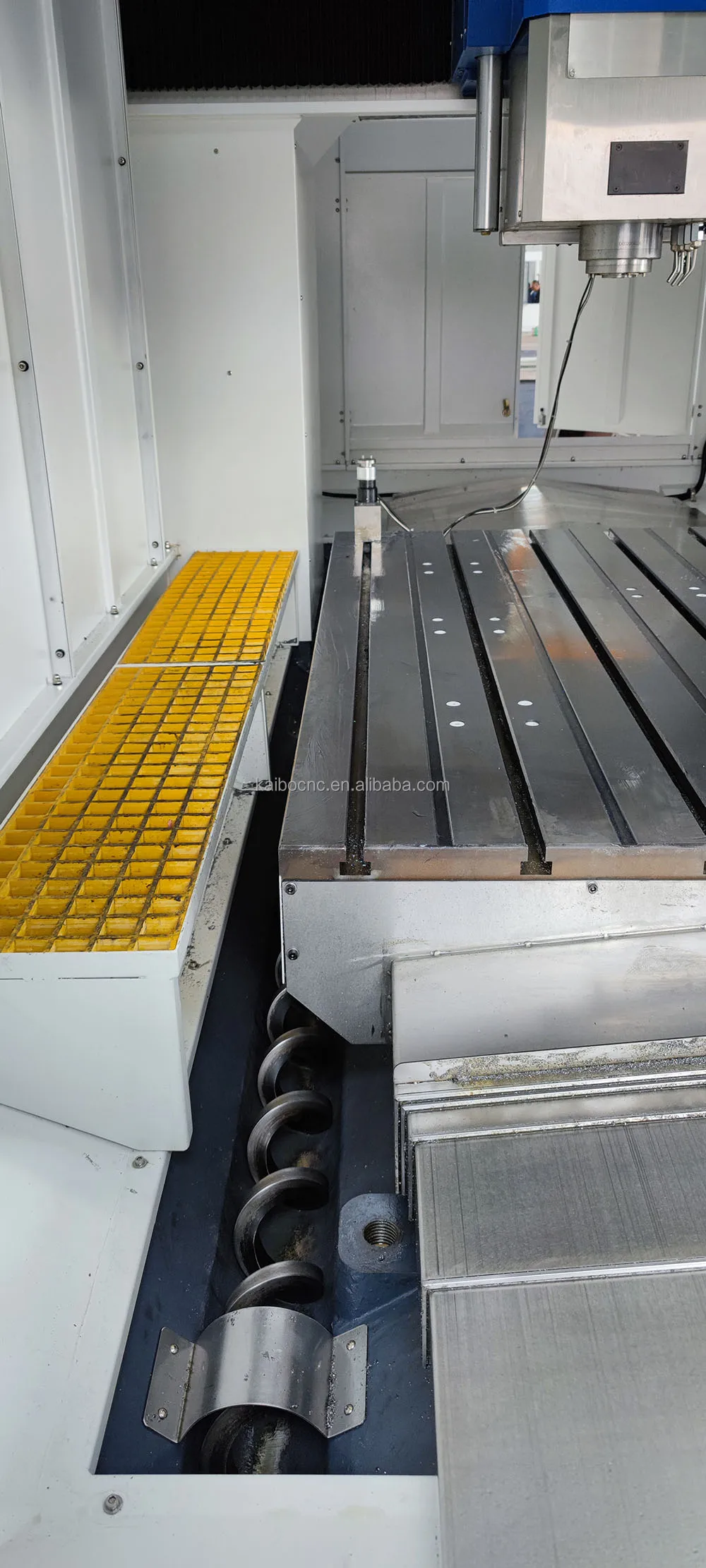

PRODUCT DETAILS
Ningbo Kaibo CNC Machinery Co., Ltd.
OUR SERVICES
Technical Services
Kaibo, being both a Molding Machine manufacturer and trading company in China, can also provide you with the best solutions for your production line and your business in or from China. We manufacture a wide range of CNC Machines, such as:
-CNC Engraving Milling Machine
-CNC Lathe
-CNC Vertical Machine Center
-Tapping Machine
-Gantry Milling Machine
-CNC Engraving Milling Machine
-CNC Lathe
-CNC Vertical Machine Center
-Tapping Machine
-Gantry Milling Machine
Customer Service
1.Kaibo guarantees continuous and ongoing technical support for all of our products, and an technical enquiry of our machines can be replied within 24 hours.
2.Spare parts, in their majority, can be supplied within 48hours after confirmation.
3.The warranty period of Kaibo's machine tools is 12 months from the date of completion of installation and comissioning.
4.At Kaibo we provide our Customers With all the details, including machinery details, their operation, and technical support.
2.Spare parts, in their majority, can be supplied within 48hours after confirmation.
3.The warranty period of Kaibo's machine tools is 12 months from the date of completion of installation and comissioning.
4.At Kaibo we provide our Customers With all the details, including machinery details, their operation, and technical support.
FAQ
1. Which CNC Machine is suitable for me?
A: Please kindly inform us the material type and size you need to progress,then we can offer a more suitable cnc machine for you.
2. Which material is applicable?
A: Such as Steel, iron, copper, aluminum, plastic, organic glass, PVC panels, ABS plate, KT plate, wood, stone, marble, aluminum plastic plate, and other materials.
3.What servic can we enjoy as for the after-service?
A: Internet service by sending emails and videos,communicating online or calling.
And 1 year warrantee.During the warranty period, we will sent damage of the machine parts(non-human factors) for free.
A: Please kindly inform us the material type and size you need to progress,then we can offer a more suitable cnc machine for you.
2. Which material is applicable?
A: Such as Steel, iron, copper, aluminum, plastic, organic glass, PVC panels, ABS plate, KT plate, wood, stone, marble, aluminum plastic plate, and other materials.
3.What servic can we enjoy as for the after-service?
A: Internet service by sending emails and videos,communicating online or calling.
And 1 year warrantee.During the warranty period, we will sent damage of the machine parts(non-human factors) for free.
