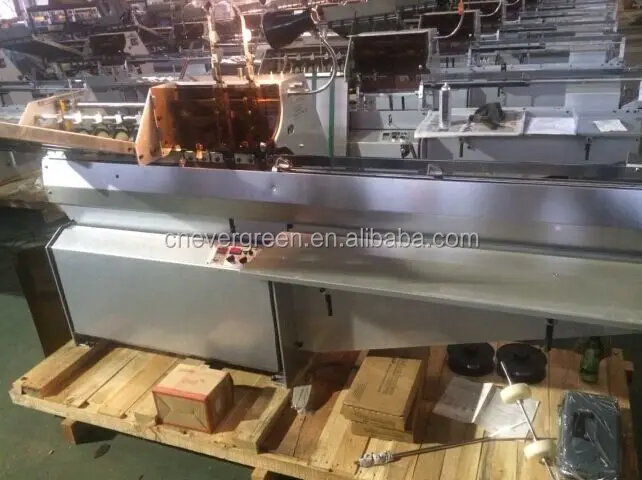

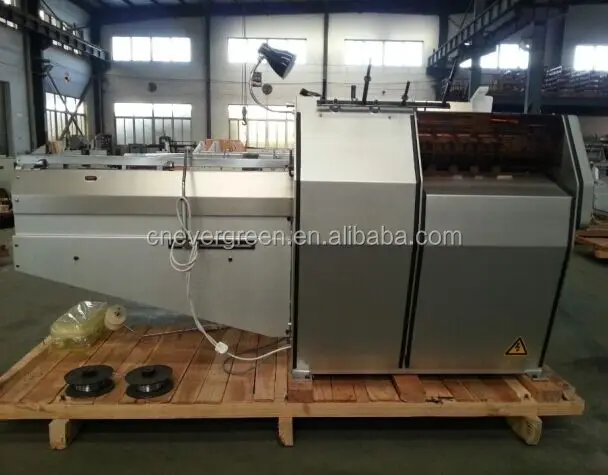

Two head fast speed notebook stapler machine

Product Overview

Description

Saddle Stitching machine DQB404-02C  book stitching machine

Sela costureiro

DQB404-02C Semi-Auto book binding machine is suitable to binding each kind of printing books,

periodicals,magazine, small capital, advertisement, instruction booklet etc.

Auto sensor to protect stitching heads

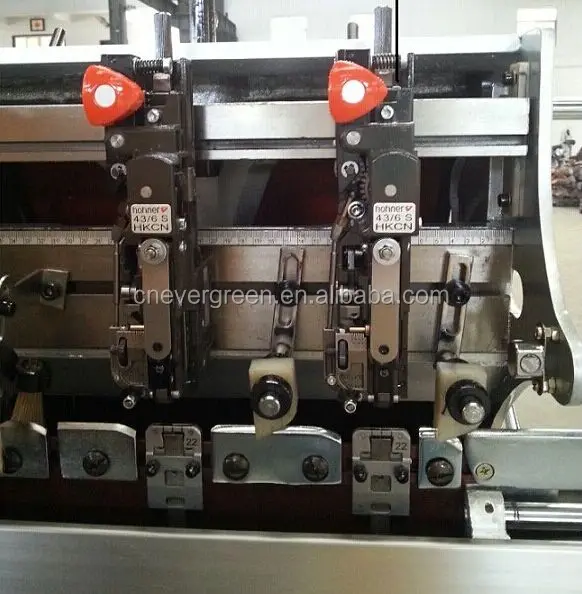

German Hohner heads 43/6 wire stitching machines

Specification

  wire stitching machines, binding machine

Model	Modelo	DQB404-02C
Max. binding size (mm)	Max. tamanho de ligação	305x 450
Min. binding size (mm)	Min. tamanho de ligação	89x 127
Max. binding height (mm)	Max. Altura de ligação	4 mm
Speed(Books/Min)	Velocidade de trabalho	15—100B/M
Width of staple boot(MM)	tamanho de ligação	13MM
Center distance of staple boot	Distância do centro de inicialização grampo	45--270mm
Wire steel size	Tamanho do fio de aço	25# 26#
Power supply	fonte de alimentação	380V, 50Hz, 0.75KW
Net weight (Kg)	Peso líquido	320KG
Dimension	Dimensão	2200X1320X1350
