Product Overview

Description

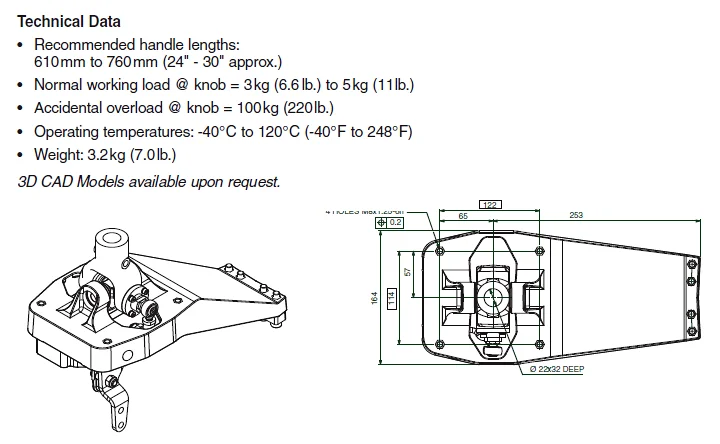

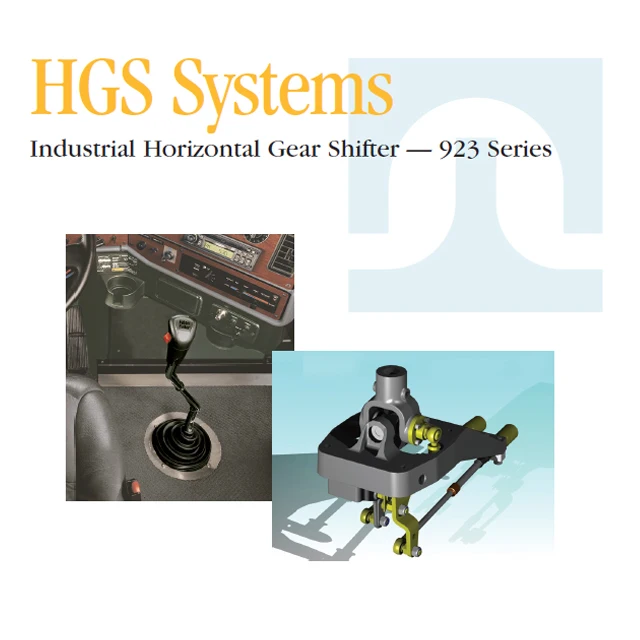

[HGS Systems Industrial Horizontal Gear Shifter - 923 Series]

Description:                                                            Applications:

HGS Systems                                                              • Floor mounted shifter
Industrial Horizontal                                                     • Bus, coach & truck applications
Gear Shifter — 923 Series                                           • Servo & non-servo   assisted transmissions
                                                                                     • Heavy duty plant/ agricultural vehicles
                                                                                     • Heavy/medium duty  cable applications

Features:                                                                Material:

• Easy installation,adjustment free                              Housing
• Maintenance-free life                                                 Pressure Die-cast  Aluminum
• Ends gear jump out                                                   Yoke
• Clean precise shifts                                                   Investment Cast Steel
• No knob-to-cab relative                                             Options
   movement in floating cabs                                         • Fully Sealed Unit Available
• No action required to tilt cab                                      • Gaiter Available
• Vibration from drive train                                            • Different End Fittings Available
  is not transmitted                                                        • Right & Left Hand Configurations
• Reduced cab noise levels                                          • With or Without Bias Spring
• Low cost                                                                     • Adjustable Bias Spring Position
• Installation design to                                                  • Variable Ratio Between 4:1 to 5:1
  customer requirements
• Flexible capability with
  different cable end fittings



[HGS Industrial]

The transportation industry has for many years searched for a reliable shift system to replace the cumbersome and maintenance-prone rod linkages commonly used in cab over trucks and rear engine buses. As the need has increased, vehicles become more refined to include the complexities of floating cabs,curb noise restrictions and specialty vehicles of all types.
We have developed a systems approach that now makes remote shifting easier for both the vehicle builder and the operator.
Based on the proven quality and performance of low friction control cables, this system provides a maintenance-free, cost-effective approach to remote manual transmission shifting.
We stand ready to solve your most challenging shifting problems with a full line of cab units and transmission connecting hardware to suit most applications.

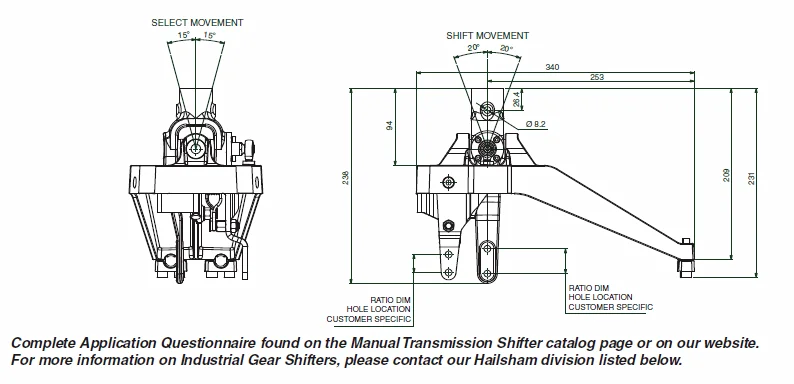

[HGS Systems Industrial Horizontal Gear Shifter — 923 Series]
