Product Overview
Description

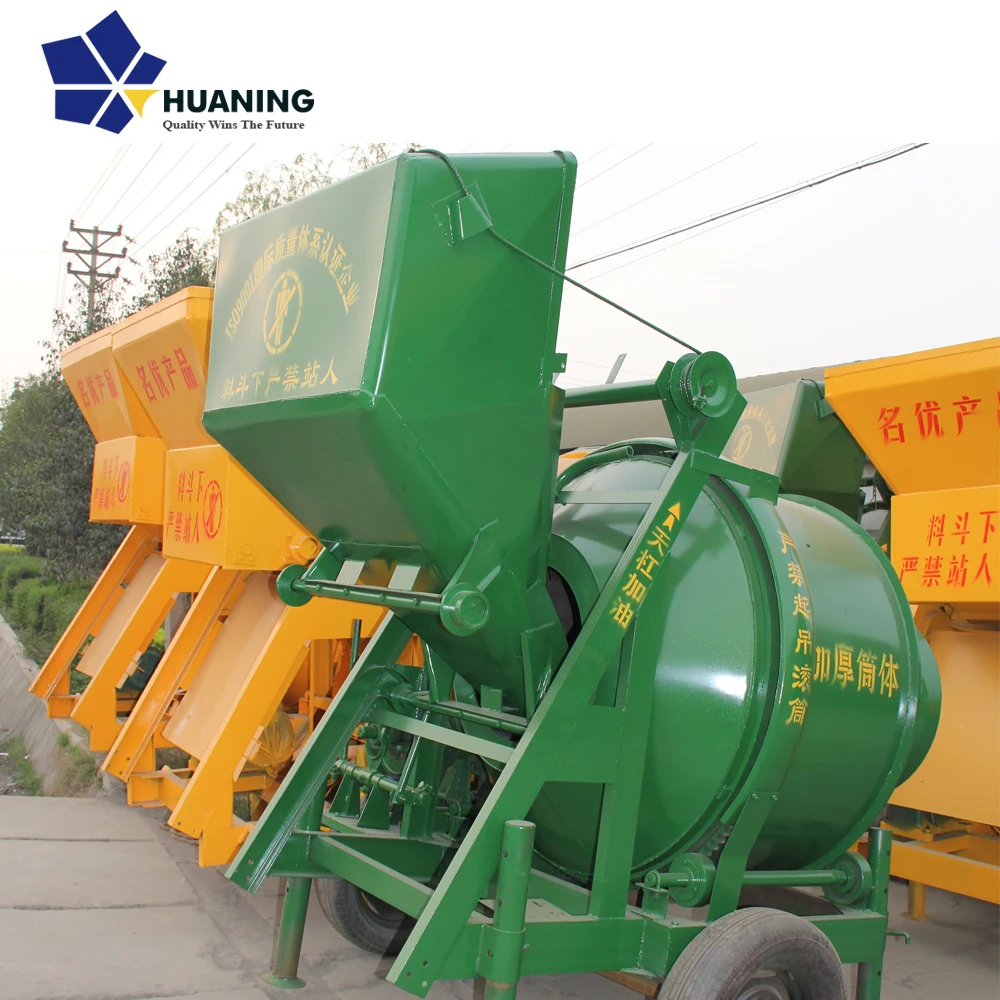

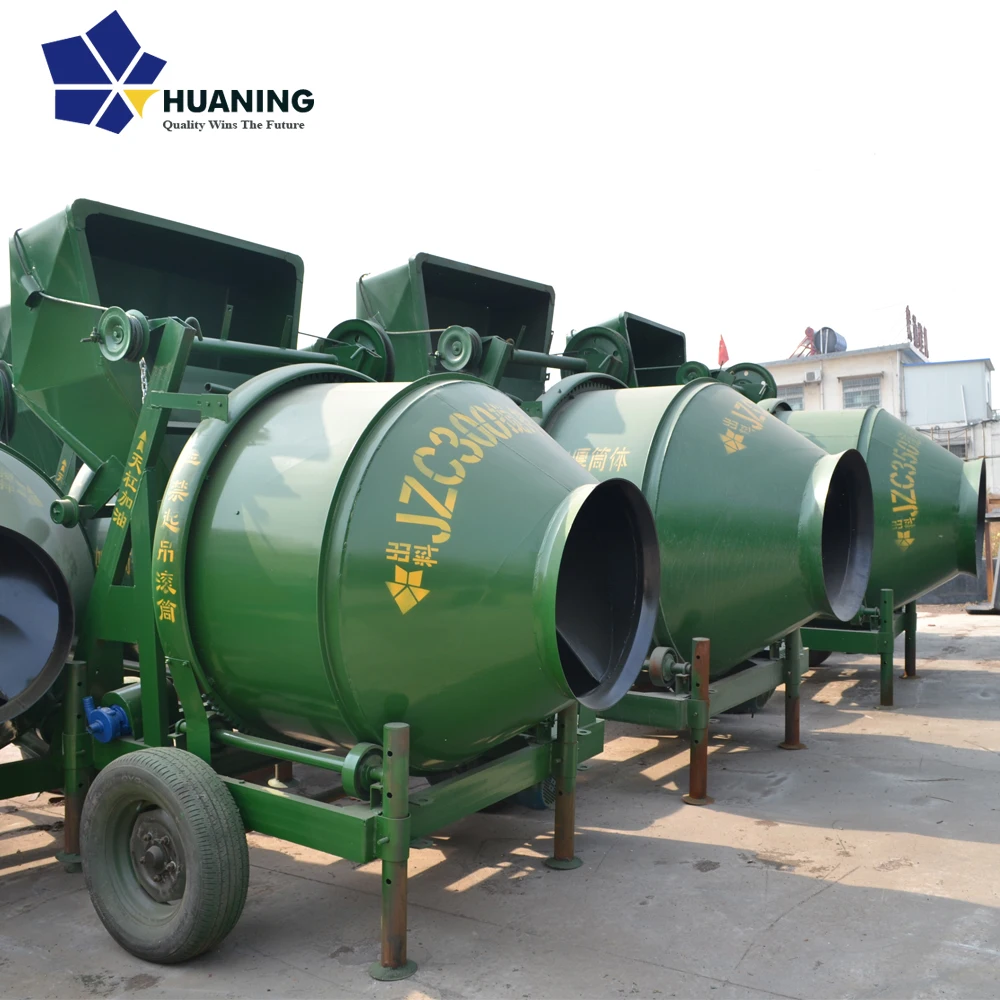

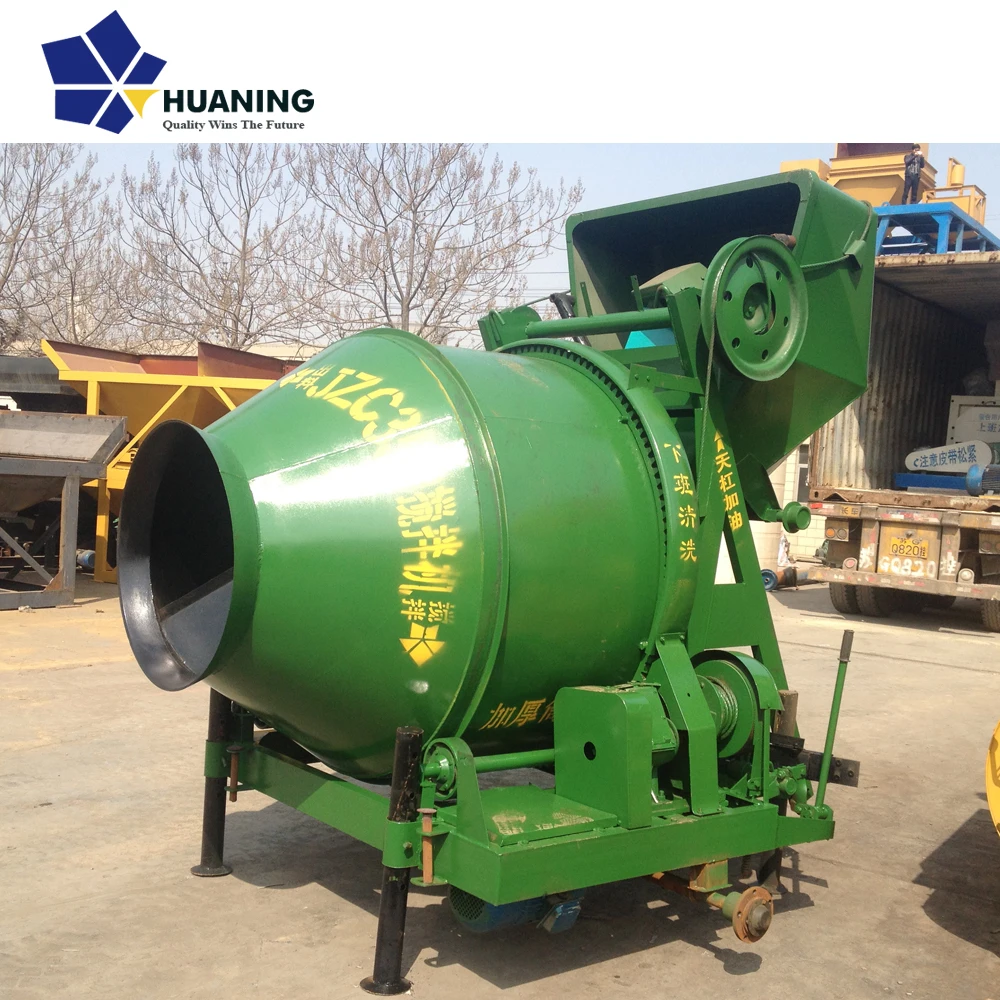

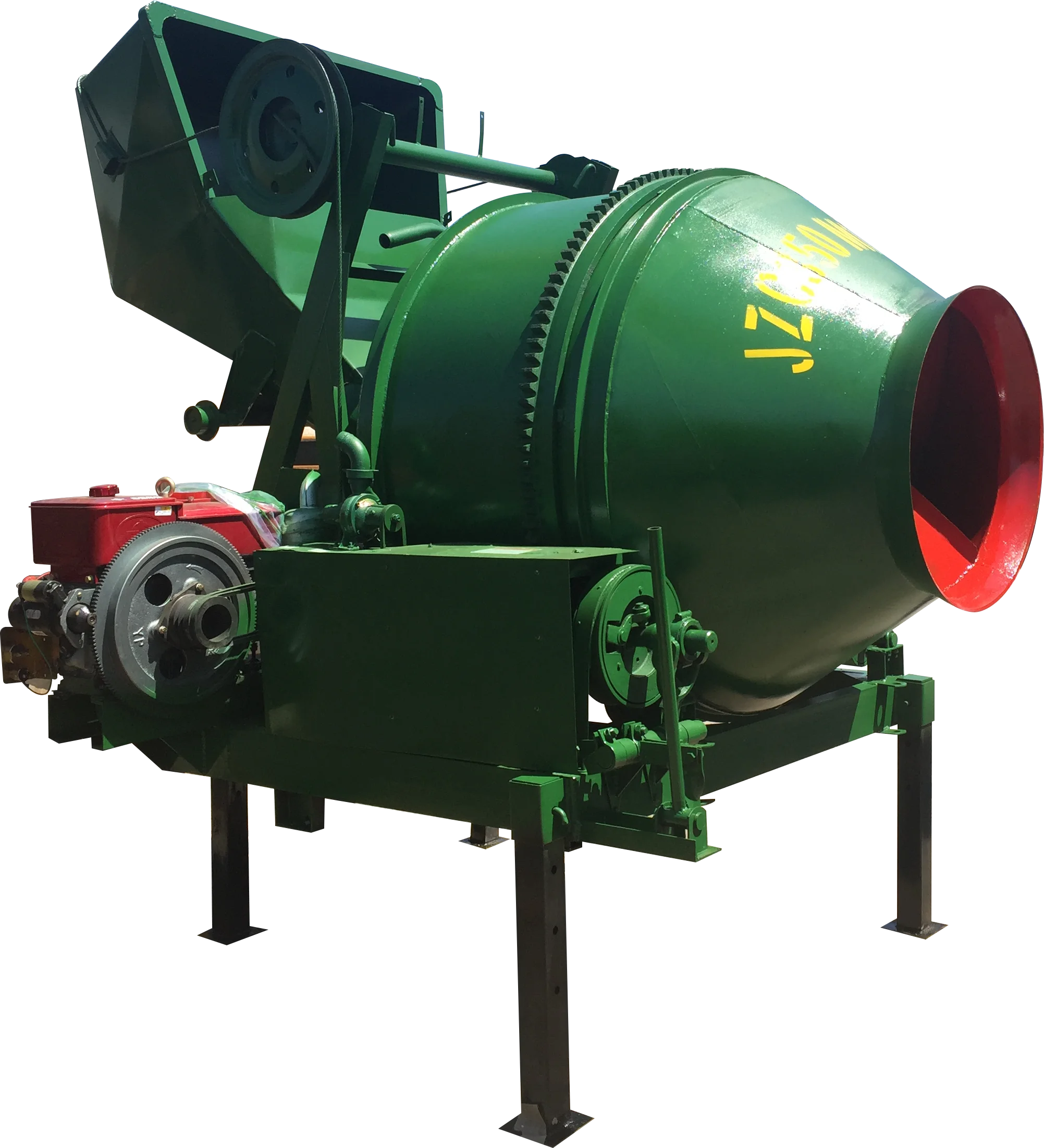

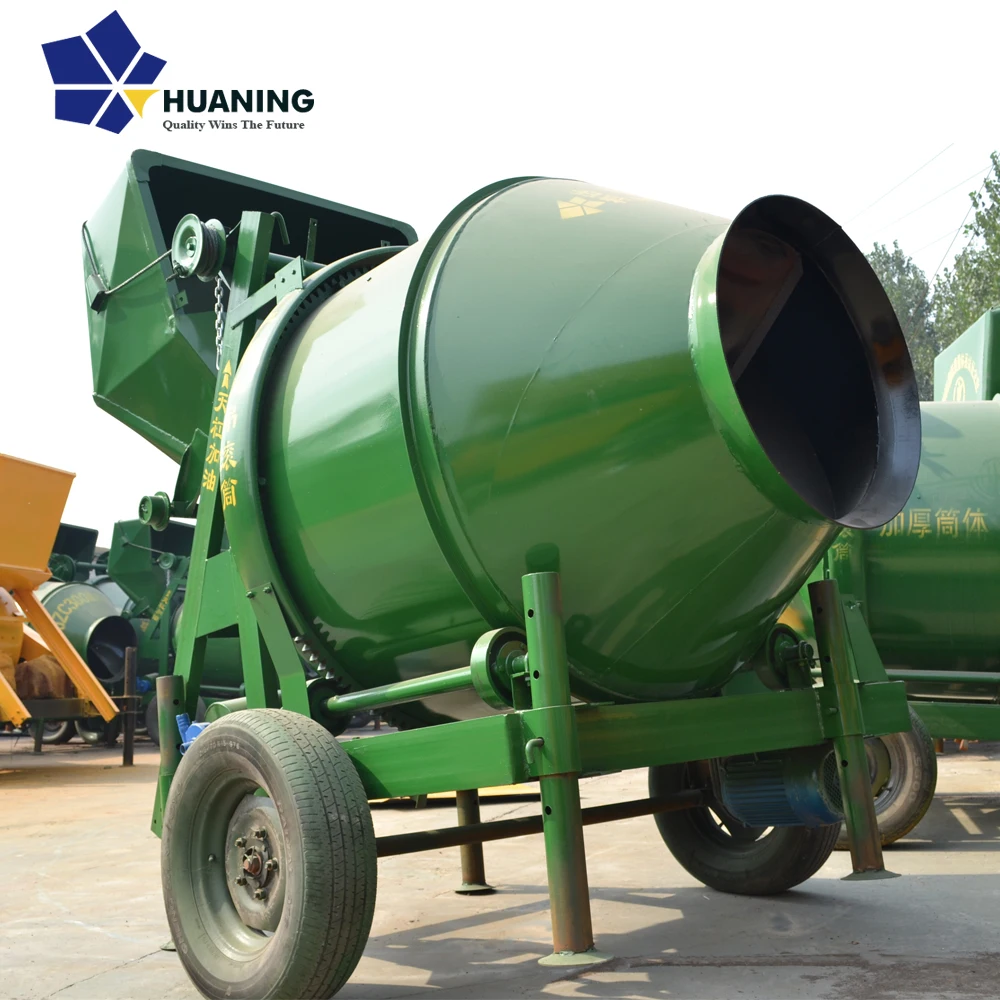

Brief Introduction of JZC series Concrete Mixer
- JZC series Concrete Mixer is the self-falling concrete machine and widely used for mixing plastic and damp-dry rigid concrete.
- The mixing drum is drum is driven by gear ring.
- Self loading Comcrete Mixer with pump discharges comcrete with the double rotating anticlockwise, while it mixes the materials by rotating clockwise.
Applications of JZC series Concrete Mixer
- Architectural buliding site; road construciton; bridge project; water-power project' small and medium concrete plant; etc.
| Models | JZC300 | JZC350 | JZC500 | JZC750 | |
| Working Performances | Discharge Capacity(L) | 300 | 350 | 500 | 750 |
| Feeding Capacity(L) | 480 | 560 | 800 | 1200 | |
| Productivity(m³/h) | 6-8 | 10-14 | 20-25 | 25-30 | |
| Rotation Speed(r/min) | 17 | 14 | 13 | 13 | |
| Max. Aggregate Size | 60mm | 60mm | 60-80mm | 60-80mm | |
| Water Precision | Error≤2% | Error≤2% | Error≤2% | Error≤2% | |
| Motors | Mixing Motor(kw) | 4 | 5.5 | 11 | 15 |
| Lifting Motor(kw) | 4 | 4.5 | 7.5 | 7..5 | |
| Pump Motor(kw) | 0.55 | 0.75 | 1.1 | 1.1 | |
| Max. Towing Spee(km/h) | 20 | 20 | 20 | -- | |
| Tire Size | 6.50-16 | 6.50-16 | 7.50-16 | -- | |
| Dimensions(mm) | 2260×1990×2750 | 2766×2140×3000 | 5520×2300×5800 | 6116×2056×6060 | |
| Weight(kg) | 1300 | 1950 | 4000 | 4200 | |
