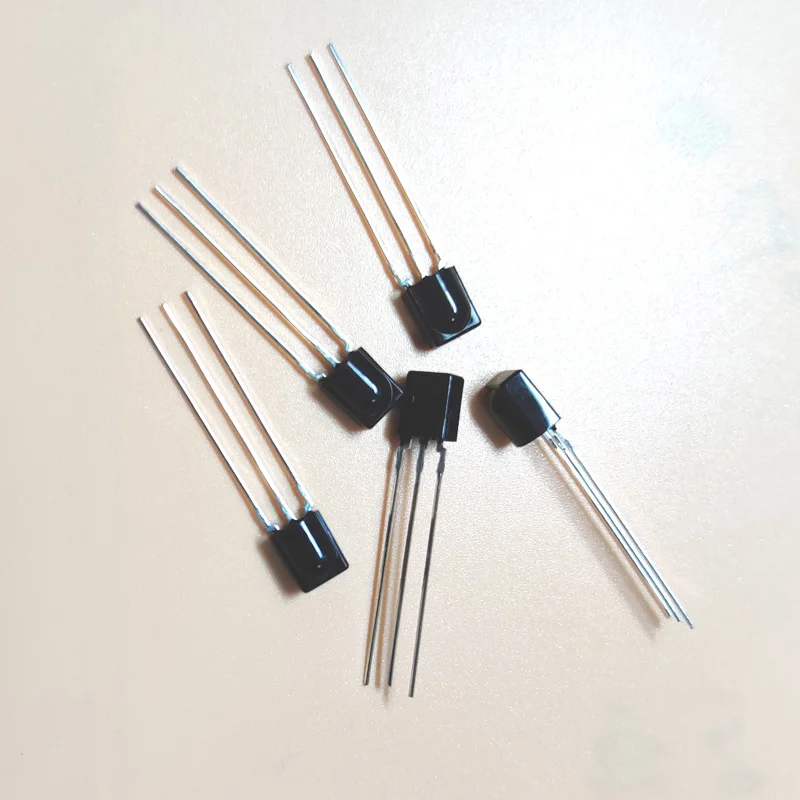

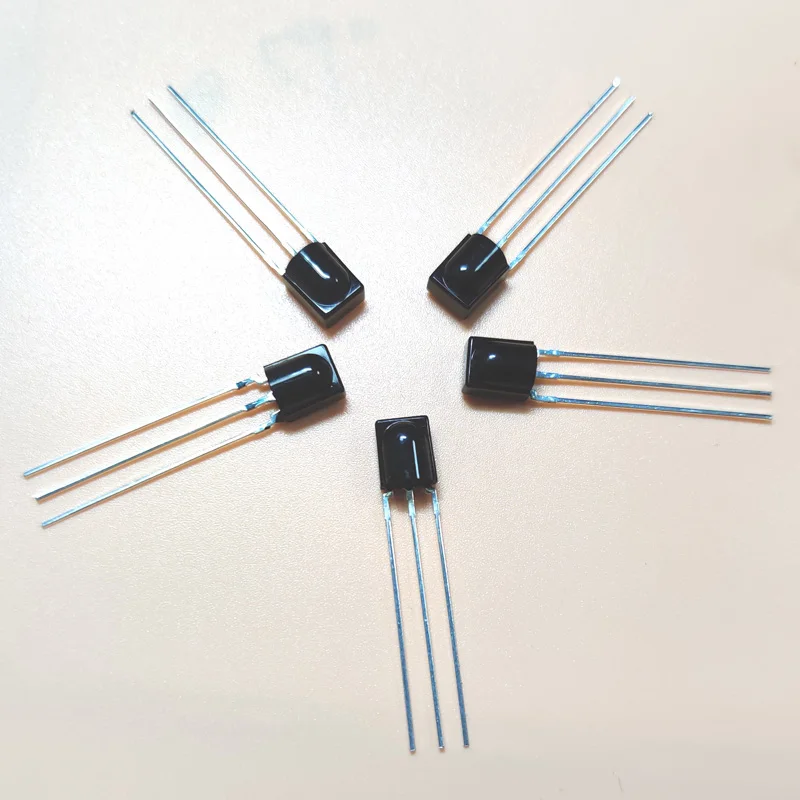

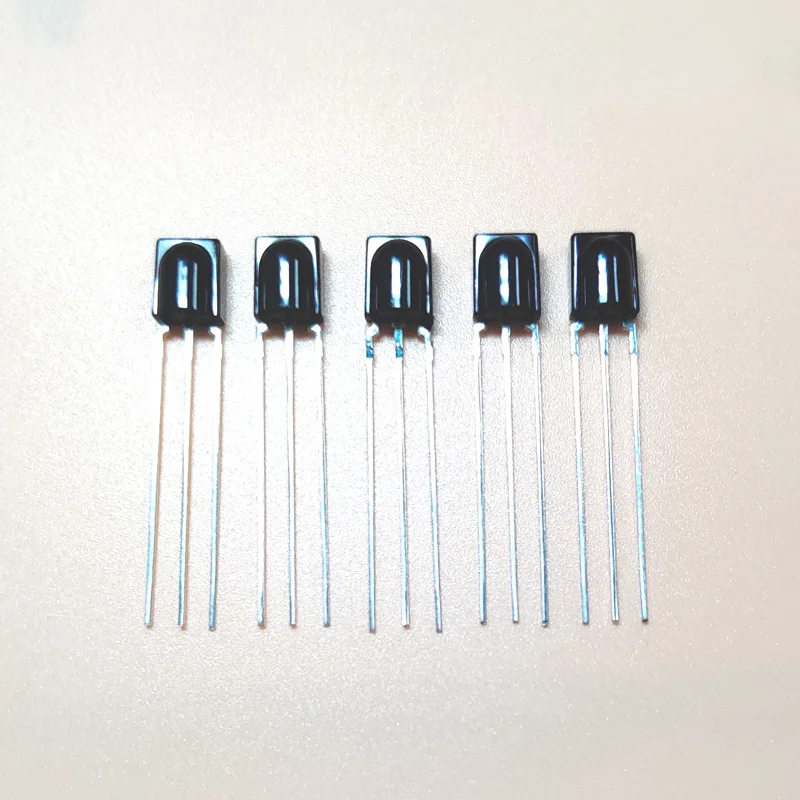

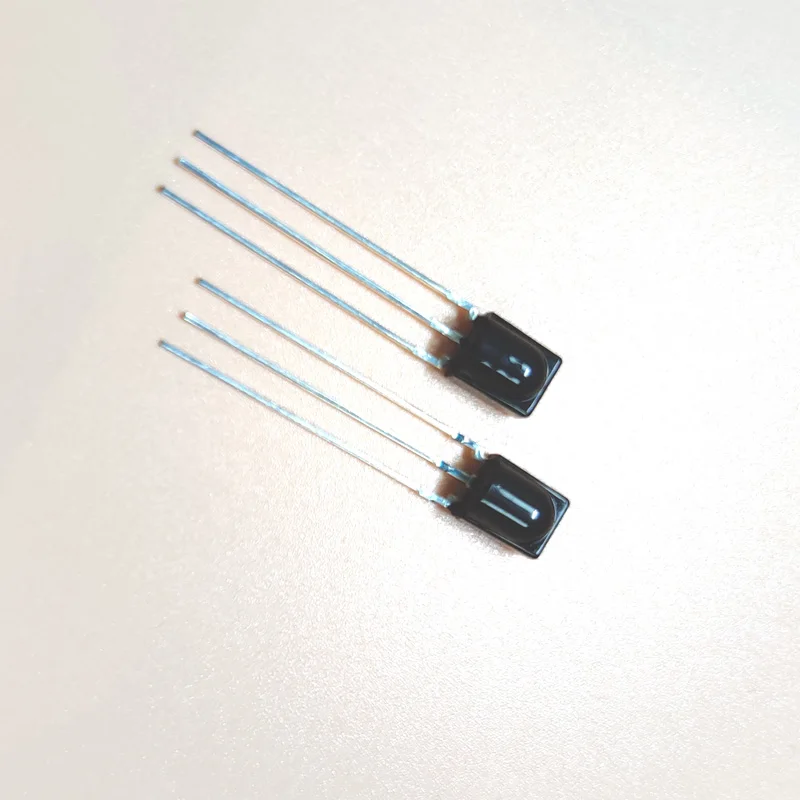

LF120 Model Infrared Lfn Ir Infrared Receiver Module Sensor Pack Set Top Box TV Use Infrared Receiver Pack
- Category: >>>
- Supplier: Shenzhen Lanfeng Technology Co. Ltd.
Share on (60565327976):
Product Overview
Description
Products Description
120 Model Infrared Lfn Ir Infrared Receiver Module Sensor Pack Set Top Box TV Use Infrared Receiver Pack
Model No: LF120
SIZE: 7.3(L)X6.0 (W)X5.3(H)mmWORKING VOLTAGE: 2.7-5.5 V(DC)
RECEIVE DISTANCE: 15-18 Meter
PIN SPACE: 2.54 mm
PIN LENGTH: 22-31 mm
Products Features
1．Specification：* Small design;
* Built-in chip;
* Wide-angle and long distance reception;
* With strong anti-jamming capability;
* Anti-jamming from the light;
* Low voltage working;
2．Application:
■AV equipment(speaker,TV,projector,DVD player,Audio player. DVB player)
■Home appliances (LED light,fan, air-condition,light)
■Other remote control appliances
Products Parameters
Parameters | Mark | Test condition | Min | Type | Max | Unit | ||||
Working votage | VCC | 2.7 | 5.5 | V | ||||||
Working Current | Icc | 0.6 | 0.8 | - | mA | |||||
Quiescent current | Ice | With out signal | 0.1 | 0.5 | mA | |||||
Receive distance | L | ※ | 20 | 23 | M | |||||
Receive angle | θ1/2 | +/-60 | Deg | |||||||
Carrier frequency | f0 | 38 | KHZ | |||||||
BMP width | fBW | -3Db Bandwidth | - | 8 | - | kHz | ||||
Low output | VOL | Vin=0V Vcc=5V | 0.4 | V | ||||||
High output | VOH | Vcc=5V | Vcc-0.3 | Vcc | V | |||||
Output pulse Width | TPWL | Vin=50mVp-p | 500 | 600 | 700 | μS | ||||
TPWH | Vin=50mVp-p | 540 | 640 | 740 | μS | |||||

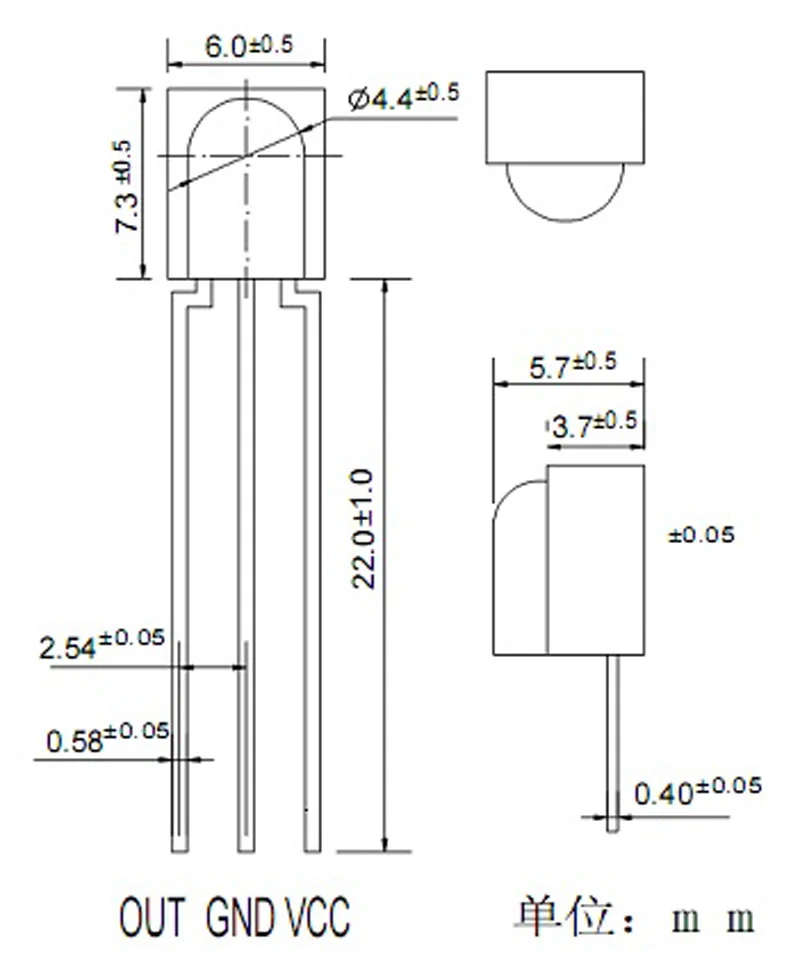

Products Dimensions.
