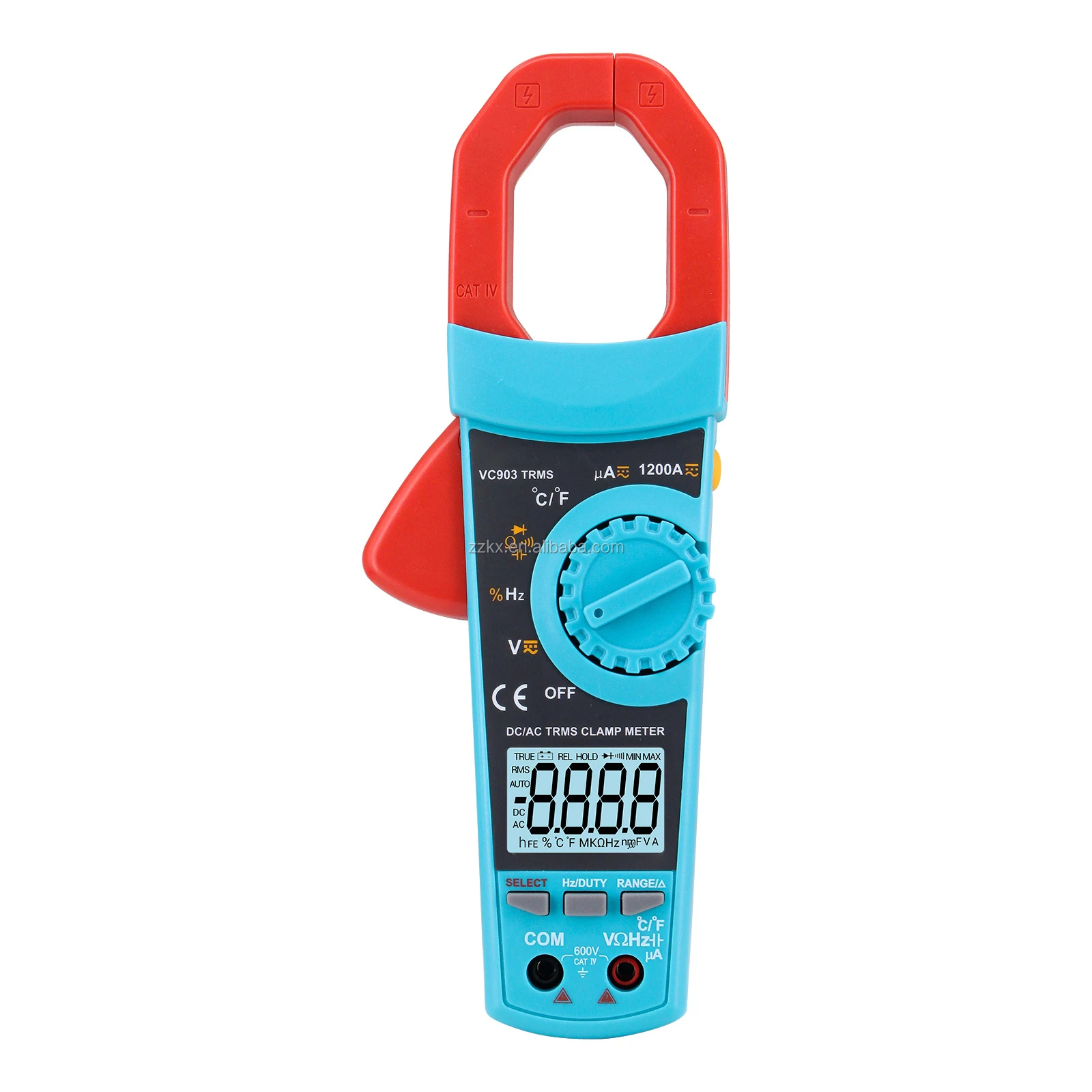

Цифровой зажим VC903 с большим ЖК дисплеем, измерение истинных среднеквадратичных значений, 6000 отсчетов

  Features:
Auto/manual ranges
True RMS measurement
550V protection in resistance and capacitance ranges
Large LCD display, MAX display 6000 counts
Sample rate: 3 times per second
backlight
Data hold
Polarity identification
Low voltage indication
1200A high current measurement, low current measurement
Auto power off
Main measurements: AC/DC Voltage, AC/DC Current, Resistance, Capacitance,
Diode and Continuity Testing, Temperature, Frequency and duty cycle.
* Frequency: 1Hz to 10MHz
* Temperature: -20℃ to 1000℃( -4℉ to 1832℉)
* Capacitance :10pF to 6000uF
* AC volts: 0.1mV to 750V
* DC volts: 0.1mV to 1000V
* AC current: 0.1uA to 1200A
* DC current: 0.1uA to 1200A
* Resistance : 0.1Ω to 60MΩ
* Duty cycle: 1% to 99%
Specifications:
(1)frequency: 5/50/500/5k/50k/500k/5M/10M (±0.1+3)
(2)Temperature: <400℃ ±( 1.0%+5) , ≥400℃±( 1.5%+15)
<752℉ ±( 1.0%+5) , ≥752℉±( 1.5%+15)
(3)capacitance: 10nF( ±5.0+20) ,100nF/1uF/10uF/100uF( ±2.0%+5) , 1000uF/10000uF( ±5.0%+5)
(4)DC volt:600mV(±1.0%+10), 6V/60V/600V/1000V(±0.5%+3)
(5)AC volt:600mV(±3.0%+3), 6V/60V/600V/750V(±1.0%+3)
(6)ACA/DCA:600uA/6000uA(±0.8%+10), 60A/600A/1200A(±2%+30)
(7)Resistance: 600Ω(±0.5%+3),6K/60K/600K/6M(±0.5%+2),60MΩ(±1.5%+3)
(8)Duty cycle:1% to 99%(±1%)
(9) Measurement mode: Double-integral style A/D transform
(10)Over range indication: OL
(11) Working environment: 0~40℃, relative humidity < 80%
(12) Supply power: 3V (1.5V AA batteries * 2 Pcs)
(13) Dimension: 280*70*45mm
(14) Weight: 510g
(15) Accessories: User’s manual, outer packing box, a bag, a pair of test leads, a TP01K thermocouple , and a
9V batteries
