1, 5 years warranty! Your outdoor lighting project, five years without worry!
2, Lumileds 5050 chips, 170LM/W. High brightness!
3, Ultra high capacity LiFePO4 Lithium battery, lighting time up to 5 rainy days!
4, Serve you with all my heart !

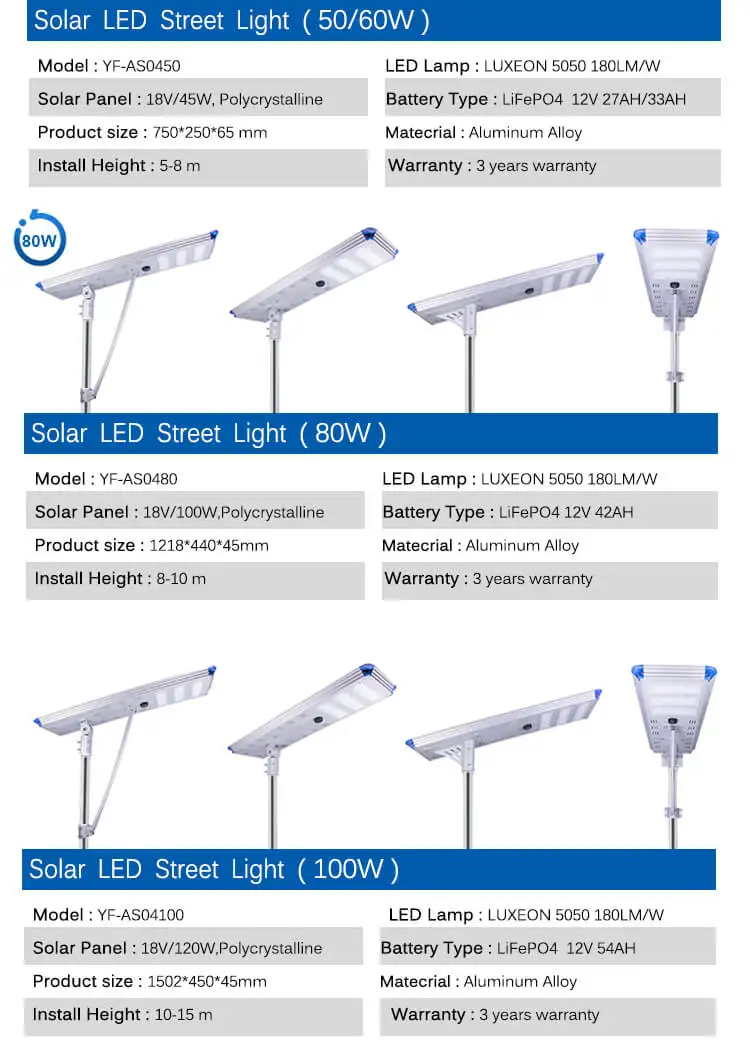

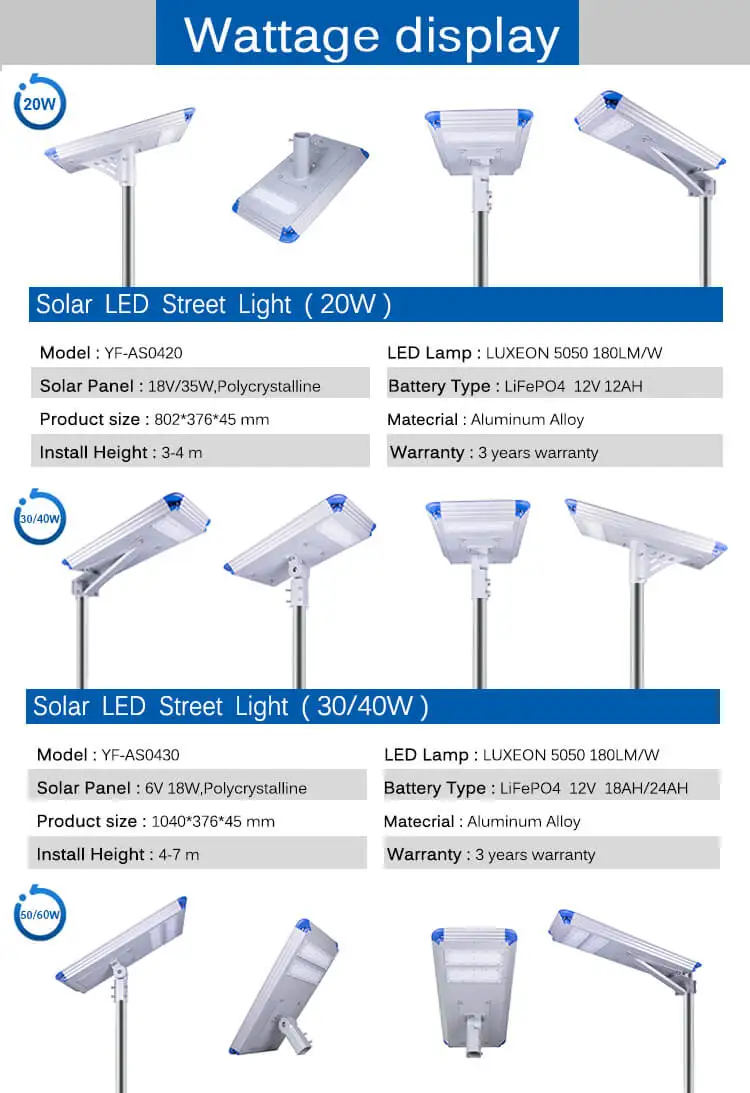

PRODUCT ATTRIBUTE
Item No.
AS0420
AS0440
AS0460
AS0480
AS04100
Power
20W
30W/40W
50W/60W
80W
100W
Luminous flux
3200 LM
5400/7200LM
9000/10800LM
14400LM
18000LM

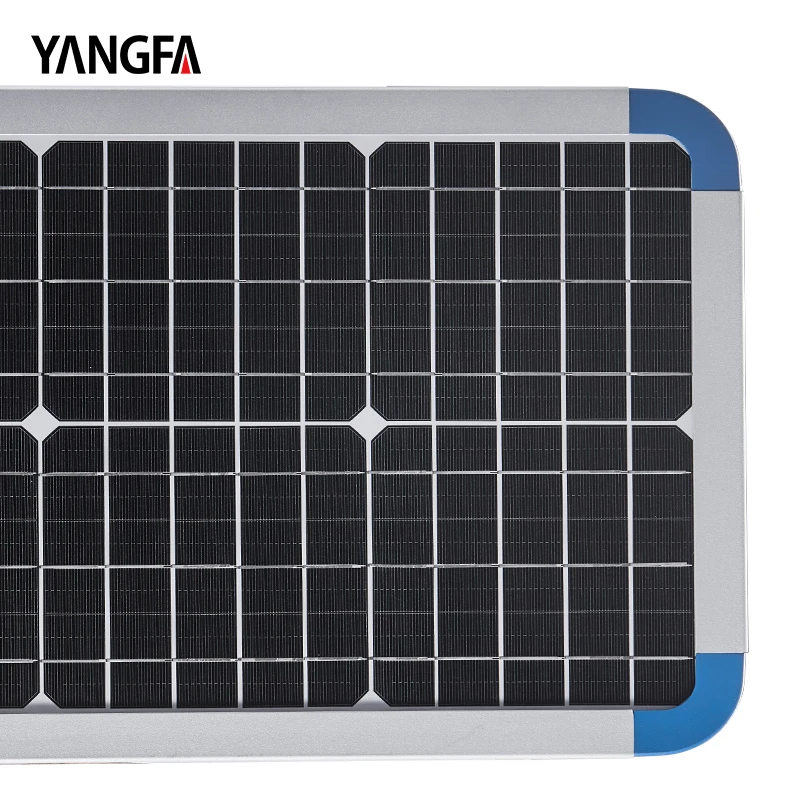

Mono-crystalline panel
18V 35W
18V 40W
18V 80W
18V 100W
18V 120W
LiFePo4 lithium battery
12V 12AH
12V 18/24AH
12V 27/33AH
12V 42AH
12V 54AH
N.W.(KG)
5.1
5.6
6.3
6.7
8.0
Product size(CM)
81*37.5*2
104*37.5*2
122*37.5*2
122*37.5*2
150*37.5*3
Installation height
3M-5M
4M-6M/5M-7M
6M-8M/7M-9M
8M-10M
10M-15M
Installation distance
9M-15M
12M-18M/15M-21M
18M-24M/21M-27M
18M-26M
24M-30M
Light efficiency
170LM/W
Light source
LUXEON 5050 chips
Material
High quality die-casting aluminum alloy
Light degradation rate
25000h ≤ 20 %
Color rendering index
Ra ≥ 80
Power factor
PF ≥ 0.9 6
Rated life
≥ 50000hours
Color temperature
3000K-6500K
Working temperature
- 30 ~+ 5 0° C
Input Volt age
DC12/24V
Beam angle
60 °* 12 0 °
IP code
IP65 waterproof & dustproof
Brand
YANGFA & Customized
Warranty
3~5 years warranty
Certificate
CE, RoHS, LVD, FCC, ISO9000,EMC,MSDS
Application
garden , courtyard , road , parking lot, out door, etc.
Available color
Silvery white/ customized
Solutions
>> Get free outdoor solar light solutions
PRICE
>> contact us to get price list

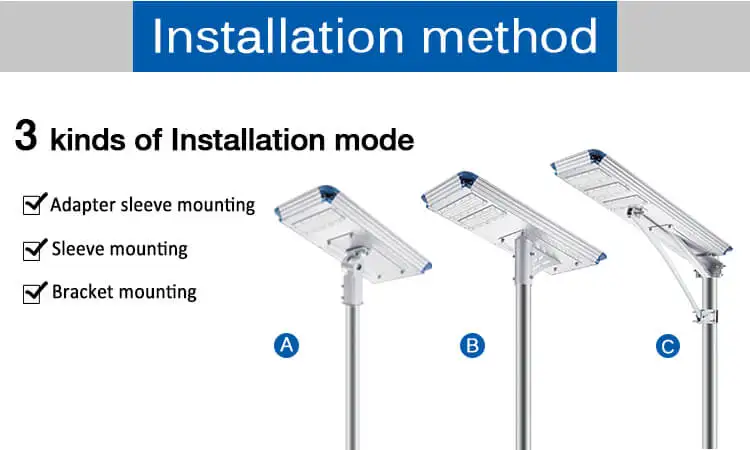

Installation Method
Product Description

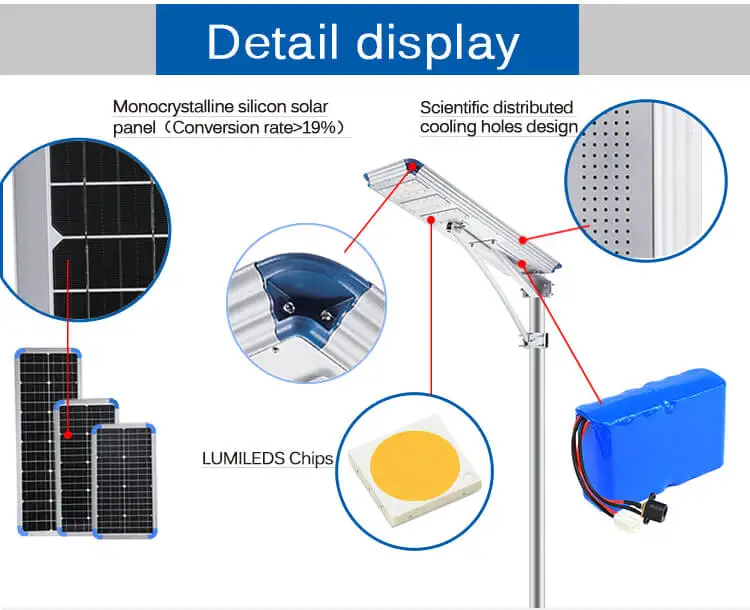

Details&Benefits

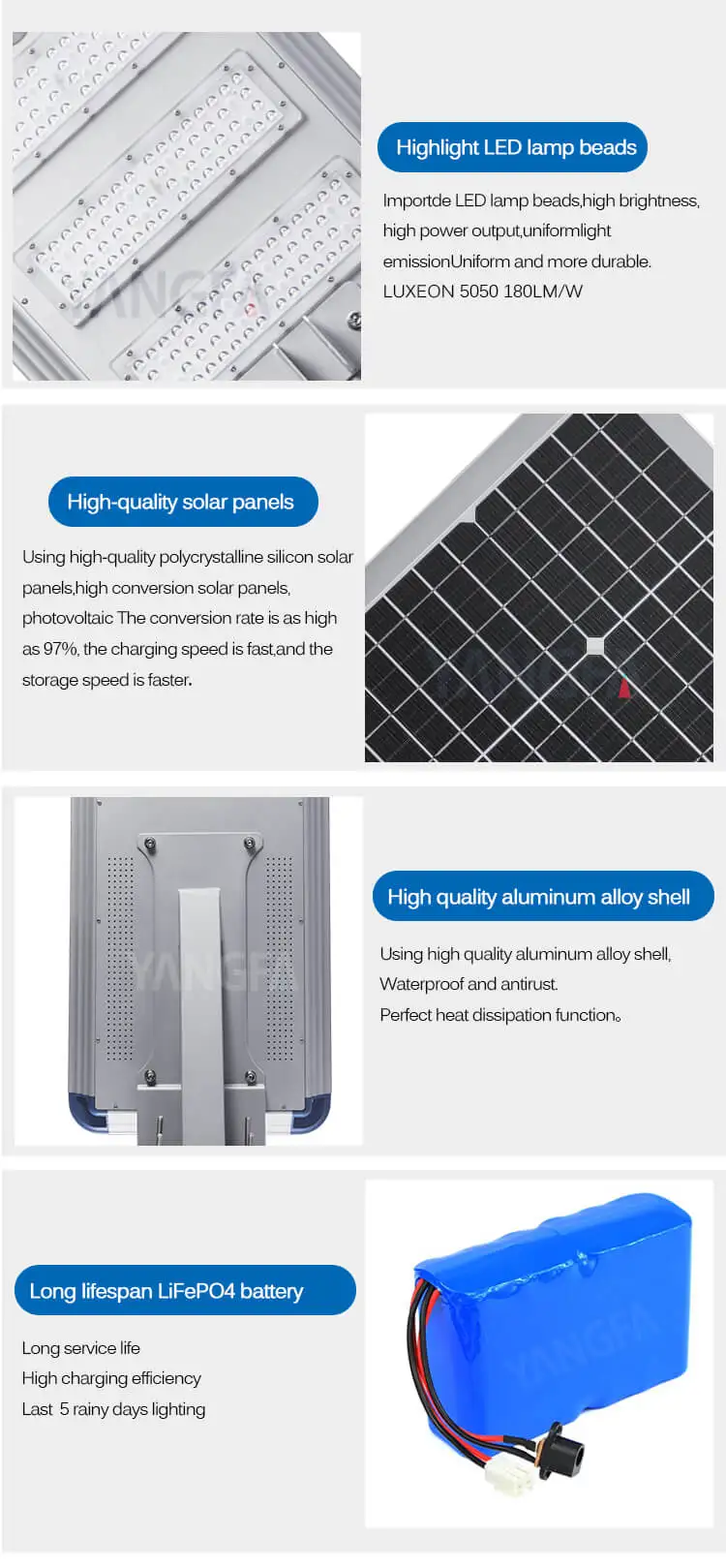

AS04 all in one led solor street light advantage:
1. Elegant Integrated Design,Aluminum alloy case. 2. Mono-crystalalline & Replacable Lithium battery,Simple installation. 3. Intelligent lighting control system: 1) Customizable lighting time: 1-15 lighting hrs & 1-5 lighting periods according customer choice; 2) Intelligent lighting brightness: The controller will control the brightness of the LED lamp according to the battery level; 3)Light sensor:AUTO ON/OFF ; PIR motion sensor: 7-10m detecting distance,120°wide detecting angle.
4. Support at least 5 cloudy or raining days' lighting
5. Using LUEXON 5050 chips, up to 180LM/W!
6. Feel free to contact us if you have any other question. >> Contact me.
