Professional Design High Strength Hydraulic Jacks For Sale
- Category: >>>
- Supplier: Shandong Starye Firefighting Equipment Co. Ltd.
Share on (60565460606):
Product Overview
Description
Product Description
Professional Design High Strength Hydraulic Jacks For Sale
1. Material of the hydraulic extension cylinder: Cylinder being taken use of high strength alloy, tough enough for heavy objectives and light weight;
2. Functions of this model HR-100-208/600-C hydraulic extension cylinder: Moving obstacles, lift objects to create rescue channels and maintain object stable for rescue, three external pistons can help enlarge lifting scope;
3. Operation of hydraulic extension cylinder: Only need to twist the handle of the hydraulic extension cylinder for piston working or turning back, simple and light enough for all people;
4. Maintenance: Check seal part and piston from damage or leakage each month; store the hydraulic extension cylinder in dust-free place.
2. Functions of this model HR-100-208/600-C hydraulic extension cylinder: Moving obstacles, lift objects to create rescue channels and maintain object stable for rescue, three external pistons can help enlarge lifting scope;
3. Operation of hydraulic extension cylinder: Only need to twist the handle of the hydraulic extension cylinder for piston working or turning back, simple and light enough for all people;
4. Maintenance: Check seal part and piston from damage or leakage each month; store the hydraulic extension cylinder in dust-free place.
Application
1. Highway, railway accident rescue, air crash and beach relief;
2. Buildings and disaster relief;
3. The hydraulic extension cylinder is mainly used for vehicle extrication rescue or similar situations.
2. Buildings and disaster relief;
3. The hydraulic extension cylinder is mainly used for vehicle extrication rescue or similar situations.
Features
1. This hydraulic extension cylinder can provide the Lifting Force at 208KN;
2. Bi-directional hydraulic lock and automatic reset manual valve operation can ensure the operators' security during working when occur unexpected encounters;
3. Short lifting time is needed by this hydraulic extension cylinder, accelerating the rescue process using this hydraulic extension cylinder;
2. Bi-directional hydraulic lock and automatic reset manual valve operation can ensure the operators' security during working when occur unexpected encounters;
3. Short lifting time is needed by this hydraulic extension cylinder, accelerating the rescue process using this hydraulic extension cylinder;
Product Specifications
Model | HR-100-208/600-C |
Rated Working Pressure | 63Mpa or 72Mpa |
Lifting Force | 208KN(first stage) 100KN(second stage) |
Closed Length | ≤460mm |
Length of Cylinder Inside | 600mm |
Lifting Scope | 460-1060mm |
Weight | ≤14.5kg |
Dimension | 460x200x110mm |
Product Actual Shooting
Product Details
01 Controller

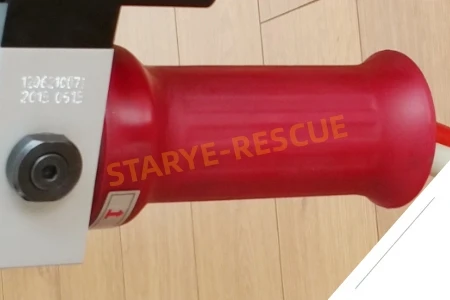

Non-slip cylindrical handle, control tool opening and closing, it can be operated with one hand.

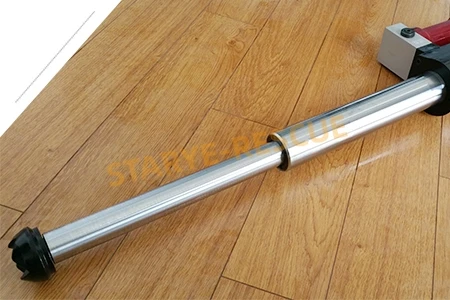

The top rod can be extended up to 2 sections to meet various rescue needs
Non-slip strong base, can make the tool safely fixed in any environment, to ensure the smooth rescue process

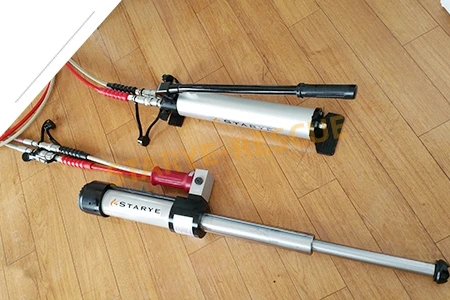

It can be connected to various power sources, such as hand pumps, hydraulic pumps, electric pumps, etc
About Starye
Company Profile
Shandong Starye Firefighting Equipment Co., Ltd, one of the most professional manufacturing company located in China, devotes ourselves into researching, manufacturing and selling various firefighting & rescue equipments and tools.
Up to now, Starye products, such as Professional Design High Strength Hydraulic Jacks For Sale, hydraulic rescue equipment, fire suppression equipment, personal protective devices, rescue tripod, air lifting bags, safety escape chute, Fine Water Mist Extinguishing Equipment etc. which are sold and maintained by our official partners in more than 30 countries, are playing a vital role in the wordwide firefighting and rescue job, such as firefighting rescue, forest firefighting, earthquake, traffic extrication and other disasters' rescue, car accident, personal protection and so on.
Quality and service are the two most important terms for us. For all products before shipment, inspection and test on each step and outcome products are strictly required and controlled in our factory. Total free warranty service is carried out on quality problem valid for all clients. Starye will keep innovating high technology on new products all the time to help for rescue as much as we can.
Up to now, Starye products, such as Professional Design High Strength Hydraulic Jacks For Sale, hydraulic rescue equipment, fire suppression equipment, personal protective devices, rescue tripod, air lifting bags, safety escape chute, Fine Water Mist Extinguishing Equipment etc. which are sold and maintained by our official partners in more than 30 countries, are playing a vital role in the wordwide firefighting and rescue job, such as firefighting rescue, forest firefighting, earthquake, traffic extrication and other disasters' rescue, car accident, personal protection and so on.
Quality and service are the two most important terms for us. For all products before shipment, inspection and test on each step and outcome products are strictly required and controlled in our factory. Total free warranty service is carried out on quality problem valid for all clients. Starye will keep innovating high technology on new products all the time to help for rescue as much as we can.
Company Certificate

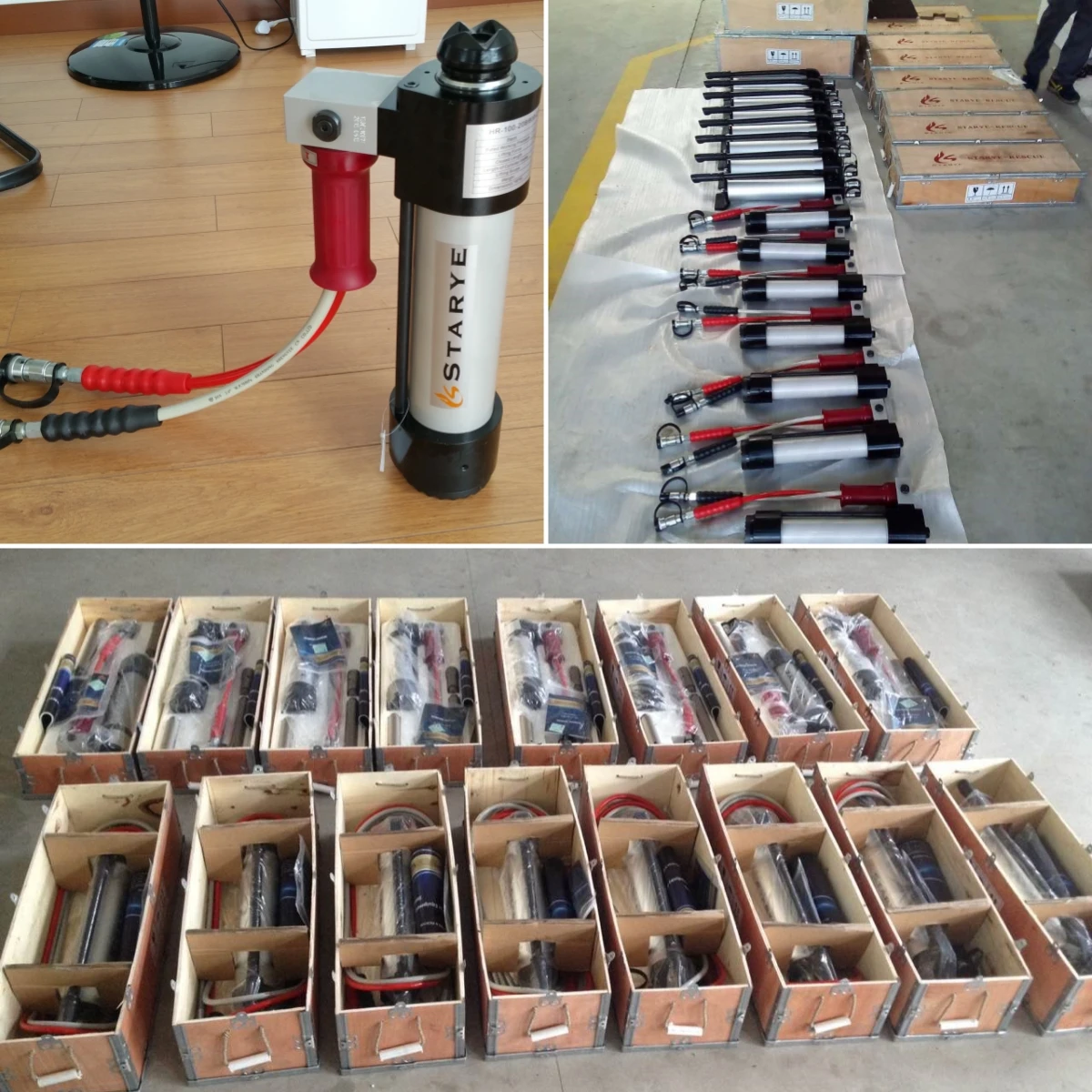

Factory Show
More than 10 years of experience, R & D, production and sales as one
Our Services
1. Warranty
a. 1 years warranty for the whole machine (except for consumables) and whole life after-sale service
b. In the warranty period, if it breaks down or parts damaged(Except the human factors and the factors of force majeure),the seller should be responsible for repair for free, the parts need to be replaced will be provided from seller for free(Except quick-wear parts)
c. After the warranty period expired, the buyer only need to pay the actual maintenance cost.
b. In the warranty period, if it breaks down or parts damaged(Except the human factors and the factors of force majeure),the seller should be responsible for repair for free, the parts need to be replaced will be provided from seller for free(Except quick-wear parts)
c. After the warranty period expired, the buyer only need to pay the actual maintenance cost.
2. Technical support
a. Starye engineer offer 5-7 working days free field installation, commission and training.
b.The buyer in charge of round airfare, board and lodging.
b.The buyer in charge of round airfare, board and lodging.
3. 24 hours online service
The customers’ technicians could keep in touch with our engineer at any time, through wechat / whatsapp / mobile phone or email, our engineer will solve your technical problems in time.
