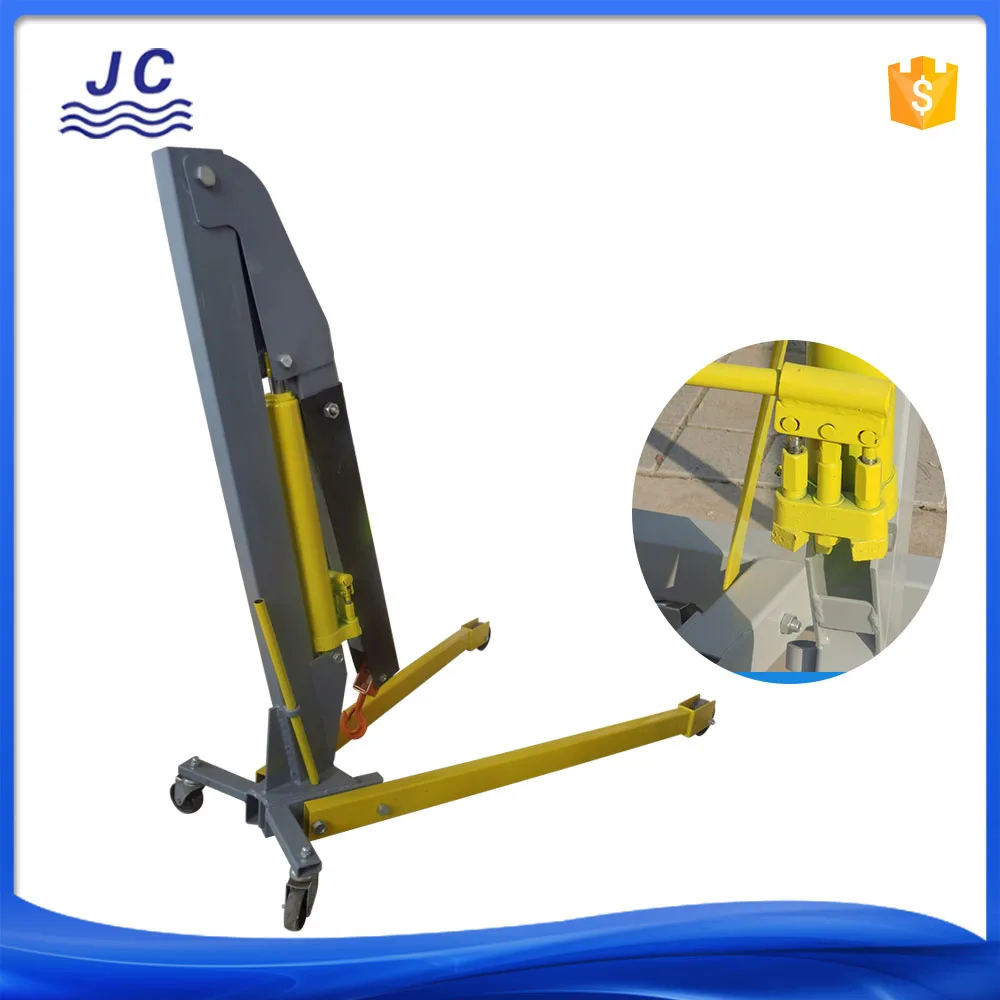

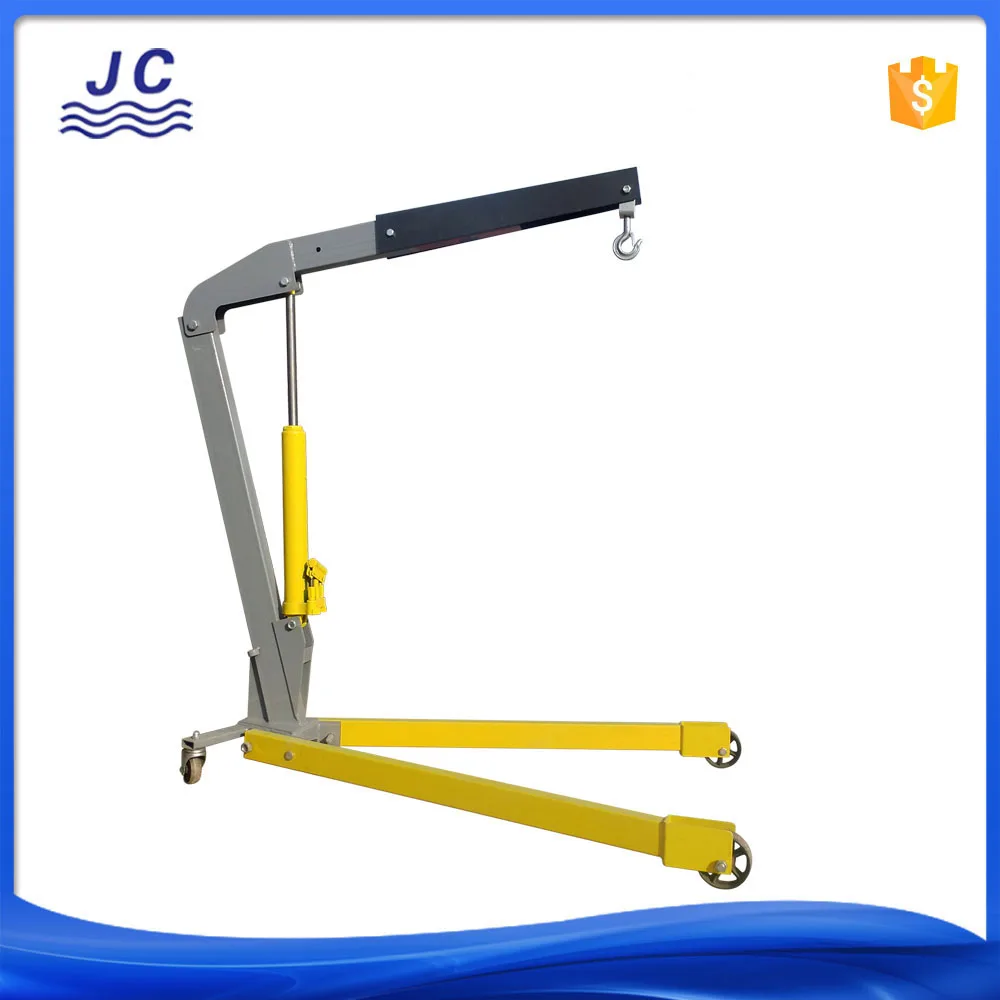

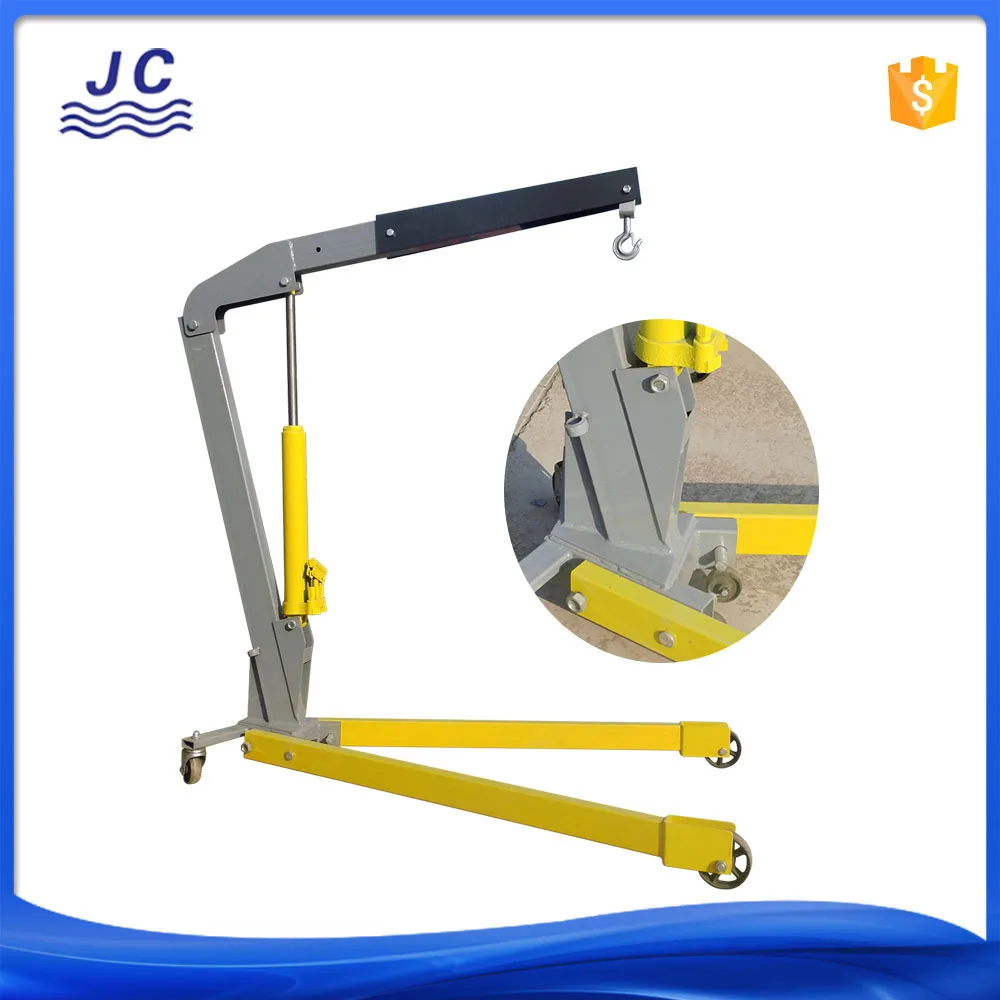

An engine crane is a portable, wheeled hoist designed specifically to lift engines and gearboxes into and out of vehicle engine bays. Engine cranes typically work hydraulically. The smaller, folding variety, suitable for most automotive purposes. They may be used in conjunction with an engine chain sling or a load leveler to level off center loads quickly and easily.
| type | rated load | lifting max. height | lifting min. height | body size | N.W/G.W | warranty |
| GD-2L(stationary,light) | 2T | 2300mm | 300mm | 135*90*140cm | 54/55kg | 3 month |
| GD-2H(stationary,heavy) | 2T | 2300mm | 300mm | 135*90*140cm | 60/62kg | 3 month |
| ZD-2LA(foldable) | 2T | 2300mm | 300mm | 135*90*140cm | 58/60kg | 3 month |
| ZD-2LB | 2T | 2300mm | 300mm | 135*90*140cm | 65/67kg | 3 month |
| ZD-2HA | 2T | 2300mm | 300mm | 135*90*140cm | 70/72kg | 3 month |
| ZD-2HB(fodable) | 2T | 2300mm | 300mm | 135*90*140cm | 83/85kg | 3 month |
engine crane feature
1.Designed for shops with limited space.
2.Heavy steel construction for maximum durability.
3.Boom is reinforced to increase strength and eliminate flex.
4.Heavy-duty steel casters for easy positioning.
5.Front casters include a safety brake to prevent movement.
6.Includes heavy steel hook with safety latch.
7.Wide base for maximum stability.
8.Folds for easy storage



Engine Crane Raw Material
