high quality incinerador de residuos for sale (60565483387)

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description



Product Description


 WFS series waste incinerator is a kind of machine that possess the own intellectual property, features unique and advanced merits with compact size, high burning efficiency, automatic-control, reasonable burning technology, high degree of non-harm etc, it is an ideal choice for waste treatment of hospital, hotels, various stations and industries.







A practical application scene

Poduct Application

*Medical Waste
Such as used cotton balls, sand cloth, tape, waste water, disposable medical equipment, post-operative waste, expired medicines,
etc.
*Industrial Waste
Plastic PE, PU, rubber (tire), Styrofoam, PET bottle, fiber, foam, cloth, bags, resin, acrylic, leather, Wood flour, urea powder,
melon cloth, tapes, paints, polymers and so on.

*Animal carcass cremation.
cat,dog and so on




Main Features of Incinerator

1) Dual chamber design.

2) Material of construction-Heavy duty steel.

3) Insulated and refractory lined chambers.

4) Low running & maintenance cost.

5) Environment friendly.

6) Installation with help of installation manual, drawings and professional engineer direction.



Working Principle


Primary pyrolysis gasifying

Organic matters in the waste would be decomposed into combustible gas in pyrolysis gasifying method.

Mixing combustion

The temperature of secondary combustion chamber should be controlled above 850℃, and the residency time more than 2s.

Secondary combustion

Turbulent combustion would remove black smoke and peculiar smell thoroughly. Dioxin and other toxic and harmful objects would be inhibited to produce from the source.



Parameters


Item Model
WFS-30
WFS-50
WFS-150
WFS-300
WFS-500
Incineration capacity
20-30kg/time
(3-6time a day)
30-50kg/time
(3-6time a day)
100-150kg/time
(3-6time a day)
200-300kg/time
(3-6time a day)
300-500kg/time
(3-6time a day)
Incineration size (m)
(L X B X H)
1.45 X 0.9 X 1.75
1.8 X 1.15 X 3
2 X 1.4 X 3.5
2.2 X 1.55 X3.8
3X 2 X4.8
Garbage inlet size
(mm)
480 X 600
620X 800
760 X 960
900 X1100
1080 X 1280
Chimney
(mm)
Outer diameter
Φ280
Outer diameter
Φ280
Outer diameter
Φ300
Outer diameter
Φ400
Outer diameter
Φ460
Induced draft fan
0.37KW
0.37KW
0.55KW
0.75KW
1.1KW
Combustion-supporting device
Power 0.11kw,
fuel consumption
4-6kg/h
Power 0.11kw,
fuel consumption
4-10kg/h
Power 0.11kw,
fuel consumption
5-12kg/h
Power 0.22kw,
fuel
consumption
7-14kg/h
Power 0.22kw,
fuel consumption
7-14kg/h
Reburning device
Power 0.11kw, fuel consumption
4-6kg/h
Power 0.11kw, fuel consumption
4-10kg/h
Power 0.22kw, fuel consumption
7-14kg/h
Power 0.37kw, fuel
consumption
10-20kg/h
Power 0.11kw, fuel consumption
15-26kg/h
Operating voltage
380V or 220V
380V or 220V
380V or 220V
380V or 220V
380V or 220V
Weight (kg)
2300
4000
7000
8000
13000


Detailed Images






Test and Report


Authoritative Flue Gas Quality Test and Report

We invited one of the only three qualified testing institutes in China to make professional, authoritative and EXCLUSIVE flue gas quality test and report in the industry.

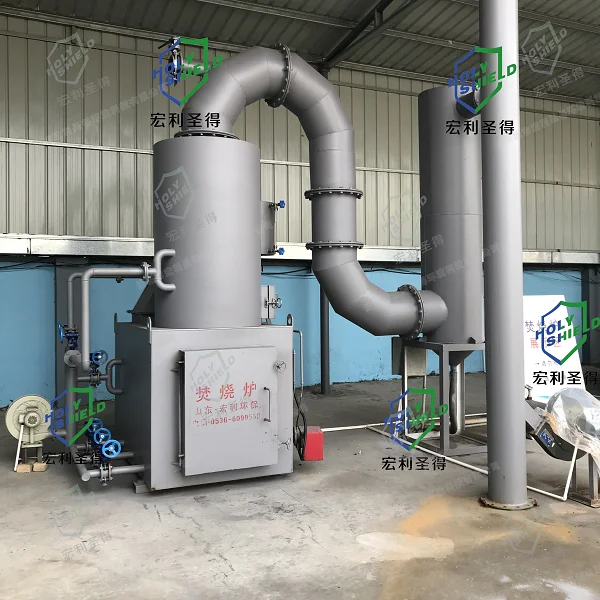

Site Assembly Effect




Our Service


Pre-sales services

* any concerns of our machine by email/phone will be replied ASAP within 24 hours
* according to the customers’ requirements to suggest best machine
*we can provide the video of our machine
* to support factory layout

In the sale of services

* to inform you every steps about delivery
* delivery the machine as soon as possible


After-sales service

* one year guarantee for whole machine
* 24 hours technical support by email/phone



Packing & Delivery





Our company
Zhucheng Hongli Shengde Environment Science and Technology Co., LTD., is a high-tech enterprise integrating production and R&D.

  Now the company is member unit of China Association of Environmental Protection Industry (CAEPI), council unit of Weifang. Association of Environmental Protection Industry, and teaching practice base of Qingdao University of Science & Technology. We have long-term cooperation with Tsinghua University, University of Shanghai for Science and Technology and other famous domestic universities and institutes. We have obtained multiple national utility model patents and passed ISO9001: 2008 quality management system certification. We have high non-standard design, manufacture and service ability with comprehensive testing and detective equipments, complete product specifications reliable and stable quality and customization support. The solid-liquid separating machine developed jointly with Jilin Agriculture Committee has been widely used and promoted.
