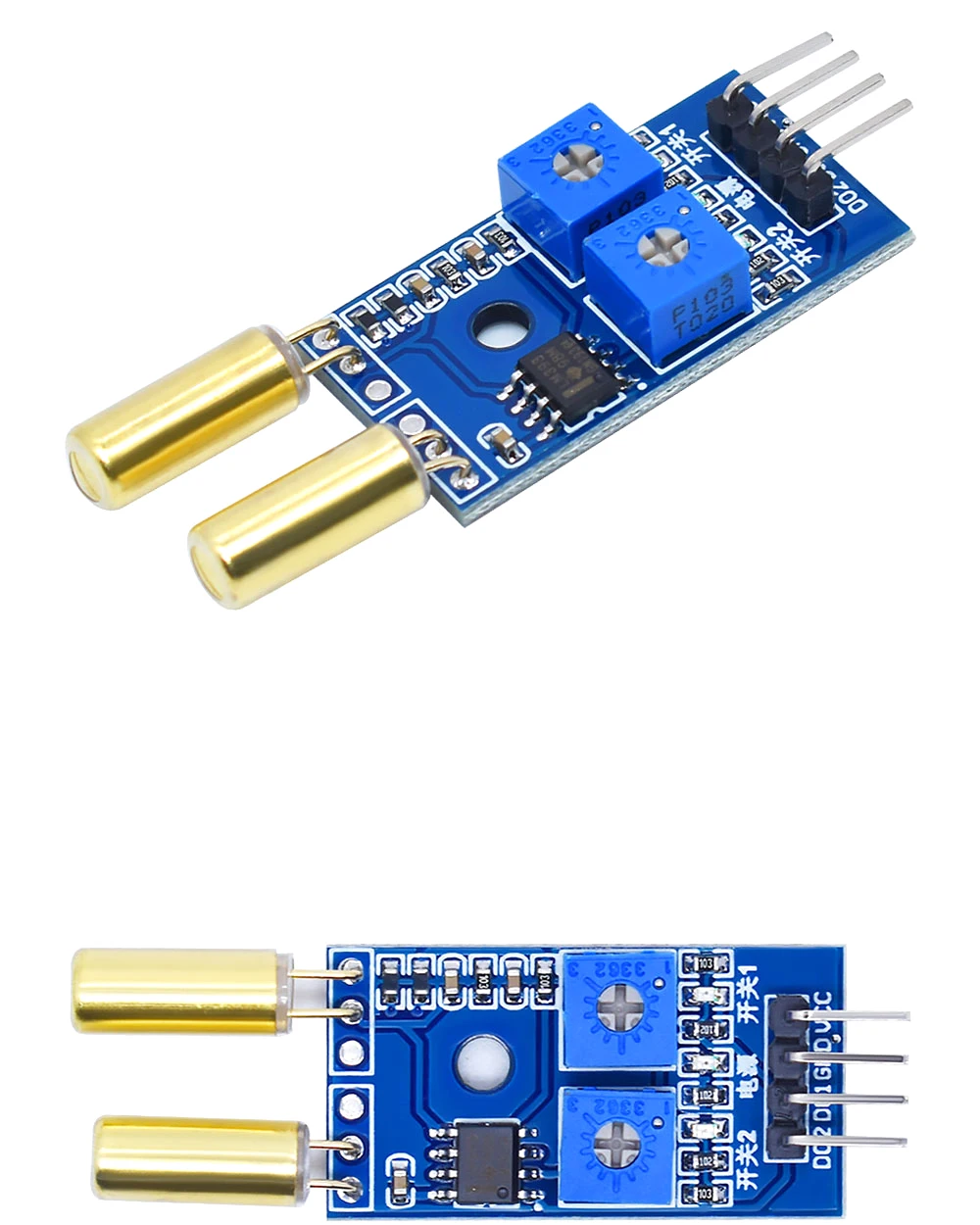

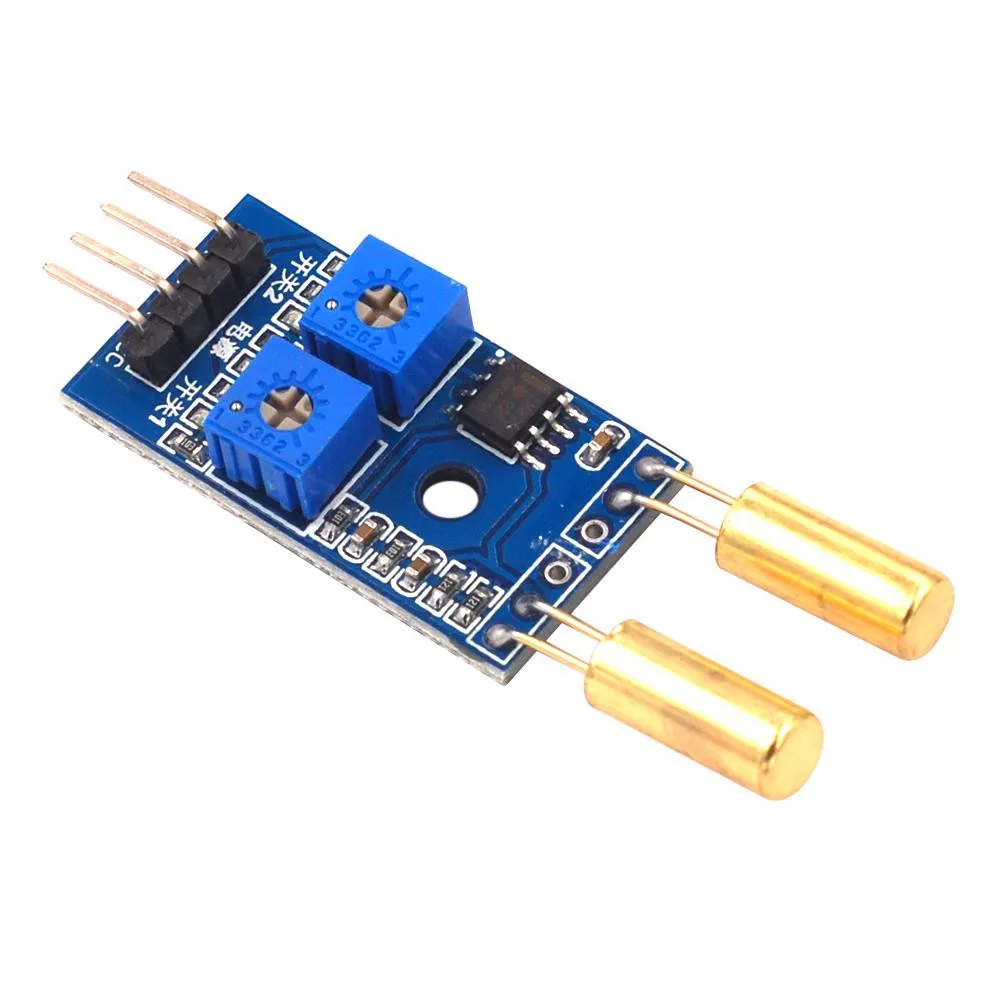

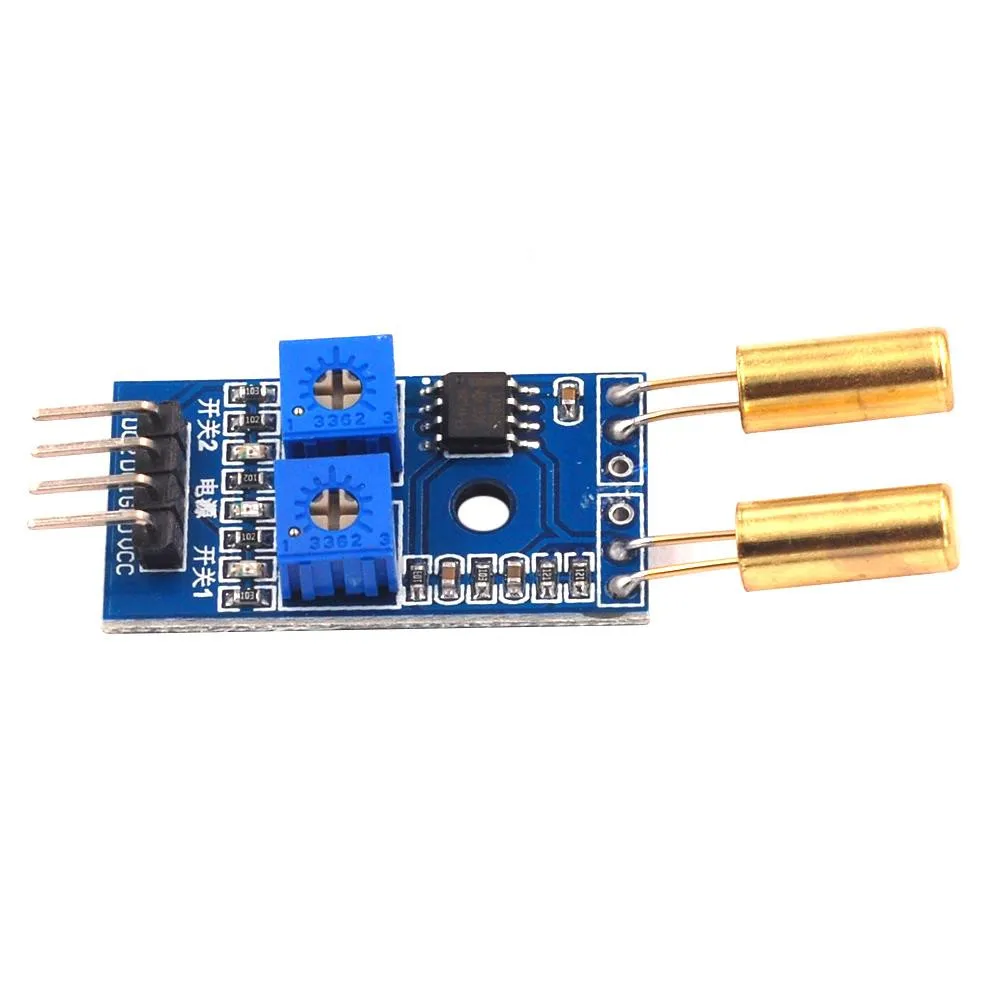

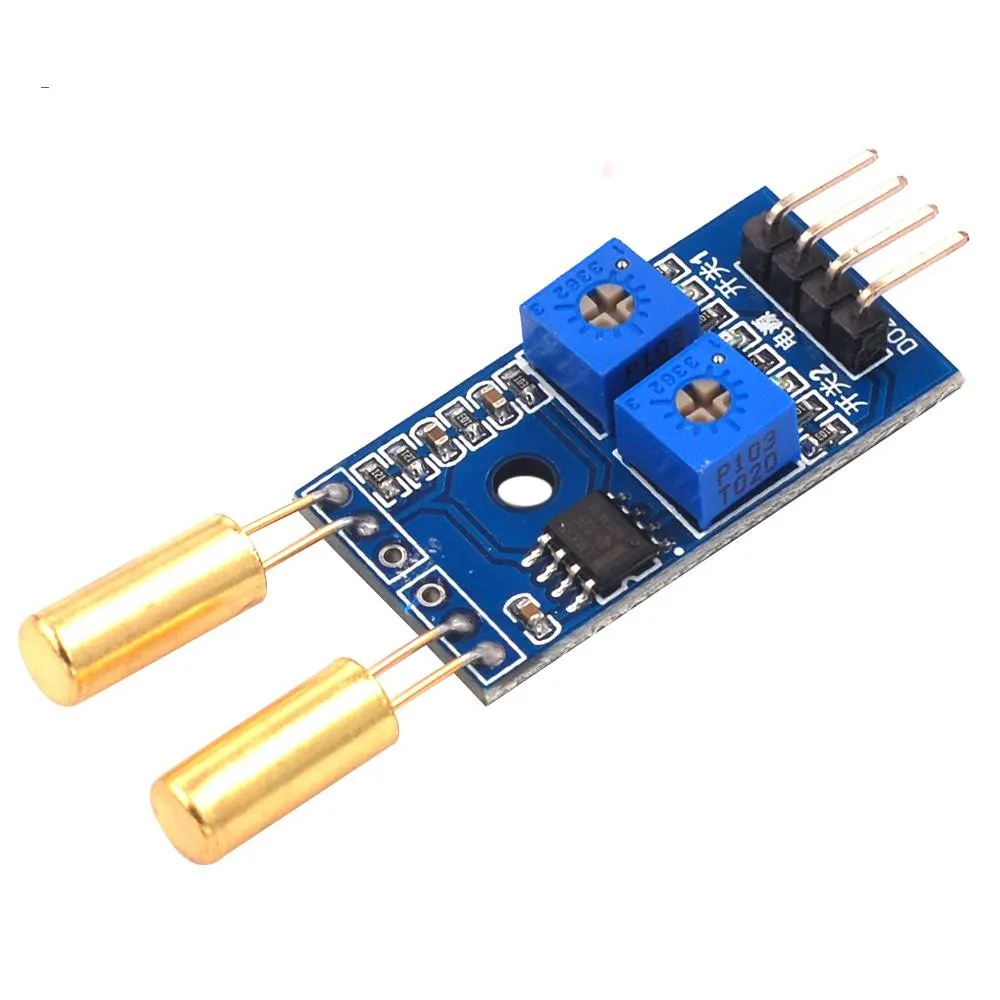

2 Channel Output Tilt Slant Angle Sensor Relay Module Golden SW520D ball switch tilt sensor module

Product Overview

Description

Welcome to our store
Shenzhen Sharphy Electronic Co., Ltd

MK00223 2 angle sensor module angle switch dumping sensor module tilt sensor

Use:
A variety of angle sensor, dumping sensor, tilt sensor, 2 way output control.
Module features:
1, using the company's SW-520D high sensitivity tilt sensor

2, the comparator output, the signal is clean, the waveform is good, the driving ability is strong, more than 15mA.
3, with potentiometer adjustment sensitivity
4, with a fixed bolt holel

working voltage	3.3V-12V
output mode	digital switching output (0 and 1)

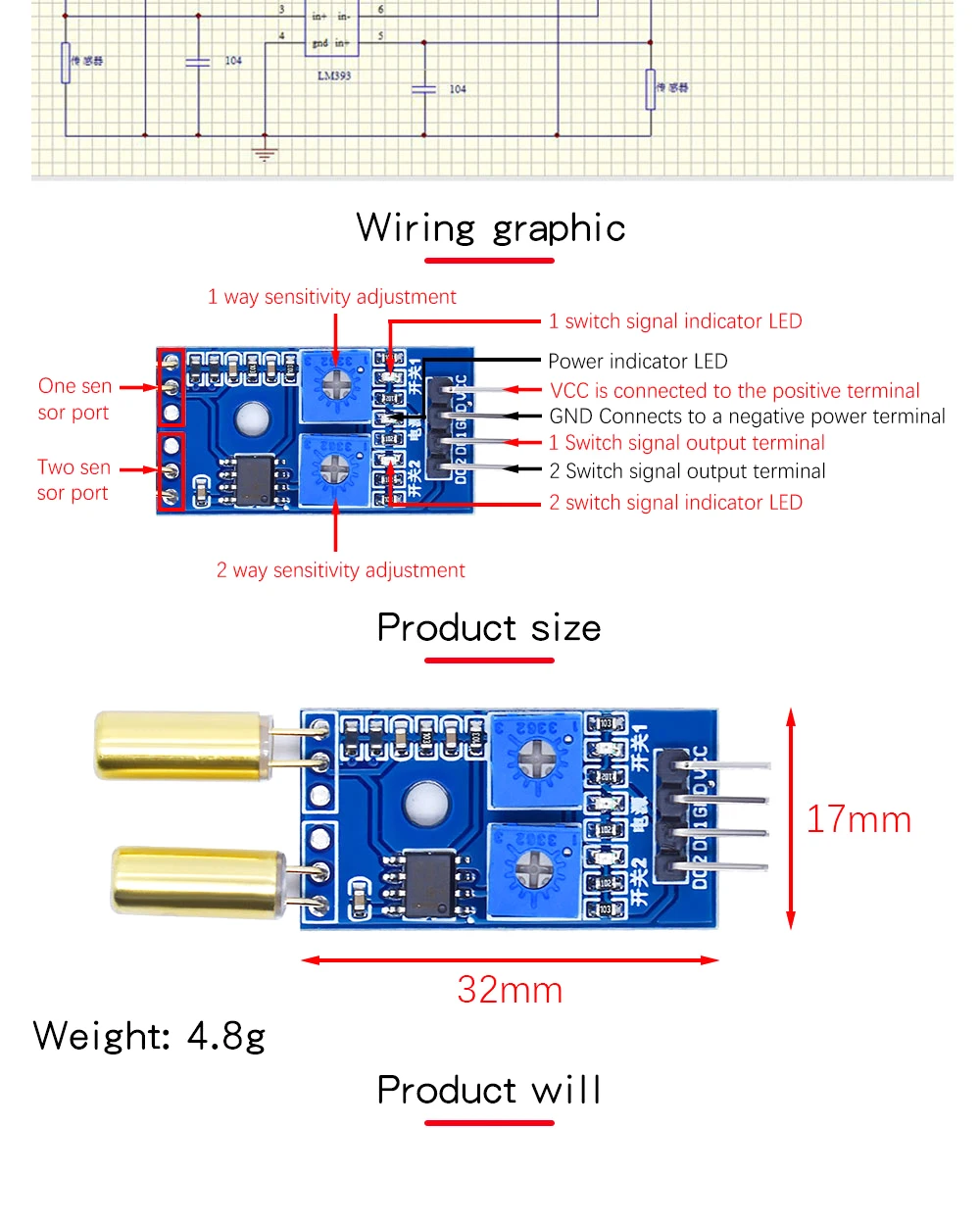

Size	3.2cm x 1.7cm PCB

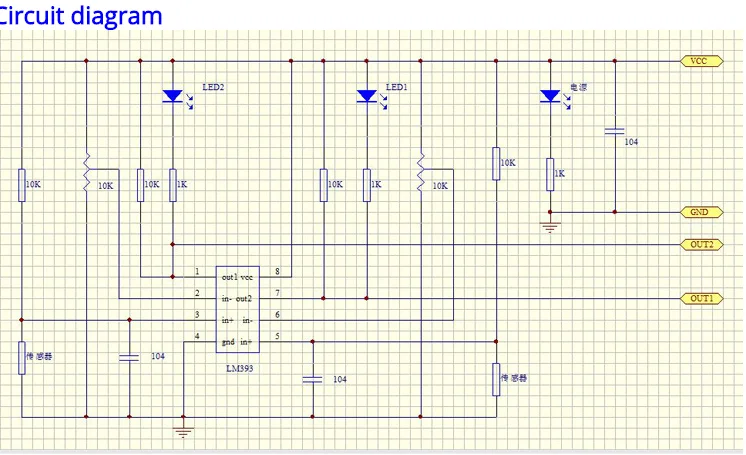

using a wide voltage	LM393 comparator

Module instruction:
1 the initial state of the output of the two channels is determined by the guide and disconnection of the tilt sensor, when the light is switched on, the green light is bright, the output is low, the tilt sensor is disconnected, the green light is off, and the output is high;
2 tilt sensor in the initial state are generally installed in the normally open state, so that the tilt sensor is not in the working state, to extend the service life;
SW-520D sensor 3 default for dumping detecting objects 90 degrees, for the other point of view, please contact dispensers.
4, the output can be directly connected with the microcontroller, through the microcontroller to detect the level of high and low, which is to detect the changing environment;
5, the output can be directly driven by the shop relay module, which can be composed of a large power control angle switch;

Packing list:
2 tilt sensor module 1, with 2 S-520D tilt sensor
