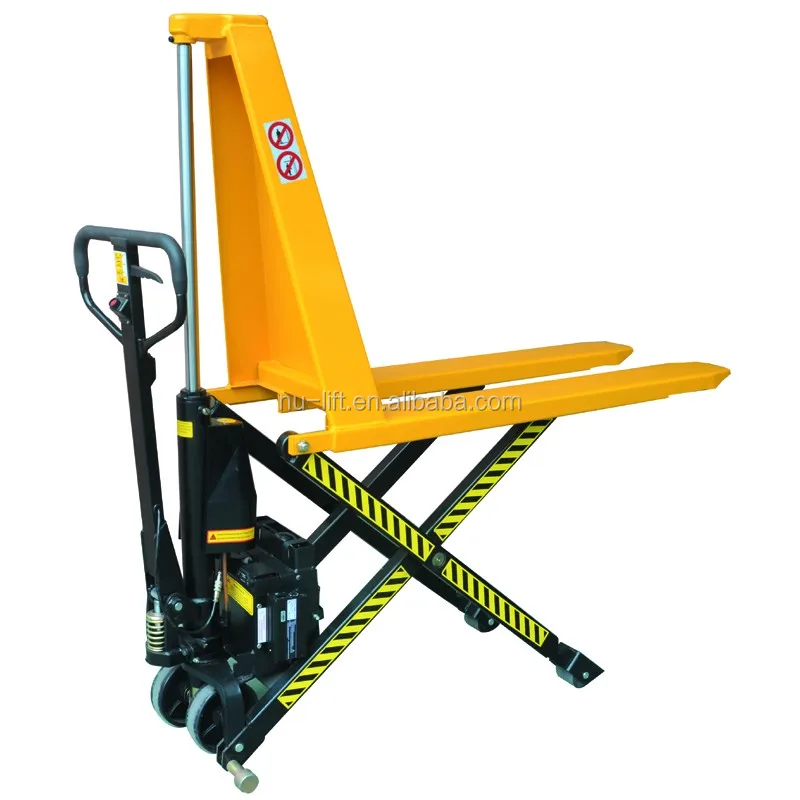

Electric High Lift Scissor Pallet Truck AC.EN series

Product Overview

Description

• World class quality and performance
• Single stage cylinder
• No decrease of capacity.
• No risk of leakage.
• No dangerous dropping of second stage cylinder.





Model		AC1054EN	AC1068EN	AC1554EN	AC1568EN
Type		Electric
Rated Capacity	(kg)	1000	1000	1500	1500
Max. Fork Height	H (mm)	800	800	800	800
Min. Fork Height	h (mm)	85±2	85±2	85±2	85±2
Size of fork	(mm)	160x50		160x50
Width of overall fork	(mm)	540	680	540	680
Length of fork	(mm)	1150		1150
Fork roller	(mm)	80x70		80x70
Big wheel	(mm)	180x50		180x50
Battery	(V/AH)	12V/60AH
Lifting motor power		0.8KW
Weight	(kg)	155	160	160	165
