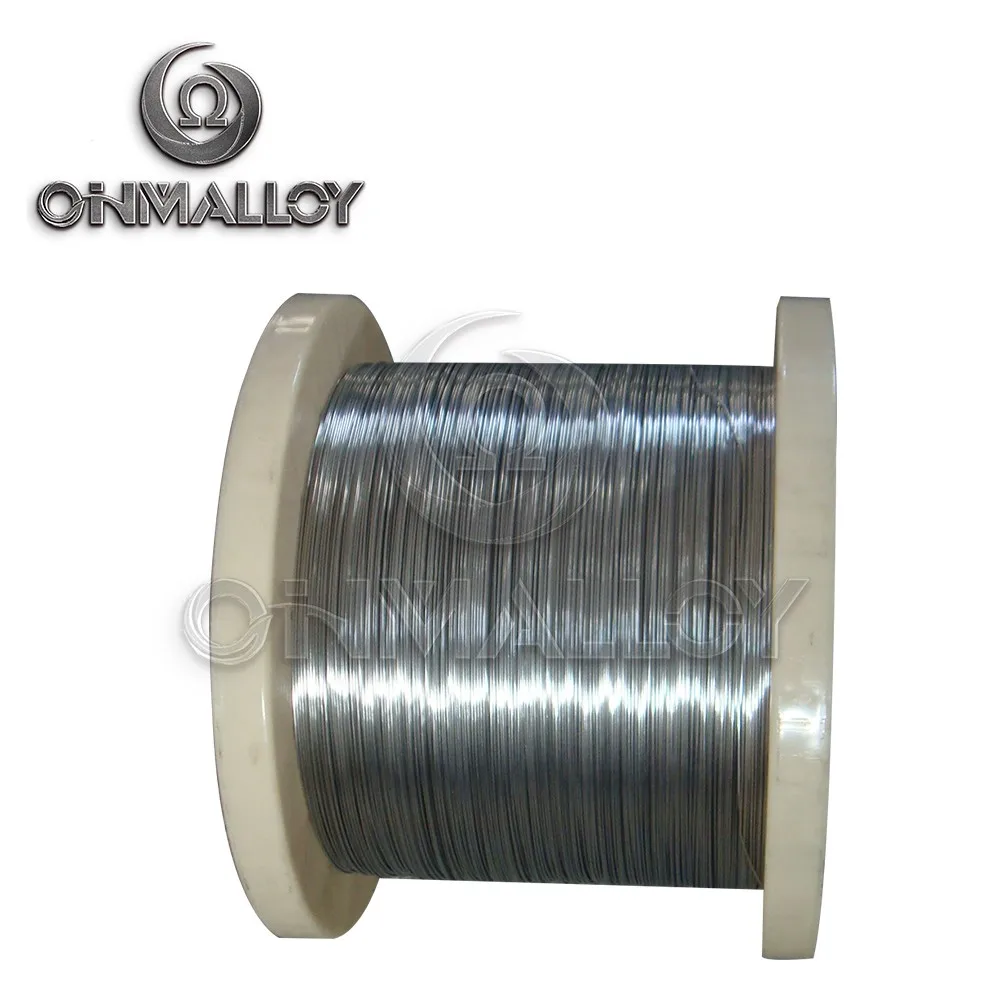

Thermocouple alloy wire Alumel 32 AWG Diam 0.203mm Special grade

Product Overview

Description





Thermocouple alloy wire Alumel- 32 AWG - Diam 0.203mm - Special grade



Alumel(KN) is an alloy consisting of approximately 95% nickel, 2% manganese, 2% aluminium and 1% silicon. This magnetic alloy is used for thermocouples and thermocouple extension wire. In thermocouples, alumel is often used together with chromel to form type K thermocouples

(Common Name: KN, NiAl, NiSi3,Thermothal N)

Normal composition%

Nickel	95	Manganese	2
Aluminium	2	Silicon	1

Or

Nickel	97	Manganese	0
Chromium	3	Silicon	0



Properties of Alumel:

CHARACTERISTICS:
Temperature coefficient	0.00032 K−1
Electrical resistivity	0.294 µΩ m
Mechanical properties
Elongation at break	<44%
Thermal conductivity	30 W/m/K
Tensile strength	620–780 MPa

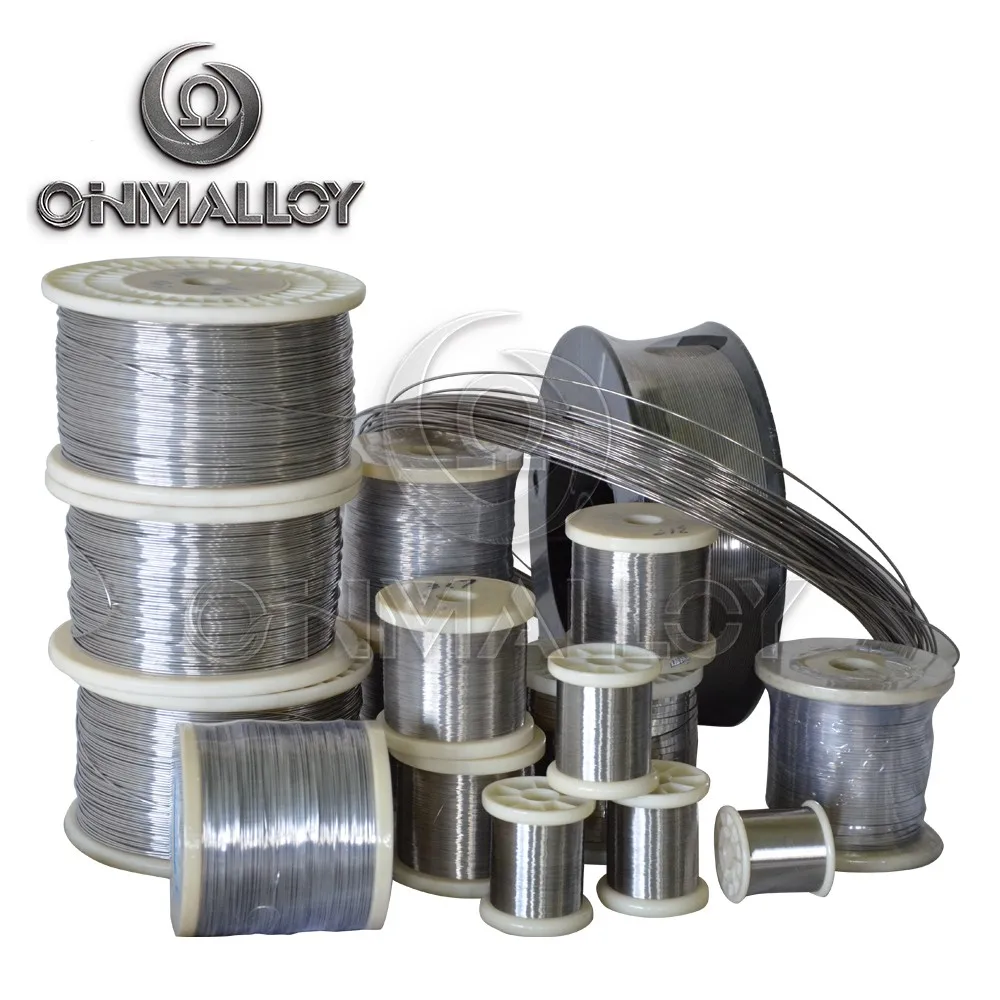

Style of supply

Alloys Name	Type	Dimension
Chromel-W	Wire	D=0.05mm~12mm
Chromel-R	Ribbon	W=0.5-10m	T=0.05~1.5mm
Chromel-S	Strip	W=10~150mm	T=0.1~3.0
Chromel-B	Bar	Dia=5-12mm	L=50~1500





APPLICATION:
