Fresh Date Freeze Automatic Dryer Machine for Big Plant
- Category: Food & Beverage Machinery >>>
- Supplier: Hangzhou,Fanyue,Trade,Co.,Ltd.
Share on:
Product Overview
Description

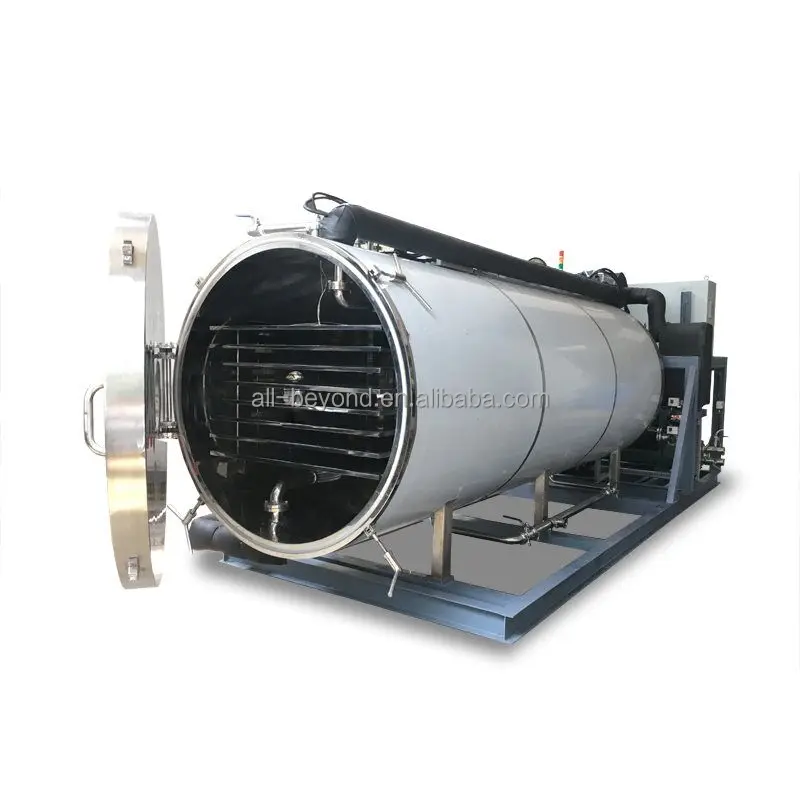

Fresh Date Freeze Automatic Dryer Machine for Big Plant
New designed domestic compact family freeze dryer,can dry almost of fresh fruit,juice,vegetable,grain,etc.
The equipment with transparent door window and touch screen,the simple and convenient operation system,24hours dryer process.
| No. | Item | Description |
| 1 | Model | FYF-10M2 |
| 2 | Size | 6300×2100×3600 mm |
| 3 | Output (approx.) | 100KG |
| 4 | Maximum ice capacity | 200kg |
| 5 | Inner chamber | SUS 304 |
| 6 | Outer chamber | SUS 304 |
| 7 | Finish | Ra≤0.5um (0.5Mircon) |
| 8 | Door Open direction | Right (face to door, hinge on right side) |
| 9 | Open angle | More than 110° |
| 10 | Gasket | O-shaped silicone rubber single gasket |
| 11 | Insulation | polyisocyanurate foam |
| 12 | Shelves temp. | -45~-50°C to + 80°C |
| 13 | Number of shelves | 7+ 1(upper radiant shelf) |
| 14 | Dimension (L×W×T) | 1500x1000x20mm |
| 15 | area (sq. m) | 10.5m2 |
| 16 | Condenser temp. | -65℃~-70℃ |
| 17 | Cooling time | ≤30 minutes (empty) (+20 to -40°C)
|
| 18 | Circulation pump | 2.2kW Centrifugal pump |
| 19 | Plate heat exchanger | Sealed brazed stainless steel |
| 20 | Max heating power | 16KW |
| 21 | Thermal fluid | Special heat conducting oil for freeze dryer |
| 22 | Shelf cooling time | ≤60 minutes (empty) (+20°C to -40°C) |
| 23 | Heating rate | 1°C/min (approx.) |
| 24 | Refrigerating Compressor | RefComp Italy, Low temperature screw compressor |
| 25 | Refrigerant | HFC-free R404A |
We also could design the sterilizer according to your real demands.If you need more information please feel free to contact us.
Our technical team is working in freeze dryer fields more than 10years.They have rich experience in Research &Development, Produce, Sales&Service, Test&Verify the dry result.
The equipments have been exported to South Africa,Malaysia,Argentina,Mexico,etc.
If you need more information please feel free to contact us.
