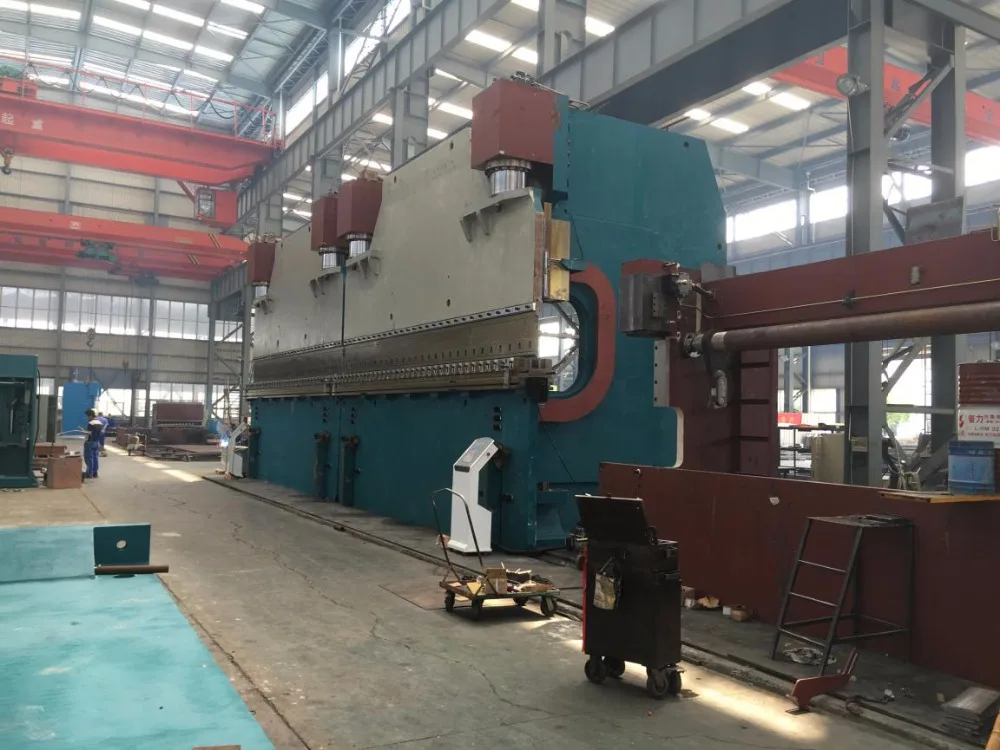

economic digital display 12m electric hydraulic press brake with CNC system

Standard Equipments:

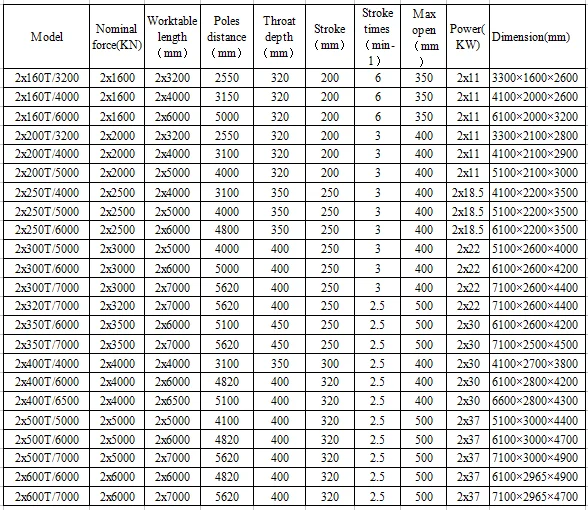

Parameter:

1.Main Features:

1) Totally EU streamlined design, monoblock by welding robots & aparatus and stress relief process by annealing treatment.

2) WC67K Series are among the highest rated machines which will help you increase your productivity and keep costs at minimum levelwith its user friendly CNC controller and low cost hydraulic maintenance.

3) Automatic axis referencing and calibrating when machine is turned on.

4) Rigid upper beam runs on 8-point bearings with bending precision of 0.01 mm.

5) Well-known top and bottom tool brands are long lasting stiffened and provide precise bending. Silent high pressure pump.

2.Hydraulic system:

1) Hydraulic control system by BOSCH-REXROTH Germany or FIRST America.

2) Oil seals by Japanese, NOK.

3) Overload & overflow protection to ensure there is no leakage and protect hydraulic system,

and the oil level can be read directly.

3.CNC back gauge:

 1) CNC Back gauge system with X axis by AC servo motor driven ball screw shafts and on linear

bearings with an accuracy of 0.01mm.

2) Back gauge has well enough mechanical strength and rigidity with tank-type gauge structure.

3) High-precision ball screw and linear guide-way. Particular finger-stop design,

enlarge the range of back gauge.

4.Electrical parts and protection device:

1) Schneider or Siemens Low voltage apparatus. In accordance with international standards,

reliable safety, long life, good anti-interference ability, a radiation unit is fitted in electrical cabinet.

2) Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate.

3) Light screen protection.

5.Control system: Optional:DA 52S, DA 56S, DA 58T, DA 66T, DA 69T etc.

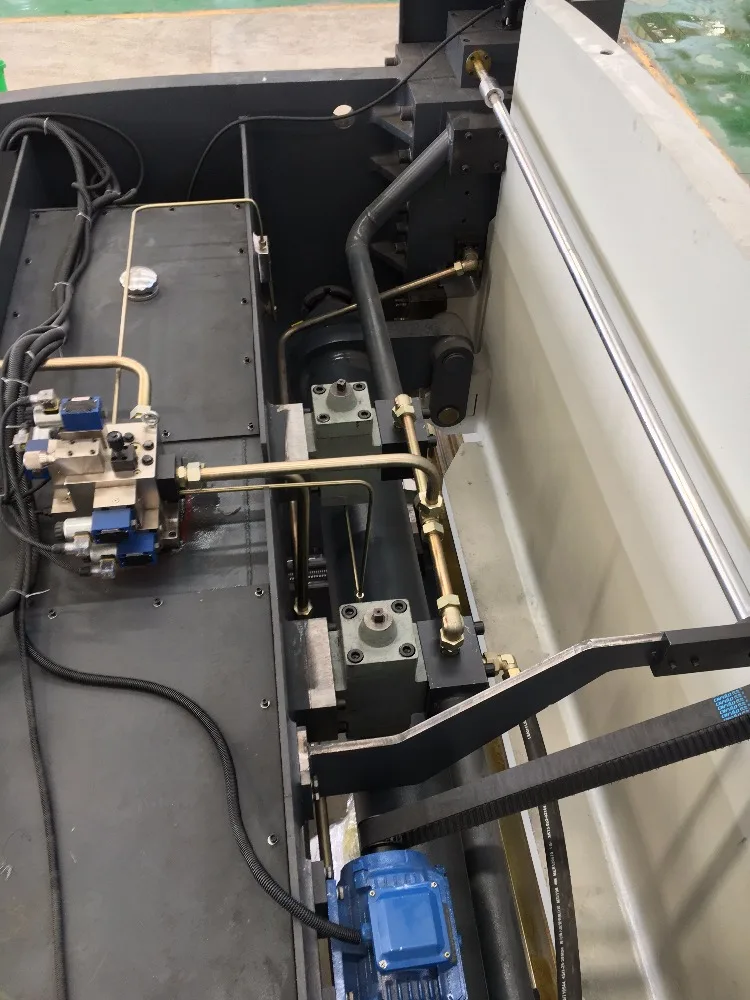

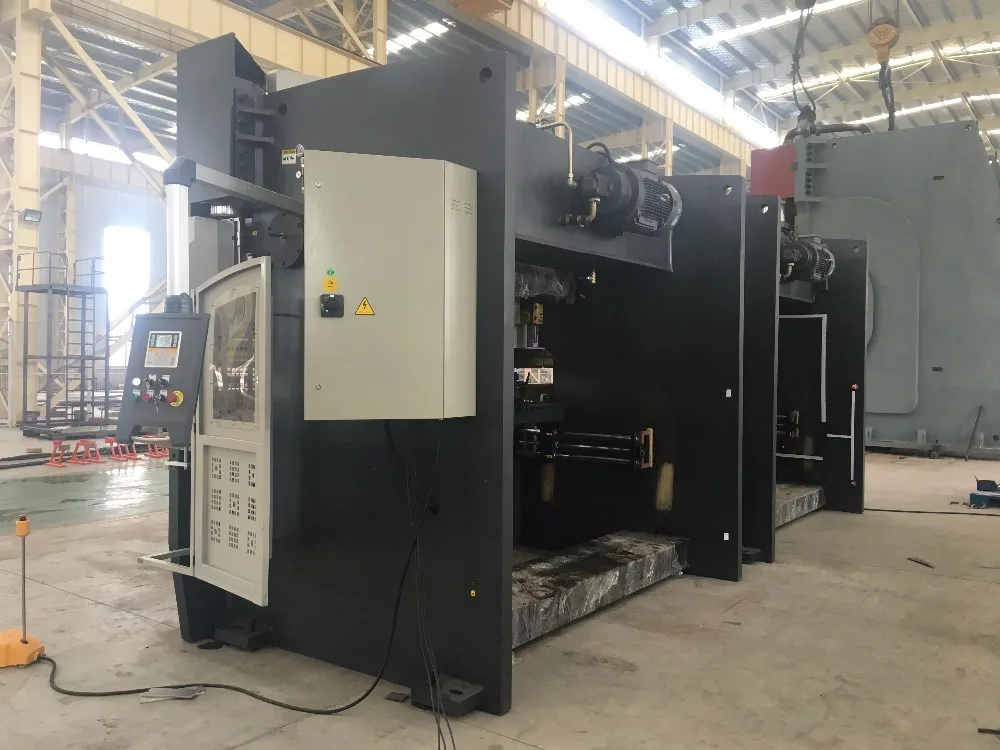

Back view:

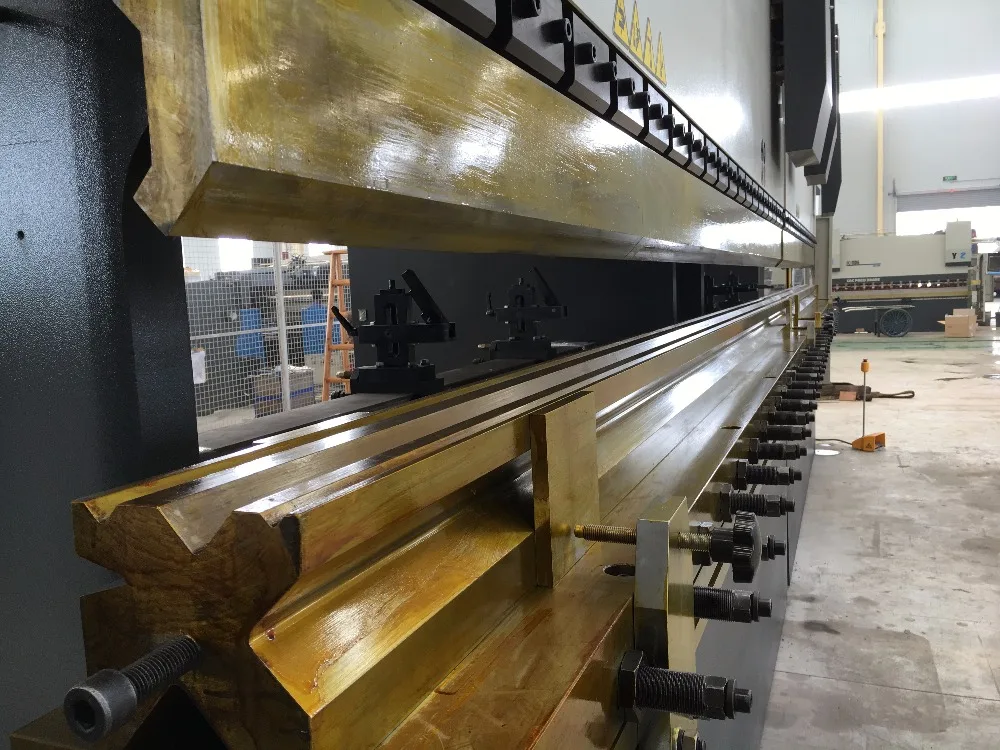

Mold:

CNC system from ELGO Germany, or can be chosen by yourself:

Back gauge:

Motor from Siemens Germany:

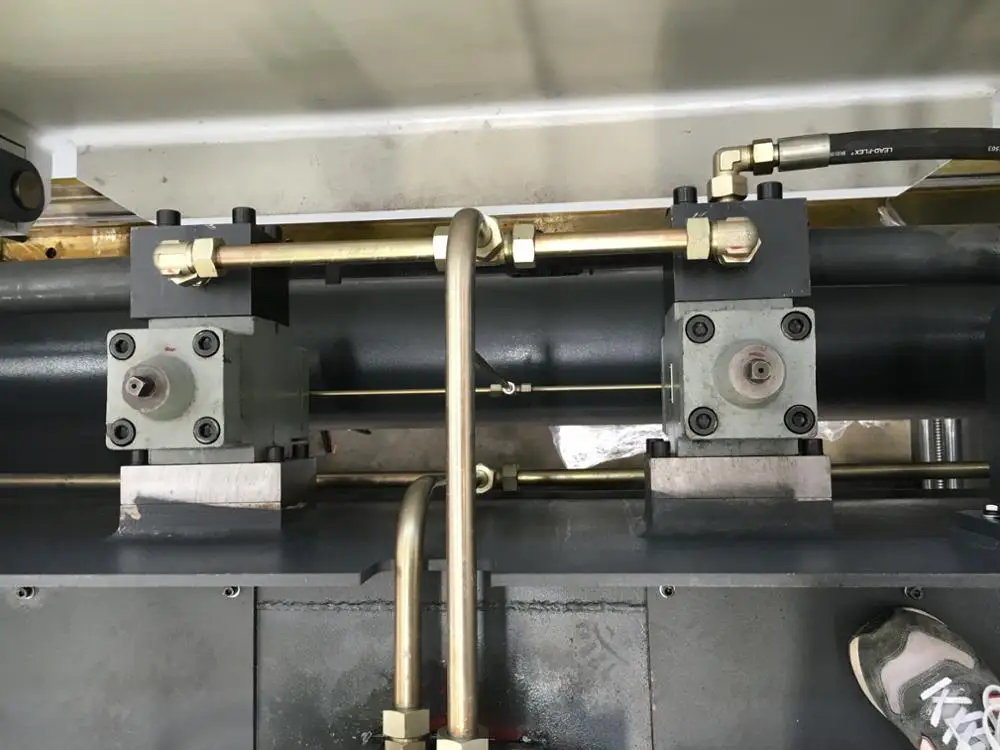

Valve from Bosch Rexroth, Germany:

Electrics from Schneider, France:

Light Curtain:

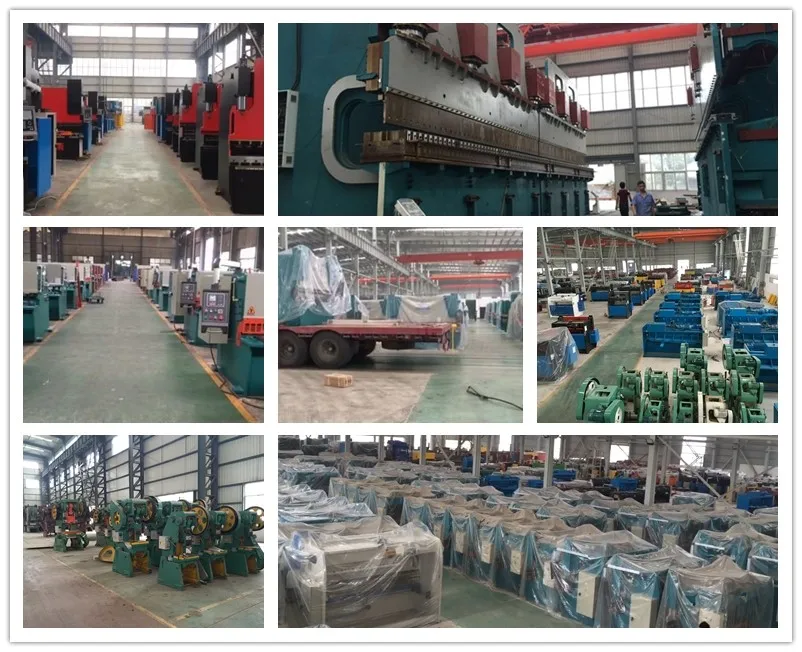

Established in 2000, Gilde commits to the research and development of sheet metal machinery, pursuing the best quality and performance. Now we have more than 400 employees and 12 engineers, and the factory covers an area of more than 70,000 mm2. We can support a wide variety of sheet metal machines, including press brake, shearing machine, plate rolling machine, press machine and so on.
