AdvShenzhen led Display Manufacturers/led display full color flexible led video display with high brightness

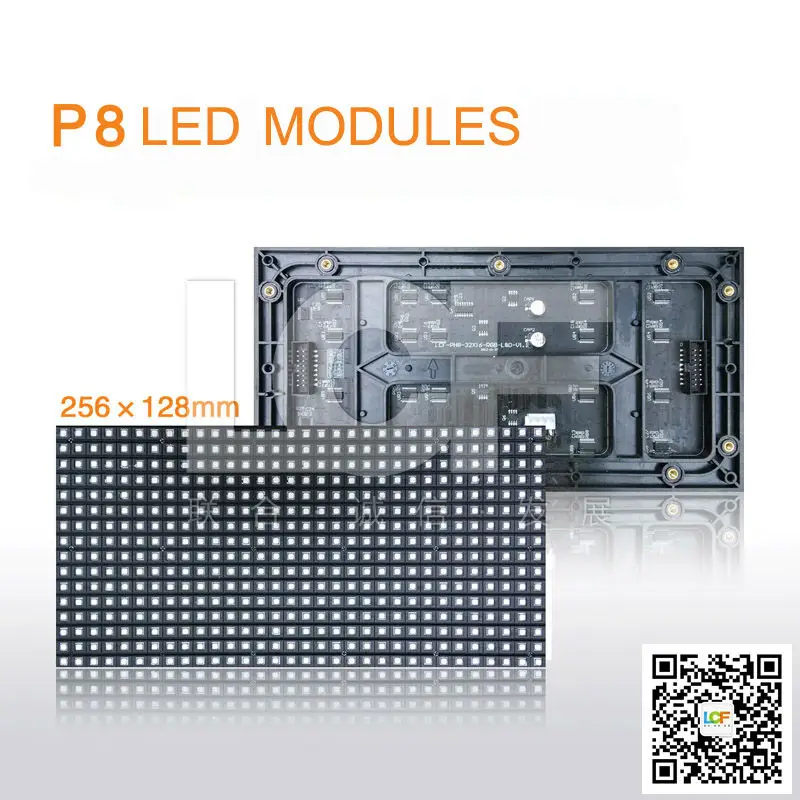

1,SMD P8 full colour module
2,Module size:128mm*256mm
3,Cabinet size:768mm*768mm
4,24 months warranty
Product Description
Led display is popular product in all over the world.LCF is one of white hair for led display business in China since 2004.Mainly include:outdoor full color led display,indoor full color led display,HD Rental led display,Traffic sign led display,led full color curtain screen,stadium perimeter led scree.High quality SMD module&DIP modue.Mainly use to
play videoes,advertisement.You can see them in Plaza,bank,shopping ceater,hotel,office,public service places ect.

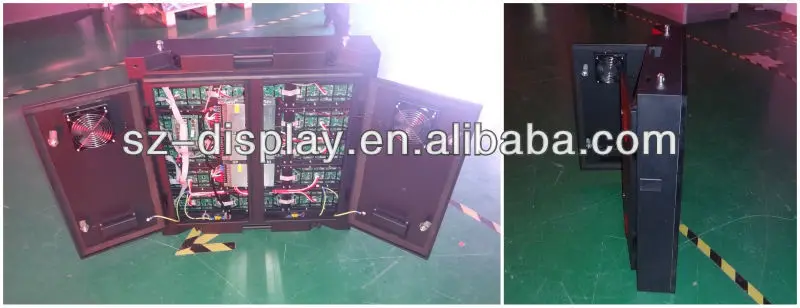

P8 led display Pictures show:
The specifications of P8 led display :
Item
SPECS
DATA
1
Configurations
1R1G1B 3in1
2
Pixel size
32*16
3
PITCH
8mm
4
MODULE RESOLUTION
32x*16
5
WAVELENGTH
R:620~625nm,G:525~527.5nm,B: 462.5~465nm
6
DENSITY
15625/m2
7
BRIGHTNESS
≥6000cd, @WHITE
8
GRAY LEVEL
16384 LEVELS
9
DRIVE MODE
1/4 SCAN, CONSTANT CURRENT
10
REFRESH RATE
>1000Hz
11
VIEW ANGLES
X>120 DEGREE,Y>60 DEGREE
12
BEST VIEW DISTANCE
8~180M
13
BRIGHTNESS LEVEL
64 LEVELS
14
BRIGHTNESS ADJUSTABLE
PWM
15
CONTROLLER
SYNCHRONOUS CONTROL SYSTEM+DVI+FIBER+RJ45+DVI/HDMI
16
MULTI-MODE VIDEOPROCESSOR
SUPPORT ALL KINDS OF FORMAT
17
WORKING CURRENT
AC 220±10% or 110±10%
18
POWER CONSUMPTION
≥25W
19
LIFESPAN
>100,000HOURS
20
OUTER CASE MATERIAL
PC
21
WEIGHT OF CABINET
65KG
22
TEMPERATURE/HUMIDITY
-20°C~+50°C, RH=40~90%
The the advertages of P8 led display: Ultra light: only 8kg/cabinet, one person could carry by one hand. It is very easy to install. Ultra thin: die casting aluminum cabinet , with high intensity, strong tenacity, high precision, saving
transportation cost.
High precision: by electromechanical processing, the size could be accurate to 0.1mm Compatible: new structure design, hanging or sitting installation, suitable for both indoor and
outdoor application. Fast installation: connect the cabinets from left and right, top and bottom, take only seconds to connect
two cabinets. Reliable: with high quality intensity and hardness, with good heat radiation effect. Cost:low installation cost and low power consumption, to save operate cost and labor cost
The application of the P8 led display : Plaza,bank,shopping ceater,hotel,office,public service places ect.
Packaging & Shipping

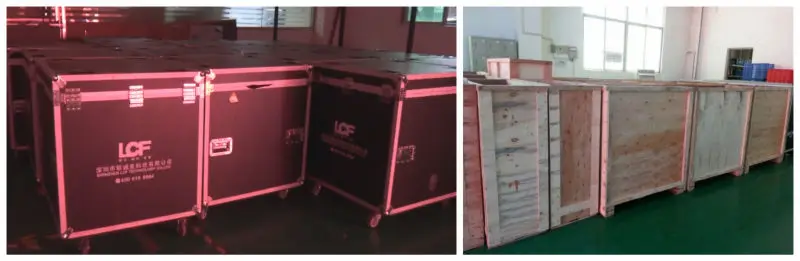

1,Packing :Led display is packed by strong flight case,wooden case.
2,Shipping:Sea,Air,Express :DHL,UPS,Fedex
3,Deliver time:20-25 working days.If you have special situation,we will change.
4,Certifications:CE,ROSH,EMC,ETC ect.You can easy to custom clearance
Our Services
1,Warranty:24 months
2,On-purchase service :we will according your details demands,provide suitable products
and solutions.And we will teach you how to install them well.If you need us to help you,our engineers will
come to your country to install.
After sale service :We will connect you all the times.If the screen is out of work,we will guide you
to fix it.
3,Servie time :You can contact us on 24 hours.
Company Information
1.LCF was founded in 2004 with registered capital 60 million RMB.The headquarter is in Shenzhen, China.
2.LCF has been successively obtained the titles "state-level high-tech enterprise","National Qualified Products"."China Optoelectronics Industry Association Unit".
3.Products have passed the certifications such as ISO9001:2000,CE,CCC,RoHS,ETL,EMC etc.
4.LCF has established 16 authorized offices in domestic area and 10 facilitating agencies overseas
5.Service spreads worldwide.So far we have created more than 1300 successful projects.
FAQ
Q :How to turn on/turn off R:When you turn on:please turn on the PC ,and then trun on led display;when you turn off,please turn off the led display at first and then turn on the PC.
