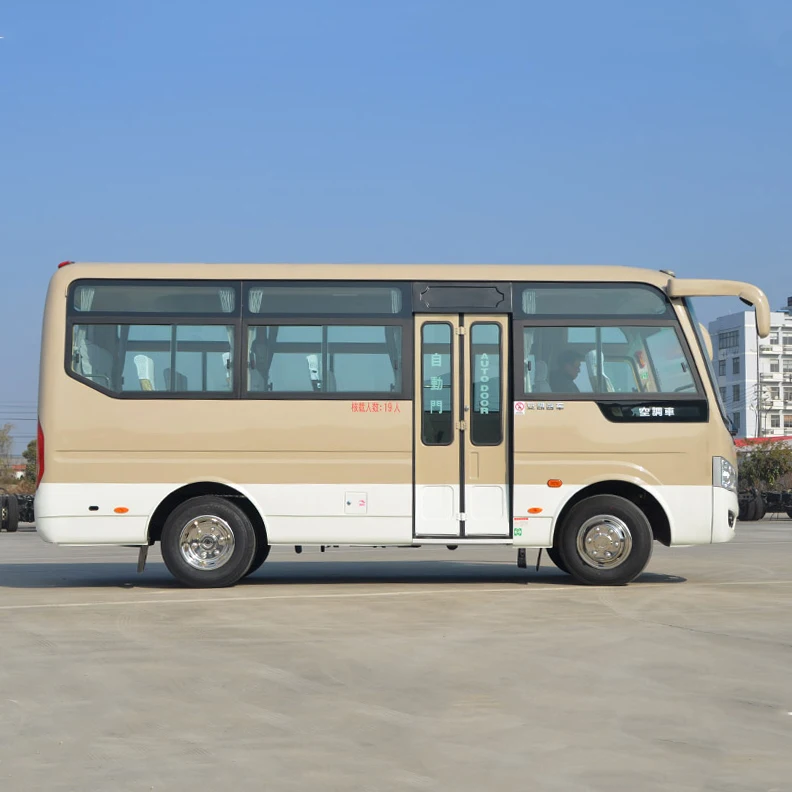

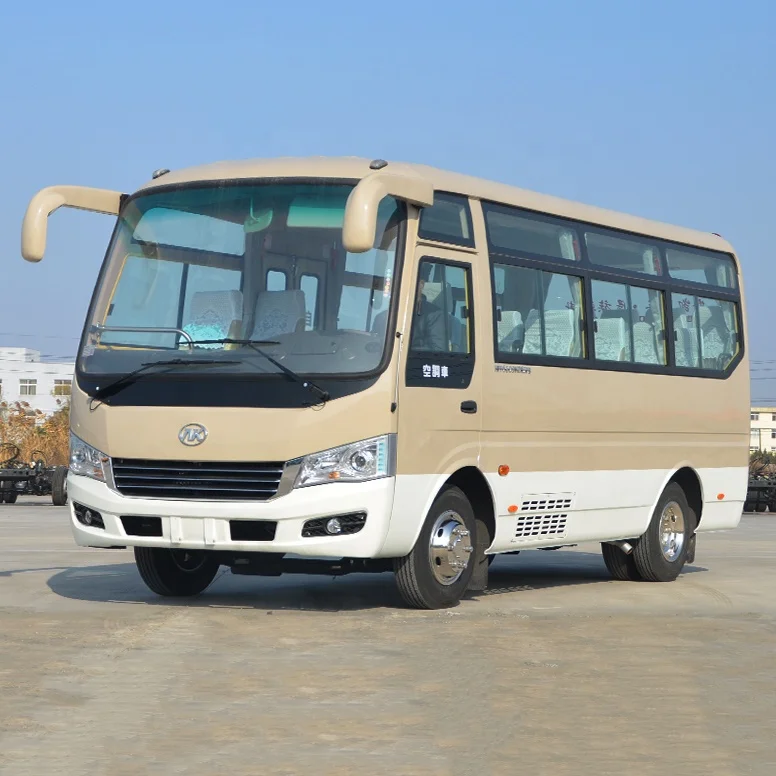

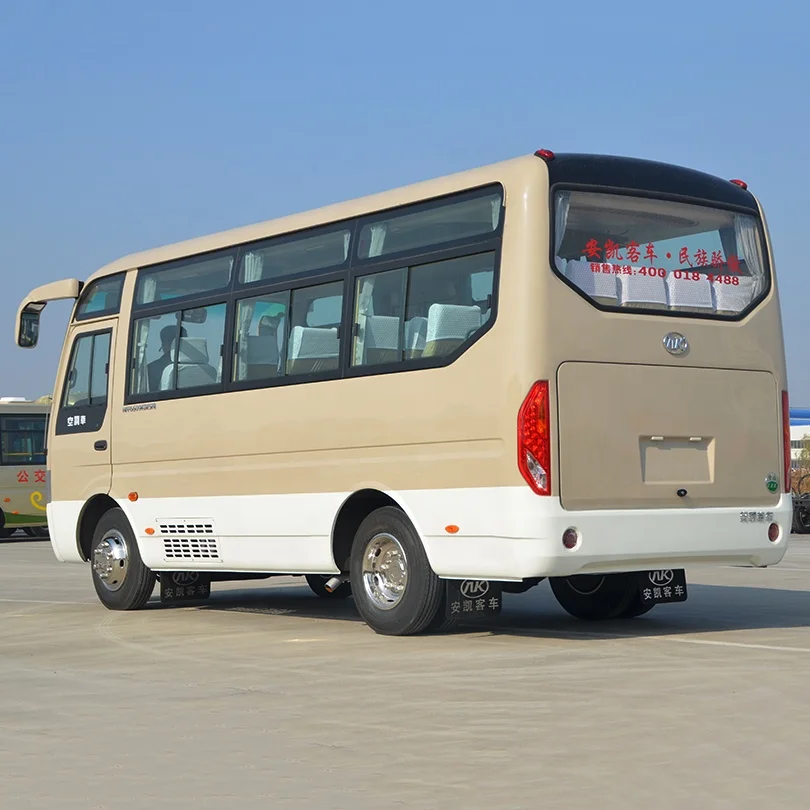

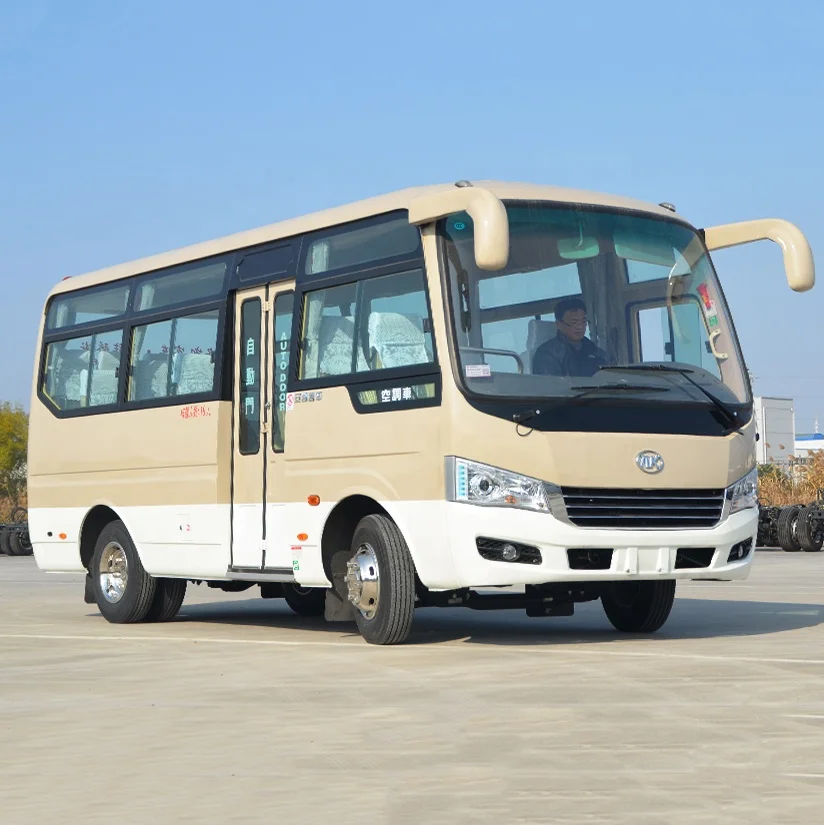

Ankai JAC City Bus 6M 18 Seater Bus for Sale
- Category: >>>
- Supplier: JC Automobile Co. Limited (Shanghai)
Share on (60565942030):
Product Overview
Description
Product Description
| Minibus Specifications | |||
| 1.1 | name | Mini Bus | |
| 1.2 | dimension (L×W×H)(mm) | 5890×2240×2995 | |
| 1.3 | wheel base (mm) | 3308 | |
| 1.4 | track(front/rear)(mm) | 1830/1600 | |
| 1.5 | min.turning diameter(m) | 16 | |
| 1.6 | approach/departure angle | 16/15 | |
| 1.7 | unload (kg) | 4140 | |
| 1.8 | full load | 5650 | |
| 1.9 | seat capability | 18 seats | |
| Engine | |||
| 2.1 | model | YC4F115-20 | |
| 2.2 | position | front | |
| 2.3 | type | 4 cylinders in line,turbo-charger, intercooler diesel engine | |
| 2.4 | emission | EURO 2 | |
| 2.5 | displacement(L) | 2.659 | |
| 2.6 | rated power(kw/rpm) | 85/3200 | |
| 2.7 | max.torque(N.m/rpm) | 300/2200 | |
| Chassis | |||
| 3.1 | model | HFC6601KYKZL | |
| 3.2 | max.speed(km/h) | 100 | |
| 3.3 | clutch | single,dry type,(Φ300) | |
| 3.4 | transmission | model | DF5S300 |
| 3.5 | axle | JAC front axle 2500KG/ JAC rear axle 5000KG | |
| 3.6 | suspension | leaf spring | |
| 3.7 | steering | Power steering | |
| 3.8 | brake system | air brake | |
| 3.9 | capacity of fuel tank (L) | 90L | |
| 3.1 | tyre | 7.00-16 | |
| 3.1 | others | battery / dynamo:120A.hX2 /70A | |
| Body & Trim | |||

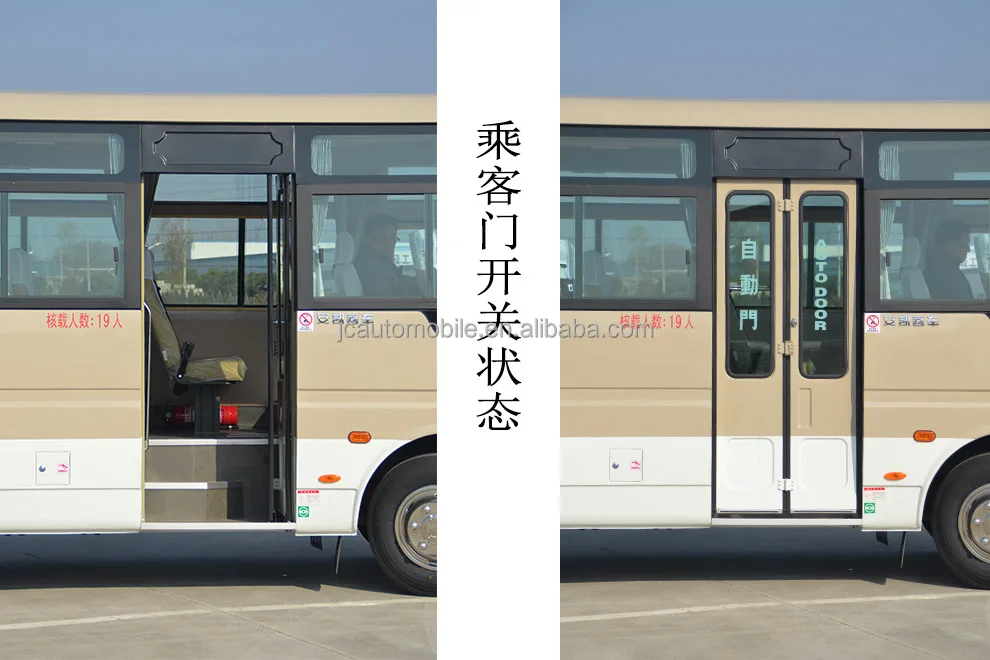

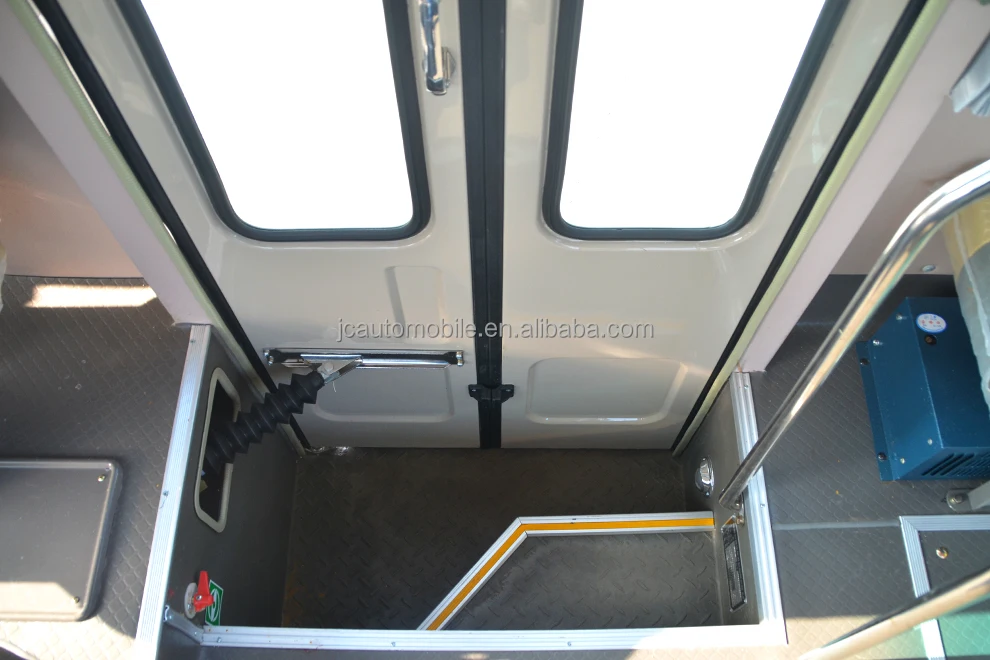

| 4.1 | passenger door | electric control folding door | |
| 4.2 | windows | upside sealed,underneath sliding side windows | |

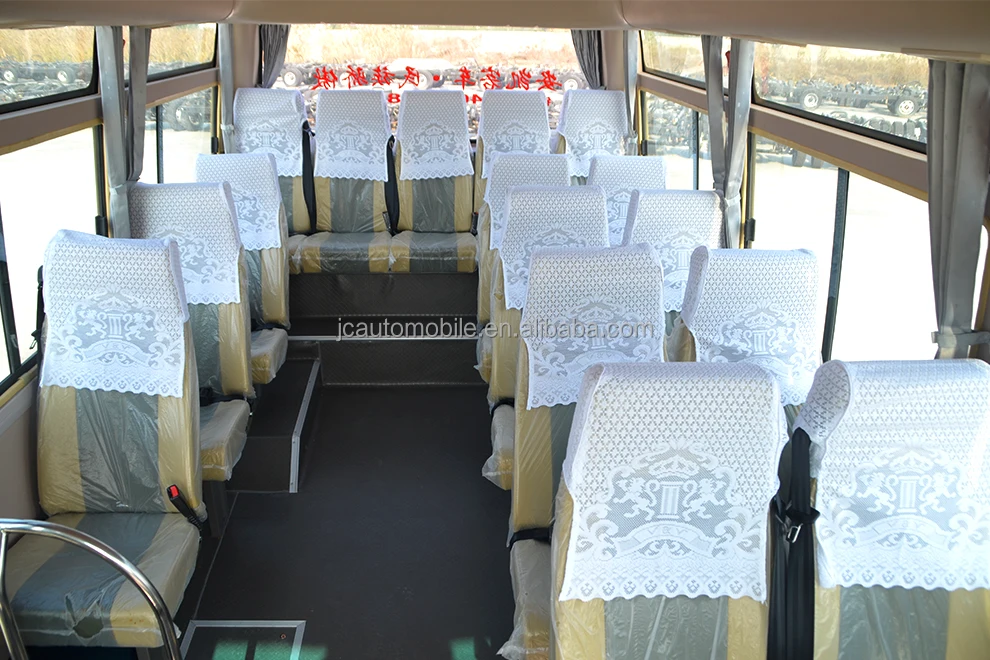

| 4.3 | seat | plastic seats | |
| 4.5 | rear-view | rod type | |
| 4.6 | video | radio | |
| 4.8 | others | digital clock,curtain,defroster(5000W),one side luugage shelf,one side stainless steel handrail bar | |

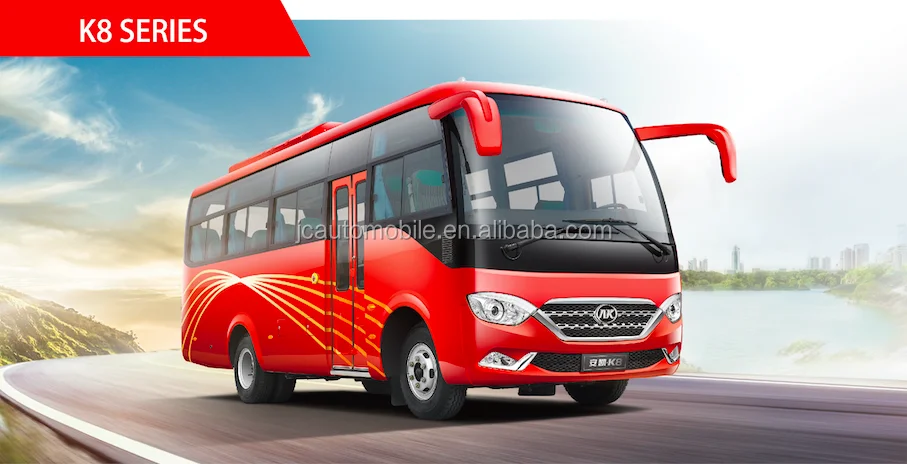

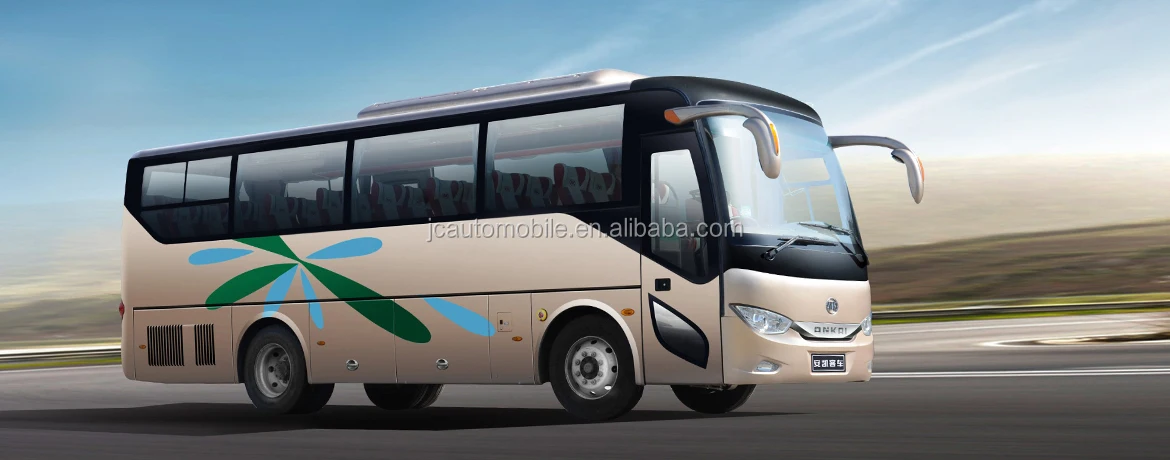

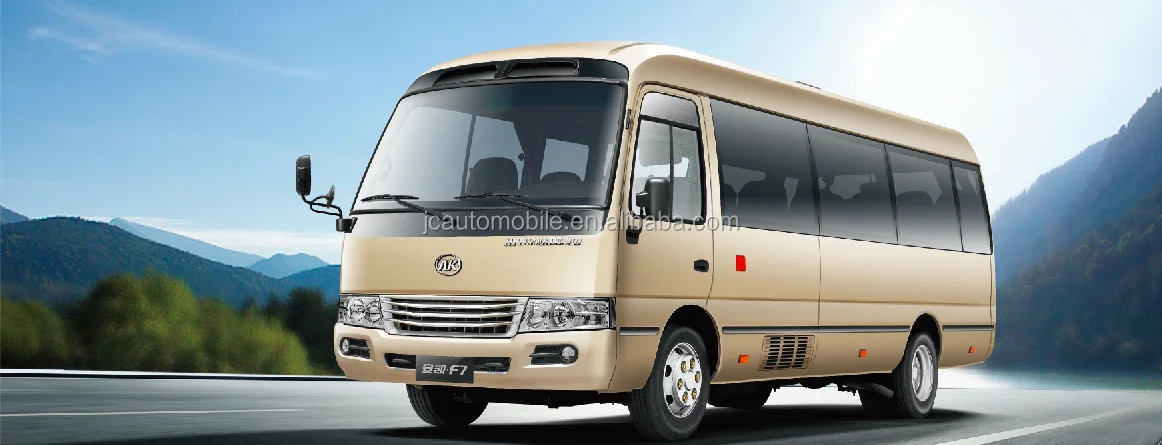

We have more bus models available for you and please kindly click below:
