Product Overview
Description
MT Morse Taper Drilling Sleeve
Contact
Product Description
MT Morse Taper Drilling Sleeve
MT Morse Taper Drilling Sleeve
1.Material: 65Mn spring steel
2.Accuracy:0.015-0.02
3.Drill Sleeves are to be used to change the taper of the connective Arbors
4.Tang hardened, cone inside and outside ground
5.Available sizes: MK 1 x 0 bis MK 6 x 1
MT Morse Taper Drilling Sleeve Specifications
Model | MT.No.5 | MT.No.T | D | d | L | Wt. |
MT2X1 | 2 | 1 | 18.6 | 12.065 | 90 | 0.10 |
MT3X1 | 3 | 1 | 24.1 | 12.065 | 99 | 0.24 |
MT3X2 | 3 | 2 | 24.7 | 17.78 | 108 | 0.12 |
MT4X2 | 4 | 2 | 31.6 | 17.780 | 124 | 0.50 |
MT4X3 | 4 | 3 | 32.4 | 23.825 | 132 | 0.38 |
MT5X3 | 5 | 3 | 44.7 | 23.825 | 156 | 1.36 |
MT5X4 | 5 | 4 | 45.5 | 31.267 | 164 | 0.95 |
MT6X4 | 6 | 4 | 63.8 | 31.267 | 218 | 3.12 |
MT6X5 | 6 | 5 | 63.8 | 44.399 | 218 | 1.95 |

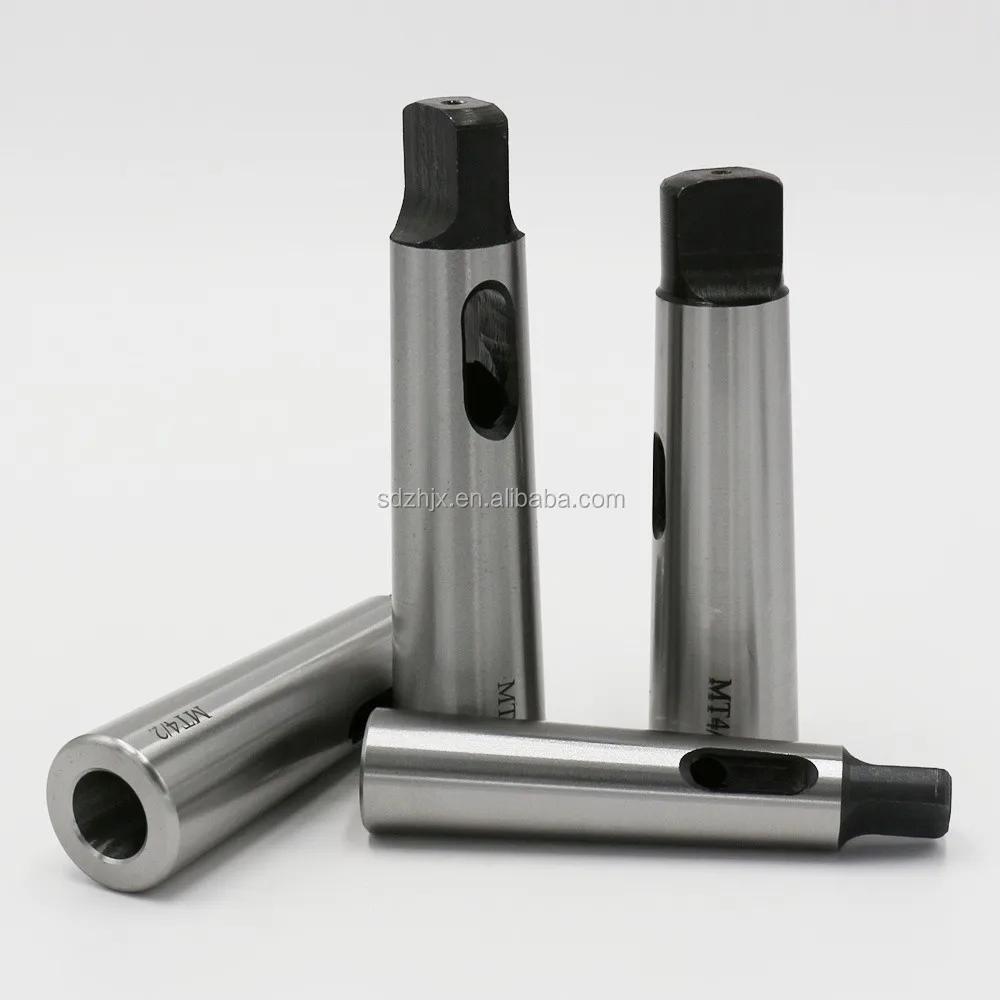

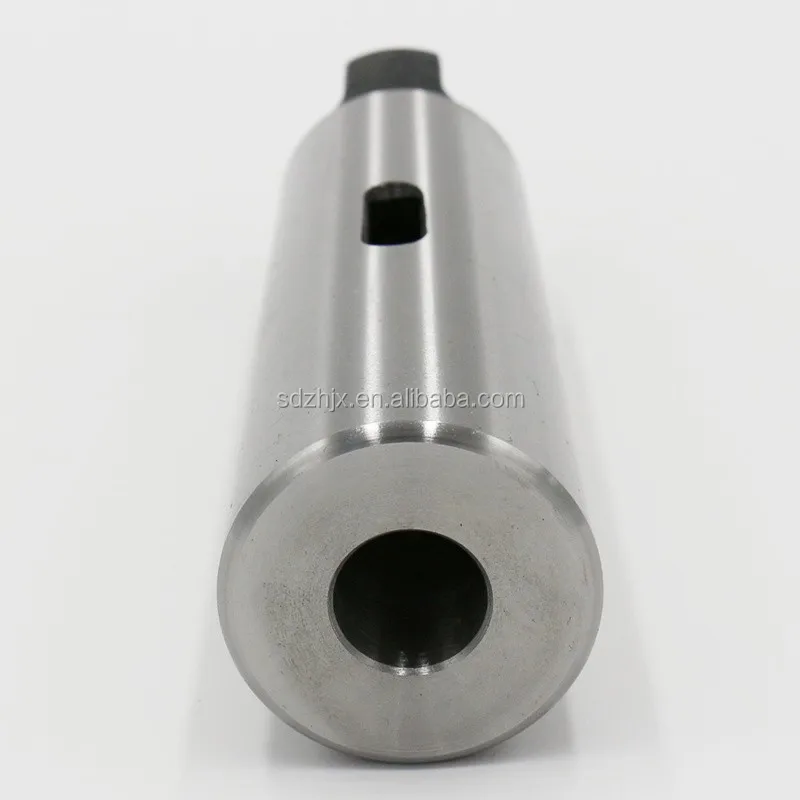

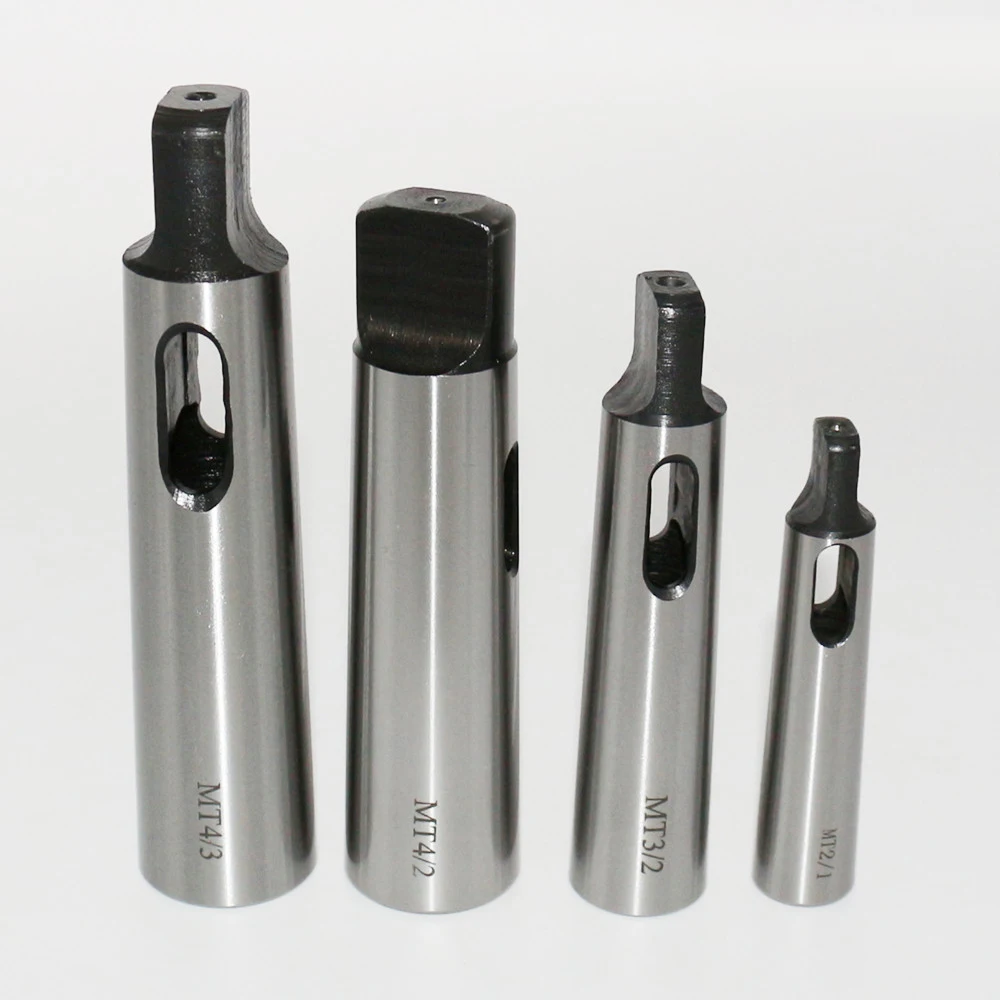

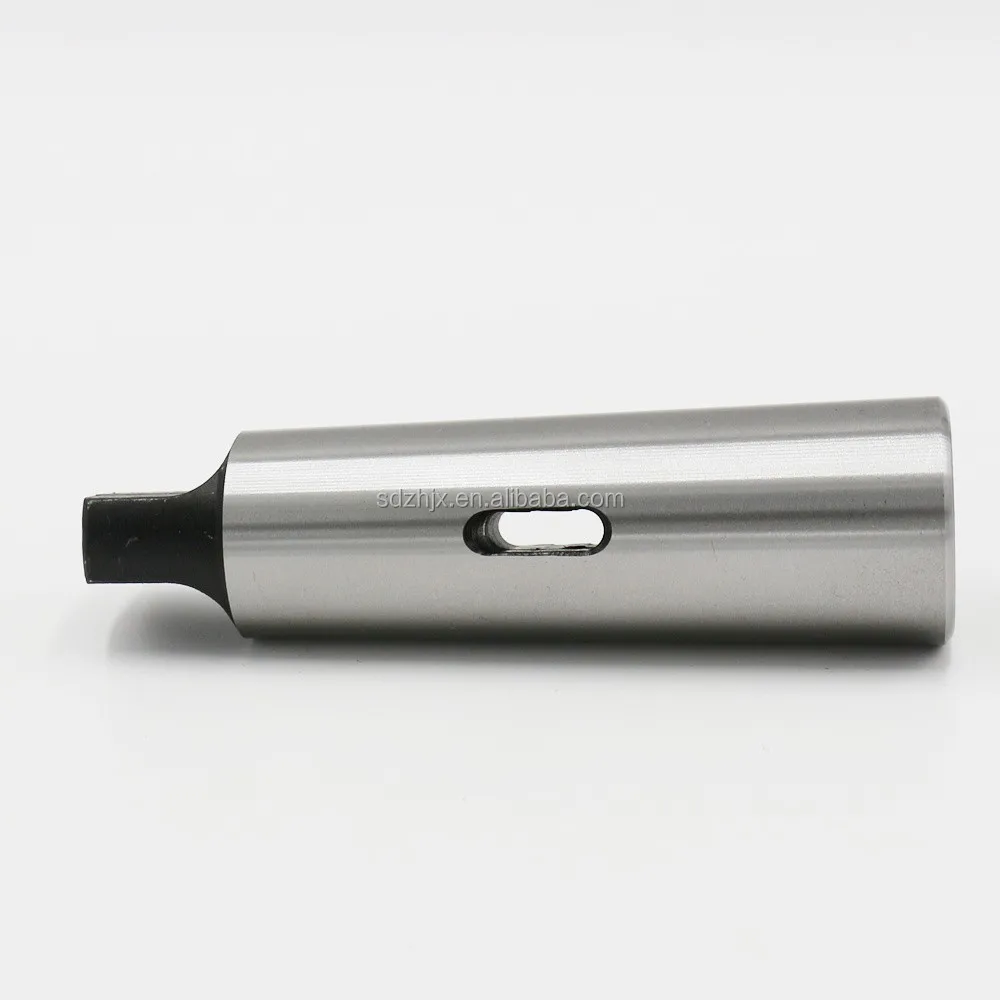

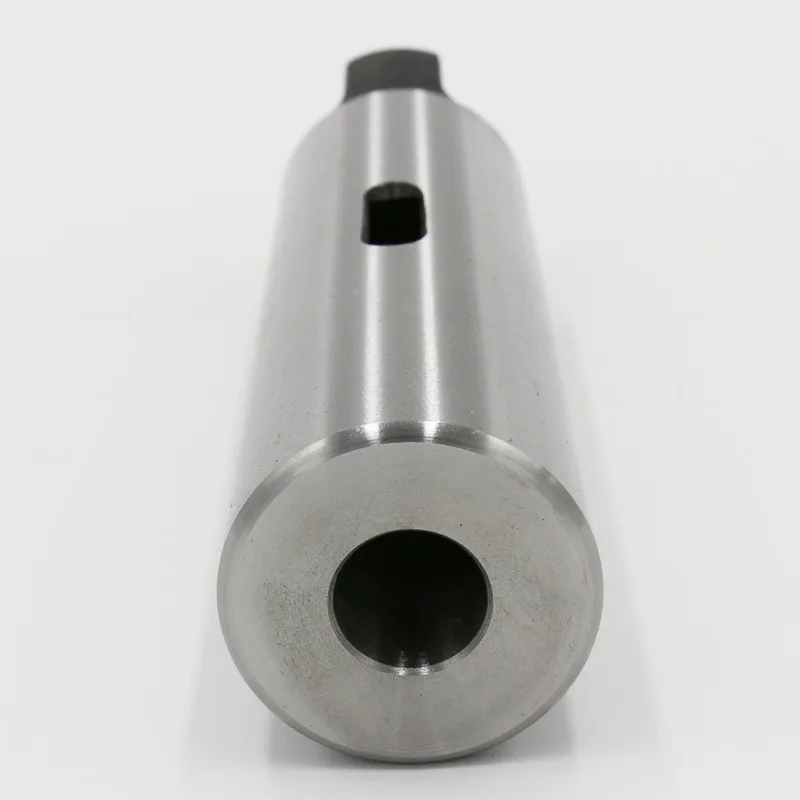

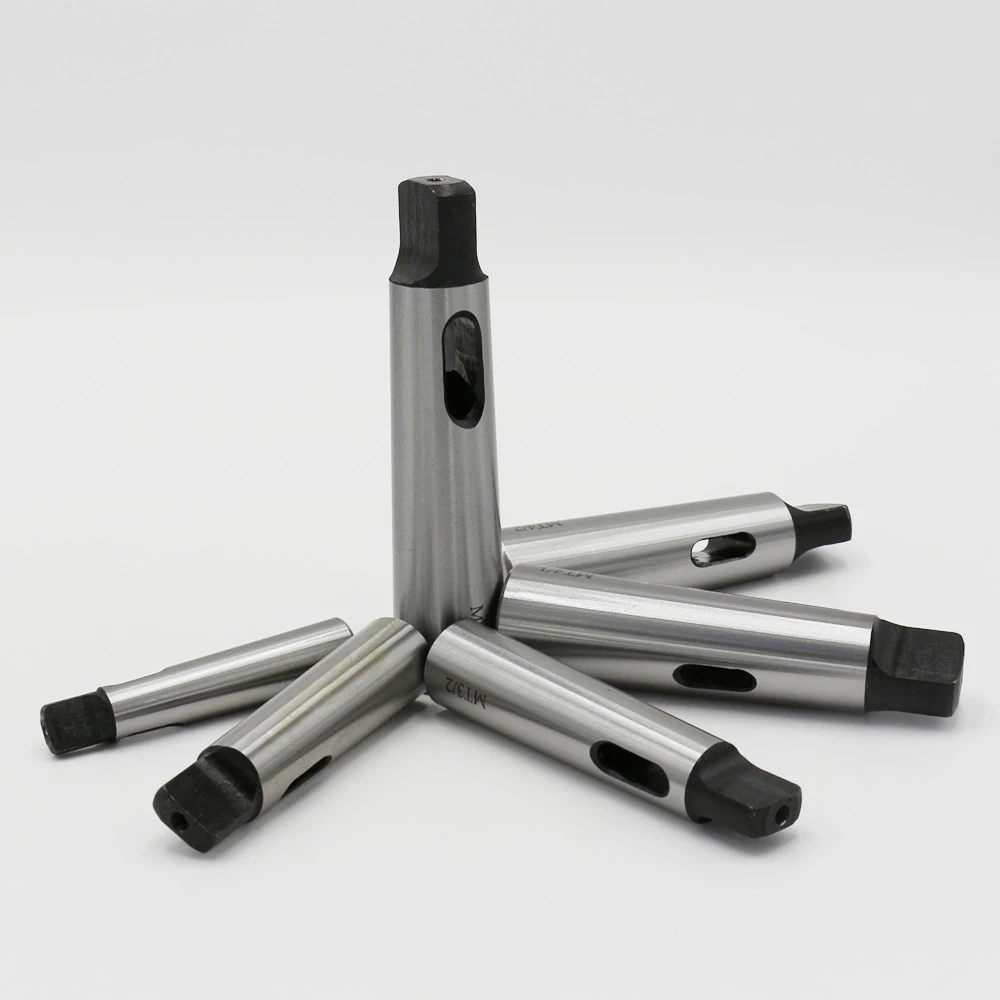

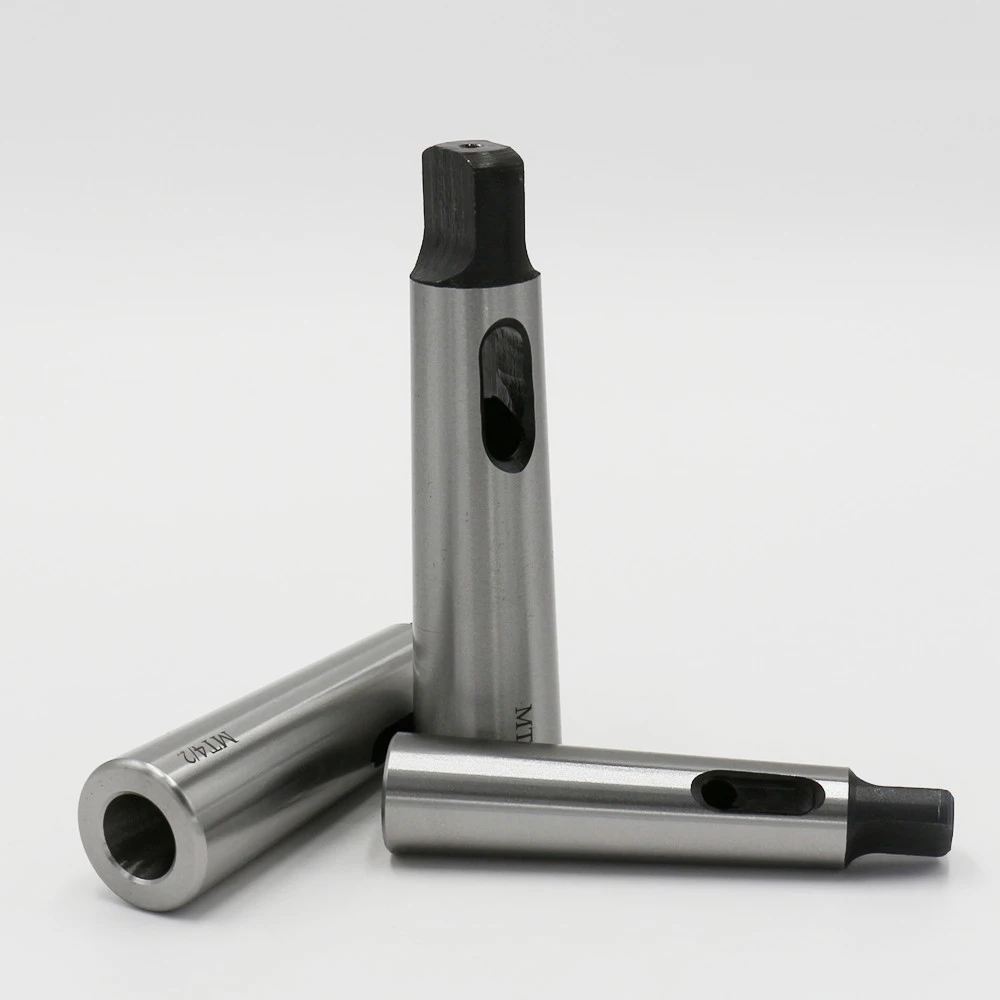

MT Morse Taper Drilling Sleeve Details Pics
MT Morse Taper Drilling Sleeve

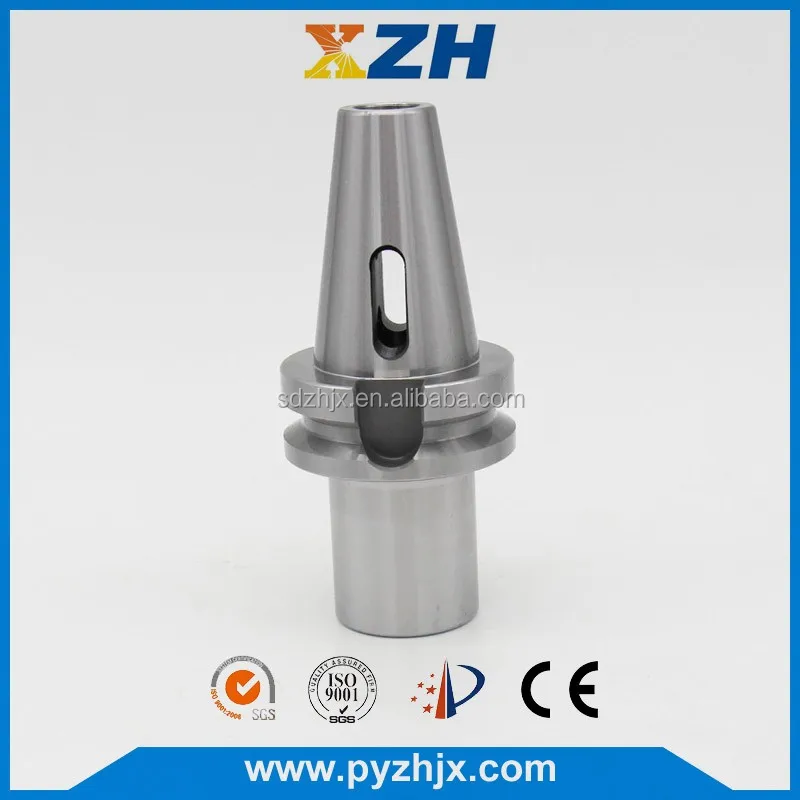

Relate Products

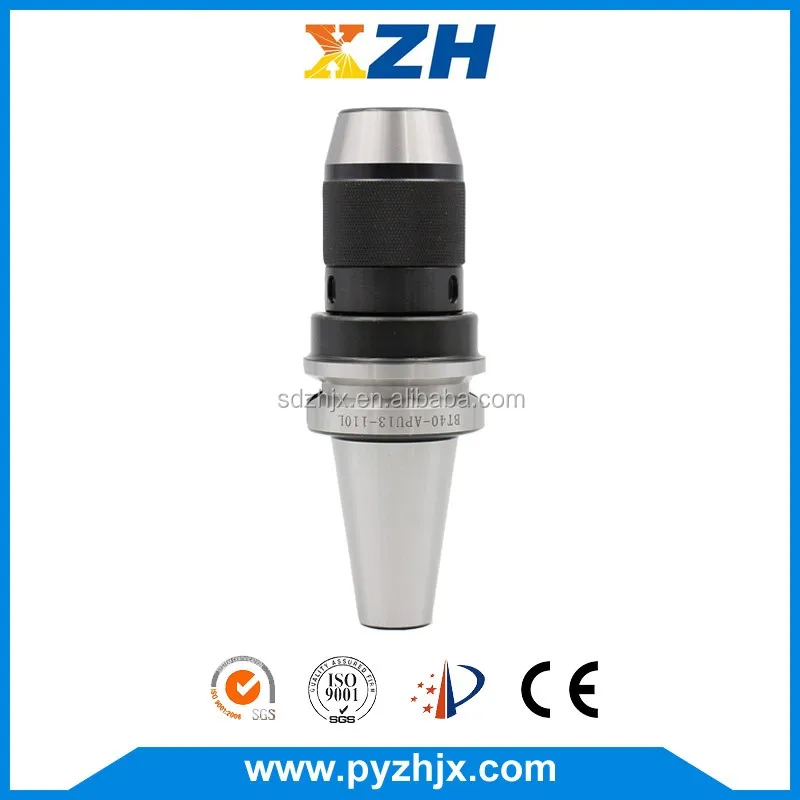

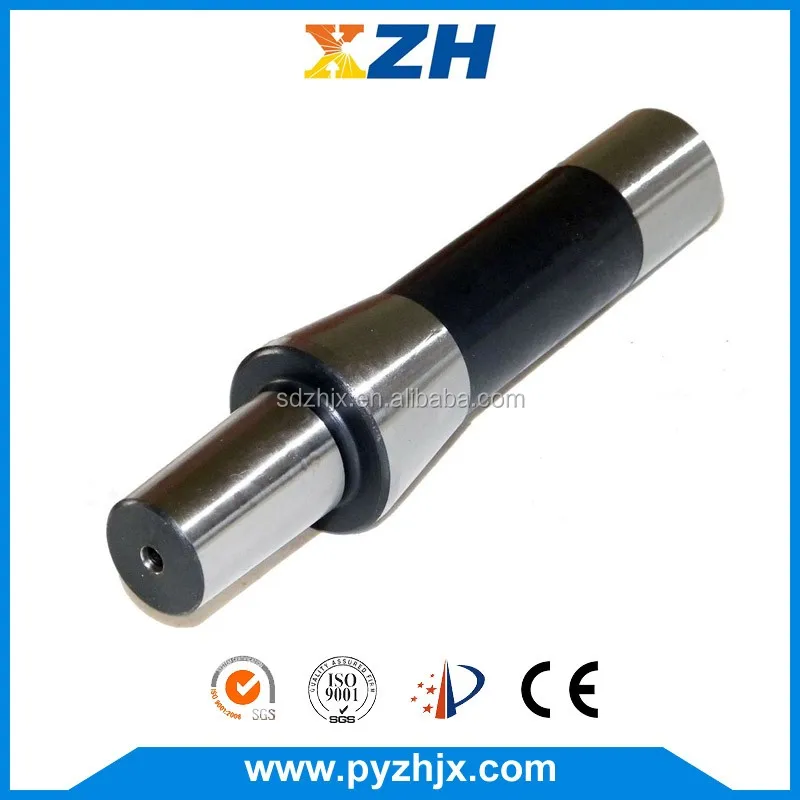

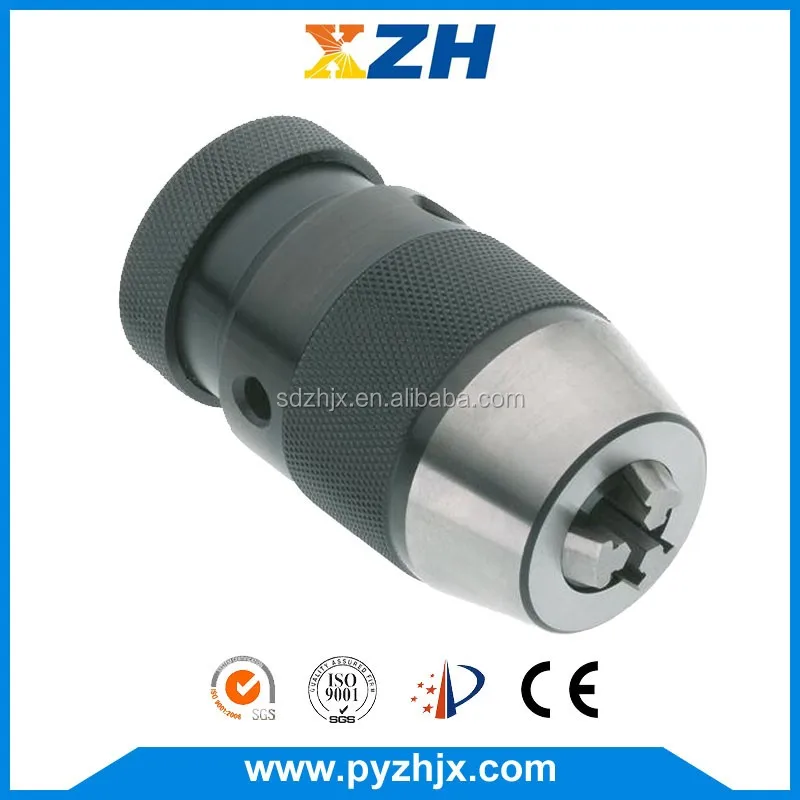

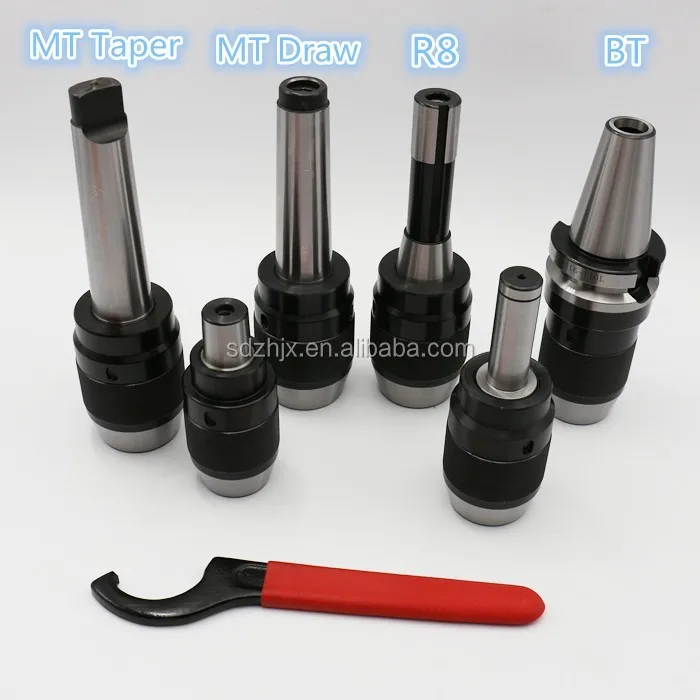

Morse Chuck APU Drill Chuck R8 Adapter Keyless Drill Chuck
MT Morse Taper Drilling Sleeve
Othe tools
Packaging & Shipping
Package
The regular packing is 1pcs/plastic bag, or with color sticker and color sleeve,color inner box, as per
customer request.
Shipping
1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: 3-7 days for samples; 30-40 days for batch goods.
