T F2604SP Solvent based acrylic adhesive aluminum thermal reflective foil insulation tape

Product Overview

Description

Production Description

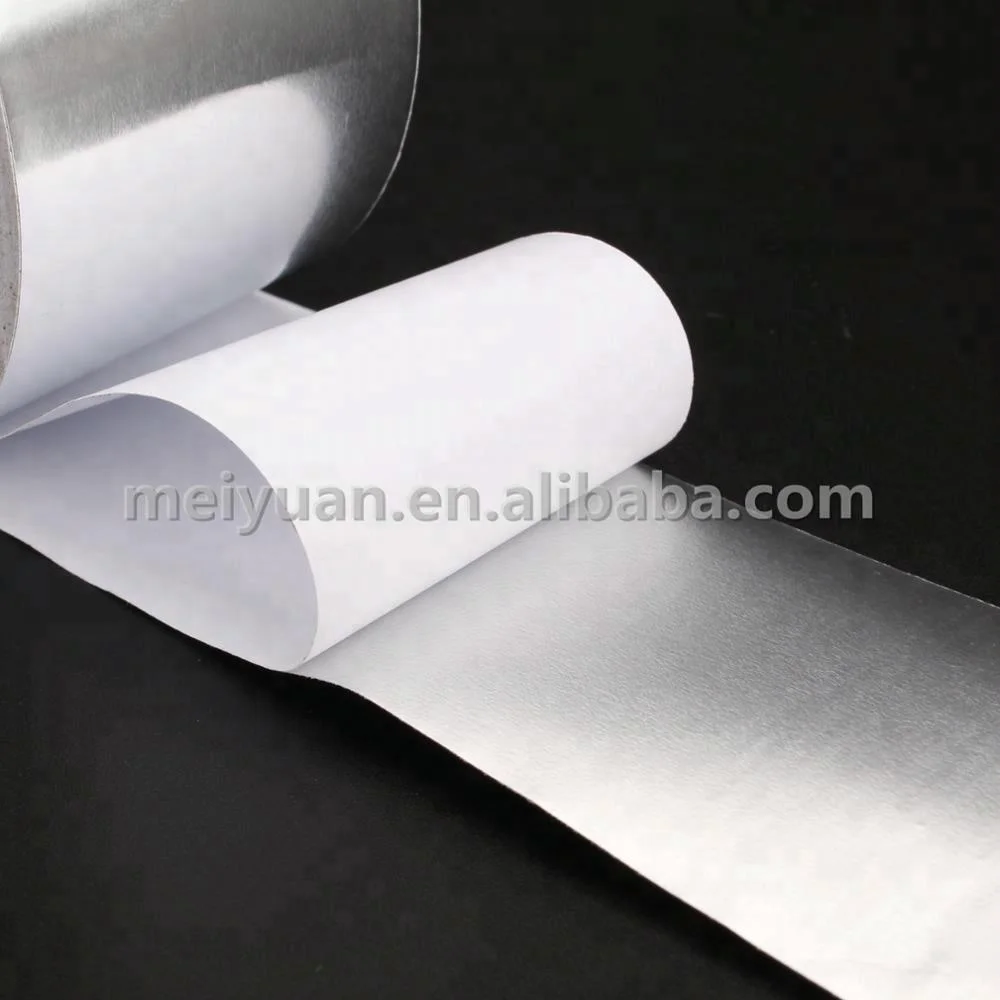

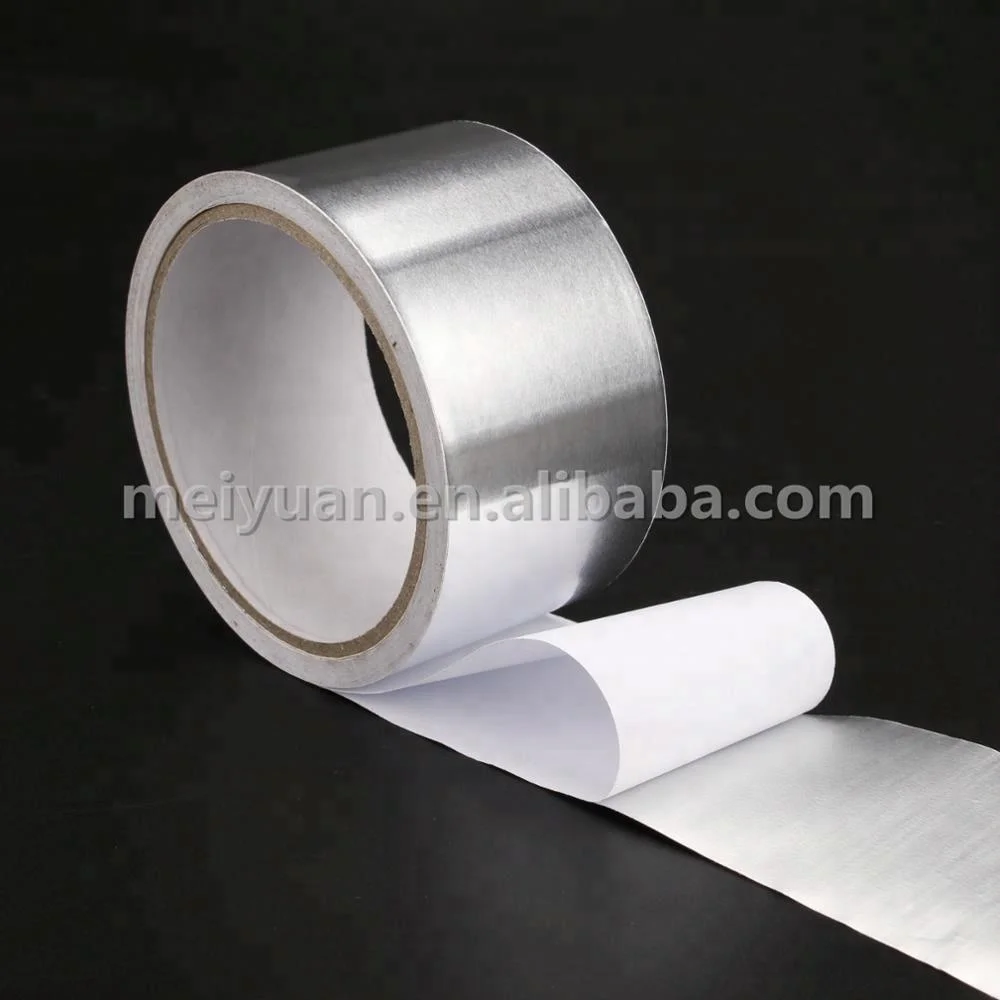

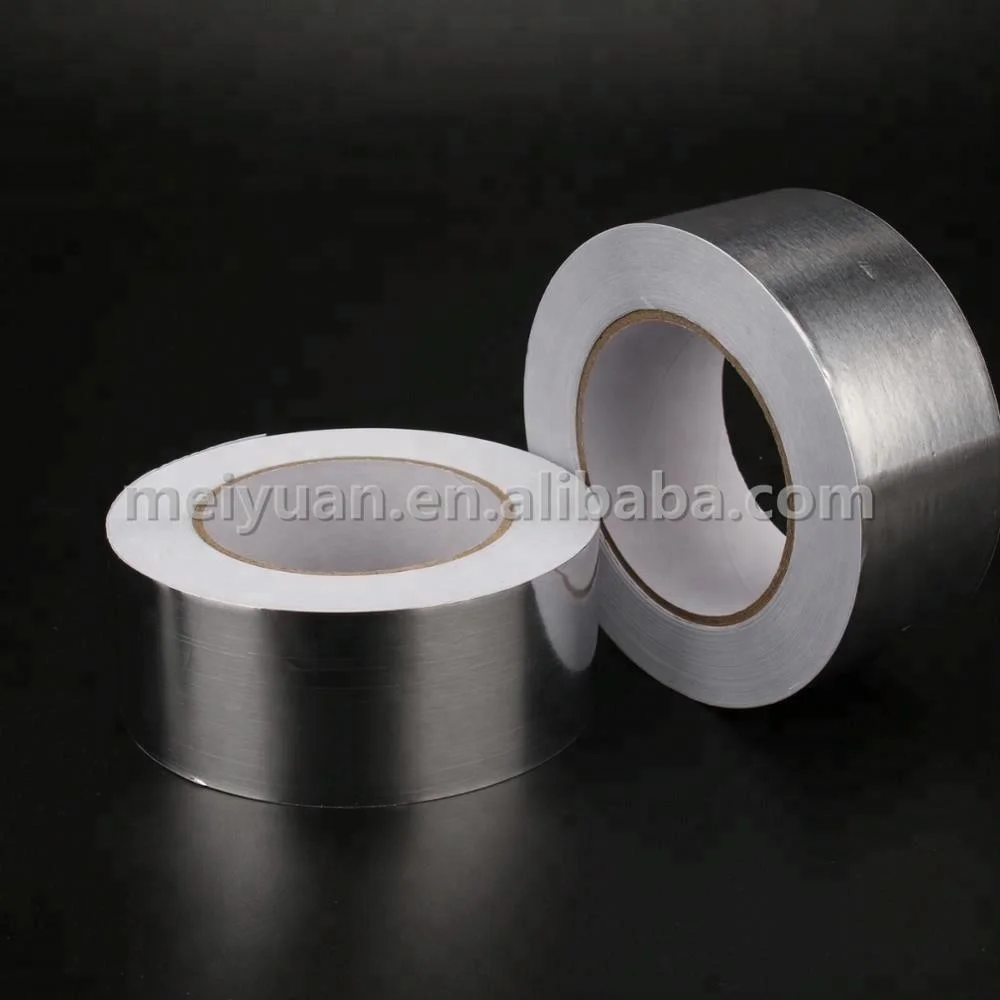

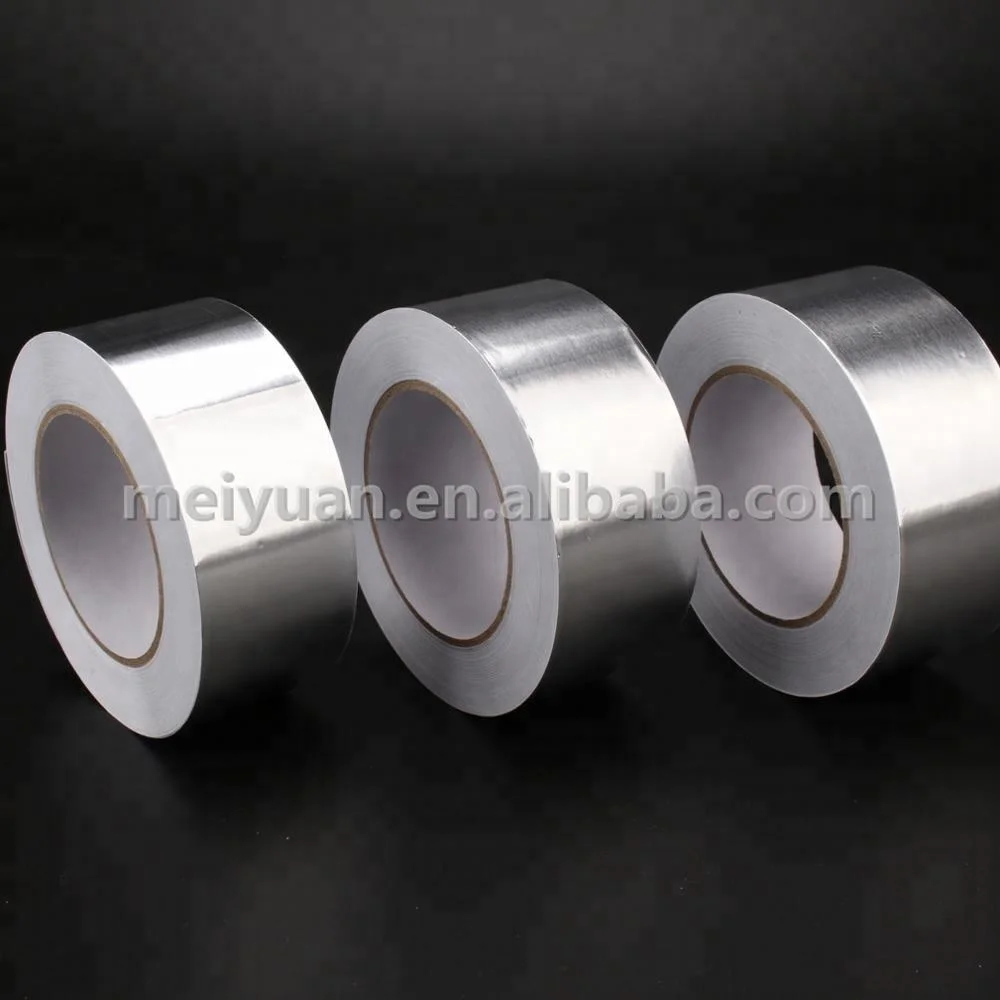

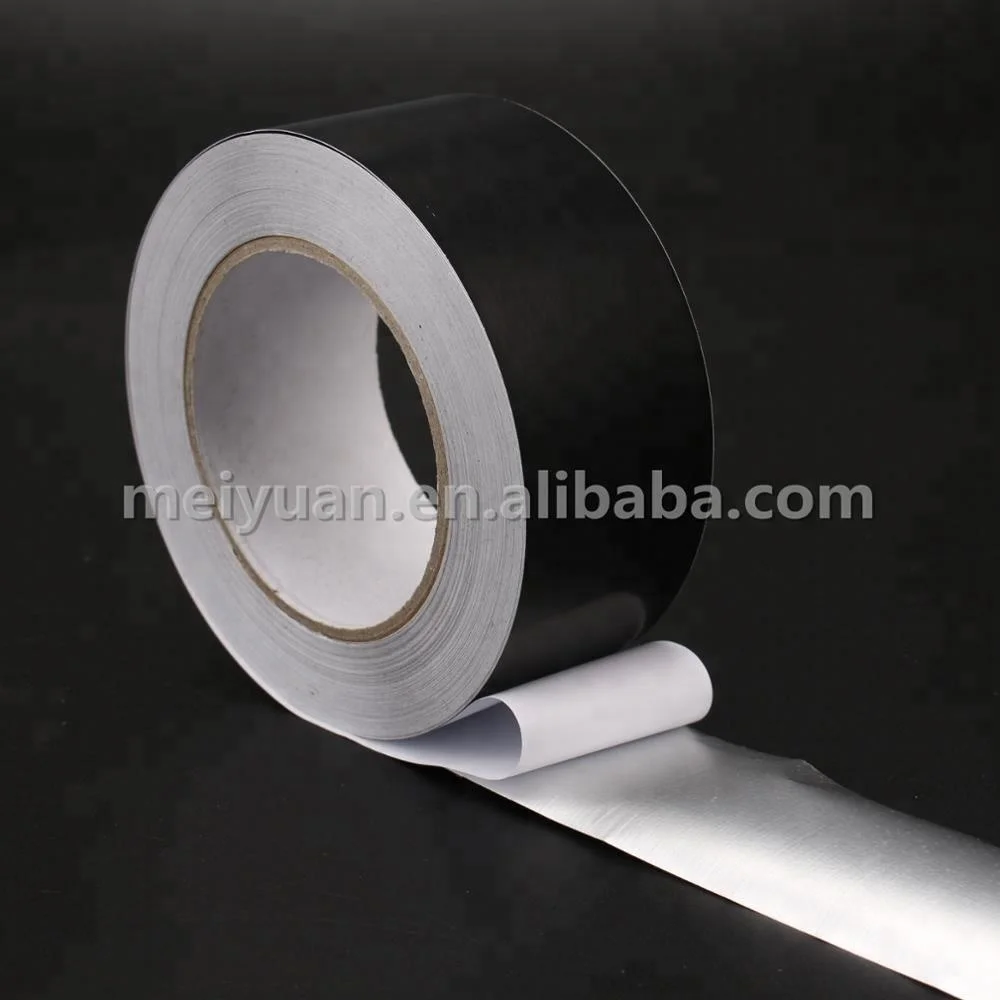

Meiyuan T-F2604SP Aluminum Foil Tape is a 26u aluminum foil with aggressive acrylic adhesive and protected by easy release liner.

Features

¨ Excellent Peel Adhesion                            ¨ Good Initial Tack & Permanent Bonding

¨ Good Water & Fire Resistance                   ¨ Outstanding Temperature & Aging Resistance

Applications

Excellent adhesion, commercial grade 26u foil tape. Good for sealing joints / seams against moisture and vapor on foil jacketing insulation. Suitable for many other permanent sealing, holding, splicing or masking applications requiring the protection offered by a foil backing

Technical Data Sheet

PROPERTIES	METRIC	ENGLISH	TEST METHOD
Backing Thickness	25 Micron	1.0 Mil	PSTC-133 / ASTM D 3652
Total Thickness	60 Micron	2.4 Mil	PSTC-133 / ASTM D 3652
Adhesion to Steel	15 N/25mm	54 Oz./In.	PSTC-101 / ASTM D 3330
Tack Rolling Ball	15 cm	6 In.	PSTC-6 / ASTM D 3121
Tensile Strength	45 N/25mm	10.2 Lb/In	PSTC-131 / ASTM D 3759
Elongation	3.0 %	3.0 %	PSTC-131 / ASTM D 3759
Service Temperature	-30 ~ +120 °C	-22 ~ +248 °F	------------

Cut Roll:     48mm, 50mm (2"), 60mm, 63mm (2.5"), 72mm, 75mm (3"), 96mm, 100mm (4").

Jumbo Roll: 1200mm x 1350M, 1200mm x 1200M.
