The plant are comprised by five colours extruder,air compressor , water cooling bath,straw hauling & cutting unit.
we have do straw making machine for more than 10years, with best service and machine!
2. Characteristics
1. Colours: Single, two, three or five, spiral stripes, straight stripes. 2. Cut-end: 90° /90° , 90° /45° , 90° /60° , 45° /45° , 60° /60° 3. All the direct contact parts made from stainless steel. 4. The cutting unit adopted the big plate cutter and with automatic gathering system. 5. Temperature controller Omron 6. The inverter is DELTA
3. Technical data
Colour
Single
Two
Three
Five
Diameter of screw:
50mm
50mm+1x25mm
50mm+2x25mm
50mm+4×25mm
L:D
28:1
28:1 / 20:1
28:1 / 20:1/20:1
28:1/20:1/20:1/20:1/20:1
Max. extrusion capacity
32-35kgs/h
Material
PP

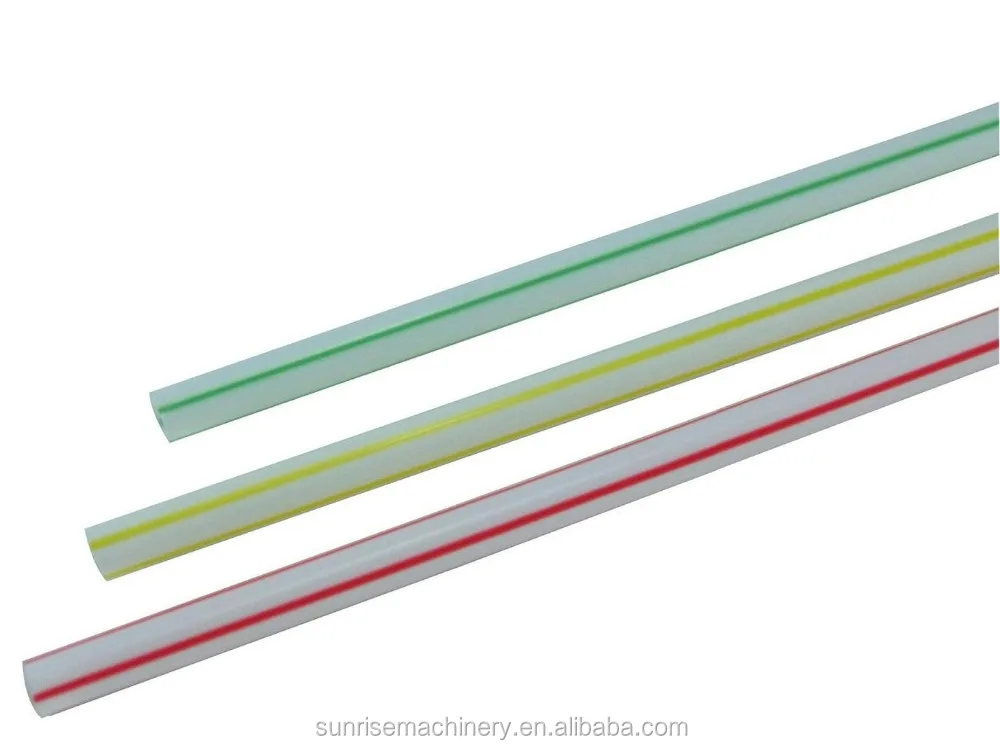

Specification of straw
Diameter.:φ2- φ 14mm
Length tolerance:± 0.1 -1mm
Thickness:0.05-1mm
Capacity
30000-60000pcs/h
Power of extruder
11kw
11kw+0.75kw
11kw+2x0.75kw
11kw+4×0.75kw
Power of hauling machine
0.75kw,380v,50hz
Power of cutter
0.75kw,380v,50hz
Power of gathering system
0.18kw,380v,50hz
Temperature controlling
5 sections
8 sections
11 sections
14 sections
Detailed Images

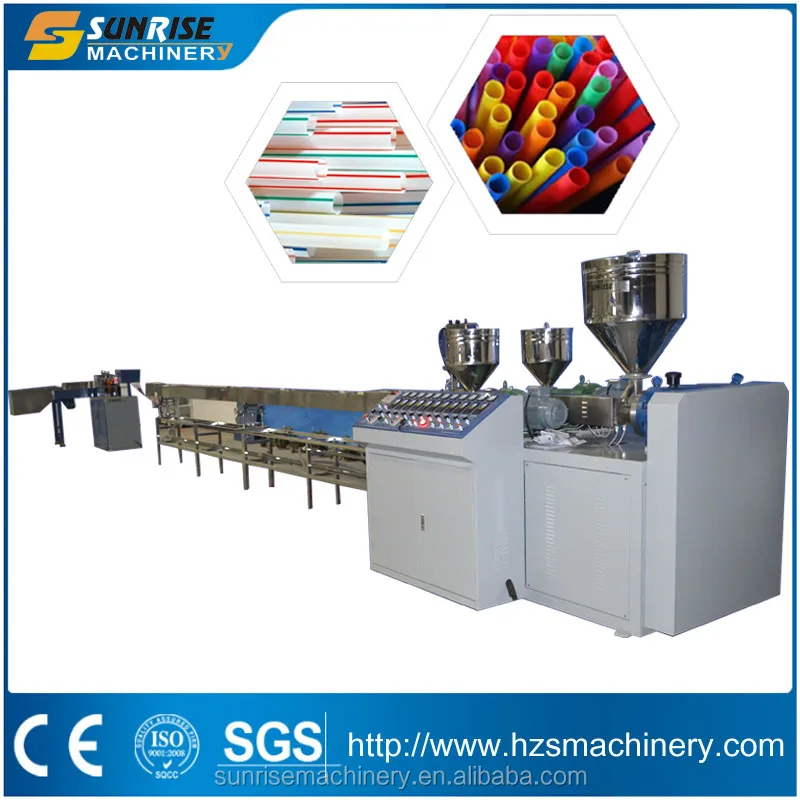

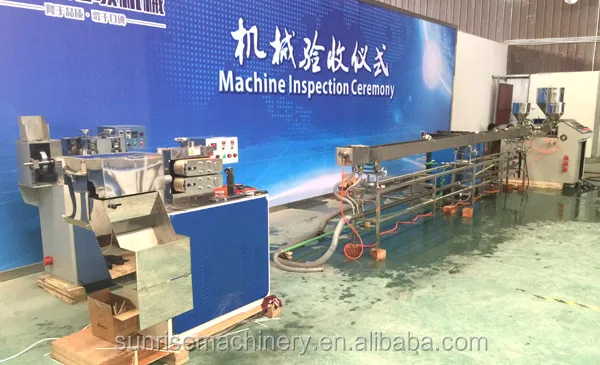

Full set

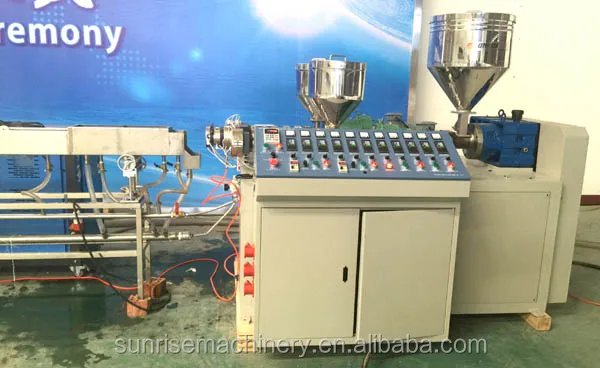

Extruder

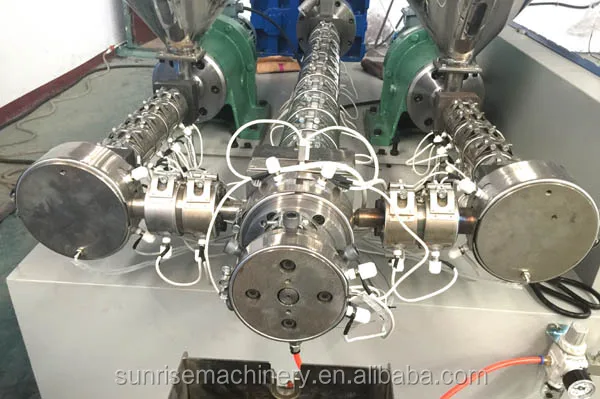

Mould

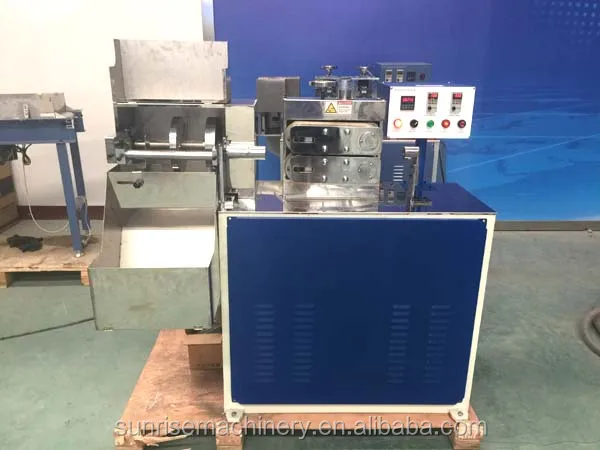

Hauling machine with spiral cutte
Packaging & Shipping
Atter the machine finished ,we will note the cutstomers the testing day ,send the video and pictures to confirm ,if all ok ,we will arrange the shippment .but if you have any change , please tell us in advance!!
Confirmed all .We will pack the each quip as the loading quantity by the shrinking film .the parts all packed by wooden case or boxes . you can see the shipping loading pictures in container .in each step we all done very well to avoid any demage when arrived the destination port .
Wooden package available:
Our Services
Our advantages: 10 years sale experience and technolog development! 24 hours after sale service! 2 years spare parts as free! 1 year warranty after installation!
Free sample!
OEM service!
Company Information
Fuyang Sunrise Machinery Co.,Ltd was established in 2005. We are specialized in designing and selling straw machine plants. We have ISO,CE, FTA Certificate and so on.
All of our machines design and produce according to the CE standard. Our principle: only after testing, machine can leave the factory. and only qualified, it can be delivered.
