Wholesale Raised Floor Pedestal self Leveling Floor Support for Outdoor Decking
- Category: Flooring Accessories >>>
- Supplier: Hangzhou,Moonbay,Industrial,Co.,Ltd.
Share on:
Product Overview
Description
Adjustable Pedestal
Moonbay adjustable plastic pedestal is made of PP,anti-UV,talc etc .
Support for outdoor terrace with any kind of material:timber decking ,wpc decking ,stone ,ceramic ,composite material ,metal ,fiberglass ,grit ,etc .
Can be placed on any stable substrate ,also over insulation panels .
Can be placed on any stable substrate ,also over insulation panels .
Sturdy base with different height adjustment ranges depending on the style, See chart for details.
Detail Size :
Advantage :
The purchase quantity of supporters depends on your usage needs, building area.
Welcome to contact us to get a calculation form.
PEDESTAL QTY CALCULATION | ||
TILE SIZE | PCS/SQM | |
600X600 MM | 2.8 PCS | |
500X500 MM | 4 PCS | |
400X400 MM | 6.3 PCS | |
PEDESTAL QTY CALCULATION | ||
Installation distance | PCS/SQM | |
300X300 MM | 11PCS | |
400X400 MM | 6PCS | |
450X450 MM | 5PCS | |
500X500 MM | 4PCS | |
We advice buy 10% more of total quantity . | ||
About Moonbay :
Alibaba SKA supplier
SGS test report and CE certificate
Distributors offer onsite service
13000 square meters factory
Over 50 professional engineers
Hot sell MB-SL self-leveling adjustable pedestal

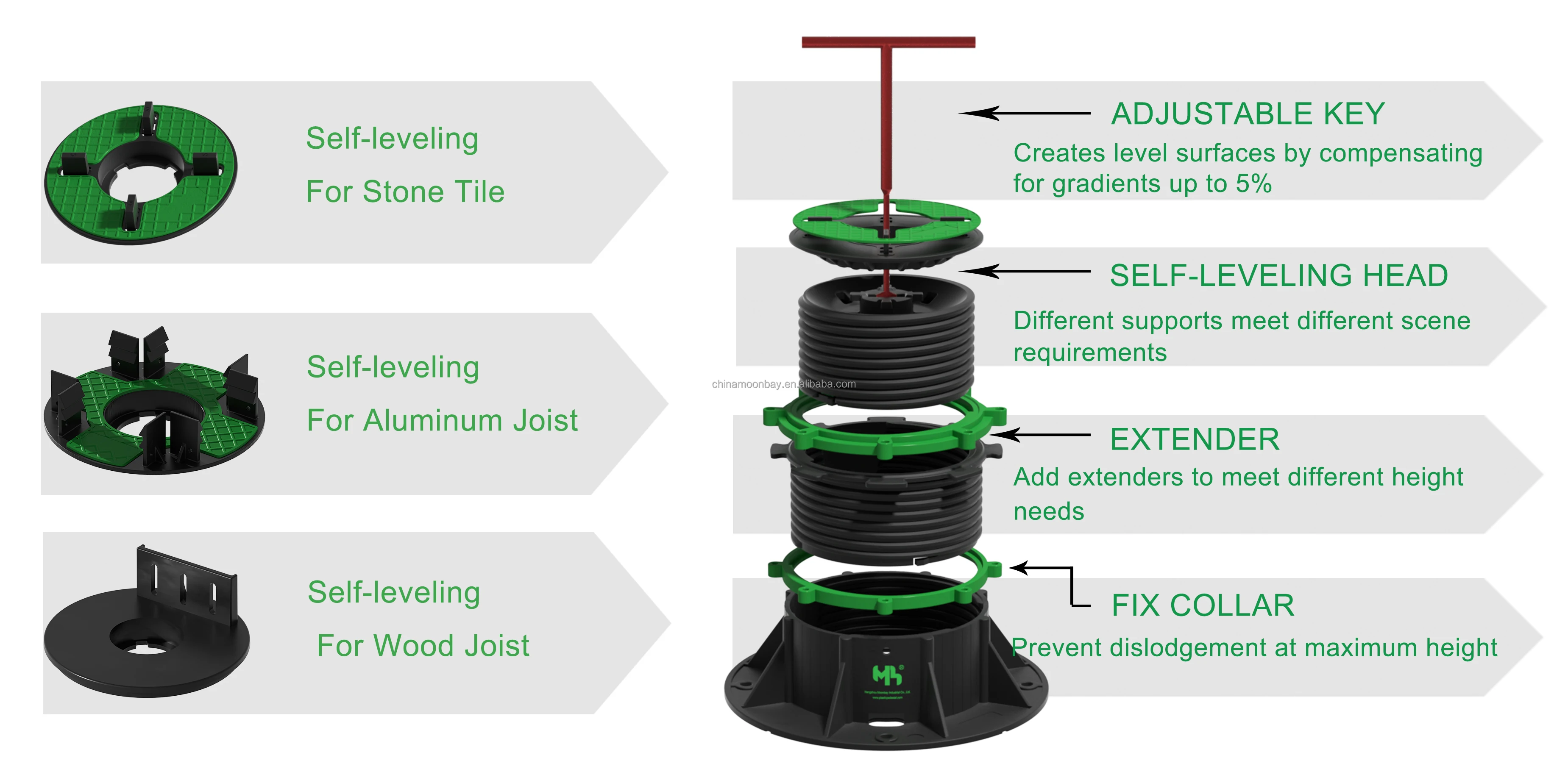

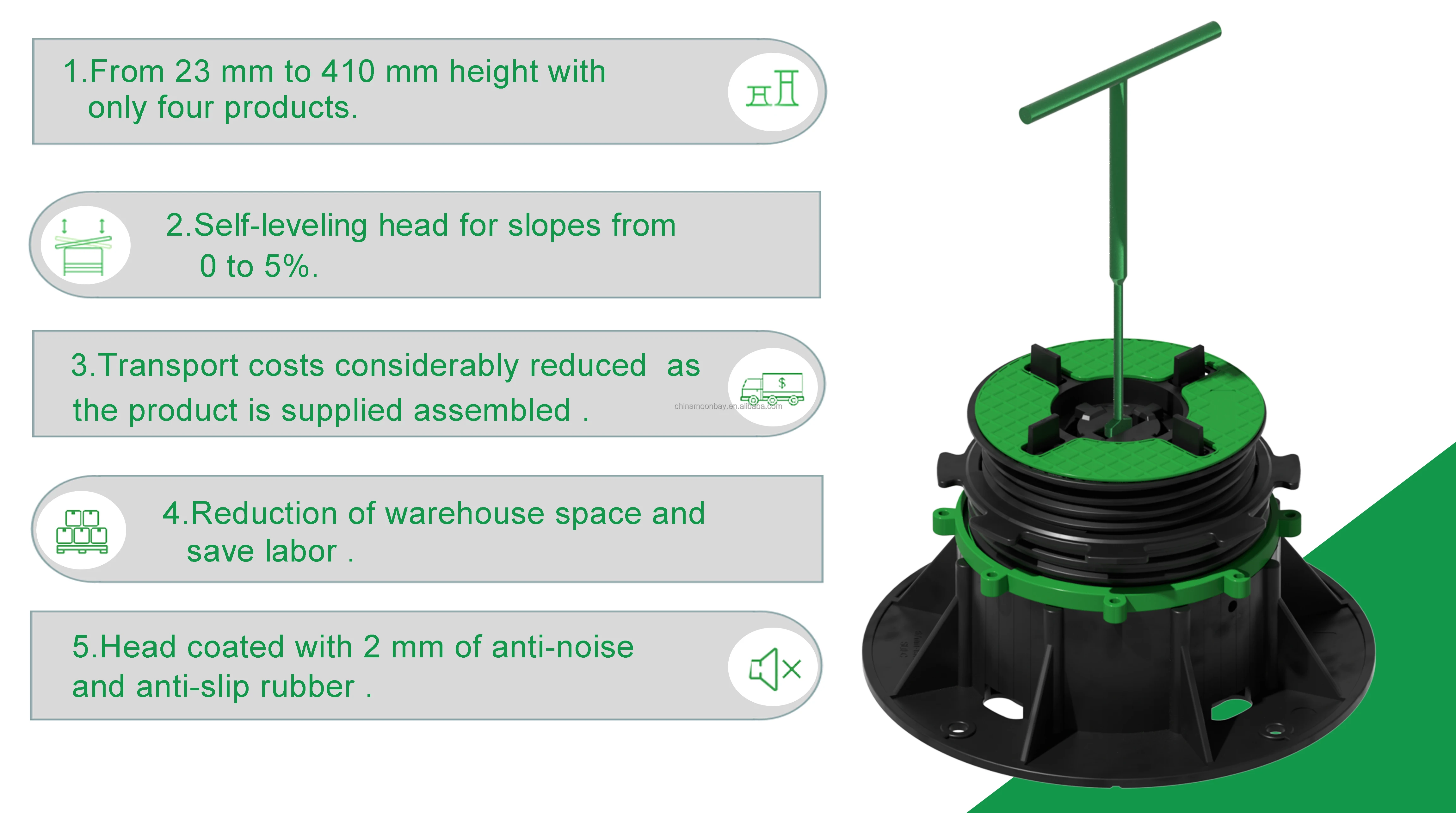

Self-leveling adjustable pedestal, automatic adjust the slope, easily adjust the height by using a key on top of pedestal, no need to move the tile or deck, fast and convience.
Hot sell MB-T adjustable pedestal
MB-T adjustable pedestal with 1.3 tons high loading capacity, fit all kinds of installation situation, such as ceramic tile, stone tile, granite tile, wood decking, wpc decking etc.
Moonbay
Provide quality products, customers are very satisfied .
Moonbay Accessory Option :
In order to meet the needs of various scenarios, some accessory products are essential.
Our company also provides accessories sales, please feel free to consult !
Base slope corrector
Rotating the upper disc to compensate 0~5% slope. Assembled under the base of the MB-T adjustable pedestals
No smell base pad
No smell,heathy,eco-friendlyAnti-slip, absorb noise,protect water membrane.
Assemble under the base of pedestal
(suitable for pedestal base dia 200mm)
Assemble under the base of pedestal
(suitable for pedestal base dia 200mm)
Flat base rubber pad
Anti-slip, absorb noise, protect water membrane. Assemble under the base of pedestal
Aluminum Rail System
Aluminum joist size: 50*25 mm, made of aluminum.
Click cradle: click fit the aluminum joist, no need screws.
Spacer tabs: fit with tiles laying on aluminum joist.
Spacer tabs: fit with tiles laying on aluminum joist.
15mm/40mm Top Extension Pad
To add 15mm/40mm higher by stack onto pedestal top. Stackable (4 max)on pedestal top.
Safety connect rod
To connect pedestals for excess height installations (over 800mm) or for installations requiring additional stability. Size option: short connect rod 340mm-500mm length; long connect rod: 500mm-750mm length
10mm/14mm Stackable Rubber Pad
Stackable Rubber Pad , 10mm/14mm rubber pad with shim, made of recycled soft rubber, noise reduction and absorb movement.
Wall Side Clips/perimeter spacer
wallside buffer steel clip used for against the wall.
Side Closure Steel Clip
Use for vertical tile to close step side.
Clip suitable for 2cm thickness tile
Clip suitable for 2cm thickness tile
Wind-proof Clips with Screw
Use for fixing the plane materiel to prevent the wind move away by insert clip into pre-cut paver tile
Wind-proof Washer with Screw
Use for fixing the plane materiel to prevent the wind move away by screw the washer on top of paver tile corner
Moonbay Factroy :
Moonbay factory located in Zhuji,Shaoxing with 13000 SQM area. There are over 60 automatic production lines.
Moonbay is now world-famous brand , we are specialized in making all kinds of pedestal products, output capacity has reached 300,000 pcs per month.

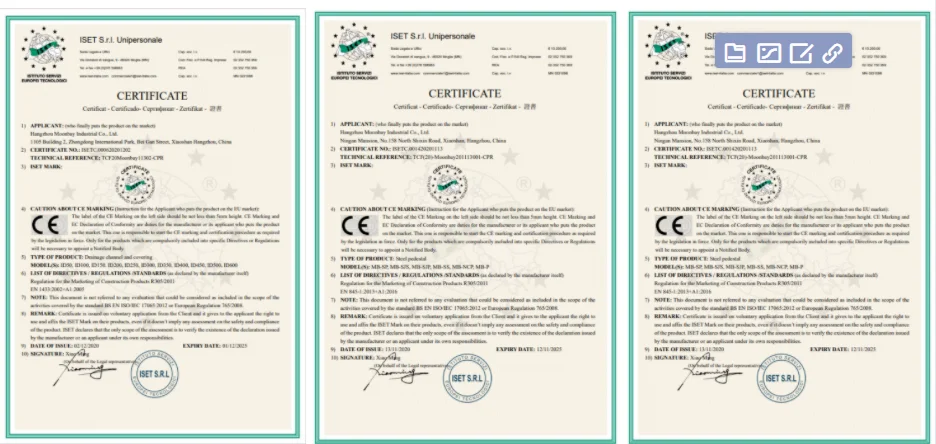

Certificate :
Moonbay pedestal has passed SGS international test, we also have CE certificate, focusing on quality is our culture and values.
