[Router manufacturer ] wireless router 4G lte antenna , dual polarized panel 4G antenna of outdoor

Product Overview

Description

[Router manufacturer ] wireless router 4G lte antenna , dual - polarized panel 4G antenna of outdoor





Main Features



• Qualcomm Multimode Chipest,Support word mode network,TDD-LTE/FDD-LTE/UMITS/EDGE/GSM

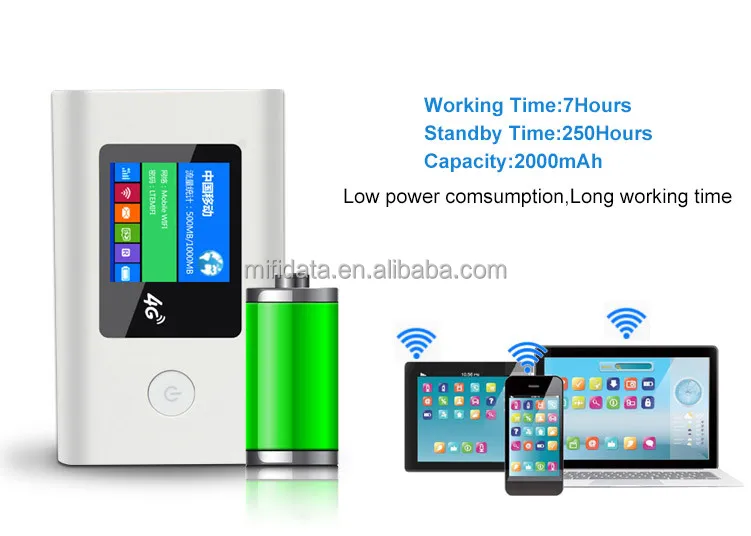

• Low-power Energy,endurance 8~10 hours
• Small and convenient,easy to take

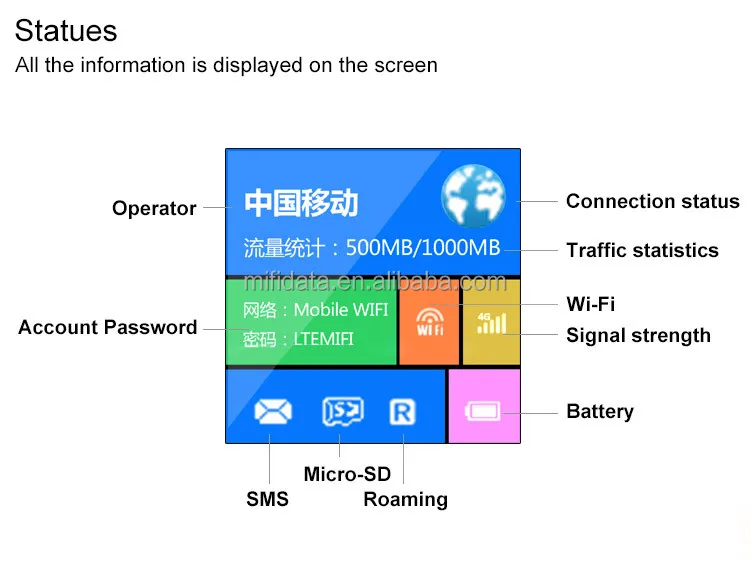

• 1.44'color screen,All status show in the screen

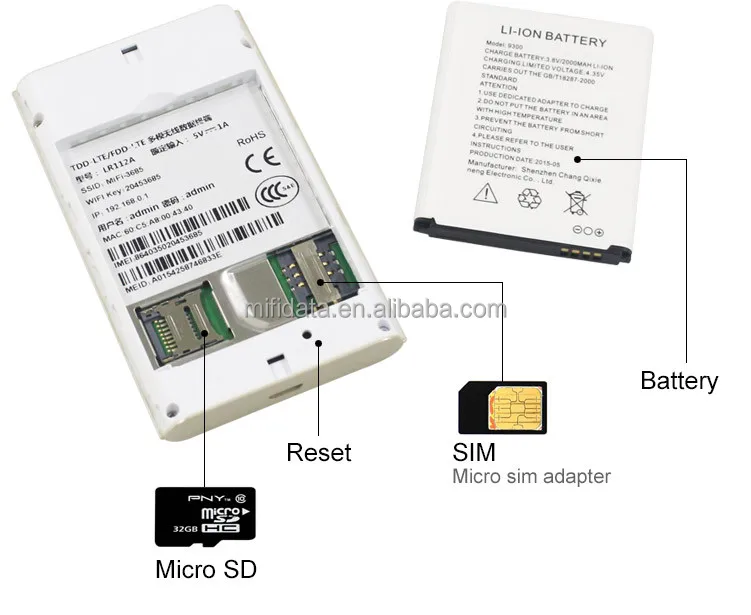

• The removable battery compatible with Samsung S3,easy to replace and purchase
• Support SD card(Up to 32GB) and file sharing via WiFi
• Up to 10 users access to Wifi



Platform





CPU	Qualcomm MDM9225
Wifi	Anteros AR6004,2*2 MIMO,b/g/n



Technical

TDD-LTE	3GPP,3GPP2 Release9,  Category 3,up to 68M DL and 17M bps UL
FDD-LTE	3GPP,3GPP2 Release9,  Category 3,up to 100M DL and 50M bps UL
DC-HPSA+	3GPP,3GPP2 Release8,  up to 42Mbps,category24,  5.76M bps UL
HPSA+	3GPP,3GPP2 Release7,  up to 14.4Mbps,category10,  5.76M bps UL
HSPA	3GPP,3GPP2 Release6,  up to 7.2Mbps DL,category7.8,  5.76M bps UL
UMTS	3GPP Release4, up to 384 Kbps DL and UL
EDGE	3GPP Release4, Multislot class 12, up to 237 Kbps
GPRS	3GPP Release4, Multislot class 10, up to 85.6Kbps





Frequency Band







TDD-LTE	B38,B39,B40,B41
FDD-LTE	B1,B2,B3,B5,B8,B20,B28
WCDMA	B1(2100MHz),B2(1900Mhz),B5(850Mhz),B8(900MHz)
TD-SCDMA	B34,B39
GSM	B2(1900MHz),B3(1800MHz),B5(850MHz),B8(900MHz)

Interface





LCD	1.44 TFT 128*128
Key	Reset/Power
TF Card	Yes,Up to 32GB
Battery	Removable 3.8V li-ion 2000mAh
Charge	5V,1A







FAQ





1.Are you a trade company or a manufacturer?

We are an CE ROHS  approved manufacturer specialized in 4G MiFi/Router, Dongle, Module and CPE.. OEM & ODM service are available.

2.What is your MOQ?

A: MOQ is 500pcs. If you need Print Logo,it’s 1000pcs

3.What is your delivery time?

A: If it’s not in stock,the delivery time is about 20~25 days after receipt of payment.

4.What is your payment terms?

A: For normal type,30% deposit in advance and 70% balance before shipment.For OEM&ODM,30%deposit,40% before SMT and 30% balance before shipment.

5.Can you send free samples?

A: Sorry,not available;The value is a little high.Feel sorry about it.

6: What is the Packaging?

 A: We provide neutral Gift box packaging, we also can make your own designed packaging,the MOQ is 2000pcs.

7. Can I have a sample even pre-production before I send you the order?

 A: Yes, We can send you samples for your approval first.

8, How can i know the capacity?

We have the Testing Machine, so any time we can test for you.And we also have CE ROHS certification.



With years of export experience along with excellent quality, advanced services and competitive prices, MIFIDATA has won numerous customers' trust and support





About orders





1. Small quantity and mixed order are acceptable

2. Small orders and sample orders are also welcomed.

3. MOQ: If we have the items in stock, we will not request it.

4. A trial order or sample orders are welcomed.

5.Customer OEM orders are welcomes.We also can change package according to the clients request.





Payment terms & Shipping way
