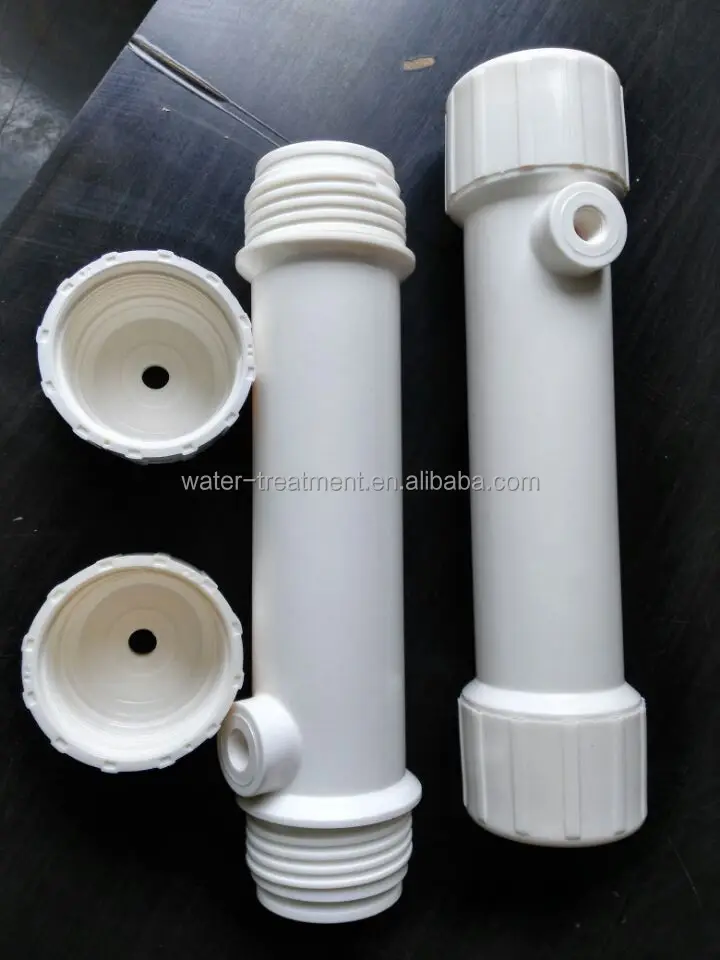

Hollow fiber UF membrane module UF280 6K dalton 61X325mm

Product Overview

Description







Technical parameters
Product model	UF280-H-6KC
Membrane material	Hydrophilic PVC
ID/OD	0.9/1.6mm
MWCO	6,000 Dalton
PH range	2-12
Temperature range	5-45℃
Quantity of loading membrane	600
Effective membrane area of element	0.4m2
Outline dimension	61*325(mm)
Way of filtration	In-to-out
Preservation status	wet
Epoxy resin pouring thickness	20mm
Removal rate of bacteria and escherichia coli	≥99.99%
Pure water flux(0.2Mpa,25℃)	60L/H









We can provide various dimension, various filtration precision, various flow rate and performance personalized UF membrane module, and also can provide OEM, ODM service.



Hollow fibers material: Modified PVC UF membrane, PVDF UF membrane, PS UF filter, PES UF membrane, etc.

WMCO: 200K dalton, 100K dalton,  50K dalton,10K dalton, 6K dalton, etc.





UF membrane features

(1) Good hydrophilicity

(2) Bursting strength: 1.3MPA

(3) Large flux with 90% fibers porosity

(4) Strong antioxidant ability



UF membrane application

(1) Drinking water purification

(2) Ultrapure water preatement

(3) Municipal sewage and industrial wastewater reuse

(4) Special solution sepraration, concentration,etc



Hollow fiber UF membrane module



Membrane feature

(1) High interception rate: 99.99%

(2) Max.inlet pressure: 0.2Mpa

(3) MWCO: 6000Dalton

(4) Application: Pharmaceutical industry to remove pyrogen,endotoxin



The filtration can be outside-in or inside-out, it depends on your choose.















We can provide various dimension, various filtration precision, various flow rate and performance personalized UF membrane module, and also can provide OEM, ODM service.



Hollow fibers material: Modified PVC UF membrane filter, PVDF UF membrane filter, PS UF filter, PES UF membrane filter, etc.

WMCO: 200K dalton, 100K dalton,  50K dalton, 10K dalton, 6K dalton, etc.



Hollow fiber UF membrane with Organic Glass housing, UF filter membrane with transparent housing for concentration/separation

1. Housing material: Organic glass( Plexiglass)

2. Fiber material: Modified PVC, PES, PVDF also avaiable

3. The end seals material: Epoxy resin

4. Working temperature:5-45 centigrade

5. PH value range:2-13

6. Max.TMP:0.2Mpa

7. Filtrate water turibidity:<0.1NTU

8. MWCO:6000-100000Dalton

9. Outline size:  Φ90*1190mm

10.  Connection size: Φ32mm  (DN25)

11.  Attached mode: Slipknot connection







Outdoor UF water filter:



Kinds of UF water filter elements:







YOUBER is a professional producer and provider of water treatment, we can accoding to the customers' requirements to do different membranes with different materials and different precision.

1.We are a professional manufacturer of UF membrane;

2. We can provide various dimension, different membrane materials like PVC, PES, PVDF etc, various filtration precision, various flow rate and performance personalized UF membrane module;

3. We can provide OEM, ODM service;

4. We also can provide membrane system desgin, installation, commisioning, maintenance service guidance and so on.

 Welcome to YOUBER!
