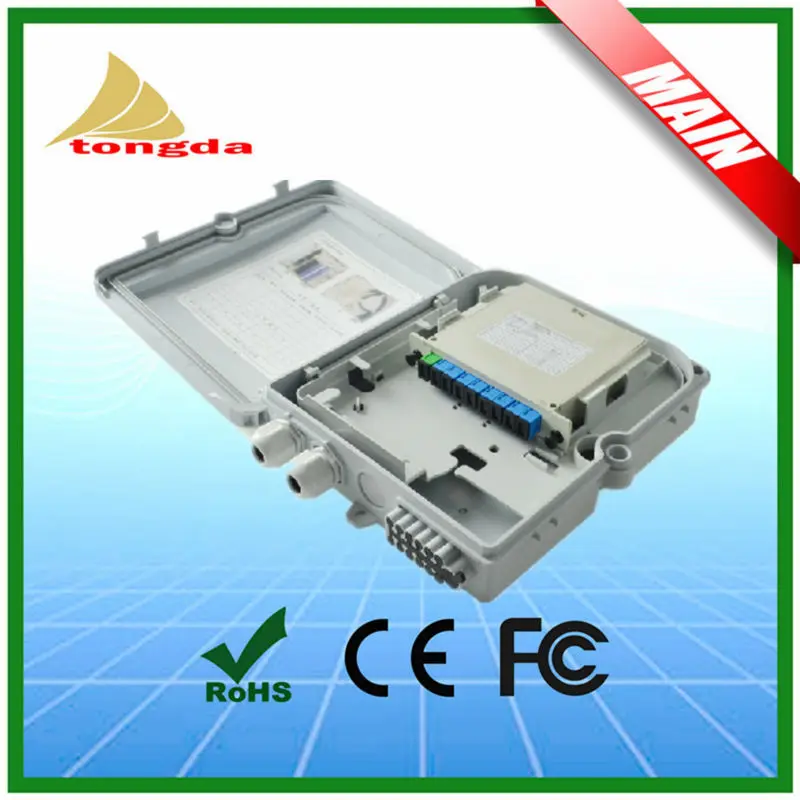

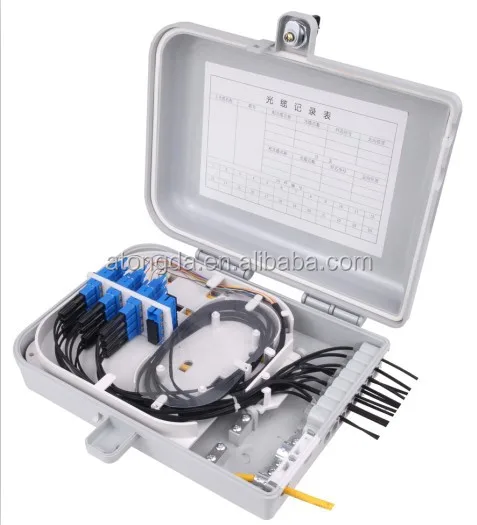

network termination box/ fttx pon network system/ outdoor network cabinet

Product Overview

Description

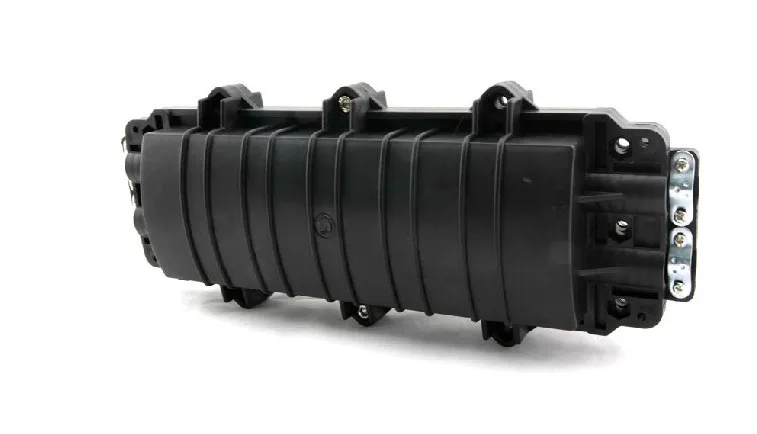

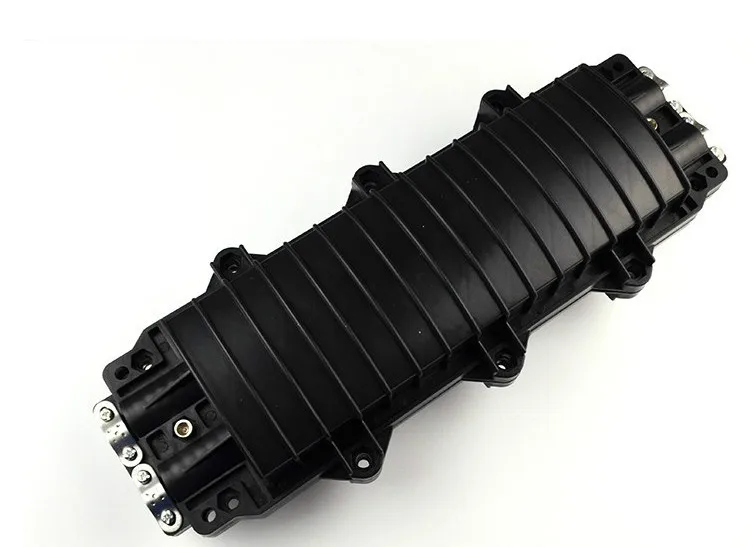

High strength anti-corrosion fiber optic splice closure/

fiber optic joint box/optical fiber connect



Fiber Optic Cable Splice Closure Specification







In and Out Port No.	Four ports,two input two output
Fiber optical cable diameter	Small port:Φ8~Φ17.5, Big port:Φ10~Φ17.5
Fiber melting No.	Single core:1~12 cores(can be extend to 16 cores);Ribbon beam :24 cores
Max capacity	Single-core :72cores ;Ribbon beam :144cores
Sealing way	Mechanical Sealing /Heat-shrinkable sealing
Sealing tape	Unvulcanized self-adhesive sealing tape
Installation application	aerial, pole-mounting, wall-mounting and direct buried
Material	Closure body is made by Super ABS/PPR material, and the bolt was made in stainless steel
Working Environment	Working temperature: -5°C to +40°C,Relative humidity:≤85%(at +30°C),Atmospheric pressure: 70Kpa-106Kpa
Weight and Size	Splice closure weight:2.1kg. Size:460×180×110(mm)

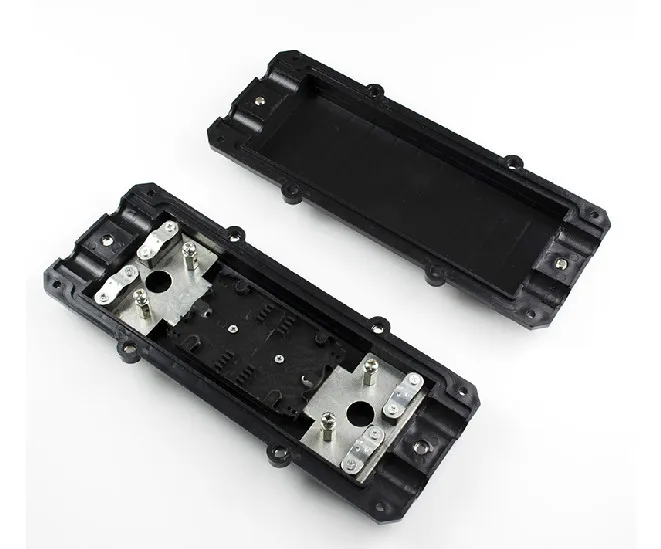

Fiber Optic Cable Splice Closure Components







1	Insulated rubber tape	two roll waterproof tape
2	Splice cassette	one set 12 core cassette
3	Cable fixing device	two stainless steel bolt sets
4	Internal hexagonal wrench	two sets
5	Heat shrinkable tube	one package
6	stainless steel tie	one set







Fiber Optic Cable Splice Closure Packing Details







Packing	Packed by Carton.Then covered with waterproof membrane.
Normal splice closure factory quantity	Standard quantity is 8 or 10 sets with a tolerance of 5% or other required.
Carton Weight	Approx. 24kg per carton.Carton Size:515*425*575mm







Notice:We can depend on customer's requirement to producing the different model  joint box.

We can guarantee :

1.Enjoy professional team service ,Response within one hour no matter before service and

after service.

2.Put  all of our experiences and technology of communication in our products.

3.Concentrate on optical fiber cable and do the professional enterprise forever.

We are waiting for your calling More Fiber Optic Splice Closure! Thanks!

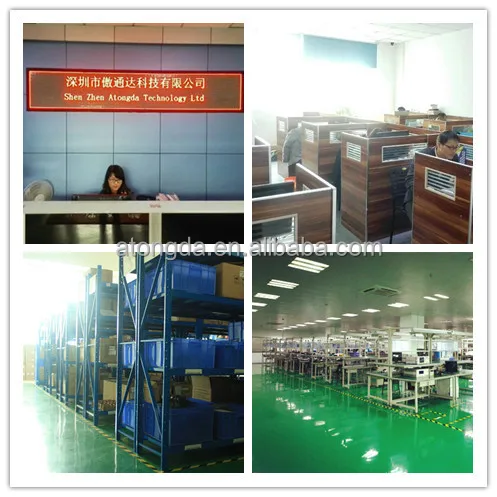

Production Show
