Hot Sale Single Full Color Led Moving small Message Display banner sign Board P10/P10 LED Sign 16x32
- Category: >>>
- Supplier: Shenzhen Leader Optoelectronics Technology Co. Ltd.
Share on (60567263916):
Product Overview
Description
P10 Single Full Color Led Moving small Message Display sign Board
Product Description
Technical Prameters
| Technical Prameters | |||||||||||
| PROJECT | P10 moving sign | ||||||||||
| Pixel pitch | 10mm | ||||||||||
| Pixel density | 10,000 Pixels/sqm | ||||||||||
| Module size(W*H) | 160 (mm)W*160 H(mm) | ||||||||||
| Module pixels(W*H) | 16 Pixels(W)*16 Pixels(H) | ||||||||||
| Pixel configuration | 1Red 1Green 1Blue | ||||||||||
| Drive mode | constant current driving static scan | ||||||||||
| LED lamp type | DIP346 | ||||||||||
| Cabinet size(W*H*D) | 960 W(mm)*960 (mm)H(customized) | ||||||||||
| Cabinet resolution | 96Pixels(W)*96 Pixels(H) | ||||||||||
| Color scale | 65,536 degree | ||||||||||
| View angle(H/V) | 110/70 degree | ||||||||||
| Brightness (White balance) | ≥5000cd/sqm. | ||||||||||
| Power consumption(one cabinet) | Max:1000W/sqm. Average:350W/sqm. | ||||||||||
| Operating Voltage | AC100V±10% or 220V ±10%; 50---60HZ | ||||||||||
| Net weight | 60Kg/sqm | ||||||||||
| Operating temperature | -20°C----+50°C (Customized power supply:-45°C---+60°C) | ||||||||||
| Operating humidity | 10%_95%RH | ||||||||||
| Life time | ≥100,000hours | ||||||||||
| MTBF | 5,000 hours | ||||||||||
| Whole Display Flatness | ≤0.3mm Juncture | ||||||||||
| Frame frequency | >60 Hz/s | ||||||||||
| Power | 110V/220V±15% 50--60Hz | ||||||||||
| LED control system | LINSN,Dbstar,Nova-star,ZDEC,Colorlight is selectable | ||||||||||
| Operating system | Windows 2000 / Windows Xp / Windows 7 | ||||||||||
| Protections for outdoor display | IP65 | ||||||||||
| Maintenance way | Rear Access | ||||||||||
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI | ||||||||||

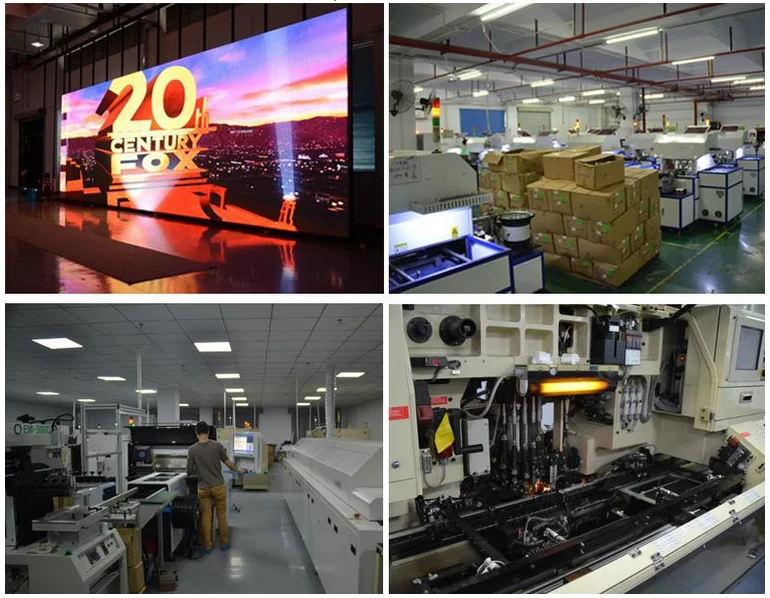

Company information
Shenzhen leader optoelectronics optoelectronis co.,ltd is a professional high quality led display manufacturer since 2007.
we have been dedicating to the aim that producing high quality products,
and now Leader has been well integrated in terms of R&D, produce, project, capital and marketing
Packaging & Shipping
