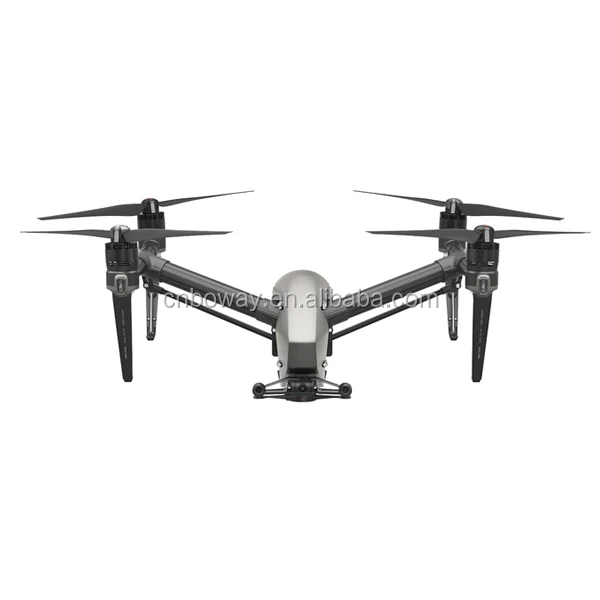

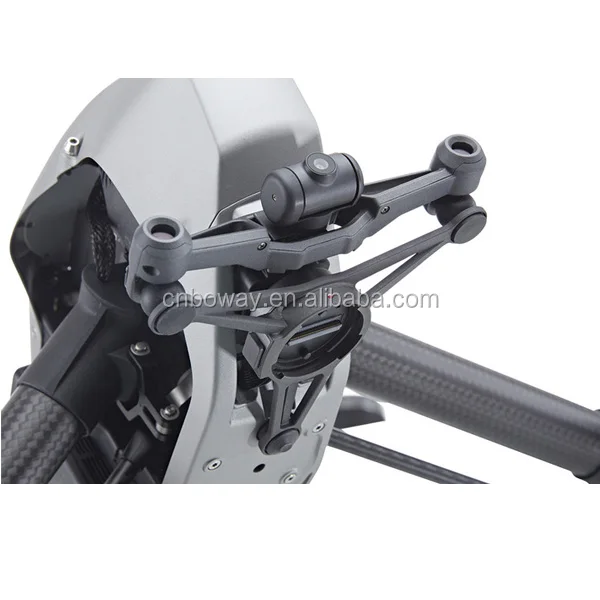

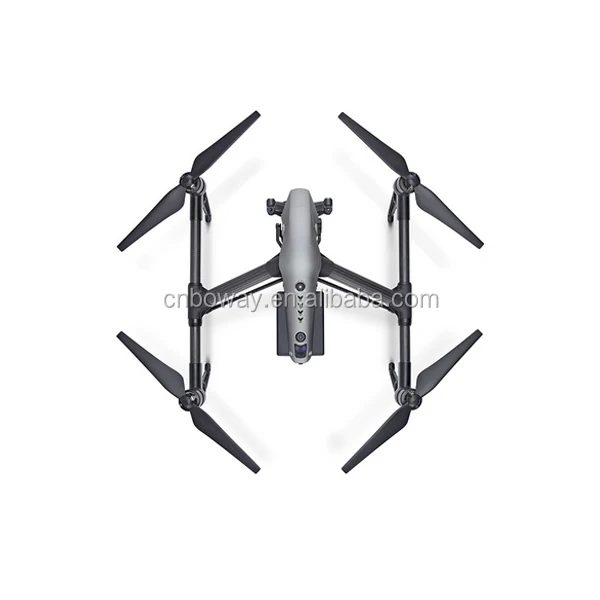

DJI Inspire 2 with FPV Camera and Long range 98ft(30m) forward obstacle sensing

Product Overview

Description

DJI Inspire 2 with FPV Camera and Long-range 98ft(30m) forward obstacle sensing





Technical Specifications

AIRCRAFT  (MODEL: T650)	Weight	7.25 lbs (3290 g, including two batteries, without gimbal and camera)
	Diagonal Distance(propeller excluded)	18 inch (605 mm, Landing Mode)
	Max Takeoff Weight	8.82 lbs (4000 g)
	Max Takeoff Sea Level	1.55 mi (2500 m); 3.1 mi (5000 m with specially-designed propeller)
	Max Flight Time	Approx. 27 min (with Zenmuse X4S)
	Max Tilt Angle	P-mode: 35° (Forward Vision System enabled: 25°); A-mode: 35°; S-mode: 40°
	Max Ascent Speed	P-mode/A-mode: 16.4 ft/s (5 m/s); S-mode: 19.7 ft/s (6 m/s)
	Max Descent Speed	Vertical: 13.1 ft/s (4 m/s); Tilt: 13.1-29.5 ft/s (4-9 m/s) Default tilt is 13.1 ft/s (4 m/s), can be set in-app.
	Max Speed	67 mph (108 kph)
	GPS Hovering Accuracy	Vertical: ±1.64 feet (0.5 m) or ±0.33 feet (0.1 m, Downward Vision System enabled) Horizontal: ±4.92 feet (1.5 m) or ±0.98 feet (0.3 m, Downward Vision System enabled)
	Operating Temperature	-4° to 104° F (-20° to 40° C)
DOWNWARD VISION SYSTEM	Velocity Range	<32.8 ft/s (10 m/s) at height of 6.56 feet (2 m)
	Altitude Range	<32.8 feet (10 m)
	Operating Range	<32.8 feet (10 m)
	Operating Environment	Surfaces with clear patterns and adequate lighting (> 15 lux)
	Ultrasonic Sensor Operating Range	0.33-16.4 feet (10-500 cm)
	Ultrasonic Sensor Operating Environment	Non-absorbing material, rigid surface (thick indoor carpeting will reduce performance)
UPWARD INFRARED SENSOR	Obstacle Sensing Range	0-16.4 feet (0-5 m)
	FOV	±5°
	Operating Environment	Large-size non-reflective obstacles
CHARGER (MODEL: IN2C180)	Voltage	26.1 V
	Rated Power	180 W
CHARGING HUB (MODEL: IN2CH)	Input Voltage	26.1 V
	Input Current	6.9 A
GIMBAL	Angular Vibration Range	±0.01°
	Controllable Range	Pitch: -130° to+40°; Roll: ±20°; Pan: ±320°
	Max Controllable Speed	Pitch: 90°/s; Roll: 90°/s; Pan: 90°/s
FORWARD VISION SYSTEM	Obstacle Sensing Range	2.3-98.4 feet (0.7-30 m)
	FOV	Horizontal: 60°; Vertical: 54°
	Operating Environment	Surfaces with clear patterns and adequate lighting (> 15 lux)

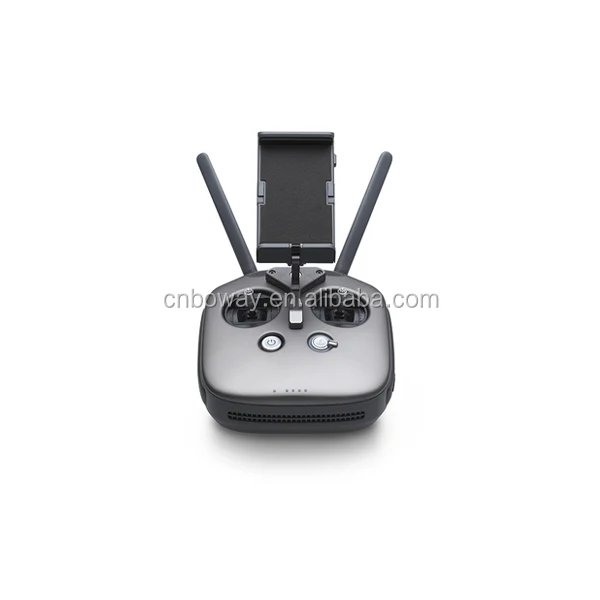

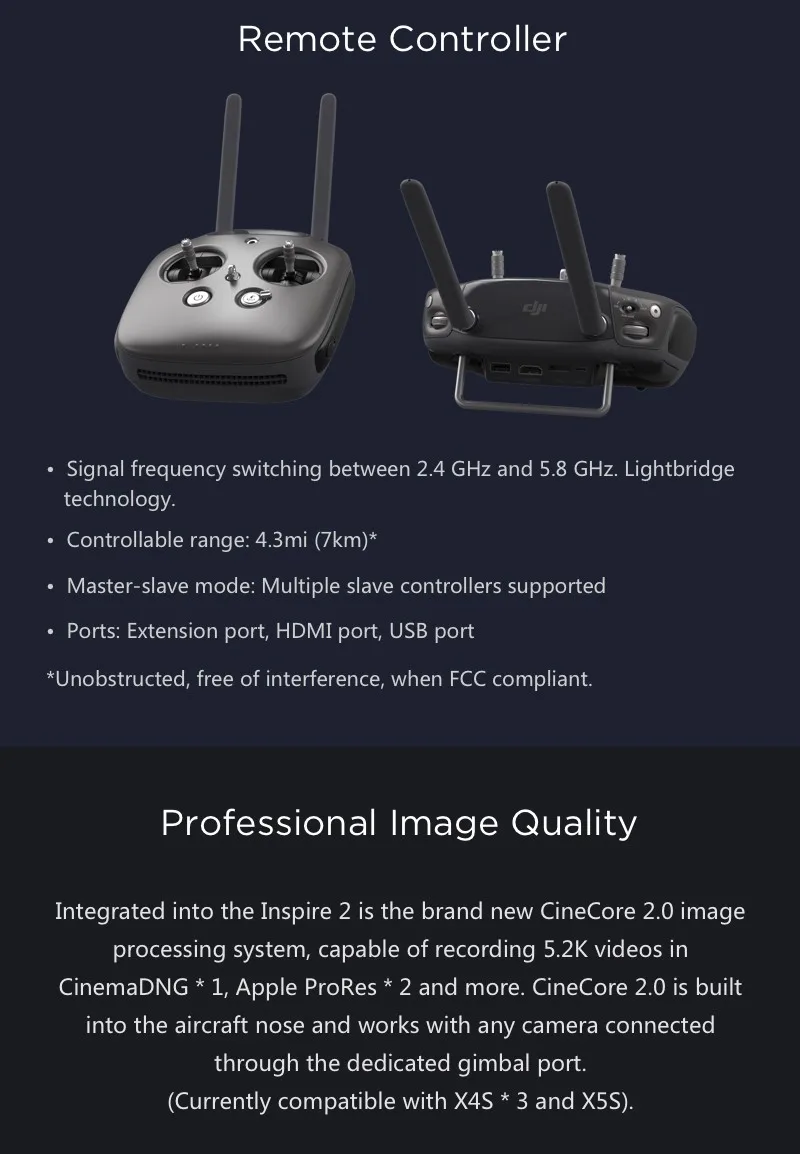

REMOTE CONTROLLER	Operating Frequency	2.400-2.483 GHz; 5.725-5.850 GHz
	Max Transmitting Distance	2.4 GHz: 4.3 miles (7 km, FCC); 2.2 miles (3.5 km, CE); 2.5 miles (4 km, SRRC)
	(unobstructed, free of interference)	5.8 GHz: 4.3 miles (7 km, FCC); 1.2 miles (2 km, CE); 3.1 miles (5 km, SRRC)
	EIRP	2.4 GHz: 26 dBm (FCC); 17 dBm (CE); 20 dBm (SRRC) 5.8 GHz: 28 dBm (FCC); 14 dBm (CE); 20 dBm (SRRC)
	Battery	6000mAh 2S LiPo
	Output Power	9 W (Not supply power for mobile device)
	USB Supply Power	iOS: 1 A @ 5.2 V (Max); Android: 1.5 A @ 5.2 V (Max)
	Operating Temperature	-4° to 104° F (-20° to 40° C)
INTELLIGENT FLIGHT BATTERY (MODEL: TB50-4280MAH-22.8V)	Capacity	4280 mAh
	Voltage	22.8 V
	Battery Type	LiPo 6S
	Energy	97.58 Wh
	Net Weight	515 g
	Charging Temperature	41° to 104° F (5° to 40° C)
	Operating Temperature	-4° to 104° F (-20° to 40° C)
	Max Charging Power	180 W

Features:

• Image quality, power and intelligence to meet the needs of professional filmmakers and enterprises around the globe.


• 25-27 minutes flight time. Up to 67mph(108kmh) maximum speed

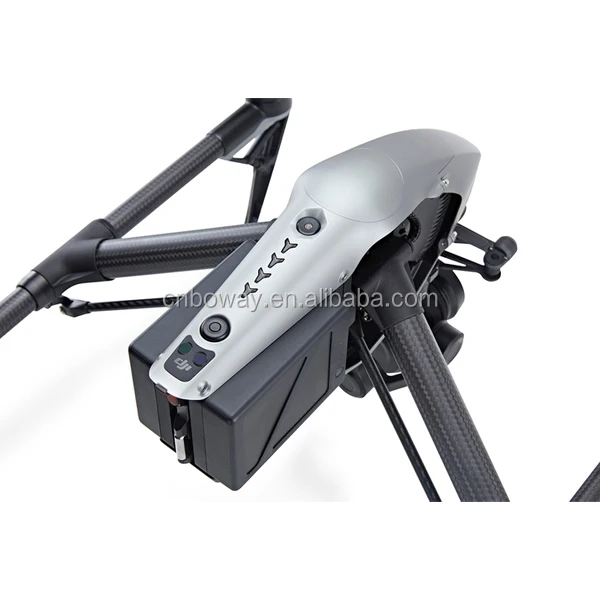

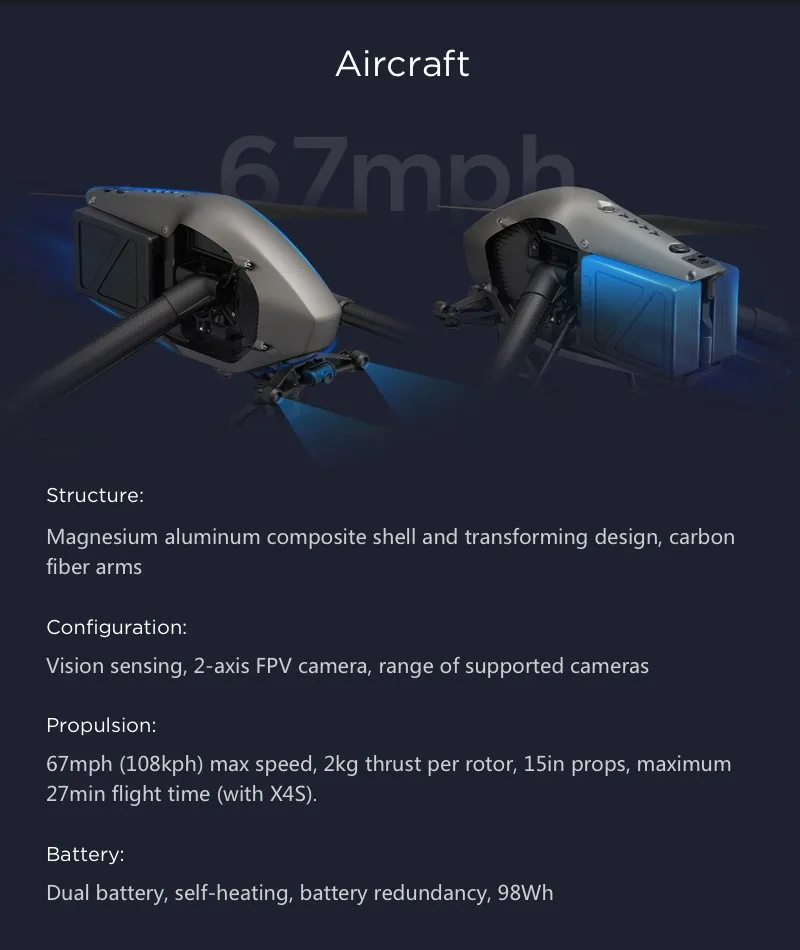

• Magnesium aluminum composite shell and transforming design, 360 rotating gimbal

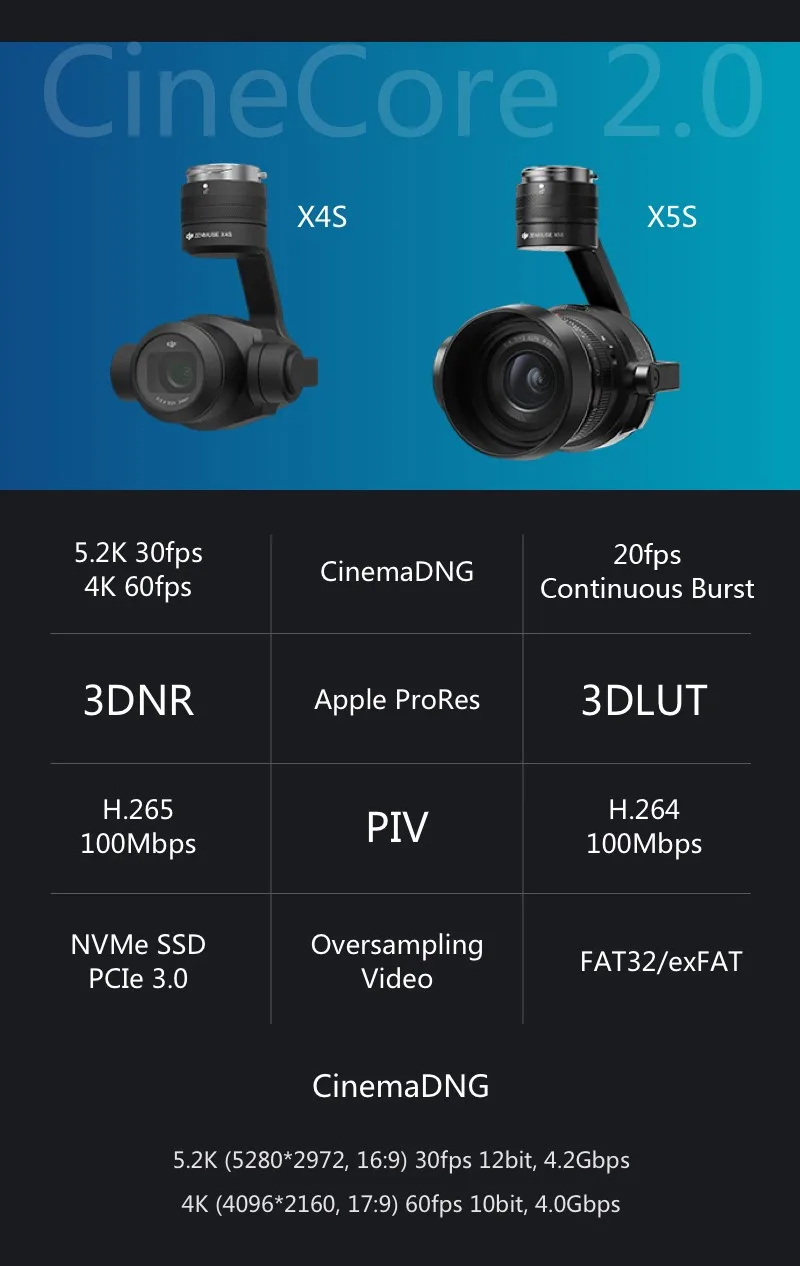

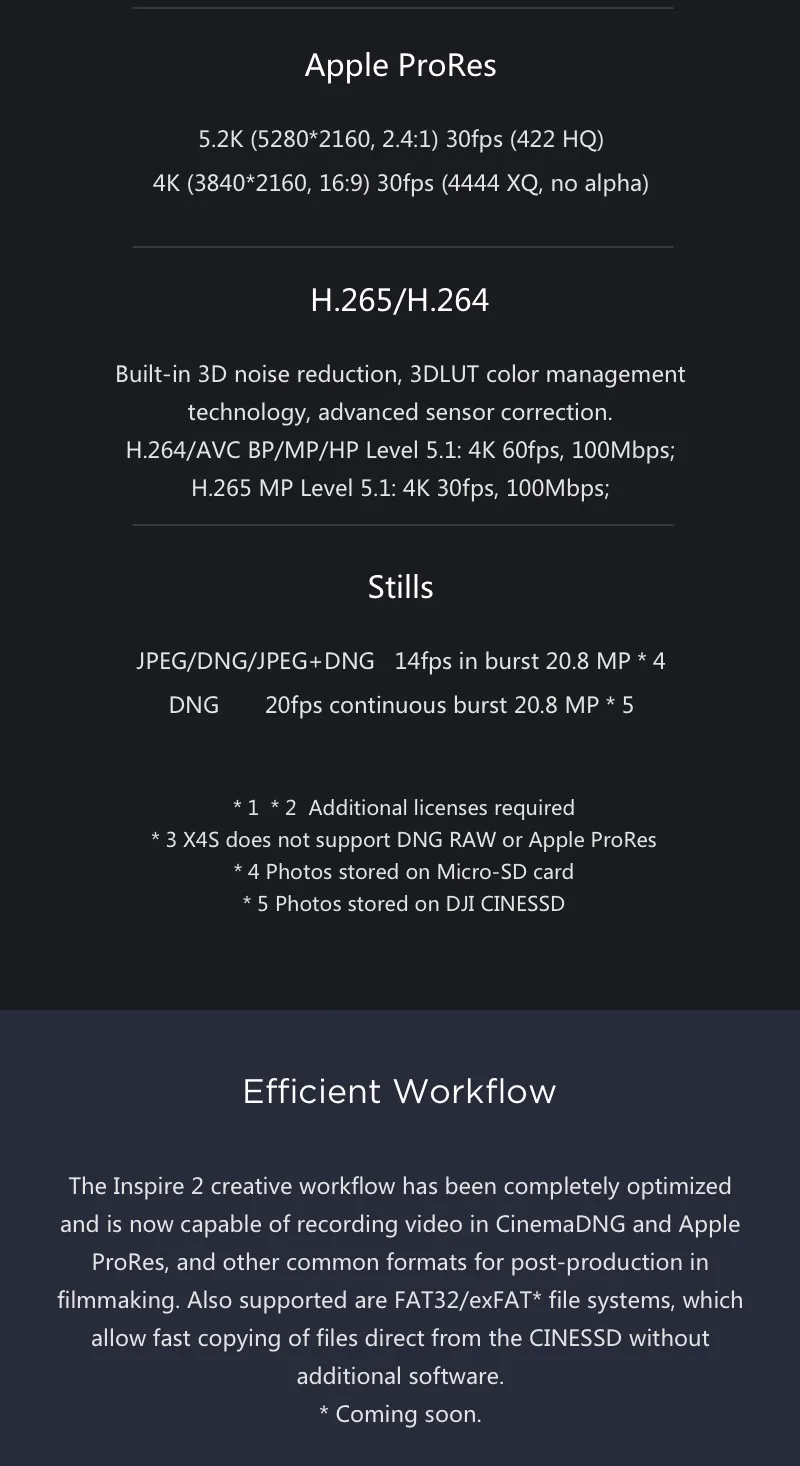

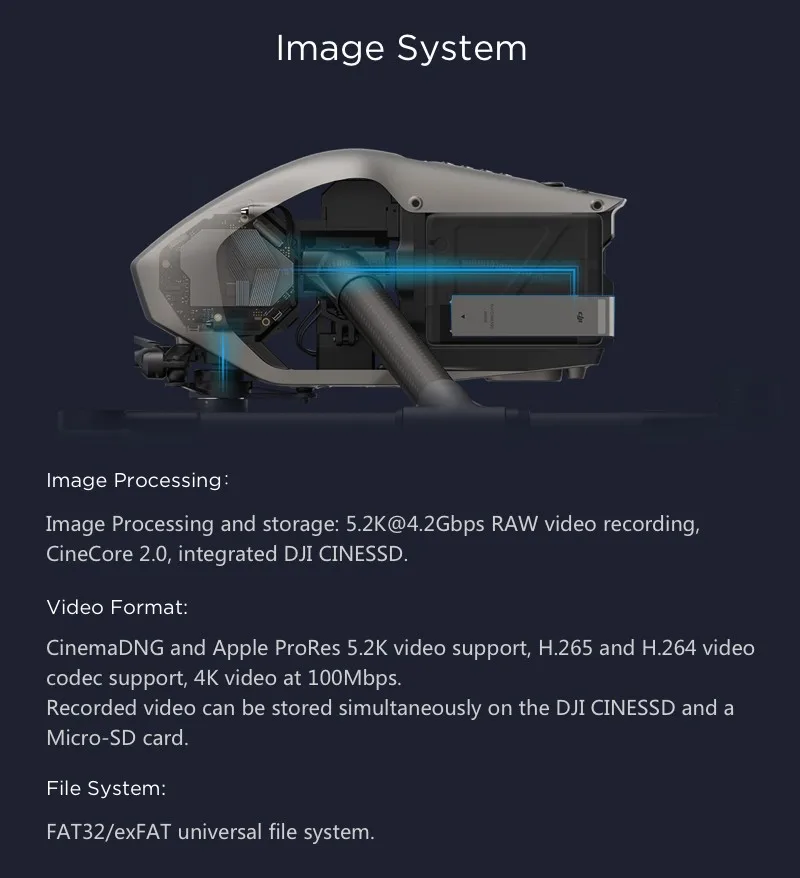

• Native CinemaDNG and Apple ProRes 422HQ(5.2K) and 4444XQ(4K)supported using Zenmuse X5S

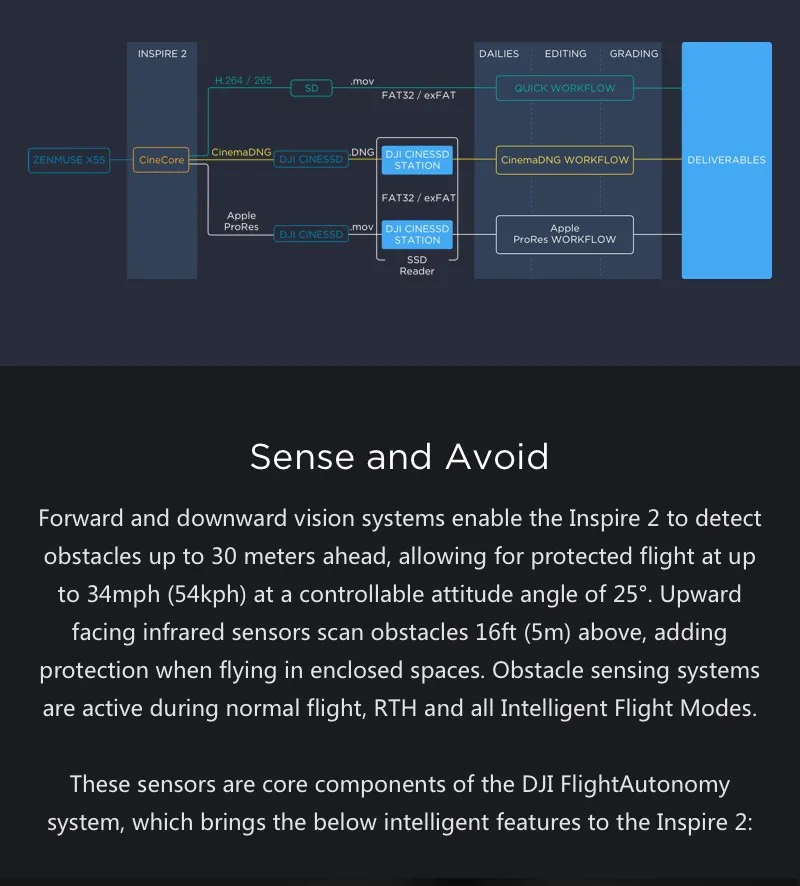

• Long-range 98ft(30m) forward obstacle sensing. Upward obstacle sensing

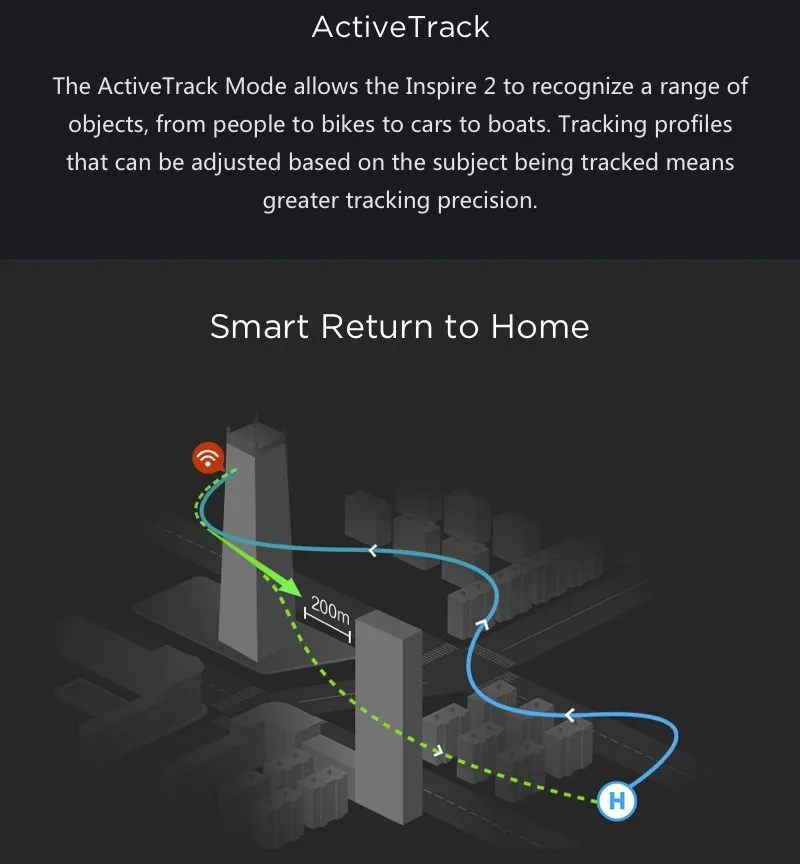

• Intelligent flight modes including Spotlight Pro and TapFly using FPV Camera


• Switchable 2.4/5.8GHz transmission, up to 4.6mi(7km) range



Shipping:

We can send it by Express(DHL/FedEx/UPS/TNT),  air transportation,  sea and land transportation.
