Low price guaranteed quality insulation pultruded fiberglass seal the rope
- Category: >>>
- Supplier: Yuyao Feida Insulation Sealing Factory
Share on (60567307175):
Product Overview
Description
Product Description
Specification:
1.Electric insulation
2.High temperature resistant
3.High strength and tensile strength
4.Corrosion-resistant,so long life time
5.Good compression strength
6.Non-toxicity,environmental protection
7.Good antacid oil resistance and water vapor resistance
8.Low thermal conductivity and low thermal capacity
Description:
1.Braided by texturized glass fiber yarn, can be used as a gasket seals for high temperature.
2.This rope will not burn, will withstand continuous exposure to temperatures of 1000F/520C.This material resists most acids and alkalis and is unaffected by most bleaches and solvents. It is highly flexible and conformable.
3.It also can be used to coke furnace, stove and boiler burner, chimney door sealing value or pump, exchanger.
4.can be provided within the wire (nickel-wire or stainless steel wire)
5.size:4X4MM-80X80MM
Application:

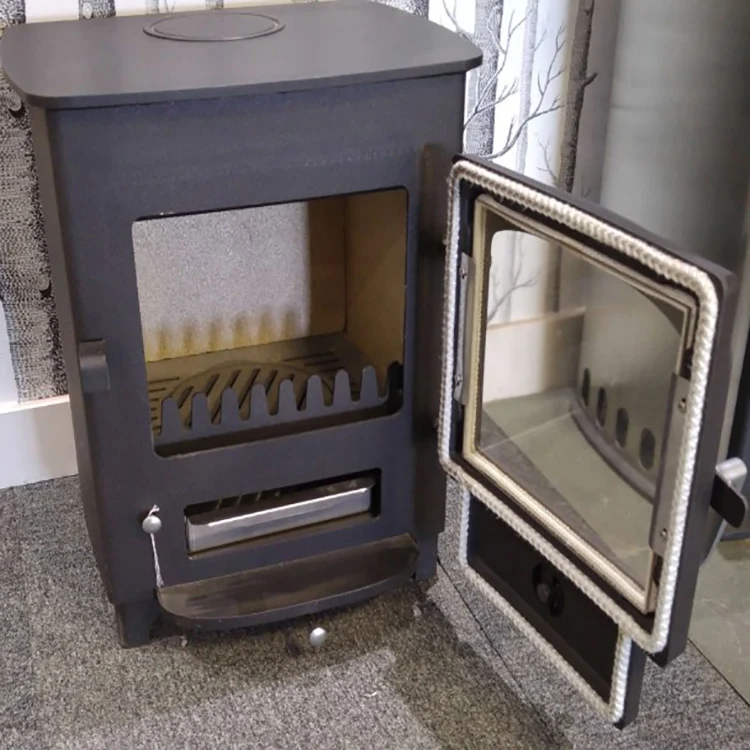

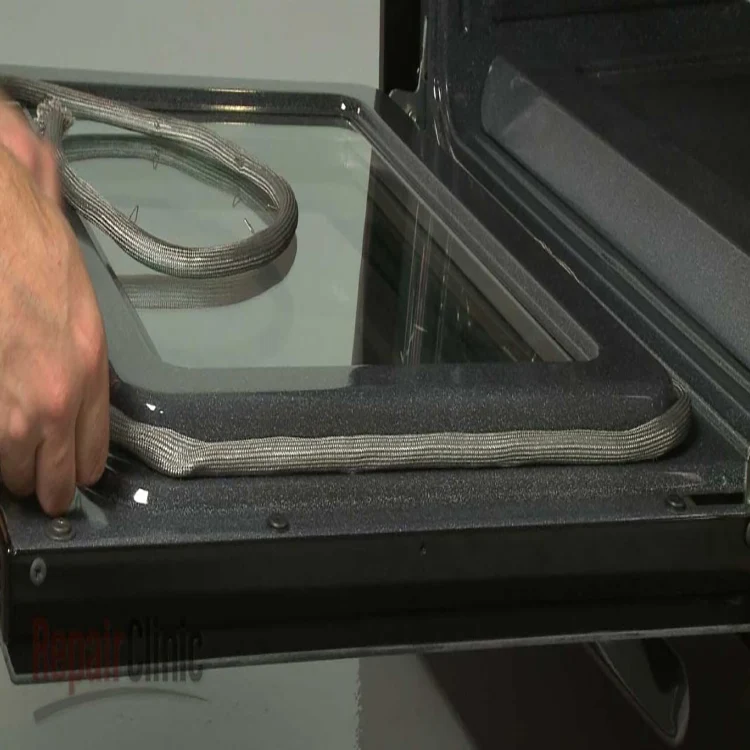

1. It can use as a gasket or seal on boiler, coke oven, industrial oven and wood stove/pellet stove doors
2. It is also used for crucible packing and pollution control equipment, high temperature tying and lacing cords, as a core rope in tadpole tapes and as a pipe wrap
Glass type | E-Glass, C-Glass |
Filament | 9-11µm |
Diameter(double layer) | 6-16mm |
Refractoriness | 600℃ |
Weight | 60g-160g/m |
Roll length | 30-200m |
Thermal conductity coefficient | <0.035 Kcal/m.h. ℃ |
Moisture content | <0.5% |
Custom service:
| Size: | customized |
| Color: | customized |
| Packaging: | customized |
| shape: | customized |
| length: | customized |
can customize for you according to your requiredment.We support OEM.
<< Just Tell us : length, size, color etc. required >>
| size | net weight per coil | Round Rope | Square rope | |
| Length per coil (approx.) | Length per coil (approx.) | |||
| inch | mm | kg | m | m |
| 1/4 | 6.4 | 5 | 181.5 | 149 |
| 5/16 | 8 | 5 | 120 | 100.5 |
| 3/8 | 9.6 | 5 | 77.5 | 72 |
| 1/2 | 12.7 | 10 | 89.5 | 83 |
| 5/8 | 16 | 10 | 70 | 66 |
| 3/4 | 19.2 | 10 | 44 | 42 |
| 7/8 | 22.4 | 10 | 33.5 | 29 |
| 1 | 25.4 | 10 | 28 | 23.5 |
| 1-1/8 | 28.6 | 10 | 22.5 | 20.5 |
| 1-1/4 | 32 | 10 | 18 | 15 |
| 1-1/2 | 38.1 | 10 | 12 | 12 |
| 1-3/4 | 44.5 | 10 | 9.5 | 8.5 |
| 2 | 50.8 | 10 | 6.5 | 6.5 |
user's guidance:
• Be sure stove is cold.
• Wear protective gloves and eye protection.
• Protect work area with a drop cloth.
• Use a screwdriver or scraper to remove old gasket and clean door channels down to bare metal.
• Apply a bead of gasket cement in door channel.
• Press new gasket into wet cement and close door to check for airtight fit.
• Trim gasket as needed.
• Clean up all cement spills or excess immediately with wet cloth.
