hydrostatic transmission flail mower

Share on (60567406323):


Price:

Quantity:


Product Overview

Description


hydrostatic transmission flail mower

Product Description



Specifications

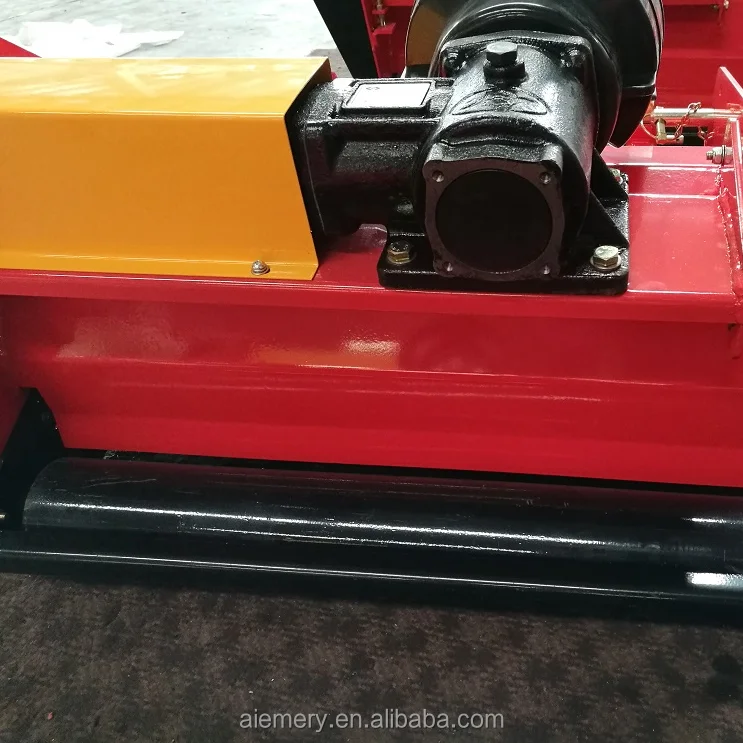

1.EF series flail mowers with Cast-iron gearbox with free wheel.

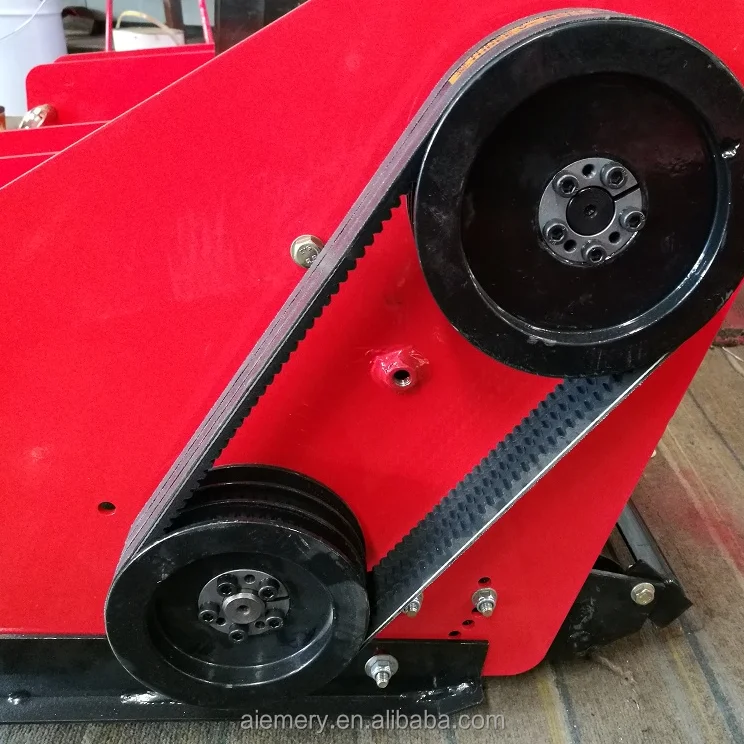

2.Sturdy toothed belts
3.Power required:14HP-40HP



EF series Flail Mower:

1 (6).jpg

1 (4).jpg



Main Specification on EF series Flail Mower



MODEL

EF85

EF95

EF105

EF115

DIMENSIONS(L*W*H)

950x687x722mm

1050x687x722mm

1150x687x722mm

1250x687x722mm

STRUCTURE WEIGHT

10kg

115kg

130kg

145kg

CUTTING WIDTH

829mm

929mm

1029mm

1129mm

WORKING EFFICIENCY

2500-6500m2/h

2500-7500m2/h

3000-8000m2/h

3300-9000m2/h

PTO TURNNING SPEED

540r/min

540r/min

540r/min

540r/min

PTO SPLINE

6x8x800mm

6x8 x800 mm

6x8 x800 mm

6x8 x800 mm

POWER REQUIRED

14-18hp

16-20hp

20-30hp

20-30hp



MODEL

EF125

EF135

EF145

EF155

DIMENSIONS(L*W*H)

1350x687x722mm

1450x687x722mm

1550x687x722mm

1650x687x722mm

STRUCTURE WEIGHT

160kg

175kg

190kg

210kg

CUTTING WIDTH

1229mm

1329mm

1429mm

1529mm

WORKING EFFICIENCY

3700-9800m2/h

4000-10600m2/h

4300-11400m2/h

4600-12240m2/h

PTO TURNNING SPEED

540r/min

540r/min

540r/min

540r/min

PTO SPLINE

6x8x800 mm

6x8x800 mm

6x8x800 mm

6x8x800 mm

POWER REQUIRED

25-35hp

25-35hp

25-35hp

30-40hp



MODEL

EF165

EF175





DIMENSIONS(L*W*H)

1750x687x722mm

1850x687x722mm





STRUCTURE WEIGHT

235kg

255kg





CUTTING WIDTH

1629mm

1729mm





WORKING EFFICIENCY

4900-13000m2/h

5200-13800m2/h





PTO TURNNING SPEED

540r/min

540r/min





PTO SPLINE

6x8x800mm

6x8x800mm





POWER REQUIRED

30-40hp

30-40hp





Packaging & Shipping



Packaging Details:Standard exporting packing :steel crate
Delivery Detail:35 work days after payment
Company Information



Aiemery Agri-machinery

Located in Changzhou City, 2 hours reach to Shanghai by car. We are a professional manufacturer of a variety range of agricultural implements, such as all kinds of Mowers, Rotary tiller, Wood chipper,Post hole digger and so on.



Our company is established in 2010, since then we have passed CE test. We have our own brand, also OEM accepted. In the past few years, we have established a good work team. We have several engineers and quality inspectors with more than 10 years’ experience in this area. We will strictly abide by the principle of "client interests above all else". We are strict with our quality, we will inspect material, productive process and product carefully. Now our products are exported to global markets

such as the North American, Europe, Australian, and South American etc. Consequently, we have built long term business relationships with customers from all overthe world.



Providing 'Quality Products, Excellent Service, Competitive Prices and Prompt Delivery', we are now looking forward to even greater cooperation with overseas customers based on mutual benefits. Please feel free to contact us for more information.





 Factory show













High Quality

In the past few years, we have established a good work team. We have several engineers and

quality inspectors with more than 10 years’ experience in this area.We are strict with our quality,

we inspect material, productive process and product carefully.





CE certification






Our company is established in 2010, since then we have passed CE test.





Location of our factory






Located in Changzhou City, 2 hours reach to Shanghai by car.



FAQ



FAQ:



1.Sample test

It’s ok for sample test, and you can place a small order for testing.



2.Do you have after-sales service?

Yes, all of our products have 12 month quality assurance to make sure that we supply you the best quality.



3.Can you print my brand name on it?

Yes of course,you just need to send us the picture of your brand.



4.What’s your payment term?

Usually 30% T/T deposit once place an order and sign a contract, 70% balanced before shipping or against copy of B/L.



5.Can I mix different models together?

Yes, you can mix different products or models in 1x20ft or 1x40ft container and we will make the best use of the container room.



6.Are your agri machines fit for other brand tractors?

Our 3 point system and PTO shaft are designed according to international standards and will accept all class 3 point implements.
