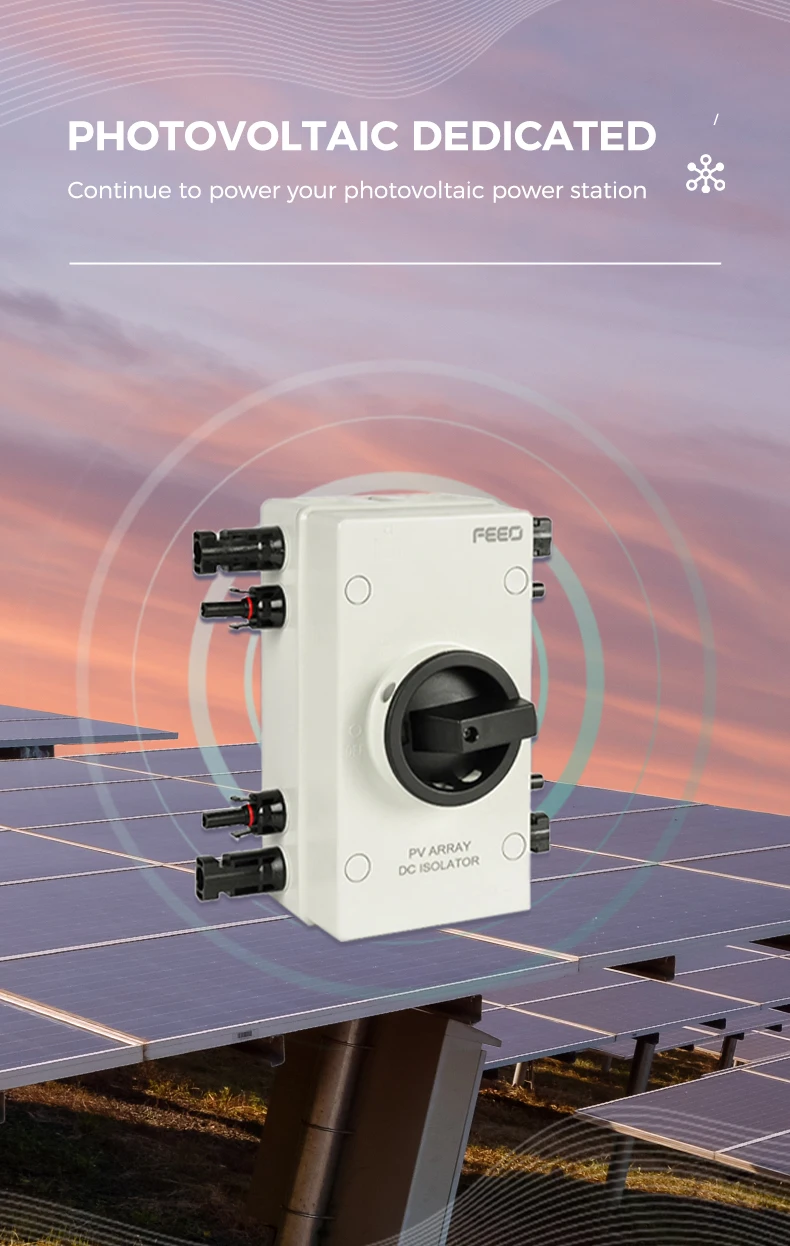

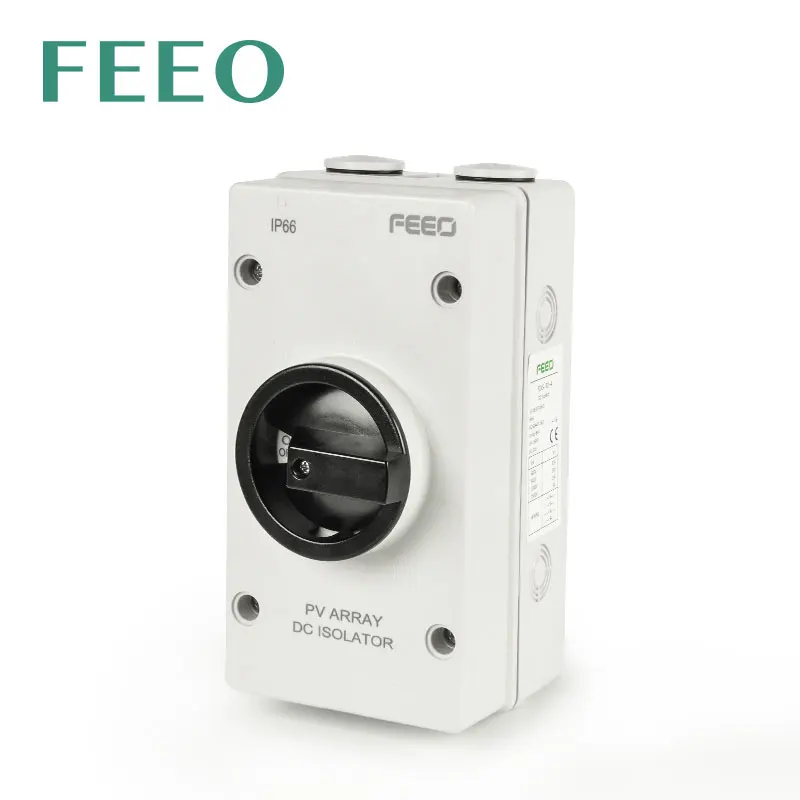

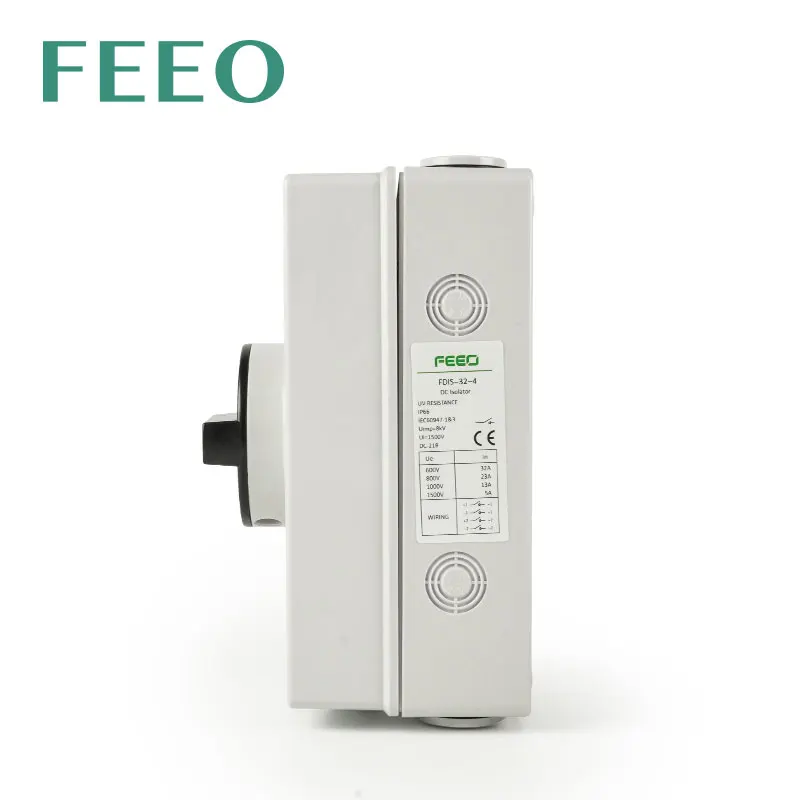

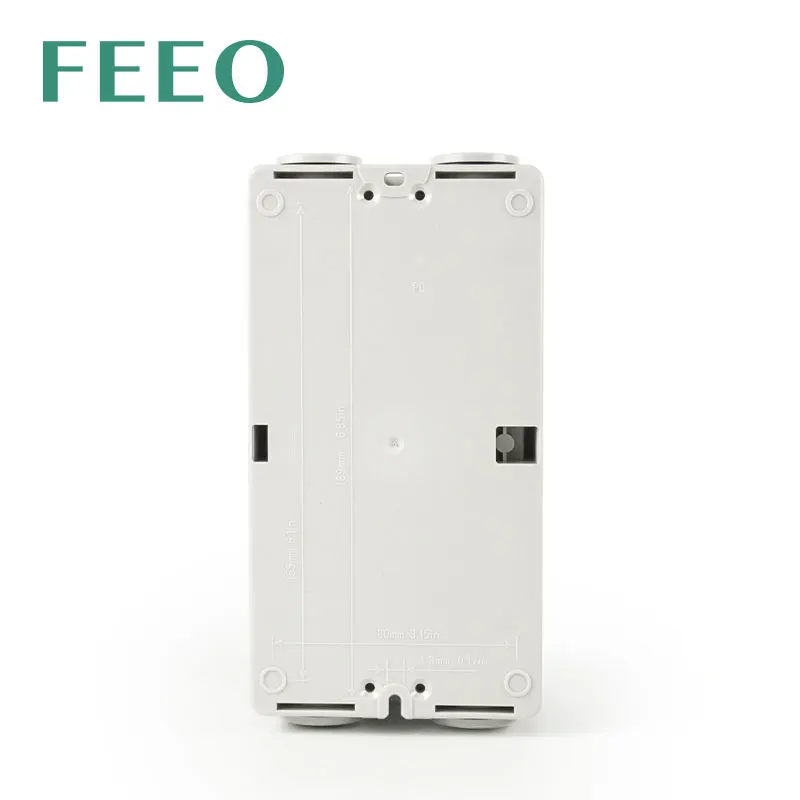

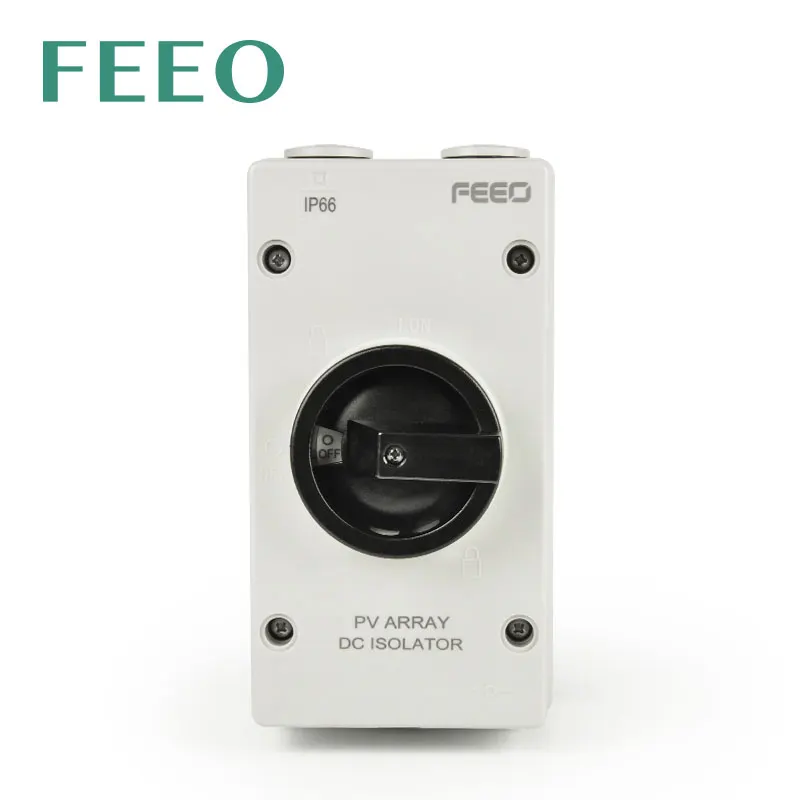

energy saving dc isolator ip66 main switch

Name: energy saving dc isolator ip66 main switch
SKU: 60567413889
Availability: InStock

Price:

Quantity:

Product Description

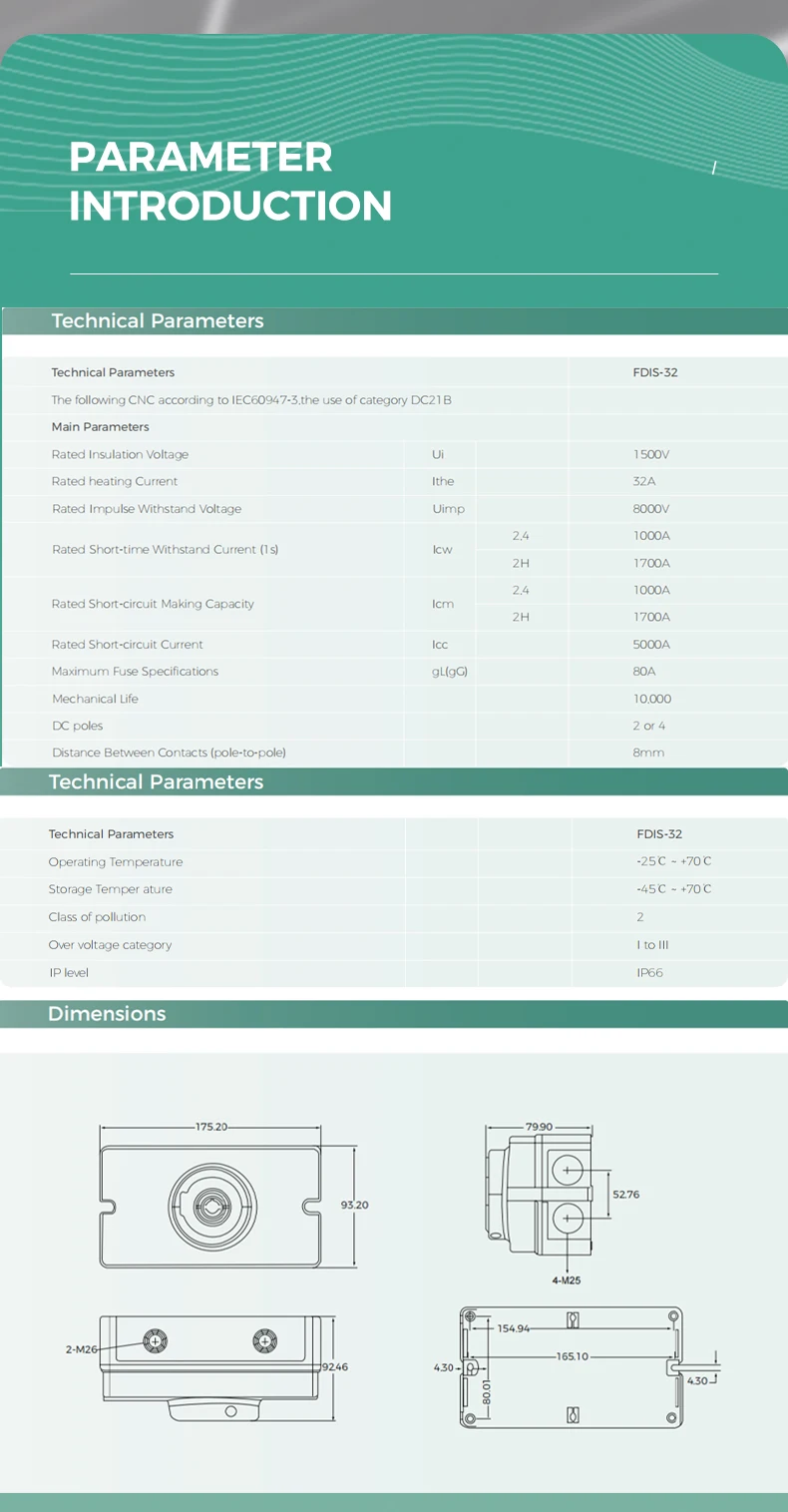

dc disconnector Parameters:

Technical parameters			Model	FDIS-32
Rated insulation voltage	Ui		V	1500
Rated heating current	Ithe		A	32
Rated impulse withstand voltage	Uimp		V	8000
Rated short-time withstand current(1s)	Icw	2,4	A	1000
Rated short-time withstand current(1s)	Icw	2H	A	1700
Rated short-circuit making capacity	Icm	2,4	A	1000
Rated short-circuit making capacity	Icm	2H	A	1700
Rated short-circuit current	Icc		A	5000
Maximum fuse specifications	gL(gG)		A	80
Mechanical life				10000
DC poles				2 or 4

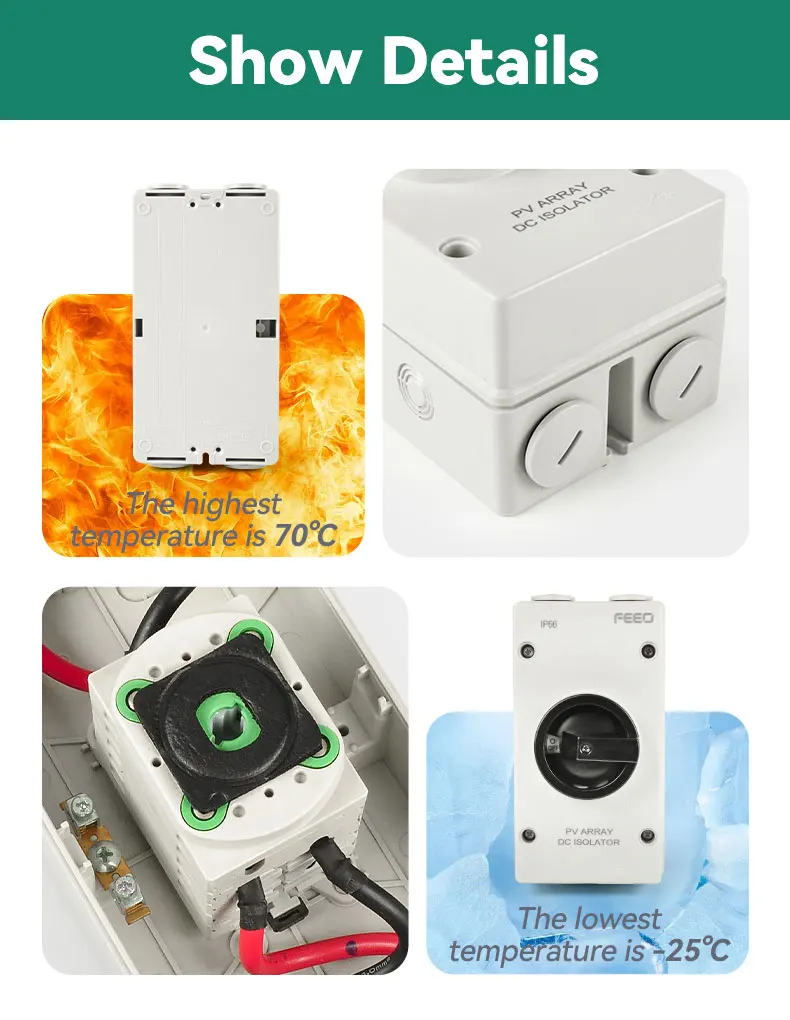

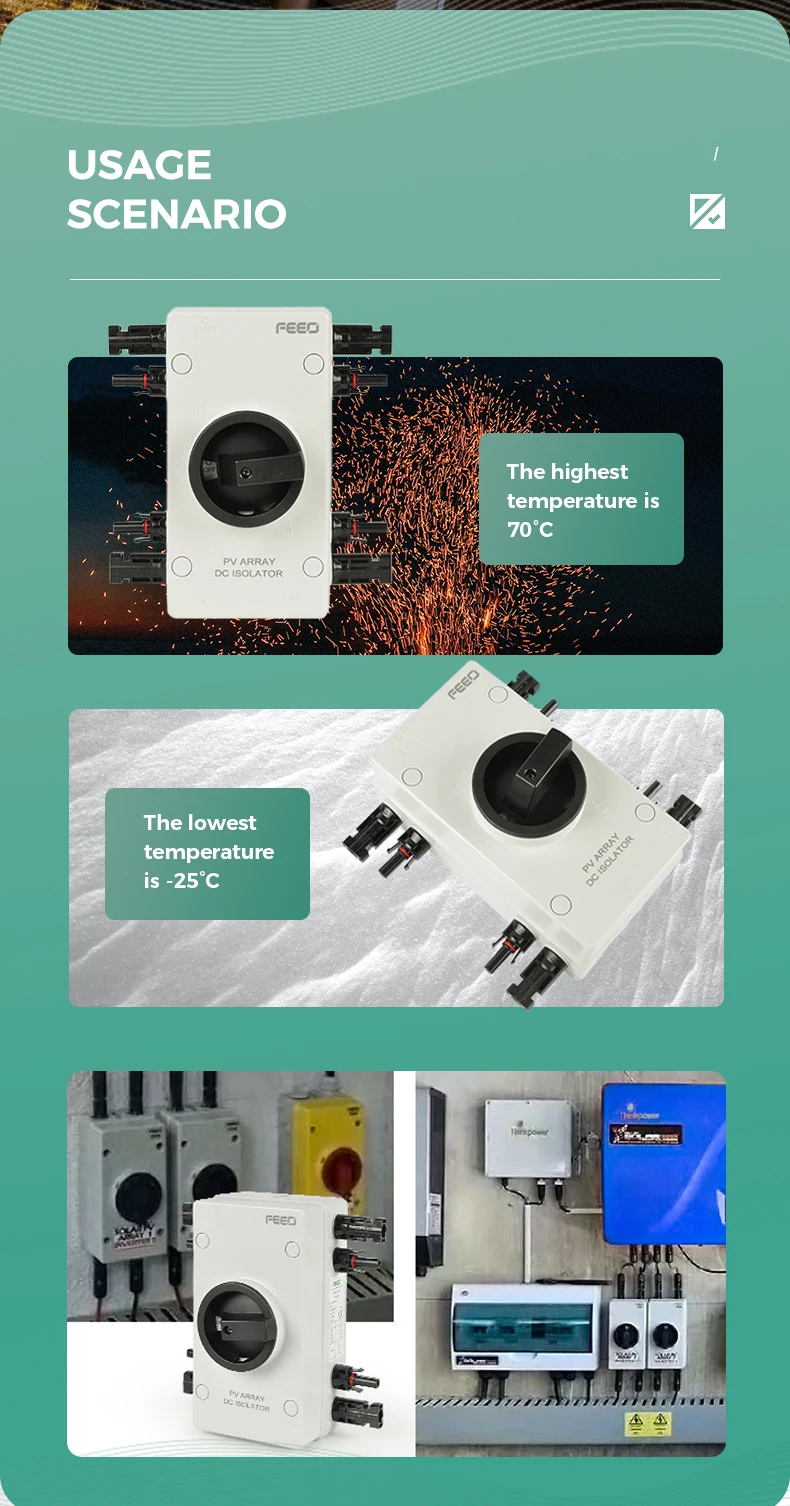

Operating temperature			℃	-25 to +70
Storage temperature			℃	-40 to +70
Class of pollution				2

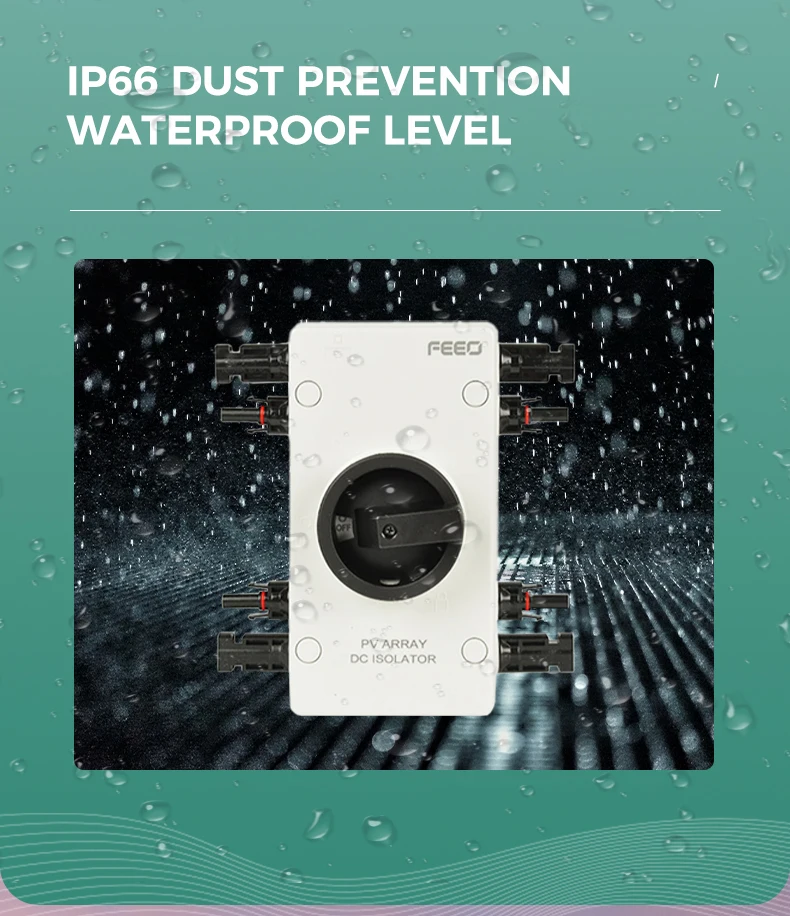

IP level				IP66
