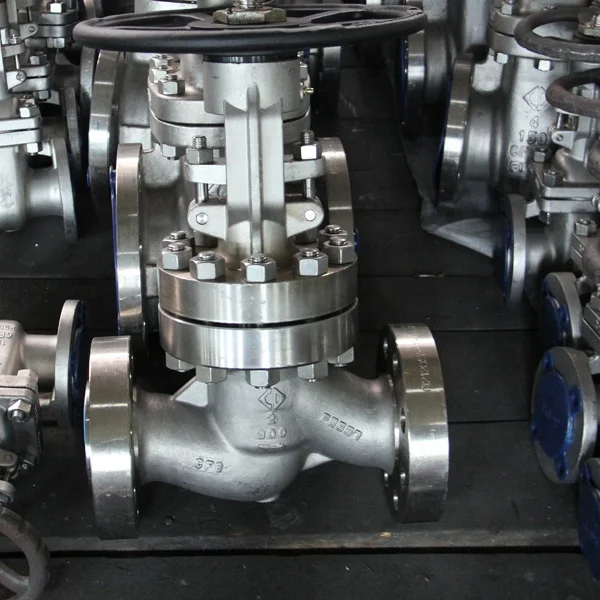

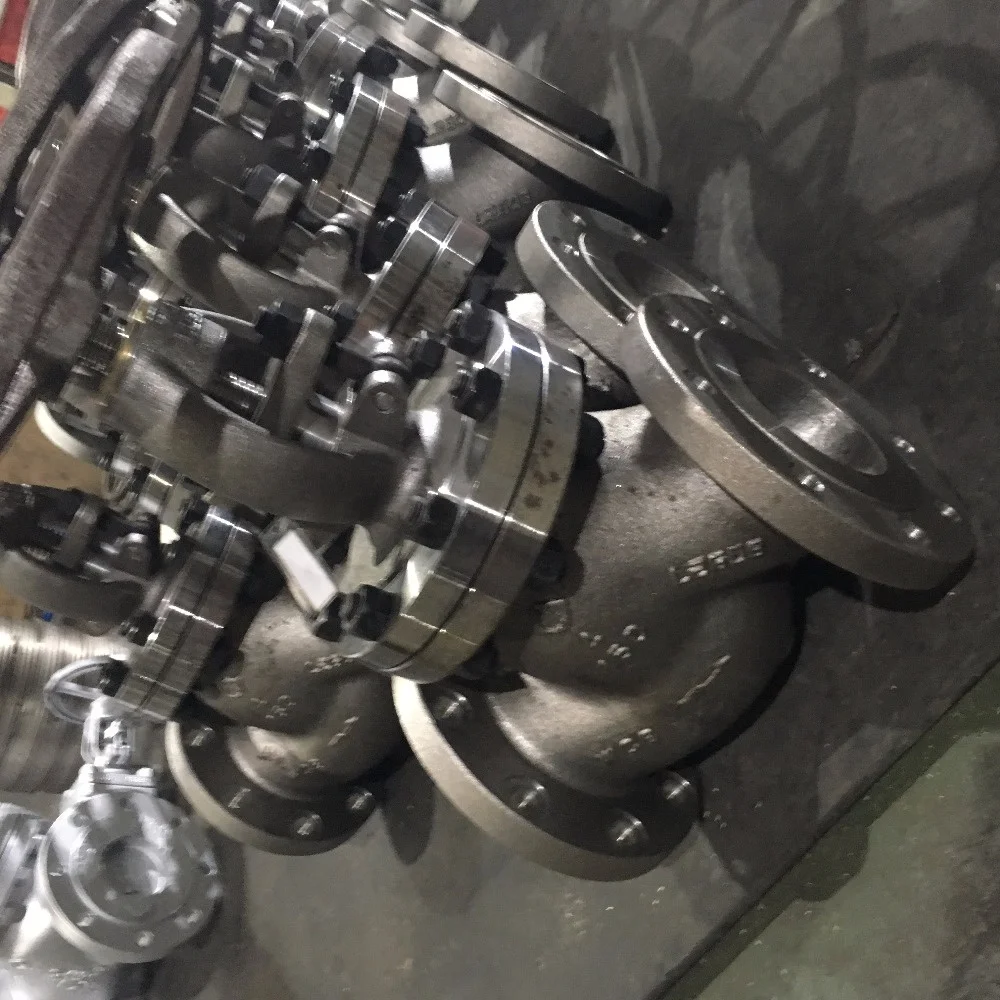

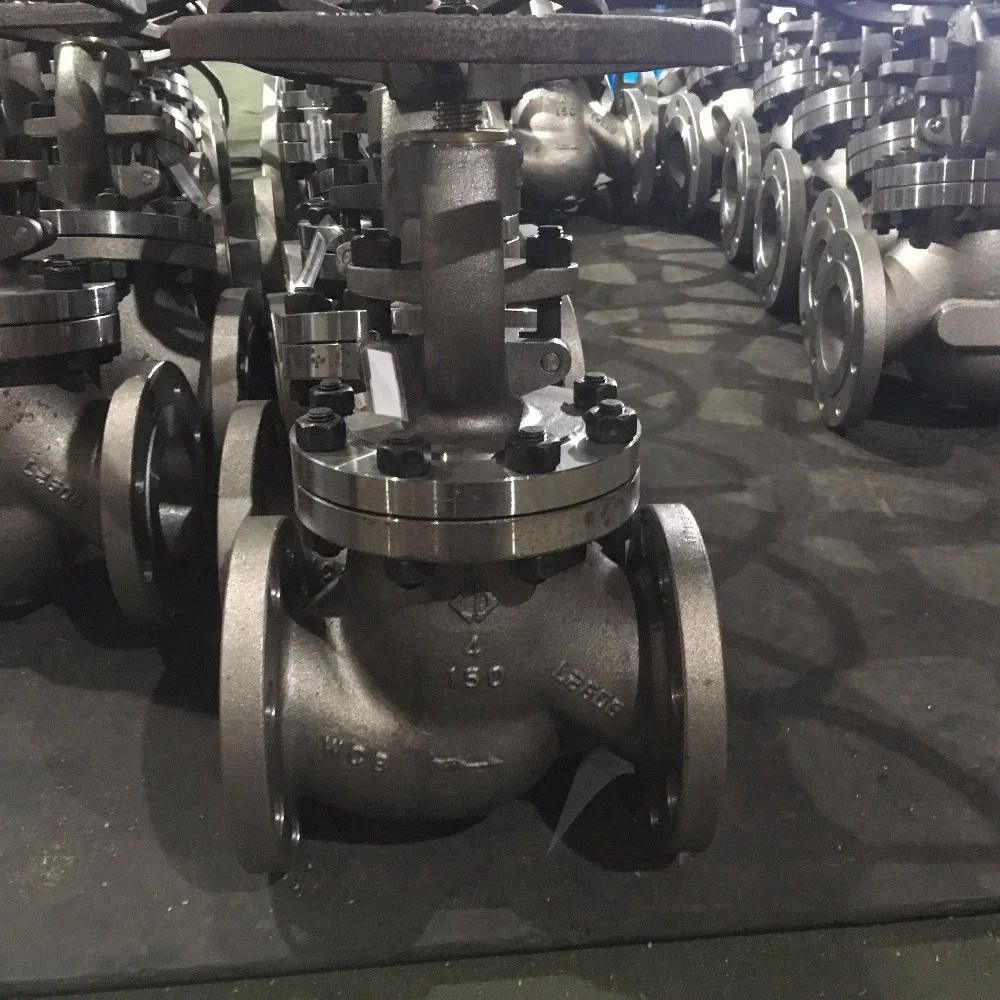

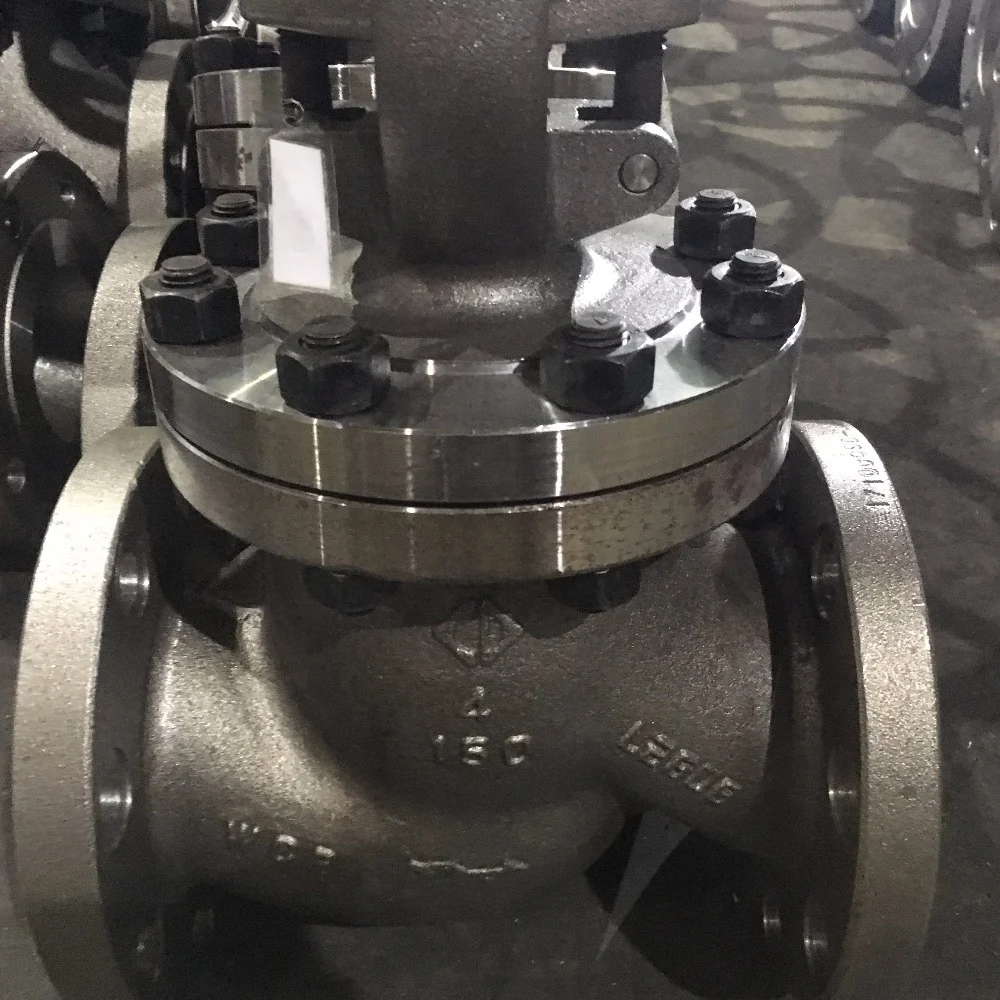

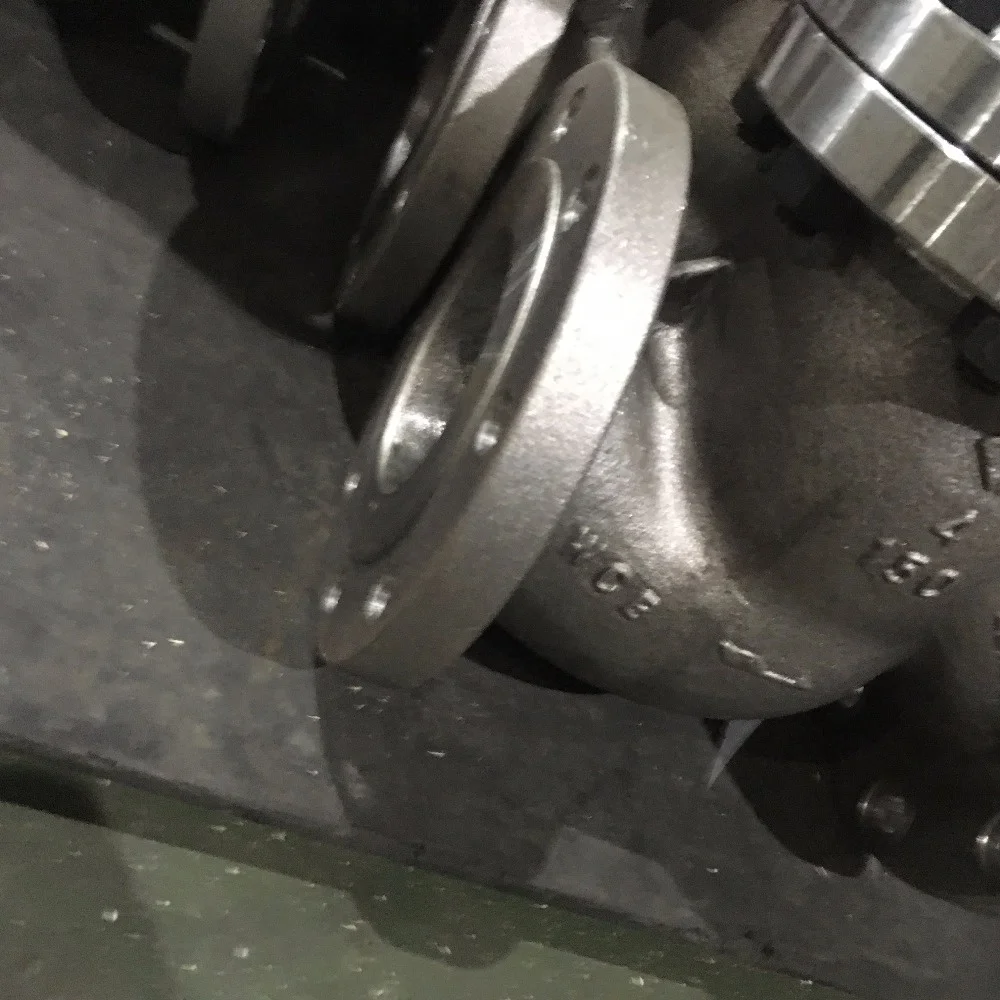

KSFLOW steam Y type steam globe valve drawing

Product Overview

Description


KSFLOW steam  Y type  steam globe valve drawing



Features
Size: 2” ~ 16”;
Class: 150 ~ 2500;
OS&Y, Rising Stem
Bolted Bonnet
Conic Disc
Impact Handwheel (On Request)
Locking Device (On Request)
Extended Bonnet for Cryogenic Service (On Request)



Specifications

Design     Face to Face        End to End End Flange   BW End Test Special

ASME B16.34/BS 1873 ASME B16.10 ASME B16.10 ASME B16.5 ASME B16.25 API 598NACE MR-01-75



























Our Company Competitive Advantage:
A.With more than 30 years of valve manufacturing experience, specializing in Ball Valve,GGC Valve
Pressure range:Class150-Class2500,PN10-PN420.
Size range:NPS1/2-NPS80.
Operation type: manual, gearbox, chain wheel, pneumatic, electronic, hydraulic-pneumatic etc.
Connection End: flanged, BW, SW, NPT, wafer type, etc.
Materials (casting): WCB, WCC, LCB, LCC, LC1~3, CF8, CF3, CF8M, CF3M, CF8C, CN7M, CA15, C5, WC5, WC6, WC9, etc.
Materials (forging): A105, LF1, LF2, F304, F304L, F316, F316L, F11, F22, F6, F51, F316H, F321, F347, etc.

B. Strong Professional Technical Team:3 Sr.Engineer with average working life more than 18 Years and 10 Engineers and 1 With ASME Level II with average working lift more than 10 Years
C. Efficiency production arrangement to fast growth accordingly
D. We have very good and comprehensive after-sales service
E. Scientific Informationization management system and strict control system:CAD and CAPP used into valve design and innovation.PDM and ERP constructed for information management system
F. Set Up a perfect QMS System, achieved ISO 9001, API 6D,CE,ISO14001,OHSAS18001,API 607,6FA,And API 600
G.With the customers around around the world,mainly Middle East,South-East Asia,Australia,Korean And America





Pre-sale service:

 •Figure out the inquiry,and confirm the right parameters as:Body,Trim Materials,Connection,Operator,Medium,and Medium Temperature with the customers

 •Offer the right price according to the confirmed parameter as up

 •Offer the detailed specification info of the products

 • Offer the structure drawings and confirmed with the customer.

In-sale service:

 • Offer the detailed general production plan so as to let the customer know the processing

 • Offer the Inspection Test Plan for Inspection before the shipment

 • Offer the update for weekly

 • Offer the right product as well the package. freight information, When machining and installation finished,

 •Offer The right MTC(Material Test Certificate EN10204 3.1 Or EN10204 3.2) as well other test report files

 Painting Report,NDE Report etc

After-sale service:

 •Offer the Valve Installation Operation Manual

 • Offer the Service or Replace within Product Warranty: 12 months after installation or 18 months after shipment whichever comes first..

 •Offer the training of Valve Installation, Pressuring, and simple maintenance when offering the service

 • Keeping contact with the customer for handling the valve operation condition













Q: What customer care most ?
A: Product quality first,professional technique second,Excellent Service rank third.Last one is price
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or EX-works 45-60 calendar days after we received your confirmed order, if 3rd party inspection required, delivery should be extended accordingly.
Q: Do you provide samples ? is it free or extra ?
A: No, the prodcut what we offer is standard,so it does not need the sample.However,we can offer some spare parts for free
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
