Commercial alkaline water electrolysis machine
- Category: >>>
- Supplier: Fujian Hada Intelligence Technology Co. Ltd.
Share on (60567827702):
Product Overview
Description
Product Description

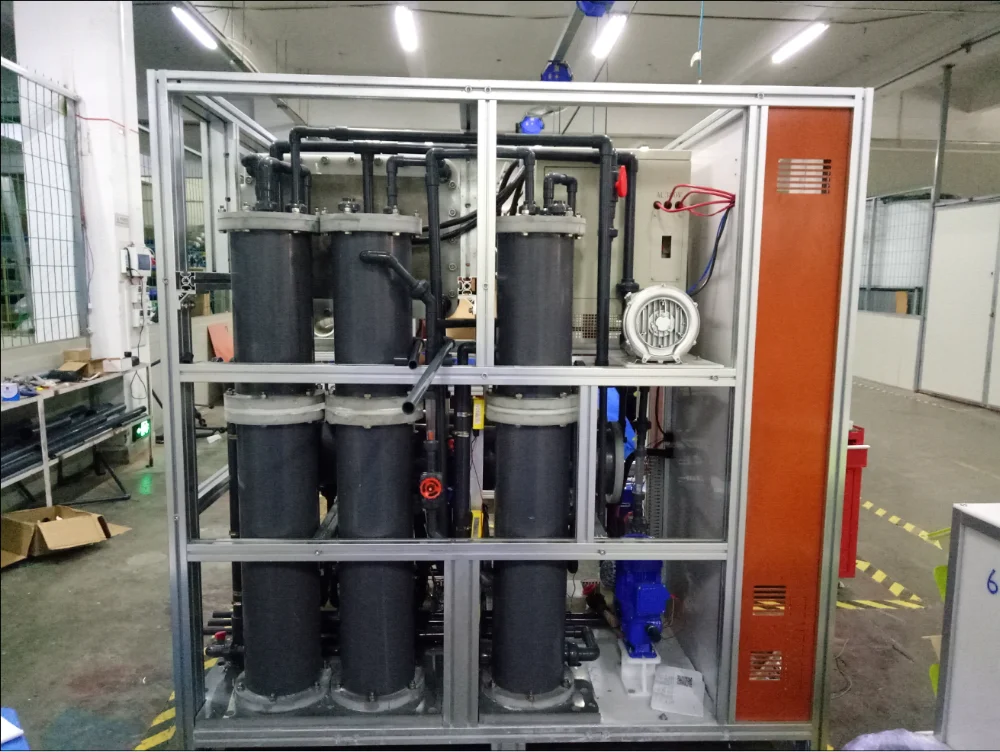

Commercial alkaline water electrolysis machine
Features&Advantages:Introduction:
High concentration sodium hypochlorite generator uses membrane to electrolysis 25%-30% brine to produce chlorine gas which is sent into the reaction tower for mix reaction with sodium hydroxide, then got the final productofl2%sodium hypochloritesolution;The system consists of: salt treatment unit, ultra-pure water system, control cabinet, electrolytic unit, reaction tower, sodium hydroxide recycled unit etc.
| Model | HDG-8K-NaClO |
| Products Name | Membrane Electrolysis Sodium Hypochlorite Generator |
| Chlorine production | 8kg/h |
| Raw material | Salt, Caustic soda |
| NaClO concentration | 10%(100000ppm) |
| Salt consumption | 2.5kg/kg Cl2 |
| Power consumption | 4kw/kg Cl2 |
| Alkali consumption | 0.07kg/kg Cl2 |
| Certification | CE, ISO 9001, ISO 14001, GB/T28001 |
| Free Sample | No |
| Function Description | Drinking water and waste water disinfection |
| Warranty | 18 months for the whole machine, 2 years for the electrode |
Features&Advantages:Introduction:
High concentration sodium hypochlorite generator uses membrane to electrolysis 25%-30% brine to produce chlorine gas which is sent into the reaction tower for mix reaction with sodium hydroxide, then got the final productofl2%sodium hypochloritesolution;The system consists of: salt treatment unit, ultra-pure water system, control cabinet, electrolytic unit, reaction tower, sodium hydroxide recycled unit etc.
1. Advanced design, stable performance
2.Fully automatic operation, low operation cost
3.The components are all from famous domestic and foreign brands,ensure the stable running and long life
4.Customized system according to different requirements
5.Flexible capacity arrangement, easy installation
2.Fully automatic operation, low operation cost
3.The components are all from famous domestic and foreign brands,ensure the stable running and long life
4.Customized system according to different requirements
5.Flexible capacity arrangement, easy installation
The main reaction:
1. the diaphragm cell reactions
The power is 2NaCl + 2H2O=H2 +CL2 +2NaOH
Anode: 2Cl – 2e = Cl2
Cathode: 2H2O + 2e- = H2 + 2OH-
2. The reaction tower:
Cl2 + NaOH = NaCl + NaClO + H2O(NaOH cooling liquid in case)
1. the diaphragm cell reactions
The power is 2NaCl + 2H2O=H2 +CL2 +2NaOH
Anode: 2Cl – 2e = Cl2
Cathode: 2H2O + 2e- = H2 + 2OH-
2. The reaction tower:
Cl2 + NaOH = NaCl + NaClO + H2O(NaOH cooling liquid in case)
Why Choose Us
Fujian Hada Intelligence Technology Co., Ltd., established in 2005 with a registered capital of 5.97 million U.S. Dollars, specialized in the research, development and manufacture of electrolysis sodium hypochlorite generator system, electrodialysis desalination system and other electrical drive water treatment systems. For the past years, we have been investing in the reasearch and development of electrochemical industry, upgrading the formulas of electrode coating, and improving the whole system to get the better efficiency and performace stability. All the achievements from engineers are turned into our technical patents and applied in the system, which makes us keep moving to become top professional manufacturer of this field in China. Even make the 12.5% salt chlorination system by our own, far ahead of other factories in China. Hada, not only certified by National Ministry of Science and Technology as High Technology Enterprise, as well as recommended in National Water Network Upgrade Project in Rural Area, but also earning its fame out of china, its products with licenses of CE, ISO, TUV has been exported to more than 25 countries and areas.
Commercial alkaline water electrolysis machine
FAQ
Q:Are you a factory or trading company
A:Factory
Q:How to buy your idea products?
A:Please supply water sources, water quality, flow rate and ground area (connect us for more details).
Q:How to pay?
A:TT,Western Union and MoneyGram paypal, etc. 30% deposit before producing, 70% balance before loading by TT.
Q:What is the delivery time?
A:It depends on order quantities. Generally speaking, the delivery time will be within 35 days after payment.
Q:How to pack the products?
A:Wooden package usually.
Q:How to install after the equipments arriving destination?
A:We will provide detailed illustrations to you. If it is necessary, we will send technicians to help you.
