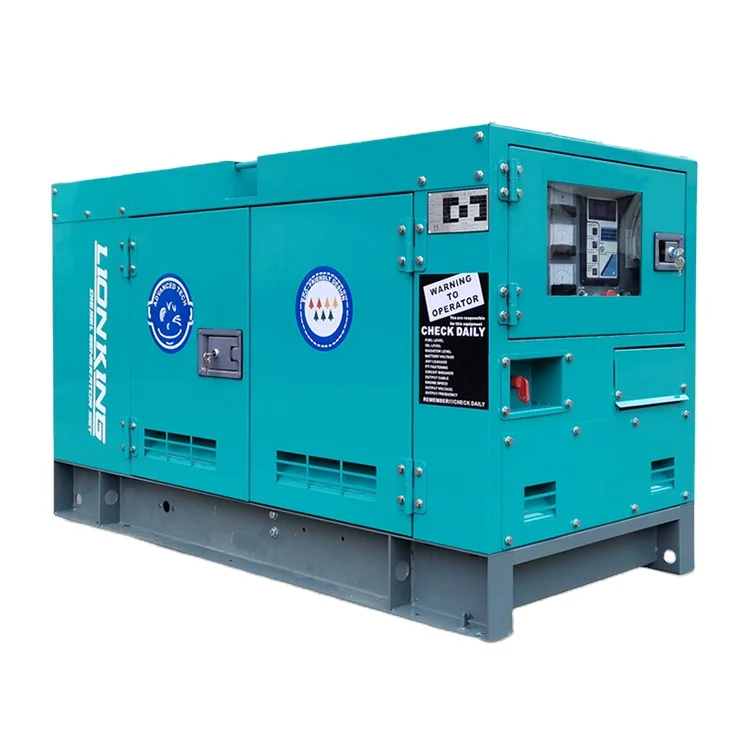

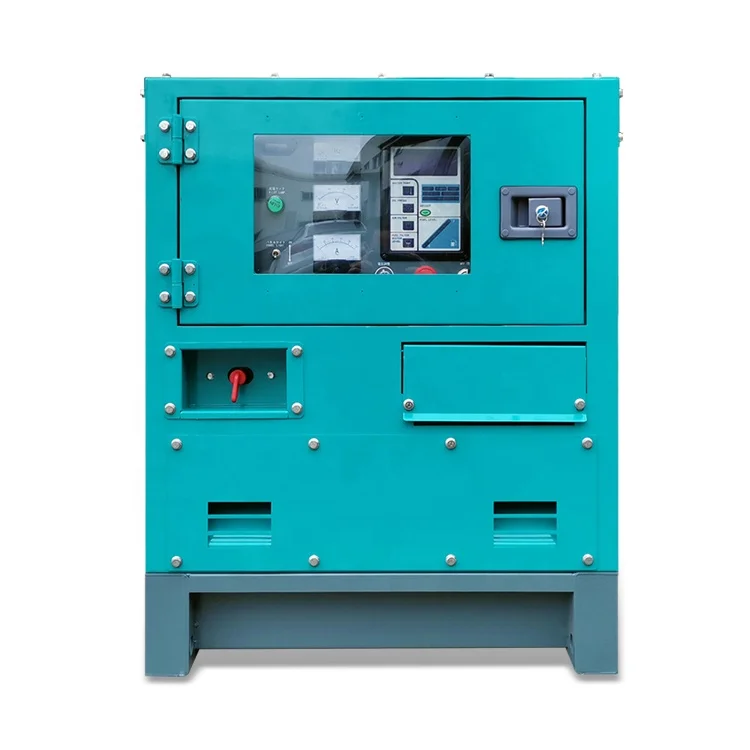

danyo diesel generator powered by yangdong engine
danyo diesel generator powered by yangdong engine
danyo diesel generator powered by yangdong engine
danyo diesel generator powered by yangdong engine
danyo diesel generator powered by yangdong engine
danyo diesel generator powered by yangdong engine
danyo diesel generator powered by yangdong engine

danyo diesel generator powered by yangdong engine

Share on:


Price:$2,345.00 - $2,500.00
Price in USD:Details

Quantity:


Product Overview

Description





Company Introduction


JLT POWER
Fujian Jinlongteng Power Engine & Machinery Co.,Ltd. is a highly professional and experienced manufacturer of engines, generators and water pumps. We have specialized in this field over 10years and always dedicated to produce the engines, generators and water pumps in high quality with reasonable prices.

Our products include:
1, Portable Gasoline Engine: 5.5Hp, 7.0Hp, 13.0Hp and 15.0Hp.
2, Portable Diesel Engine: 4.0Hp, 6.0Hp, 10Hp, 12Hp and 15.0Hp.
3, Portable Gasoline Generators: 0.65kW - 10kW
4, Portable Diesel Generators: 2.0kW - 8.0kW.
5, Water cooled diesel generators, With power range from 10kVA to 1500kVA.
Powered by: Cummins,Perkins, Deutz, Isuzu, Lovol, Chinese Ricardo, Yangdong, Quanchai and so on.

Why Choose Us:
1, Since 2000, with over 10years manufacturer experience.
2, Rich experience in OEM orders.
3, Advanced production equipment.
4,Own design team, can help you custom the packaging.

We are a professional manufacturer for engines, generators and water pumps withintegrating development, production and sales. Factory located in one of the early open cities -Fuzhou, with more than 100,000square meters.Warmly welcome all partners to join us for mutual benefits cooperation.


Products Description


GENSET MODEL
JY-10/S
Prime power (kW/kVA)
8/10
Standby power (kW/kVA)
9/11
Frequency (Hz)
50
Voltage (V)
220/380,230/400,240/415
Rated current (A)
15.2/14.4/14.0
Power factor
0.8
Ambient temperature (°C)
40
Altitude (m)
1000
ENGINE MANUFACTURER
YANGDONG
Engine Model
YD380D
Rated Power (kW)
10
No. of cylinders & configuration
In-Line 3 cylinders
Method of operation
4 Stroke
Speed regulation
Mechanical Governor
Starting system
DC 12V Electronic start
Cooling method
Closed-circuit cooling system
Total displacement (L)
1.352
Compression ratio
18:01
Bore×Stroke (mm)
80*90
100% Load fuel consumption (L/h)
3
ALTERNATOR MANUFACTURER
JLT-POWER
Number of Phase
Three Phase
Power Factor
0.8
Protection Grade
IP21/IP23
Winding/ Pitch
100% Copper 2/3 Pitch
Cooling Fan
Cast alloy aluminum
Exciter Type
Brushless, Self-Exciting
Insulation Class, Temperature Rise
H/H
Telephone Influence Factor( TIF)
TIF ＜5% / THF ＜2%
Total Harmonic TGH/THC
＜1.5%  no load / ＜5% on load
Voltage Regulation, Steady State
≤+-1%
Sustained Short-Circuit Current
300% （3in）:10s
Control System
Smartgen HGM6110N
ATS
Optional








Related Products




Details Images




Packing&Shipping




After Sales Service


(1) Guarantee for one year or 1000hours (according to whichever reaches first) from ex-factory date.
(2) During guarantee period,our company will provide the free easy-damaged spare-parts for problems caused by our quality of production or raw material.

Our Service:
Guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, JLT-Power will provide the free easy-damageable spare parts of alternator caused by our quality of production or raw material. After expiration, JLT-Power provides cost spare parts maintenance of engine & alternator.
