Non Isolated Low THD High PF LED Tube Driver ic for T5 T8 T10 Tube Light
- Category: >>>
- Supplier: Shenzhen Bilateral Honesty Technology Co. Ltd.
Share on (60568167944):
Product Overview
Description
Product Description

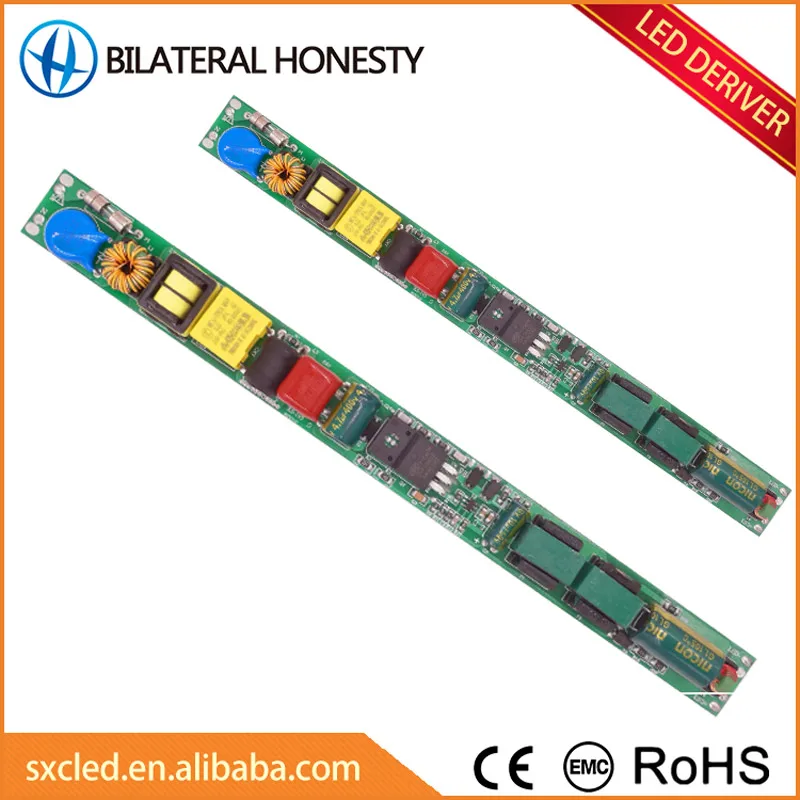

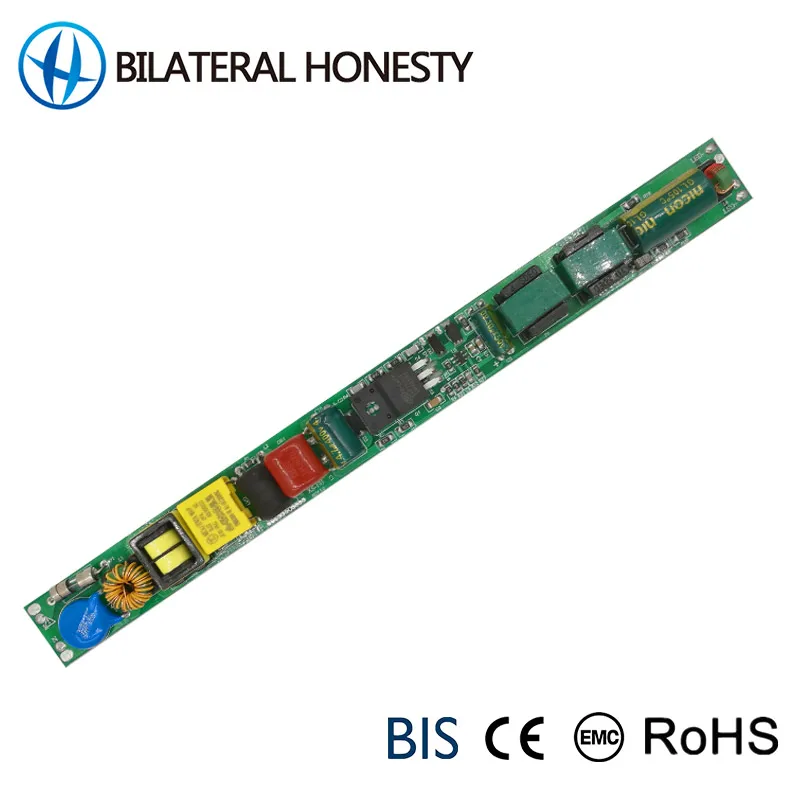

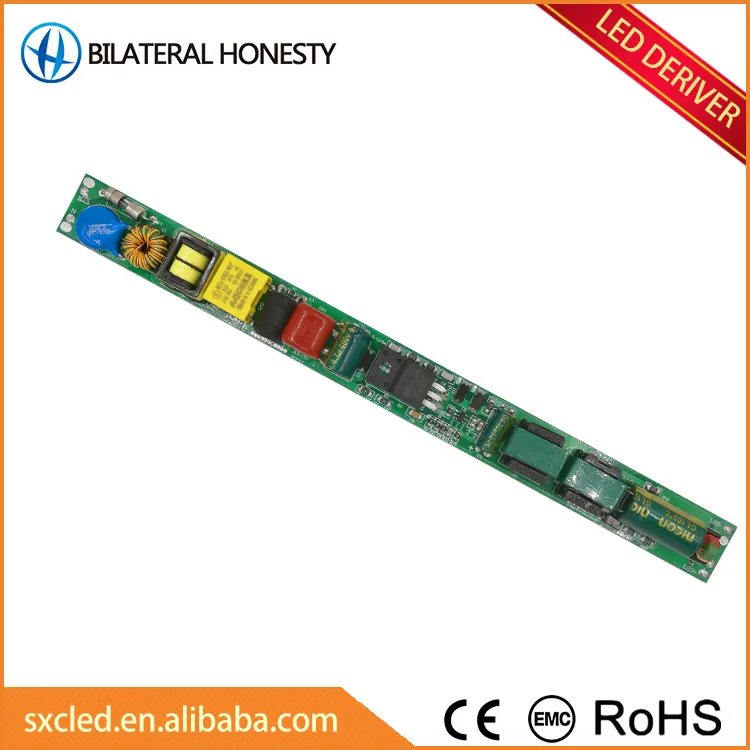

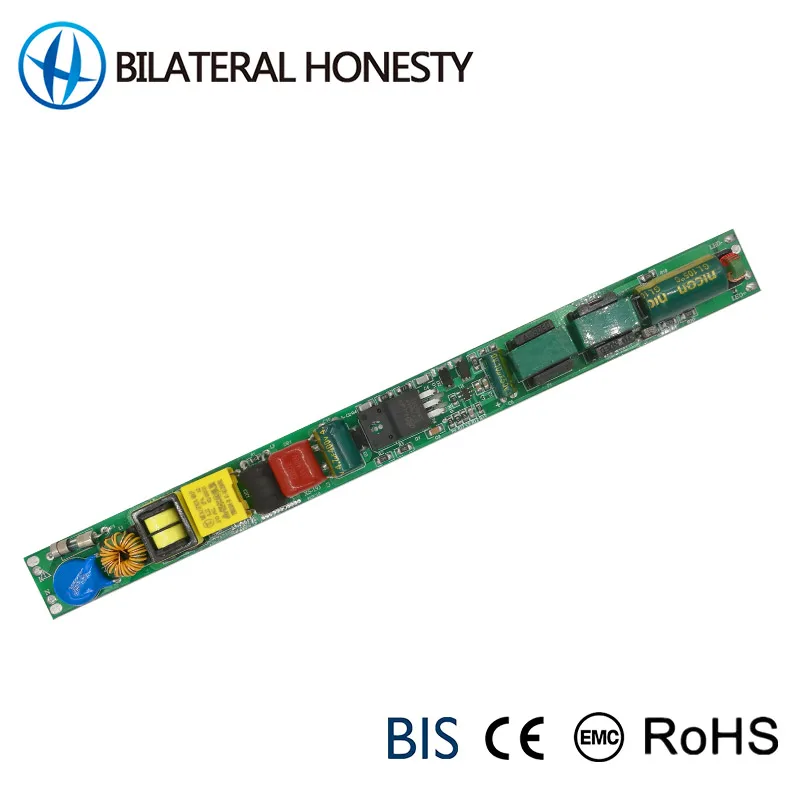

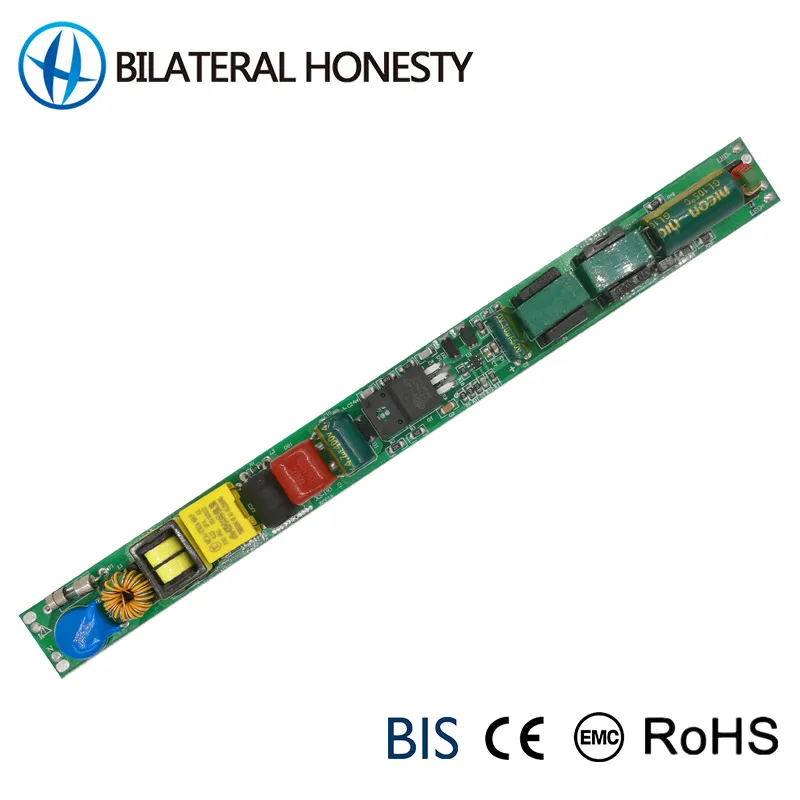

Non isolated low thd high pf led tube driver ic for t5 t8 t10 tube light
XS-193 led driver is a CE EMC ROHS qualified led driver which can also fullfil BIS requirements 2.5 kv surge protect, it's an non-isolated LED driver with wide input voltage to meet different areas all over the world. All its characters endow itself with wide appliance acceptance.
XS-193 | ||
Output Power: | 24~40W | |
Voltage Input: | 85~264V/305V | |
Output Voltage: | 30~80V | |
Output Current: | 260~540mA(adjustable) | |
Efficiency: | 90% | |
PFC: | PF≥0.9 | |
THD: | ≤20% | |
Size(L*W*H): | 193*17*10mm | |
Certificates: | CE EMC RoHS | |
Warranty | 3Years | |
Others: | Surge protection 2.5KV | |
P/N | Typical Power | Input Voltage | Output Voltage | Output Current | Conversion Efficiency | Power Factor | THD |
XS-193 | 24W | 85~264V/305V | 30-80V | 260~540mA | 90% | >0.9 | ≤20% |
XS-193 | 28W | 85~264V/305V | 30-80V | 260~540mA | 90% | >0.9 | ≤20% |
XS-193 | 30W | 85~264V/305V | 30-80V | 260~540mA | 90% | >0.9 | ≤20% |
XS-193 | 36W | 85~264V/305V | 30-80V | 260~540mA | 90% | >0.9 | ≤20% |
XS-193 LED tube light driver adopts Bright Power Semiconductor BP2329A scheme design,It is a high efficiency, high power factor full voltage, stable and reliable LED fluorescent lamp back driver,Off-time control circuit, constant current drive control circuit, especially suitable for multiple high brightness LED series and constant current driver.
Product characteristic:
Product characteristic:
1. Start fast, high efficiency, stable, small size.
2.Multiple protections: LED open circuit, the output short circuit, over-temperature protection, OVP can be set and so on.
2.Multiple protections: LED open circuit, the output short circuit, over-temperature protection, OVP can be set and so on.
3.When the input voltage changes, the output ripple is no flash.
4. High power factor, IC comes with PFC, rated power at full load PF≥0.9 .
5.Constant current output smooth, without intermittent.
4. High power factor, IC comes with PFC, rated power at full load PF≥0.9 .
5.Constant current output smooth, without intermittent.
Certificates
Business Team
Installation Process
Packaging
Buying guide
FAQ
Q1. Can I have a sample order for led light?
A: Yes, Mixed samples are acceptable.
Q2. Delivery time:
A:Samples needs 3-5 days, mass production needs 1-2 weeks
Q3. What about MOQ for the order?
A: 1pc is available
Q4. What about the shipment ?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. Is it OK to print my logo on led light product?
A: Yes. Please inform us before produce and confirm the design based on our sample
Q6: what about the warranty?
A: 2-5 years .
Q7: How to deal with the faulty?
A:Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair and resend to you .
