Металлический винт заземление якоря спираль

Product Overview

Description

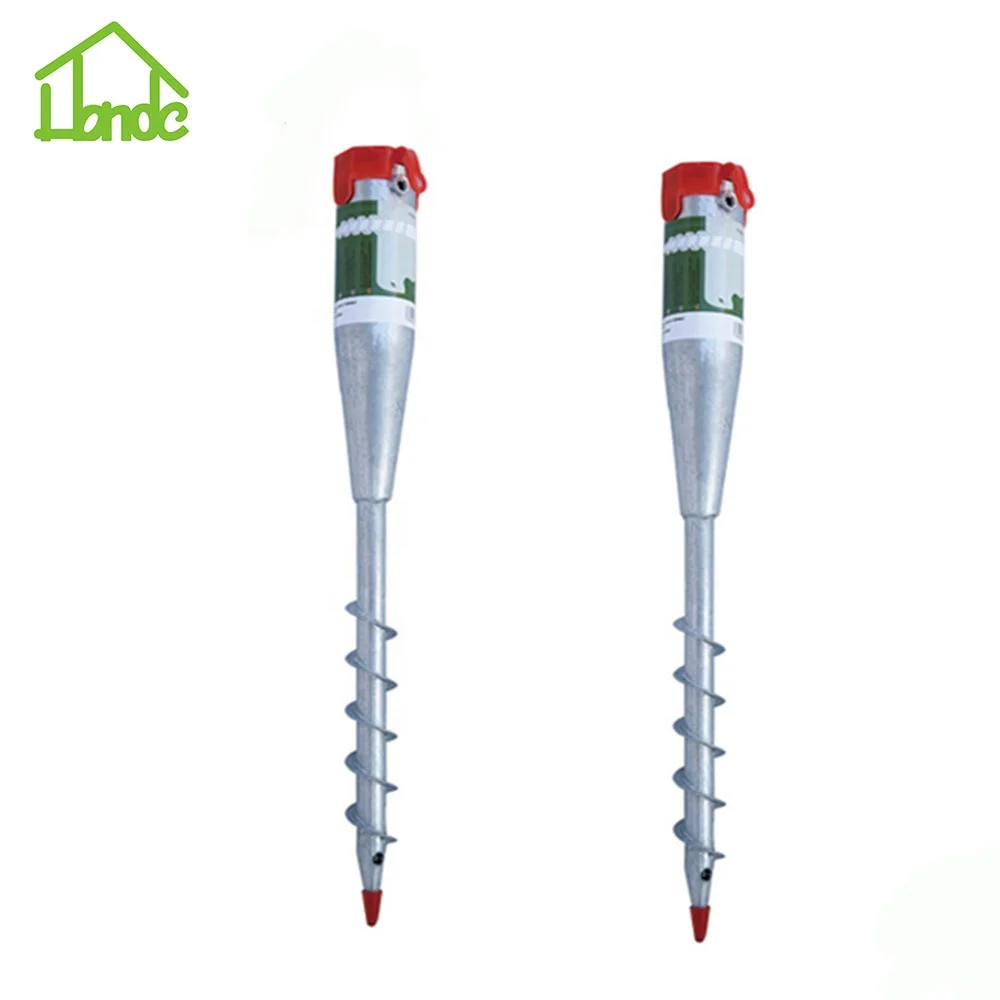

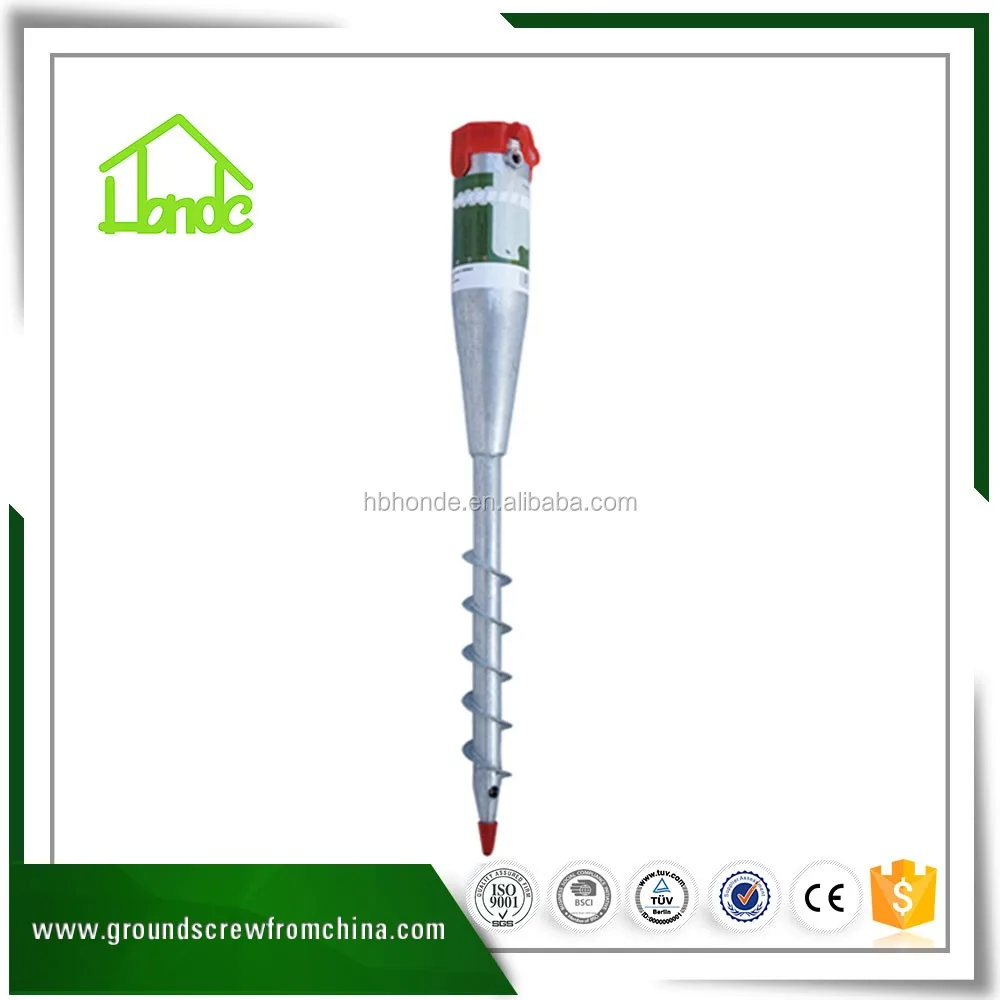

metal screw earth ground anchors spiral



Dear Customer:
         Welcome to our website and hope our products will make you satisfied.
         We think creatively,design bravely,manufacture precisely and loyalty to our
customers.
         And we have our own factory.So We can produce the products according to customer requirements .
         You give us a chance, we give you a surprise. Survive by quality, profit by management, development by creation.                                                                                                                                                                              Yours,                                                                                                               Honde Industrial Trade Imp & Exp Co., Ltd.



Product Information

Number	HDN002
Length	560MM
Out Pipe Dia	68MM
Pipe Thickness	1.8MM
Weight	1.48KG
Material	ISO630 Fe A / Din EN10025 Fe 360 B
Surface Finished	Hot Dipped Galv. As standard DIN EN ISO 1461-1999
Delivery Time	25 days after get 30% prepayment
Payment	L/C, T/T, D/P
MOQ	100 pcs
Port	Xingang
Package	10pcs/Cartons  10000pcs/20’container

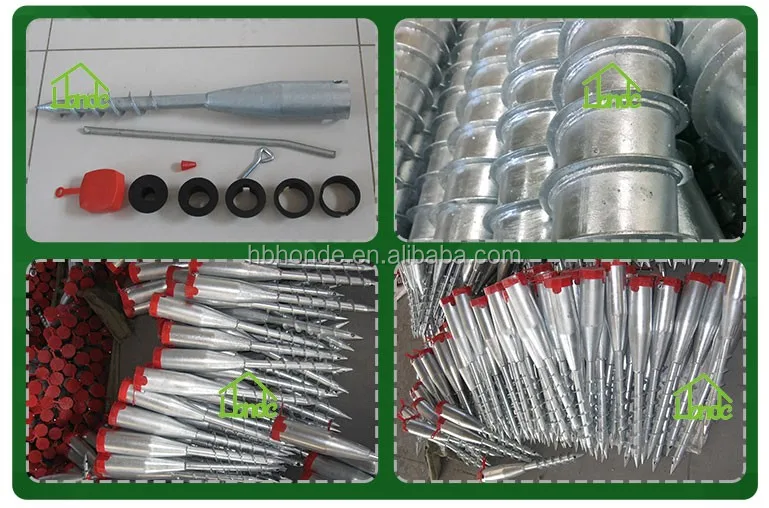

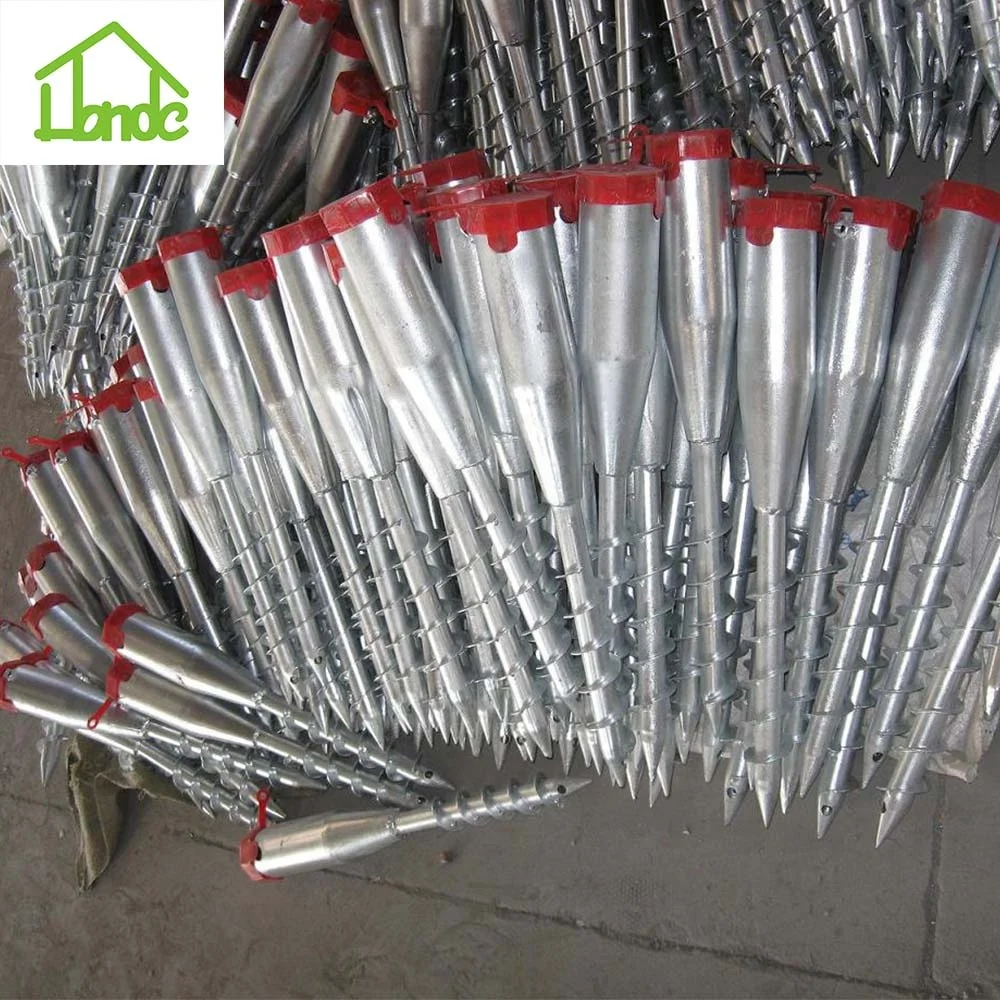

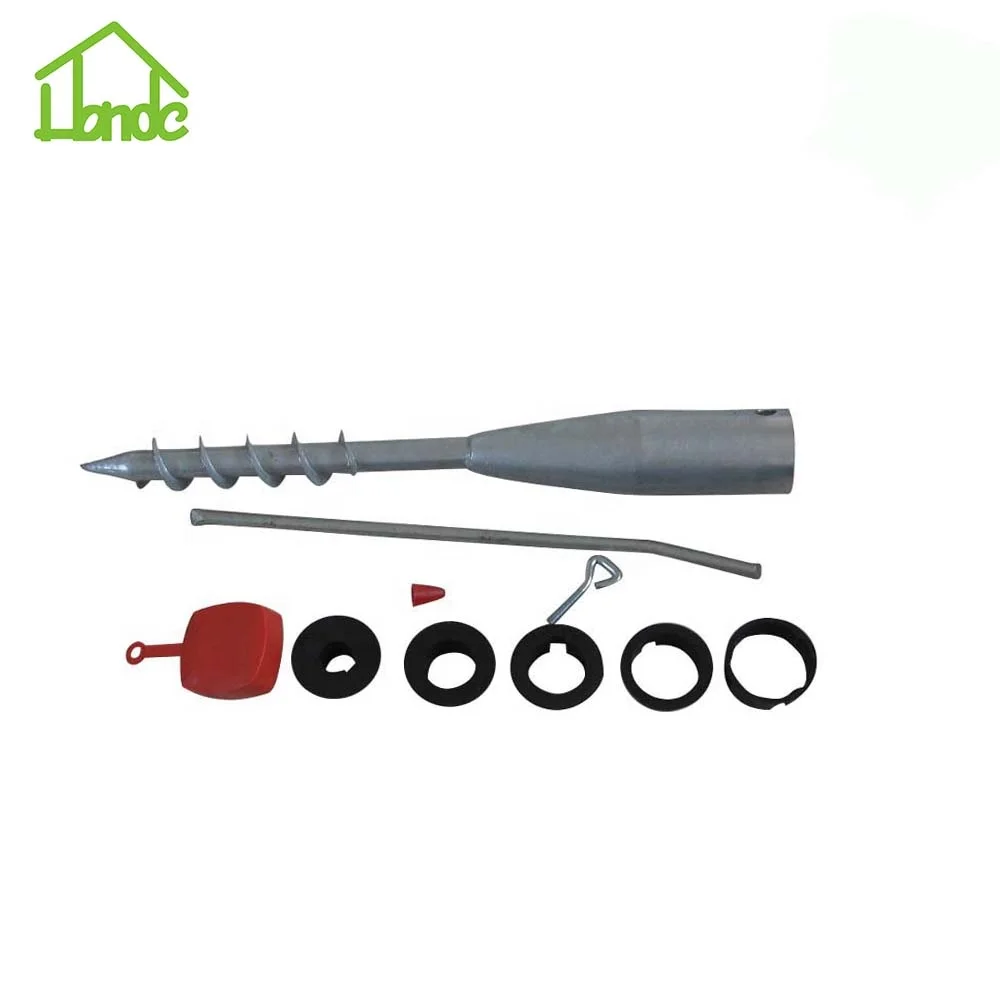

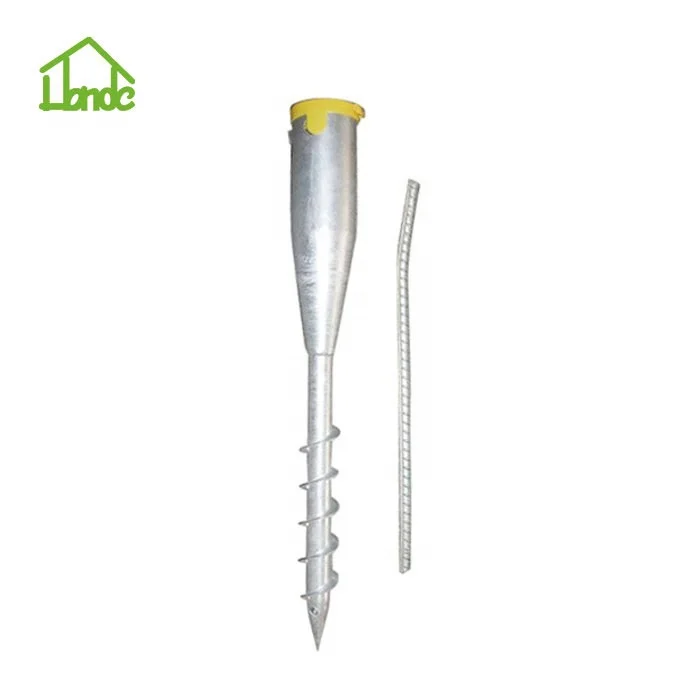

Ground Screw Pictures

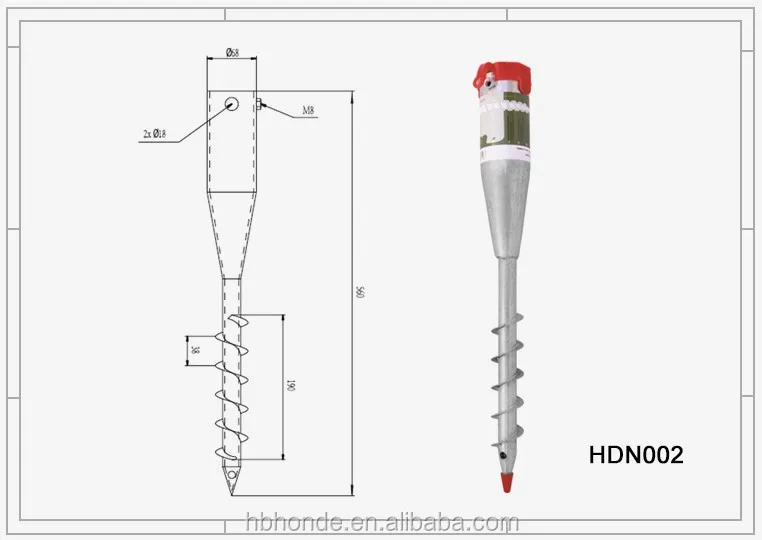

Product Drawing



Our Advantages

Testing Photo

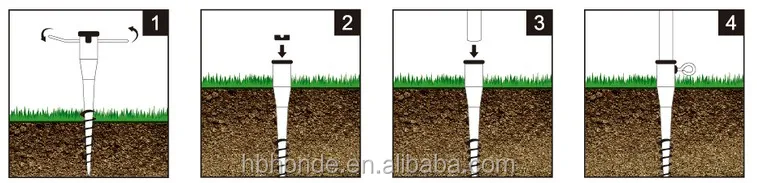

How to Use?

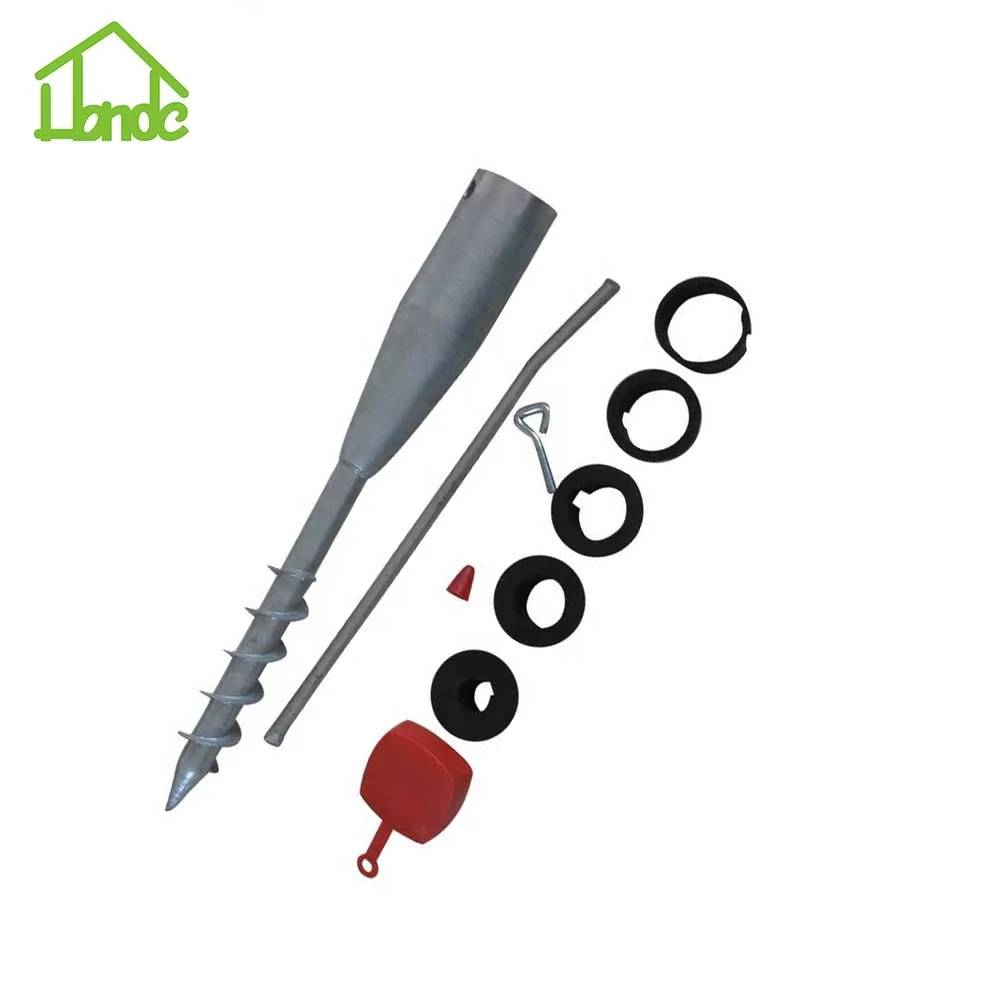

The Ground Screw is re-usable and can be re-located with case, and more in minutes with no concreting and no digging. Instructions:

1. Ground Screw Installation:

a. Insert the turning bar(included) through the Ground Screw.

b. Using the turning bar, screw the Ground Screw 1/3 into the ground.

c. Make sure the Ground Screw is level.

d. Turn the Ground Screw until the rim is 4cm above the ground, ensuring it is sitting firmly in the ground.

2. Select the required hole size and insert the adaptor sleeve.

3. Insert the pole(post, umbrella, clothes line) into the Ground Screw.

4. Secure into place with the butterfly screw( included).

More Specifications to Choose

Specifications	Pipe Dia(mm)	Length(mm)	Flange Size(mm)	Pipe Thickness(mm)	Weight (m,kg)
HDFR76*1200-220	76	1200	220*8	3	9
HDFR76*1600-220		1600	220*8	3	11.4
HDFR76*1800-220		1800	220*8	3.75	15.98
HDFR76*2000-220		2000	220*8	3.75	16.5
HDFR76*2500-220		2500	220*8	3.75	19.8
HDFR76*3000-220		3000	220*8	3.75	23.5
HDFR88.9*1200-220	88.9	1200	220*8	3	10.5
HDFR88.9*1600-220		1600	220*8	3	13.3
HDFR88.9*2000-220		2000	220*8	3.75	19
HDFR88.9*2500-220		2500	220*8	3.75	23
HDFR88.9*3000-220		3000	220*8	3.75	27.3
HDFR114*1200-220	114	1200	220*8	3	12.6
HDFR114*1600-220		1600	220*8	3	16.4
HDFR114*1800-220		1800	220*8	3.75	18.48
HDFR114*2000-220		2000	220*8	3.75	23.8





Model3 Specifications	Pipe Dia(mm)	Length(mm)	Pipe Thickness(mm)	Weight (m,kg)	Nuts	Adjustment(mm)
HND009	76	1000	2-4	4	3xM16	60
HND010	76	1200	2.5	5.7	3xM16	60
HND011	76	1400	3	6.8	3xM16	60
HND012	76	1600	3	9.3	3xM16	60
HND013	76	1800	3	10.3	3xM16	60
HND014	76	2000	3.5	12.4	3xM16	60
HND015	89	1000	2.6	6.6	4xM12	34/40/48/60/76
HND016	89	1200	2.6	7.8	4xM12	34/40/48/60/76



Company Information

FAQ

1. What is the tube thickness of the ground screw?

2.0/2.5/3.0/3.5/3.75mm

2. What is the steel material?

HONDE ground screw is make from Q235 steel round pipe and can be applied in a wide variety of different geological locations.

3. What is the thickness of galvanization?

More than 60μm in general.

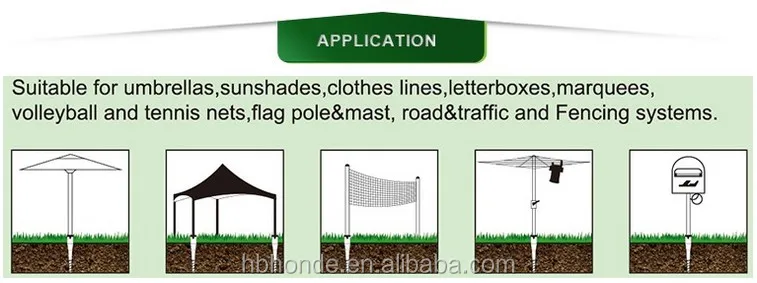

4. How many applications of the ground screw?

1) Timber Construction

2) Solar Power Systems

3) City and Parks

4) Fencing Systems

5) Road and Traffic

6) Sheds and Containers

7) Flag Poles and Marks

8) Garden and Leisure

9) Boards and Banners

10) Event Structures

5. How about your product quality?

Our ground screw piles are manufactured with first quality materials (hot dip galvanized complying with the ISO 1461:1999). All our suppliers (certified under ISO 9001:2000) carry out strict quality controls in order to get the best quality performance as required by our internal procedures.

6. What's the production process of ground screw?

Precision Cutting Material → Heating | Shrink Pipe Tip → Welding Spiral → Hot Dipped Galvanized → Tapping | Testing | Polish → Packing & Shipping

7. How to order from HONDE?

Buyer Send Enquiry →Get HONDE Quotation → Order Confirmation → Buyer Arrange 30% Deposit → Production Started upon Receipt of Deposit → Strict Inspection during Production → Buyer Arrange Balance Payment → Packing → Delivery as per Trade Terms (FOB/CFR/CIF)
