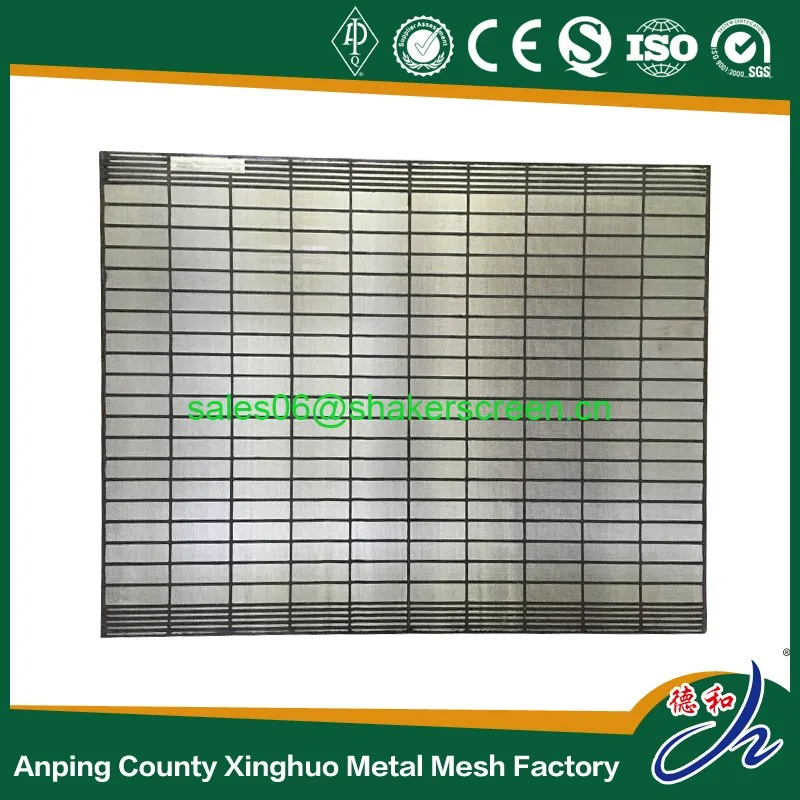

Mongoose series screen is spare part for Mongoose series shale shaker from M-I Swaco. There are common pre-tensioned steel frame screen and composite frame screen. Composite frame screen have longer service life, better appearance, and convenience on operaion. Both steel frame and composite frame screen have main parameters as below.

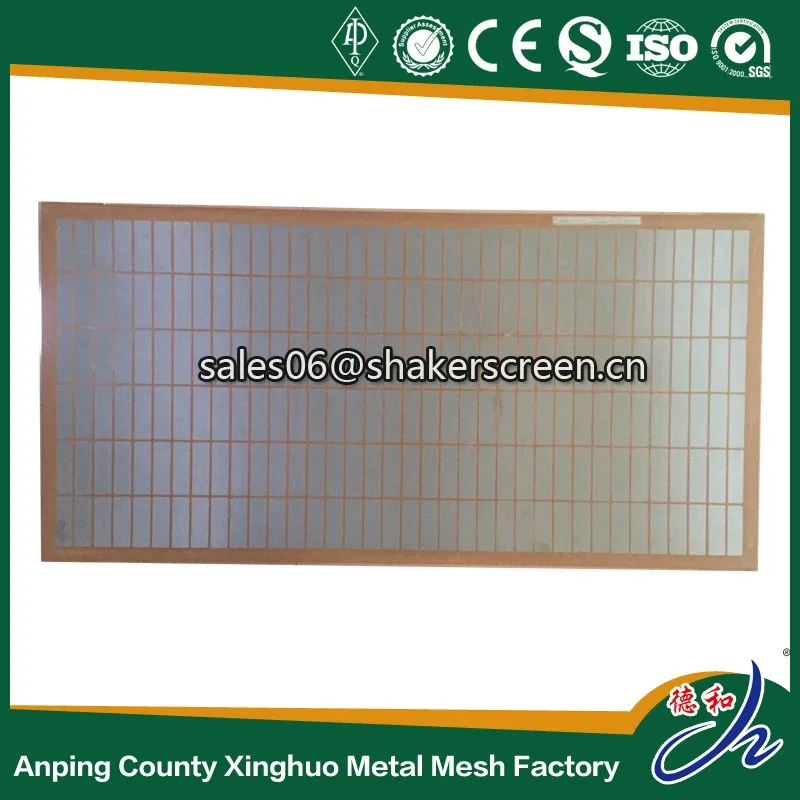

Swaco Mongoose Series Screen
Mesh
API20---API450
Dimension
Length:1165mm (45 9/10”)
Width: 585mm (23”)
Weight
Composite frame: 12kg (26.4lb)
Screen layer
2 or 3 Layers
Wire mesh material
S.S304 ,S.S316 (Customizable)
Frame material
Carbon steel, Composite material
V300 and V100 Shale Shaker Screen for Brandt VSM300 Shakers
The new and improved Xinghuo composite replacement screen to fit the Brandt VSM 300 brand shaker takes the best screen for this shale shaker to the next level of performance. This screens uses a new frame design that features several improvements over Duraflo composite screens. It is lighter, more easily repaired, promotes longer screen life and is easier to remove. Xinghuo composite screens are available with ultra-fine(XL) and XR mesh, giving operators screening flexibility in addition to an overall-improved product.
Composite Brandt VSM300 Sclping Screen
Mesh
API20---API325
Dimension
Length: 940mm
Width: 676mm
Weight
10 kgs
Screen layer
2 or 3 Layers
Wire mesh material
S.S304 ,S.S316 (Customizable)
Frame material
Composite material
Composite Brandt VSM300 Primary Screen
Mesh
API20---API325
Dimension
Length: 885mm
Width: 686mm
Weight
10kgs
Screen layer
2 or 3 Layers
Wire mesh material
S.S304 & SS316(Customizable)
Frame material
Composite material
Composite Brandt VSM300 Secondary Screen
Mesh
API20--API325
Dimension
Length: 686mm
Width: 208mm
Weight
3kgs
Screen Layer
2 or 3 Layers
Wire material
SS304 & SS316(Customizable)
Frame material
composite material

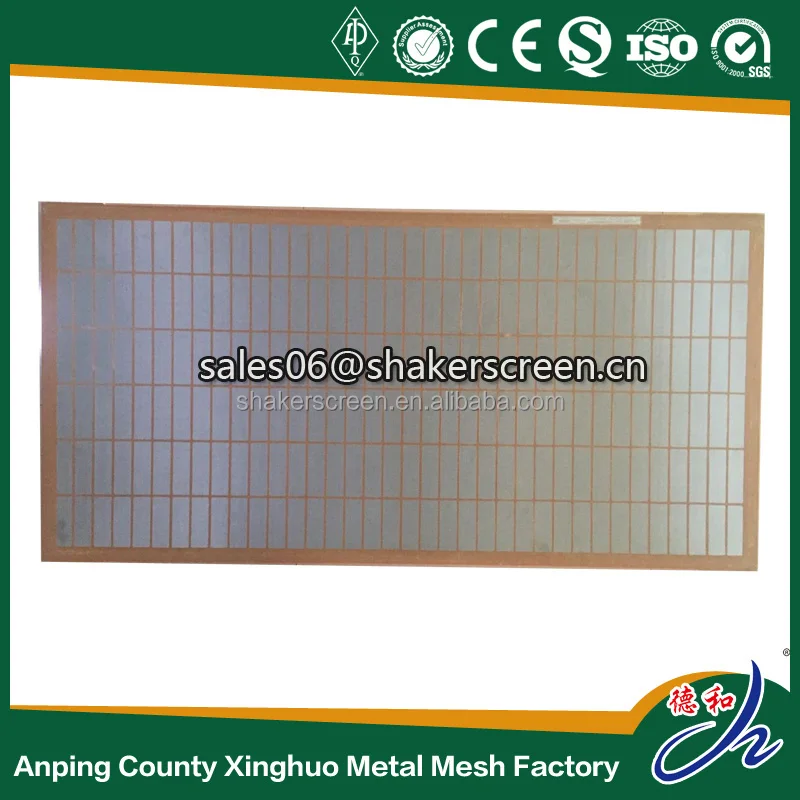

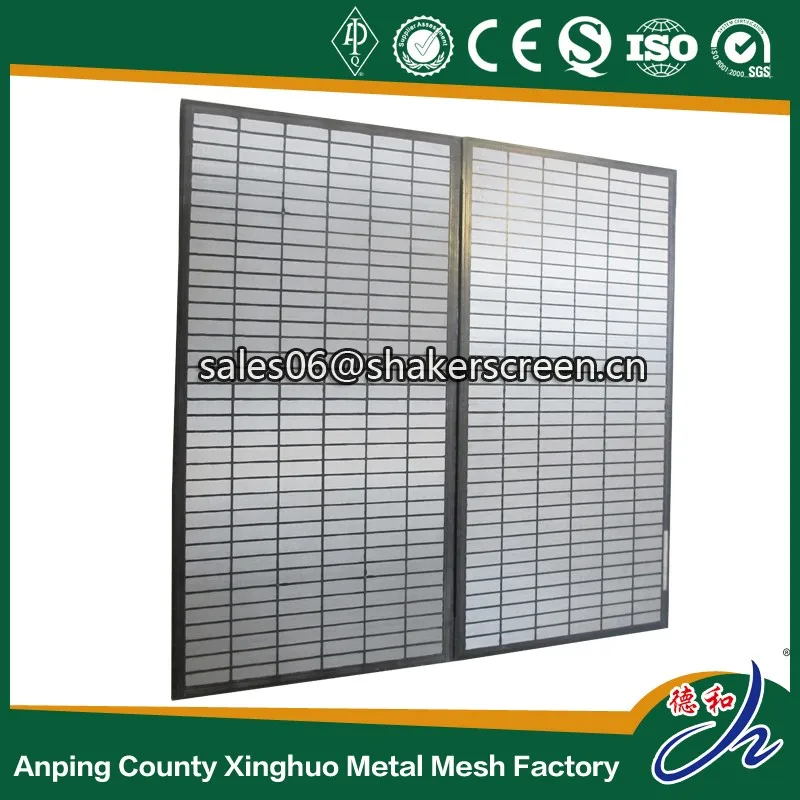

Swaco Mongoose Shaker Screen

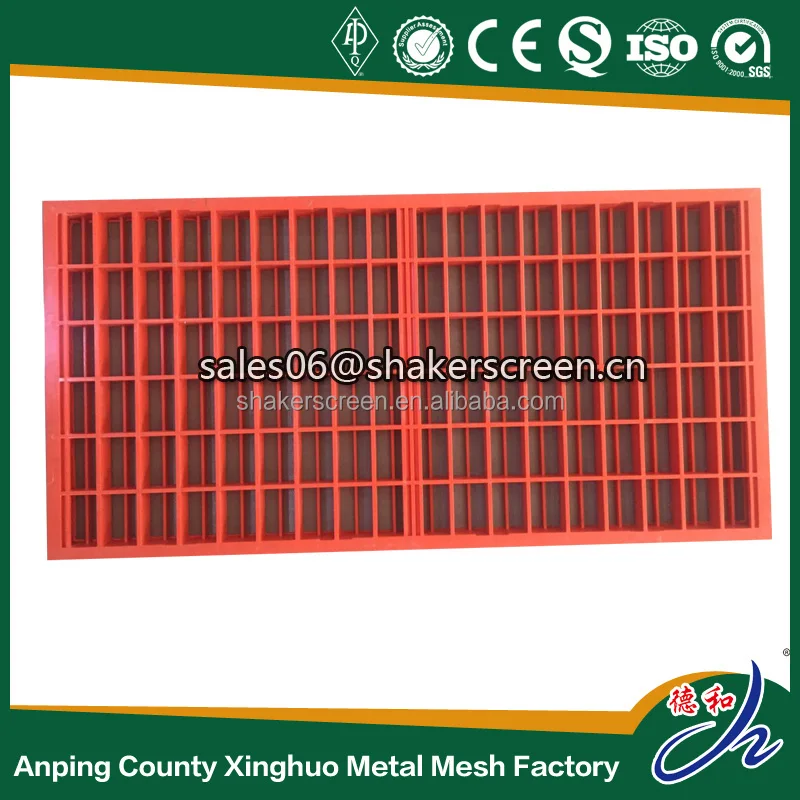

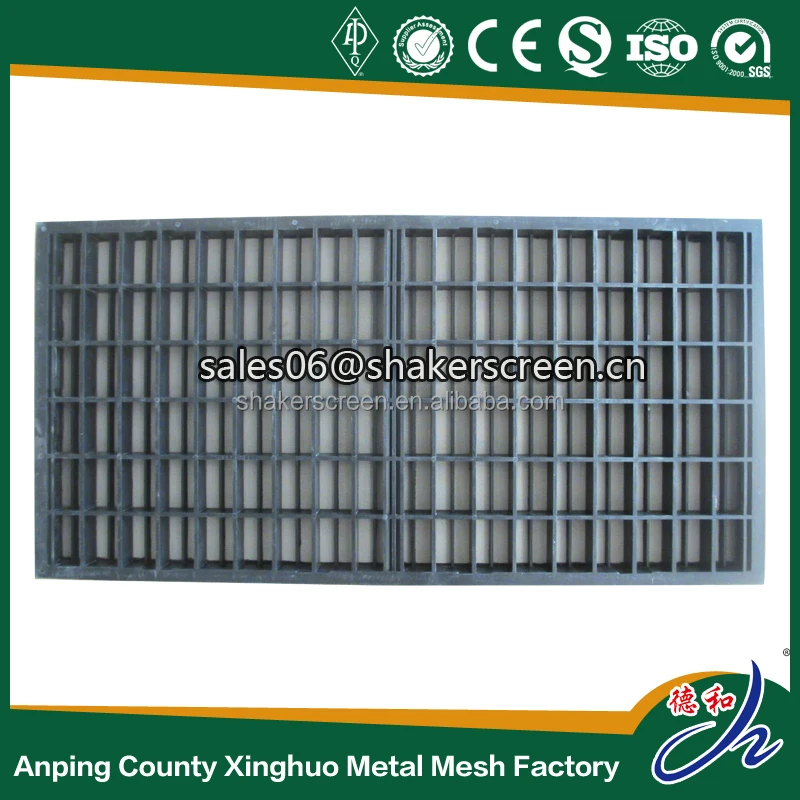

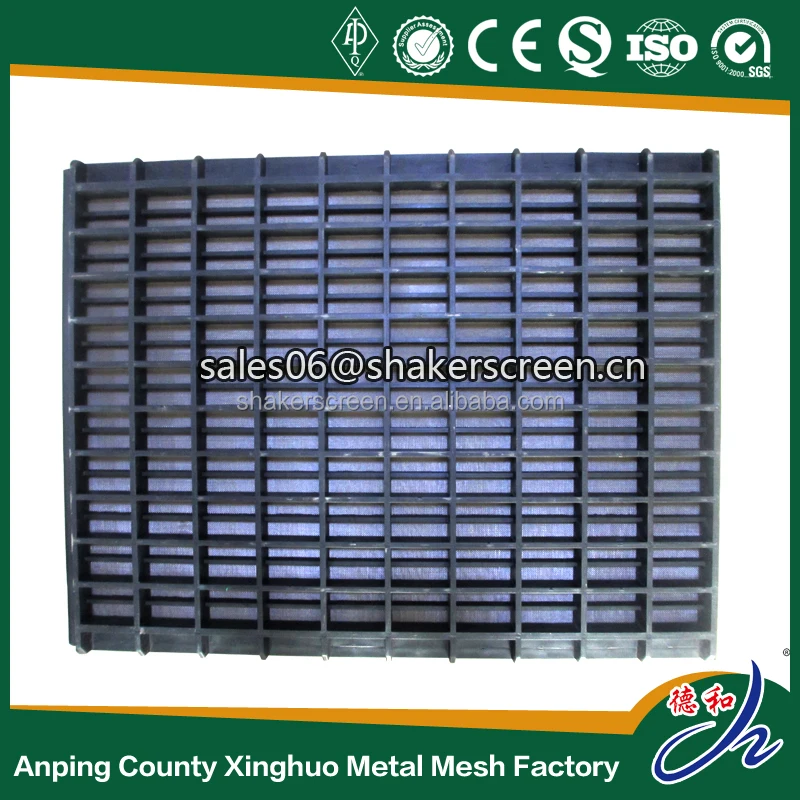

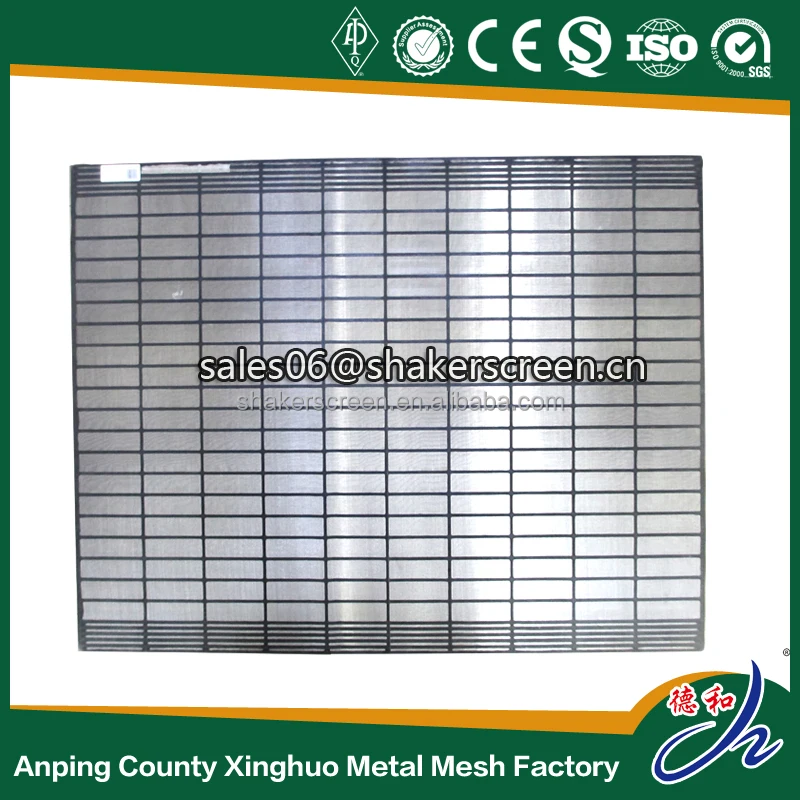

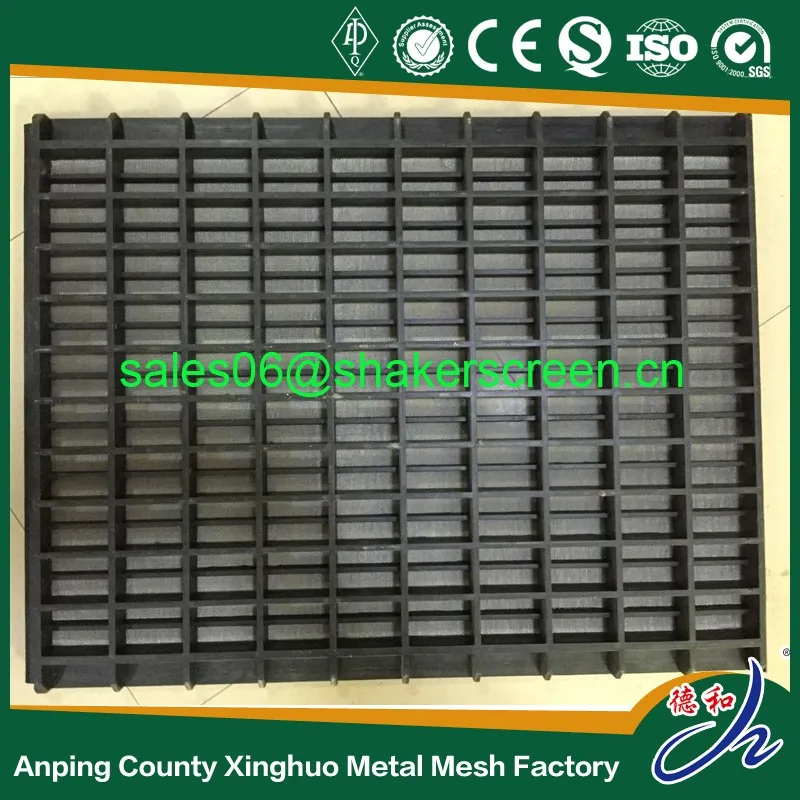

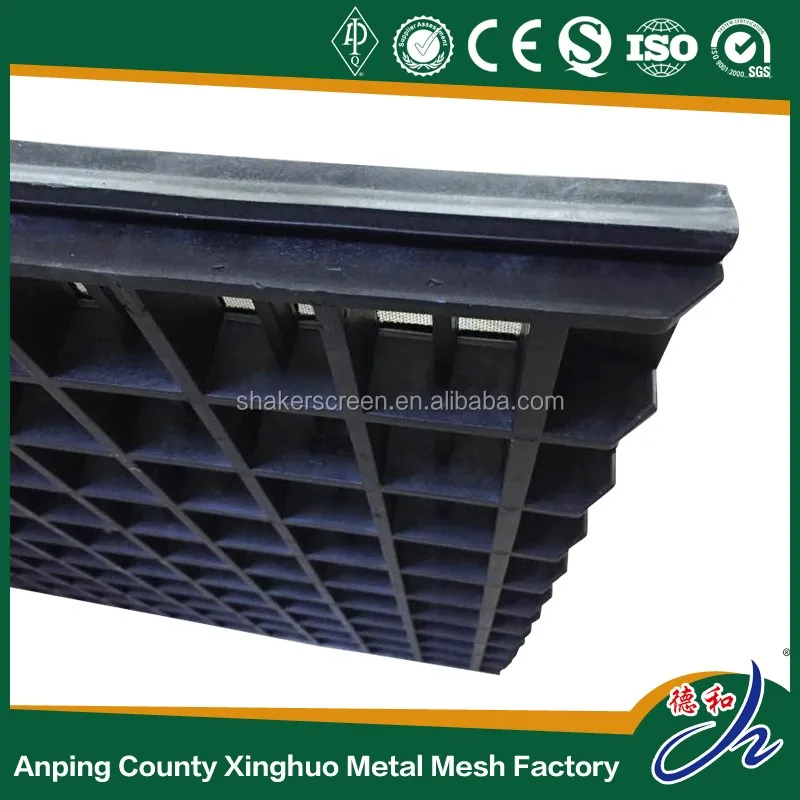

Composite Brandt VSM300 Shale Shaker Screen
Main Benefits
■ Improved shaker performance, immediately and long-term
■ Drier cuttings and lower disposal volums
■ Improved ROP and drilling fluid recovery
■ Better drilling-fluid performance and longer life
