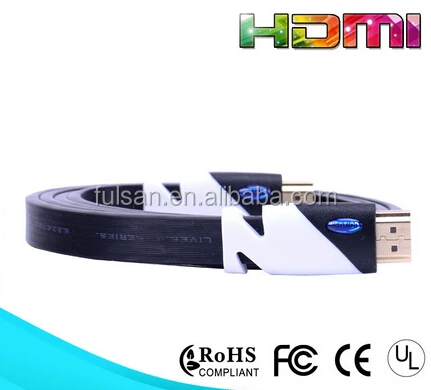

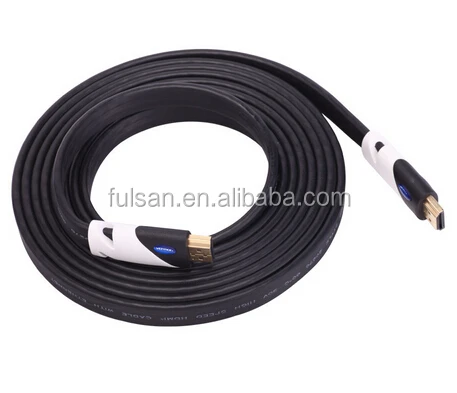

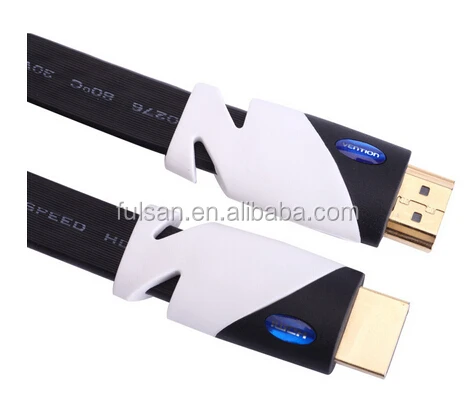

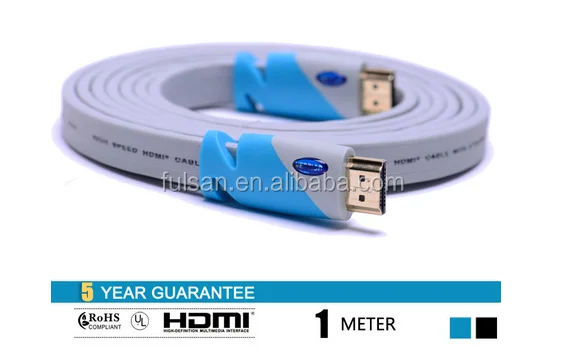

19pin plug to plug HDMI flat cable

Product Overview

Description

19pin plug to plug HDMI flat cable

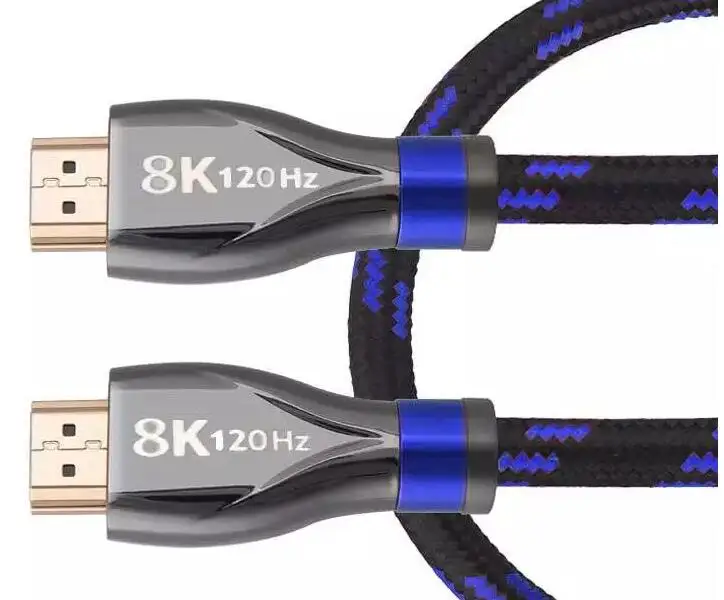

VERSION:1.3V/1.4V/2.0V 4K 8K

 30AWG/28AWG is acceptable

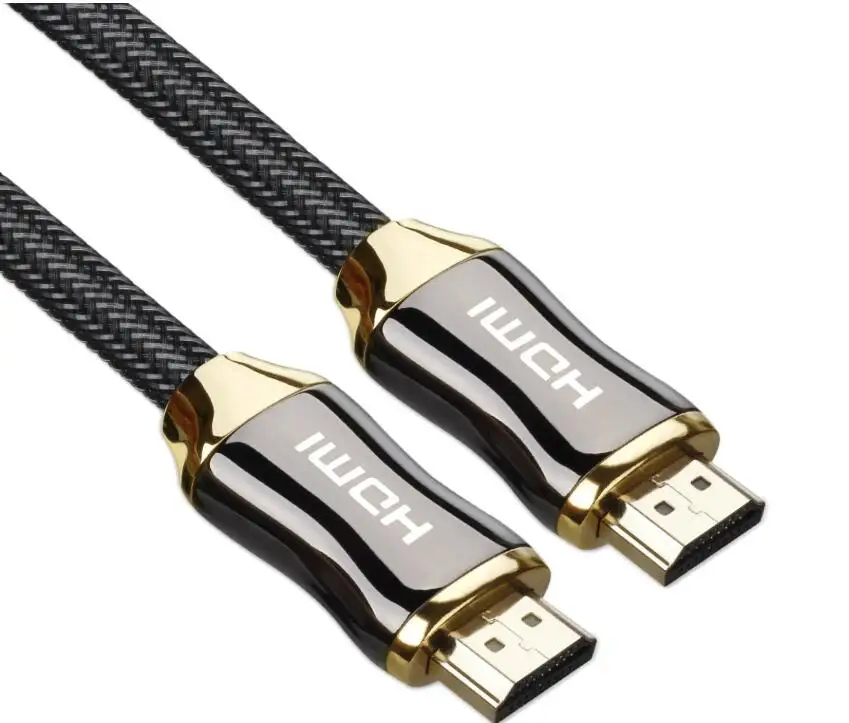

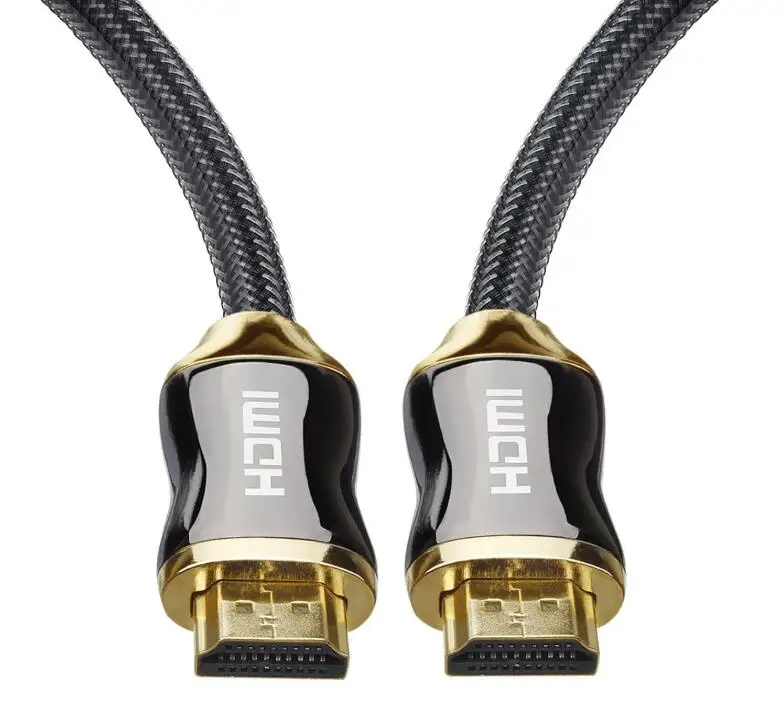

 Connector:24K gold plated or nickel plated

 Model:Black PVC

 L=1M-10M

 COLOUR: BLACK/YELLOW/PURPLE/WHITE/RED /PINK





High Purity Oxygen Free Copper



24/26/28/30 AWG HDMI Cable Gauge

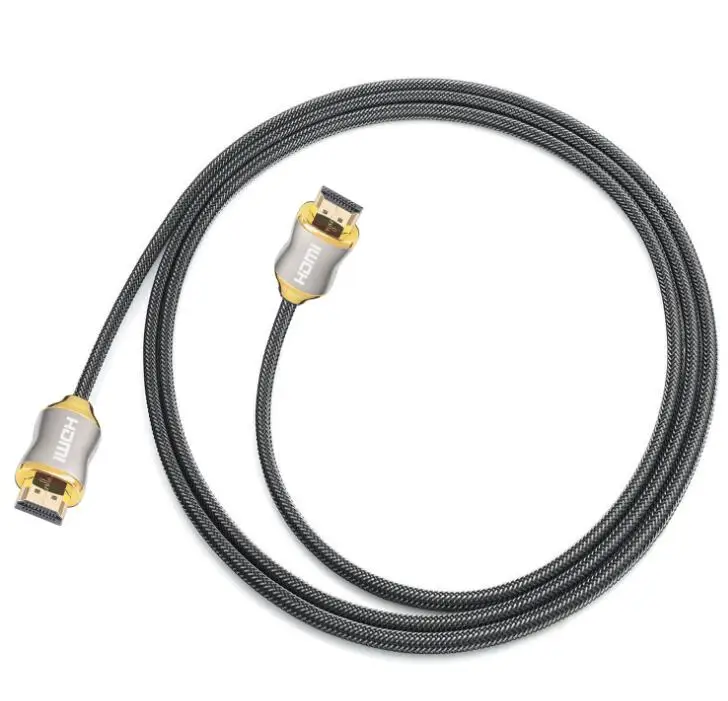

Colorful Nylon mesh and Aluminium Foil protection layer



It is used on the HDMI to Component Video Converters



Super flexible PVC jacket, any colors are available



Length is available from 1.5m to 50m



HDMI Cable Compatible with multiple audio formats

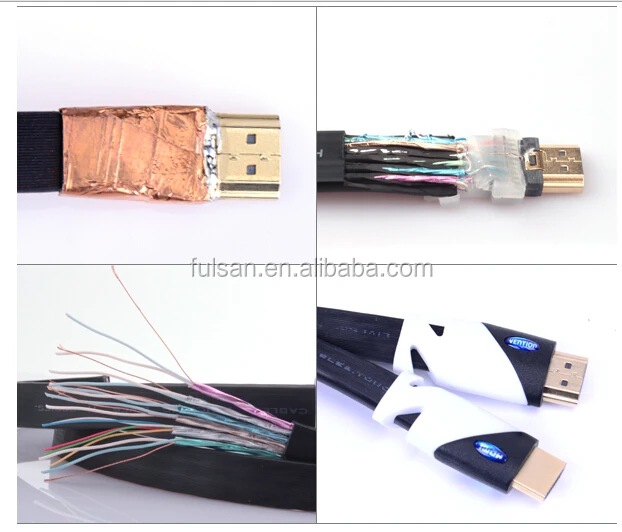

Reinforced braided shielding and Mylar-foil shielding



Apply:

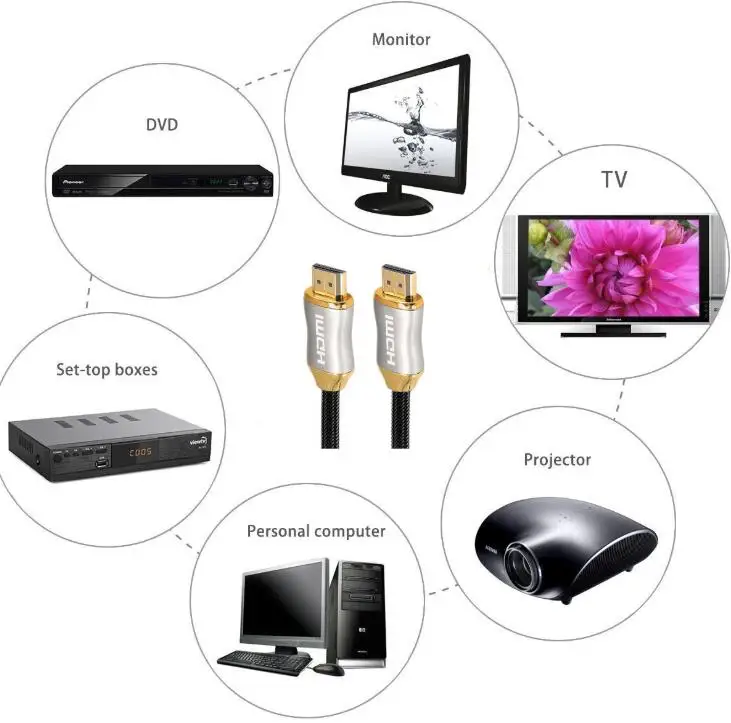

    1. HDMI Cable 1.3v Suitable for use in HDTV, Home theater, Playstation3,A/V receivers,    DVD,BlueRay XBOX360 and business class projector based applications;
    2. Transfer AV signals at warp speed of 10.2 Gbps without compromising purity and balance;
    3. Highest Sound Quality-Delivers lossless digital surround sound for the movie, music, and game experience;
    4. High Speed Digital A/V Cable for the Sharpest Picture, Deepest Color, and Highest Resolution Sound

 Using the Fiber Optic Pull Ring Caution:  Do not pull fiber from the HMDI connector. Non-repairable damage may occur.
  Attention:

1. Follow normal recommendad guidelines for pulling fiver optic cable through the enclosed space. Do not allow the fiber to bend to a 90' angle which will permanently damage the fiber.
2.Only apply pulling tension to the fiber cable jacket, never to the connector.

Before Beginning:
1.Identify the source(TX) and display(RX) HDMI connectors and ensure that the correct connection is made.
2.Determine if you will be pulling the fiber from the source(TX) location or from the display(RX) location.
3.If pulling the fiber from the source(TX) location, you must pull the RX connector which includes the integrated USB power connection.
