Прибор для защиты от царапин, прибор для проверки царапин с вращающимся ножом, прибор для проверки таблеток
- Category: Test Instruments >>>
- Supplier: Qinsun,Instruments,(shanghai),Co.,Ltd.
Share on:
Product Overview
Description

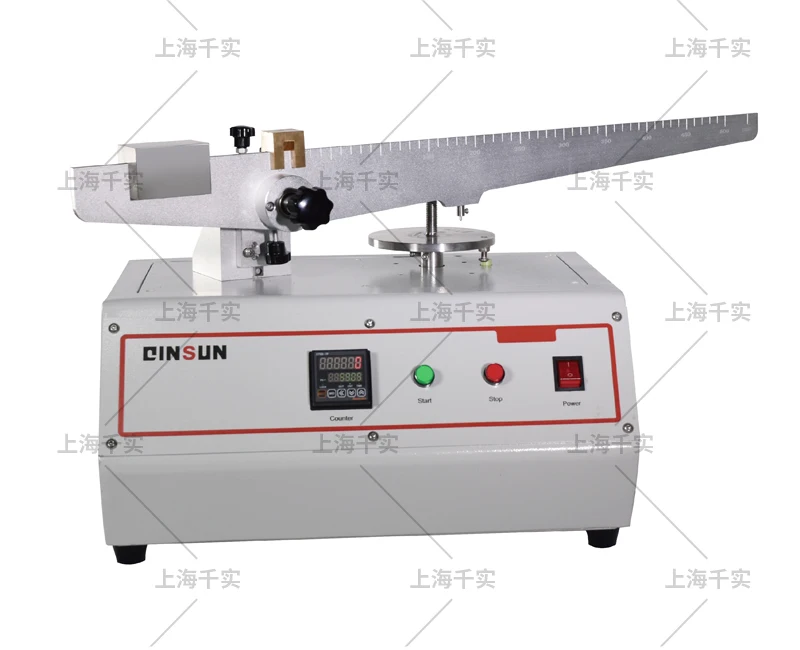

Product picture
Product Description:

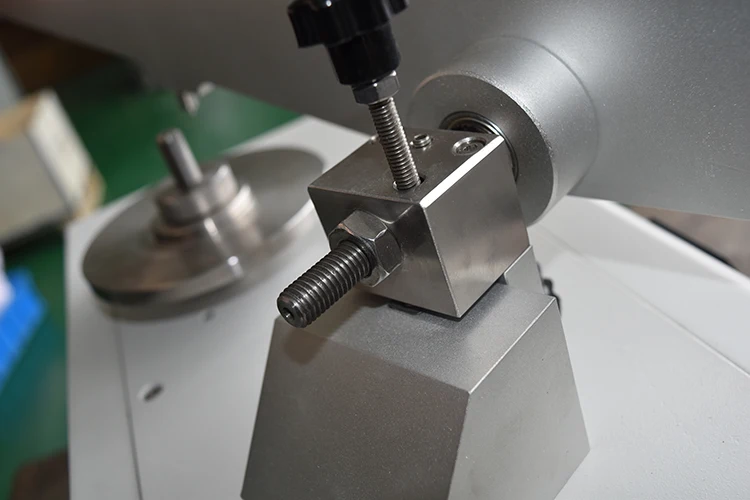

A removable scale beam is mounted on a pivotal shaft projecting from an adjustable gage block. An adjusting screw permits the height of the pivotal shaft to be raised or lowered, corresponding with the thickness of a test specimen up to 12.7 mm. This adjustment allows the scale beam to be maintained in a level position in respect to the specimen and turntable. Designed with an integrated bearing, the scale beam can be tilted in a rest position enabling the operator to mount or remove specimens.
A calibrated sliding weight is mounted on the scale beam. By changing the position of the sliding weight, the load applied by the scratch tip (shear tool) can be adjusted between 0 to 500 grams. A second calibrated weight may be attached to the end of the scale beam, thus increasing the load capacity and changing the scale to 500 - 1000 grams. Engraved graduations are marked on the scale beam representing 10 grams per division.
Operated by an on/off switch, the motorized turntable rotates at a constant speed to ensure greater accuracy in test results. The turntable rotates in a clockwise direction, but with a simple conversion the turntable rotation can be reversed (for more information contact Taber). Available in two versions, model 550 (115V, 60Hz) operates at a speed of 0.6 rpm and model 551 (230V, 50Hz)
operates at a speed of 5 rpm. This instrument meets ISO, DIN, EN and other test standards.
For materials sensitive to scratching, an optional Scale Beam Modified Weight Set is available that converts the scale by 1/10 to 0 - 50 gram range. To increase the testing load from 1000 to 1500g, an optional Scale Beam Fixed Weight is available. To satisfy EN 13310 (Kitchen Sinks - Functional requirements and test methods) an optional weight that provides a 15N load is also offered.
To evaluate a material's resistance to scratching or shearing, various tools are available for use with the Shear / Scratch Tester:
Conical Diamond tools (Models 139-55 and 139-56) are used for scratching materials of ordinary hardness. These tools are precision lapped to a 90° angle, and are available with a radius point of 3 mil (Model 139-55) or 3.5 mil (Model 139-56).
Diamond Scratch tool (Model 139-58) is used for scratch testing unusually hard materials. This tool is the converging point from three sides and edges of a perfect cube.
1.0mm Hemispherical Scratch tip is ideal for materials that are fragile or when a sharp cutting tool is too aggressive. Intended for use with model 550 or 551, this tool has a modified post and requires the Scale Beam Height Extension Kit.
Carbide Scratch tip satisfies EN 14565 for resilient floor coverings. This tip includes a 45° angle and 0.25mm radius point.
S-20 Tungsten Carbide Contour Shear Tool is used for shearing tests. Precision ground, this tool features a cutting edge lapped to a 25mm radius with a 30° clearance. The edge is set at a 22° shear angle in relation to the rotation of the table and is designed to shear a groove between 50 to 100 mils in width.
Other shear tools include Model S-20-3 'Honda' Tungsten Carbide Tool (similar to S-20, but no radius) and S-20-4 Tungsten Carbide Tool (similar to S-20, but R2.6mm).

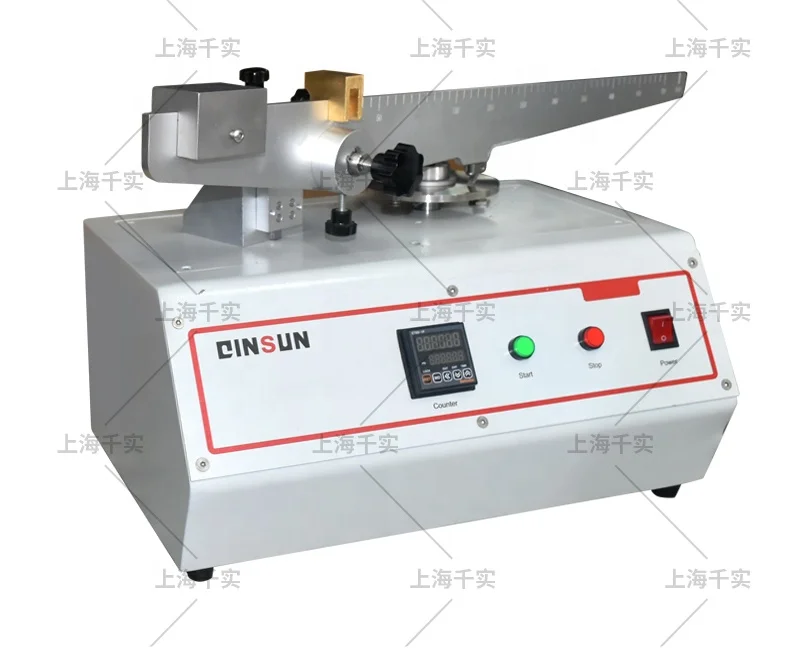

Detail Images:
