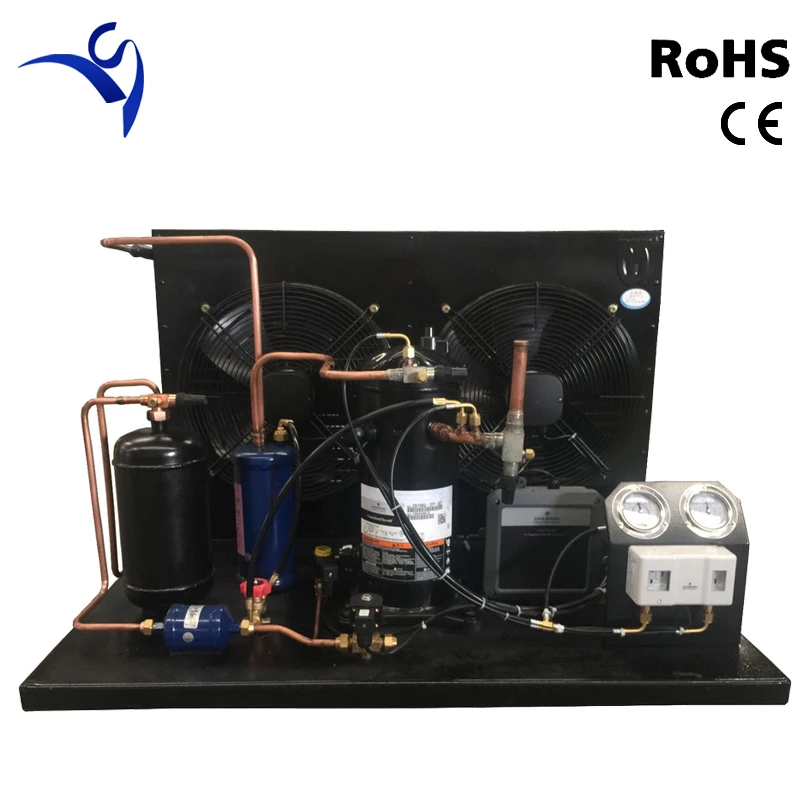

Open type Cold room Copeland ZSI scroll compressor 3hp condensing unit

Product Overview

Description

Features

* Compact and sophisticated outlook

* Fully assembled and ready to be installed to save on assembly and applied cost

* Wide operating range

   - LT and MT from -30℃ to +5℃ evaporating temperature

  - Same unit for either MT or LT cold room application

  - Reduce inventory for distributors and contractors

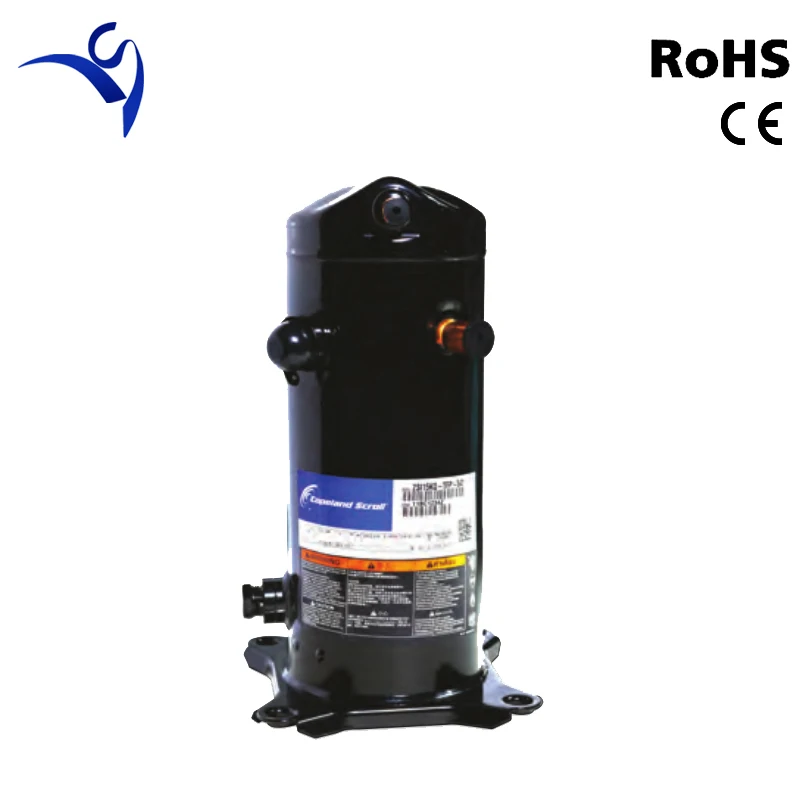

*  Best-in-class scroll compressor efficiency and reliability

   - Up to 30% annual electrical savings from COP improvement as compared with reciprocating systems.

   - 70% fewer moving parts than reciprocating compressor

   - Superior liquid handling

*  Built-in CoreSenseTM liquid injection control

   - Ensure low temperature operation reliability

   - Onboard control for liquid injection by sensing discharge line temperature(DLT)

    - Direct communication function by using LED inside CoreSenseTM

*  Suit for R404a and R407F refrigerant.





Copeland ZSI scroll compressor for Medium and low temperature                      R404a,R407F

Nominal data

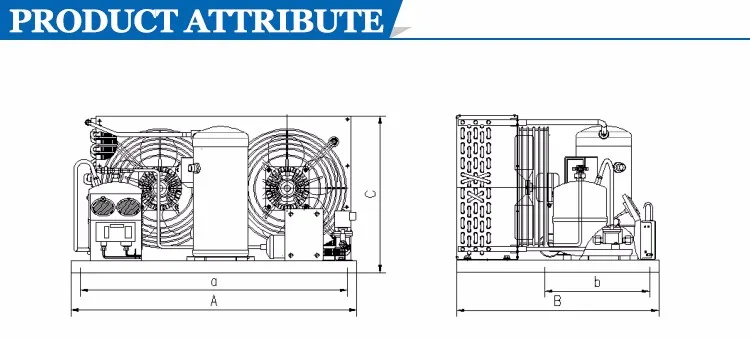

Model	HP	Compressor	Voltage	Cooling capacity(W) at R404a					Axial Fans	Dimensions			Noisy	Connection
				Evaporating temperature(°C)
			(V-Ph-Hz)	-30	-25	-20	-15	-10	N°x Diameter	L	W	H	10m(db)	Inlet	Outlet
LKPG200	2	ZSI06KQE-PFS	220-1-50	1470	1820	2240	2740	3310	1 x 350	680	610	520	42	3/4"	3/8"
LKPG200S	2	ZSI06KQE-TFP	380-3-50	1340	1690	2110	2610	3190	1 x 350	680	610	520	42	3/4"	3/8"
LKPG250	2.5	ZSI08KQE-PFS	220-1-50	1720	2160	2660	3250	3930	1 x 400	680	610	570	42	3/4"	3/8"
LKPG250S	2.5	ZSI08KQE-TFP	380-3-50	1710	2110	2600	3180	3860	1 x 400	680	610	570	42	3/4"	3/8"
LKPG300S	3	ZSI09KQE-TFP	380-3-50	1800	2320	2890	3540	4270	1 x 400	680	610	570	42	3/4"	3/8"
LKPG350S	3.5	ZSI11KQE-TFP	380-3-50	2430	3100	3810	4600	5530	2 x 350	960	680	470	42	7/8"	3/8"
LKPG400S	4	ZSI14KQE-TFP	380-3-50	3070	3840	4740	5800	7030	2 x 350	960	680	520	43	7/8"	1/2"
LKPG500S	5	ZSI15KQE-TFP	380-3-50	3550	4520	5530	6650	7940	2 x 400	1060	680	670	43	7/8"	1/2"
LKPG600S	6	ZSI18KQE-TFP	380-3-50	4380	5420	6630	8020	9640	2 x 400	1300	750	670	43	7/8"	1/2"
LKPG700S	7	ZSI21KQE-TFP	380-3-50	4910	6050	7400	8980	10800	2 x 400	1300	750	770	43	7/8"	1/2"
TEST CONDITION: Condensing Temperature: 50°C
