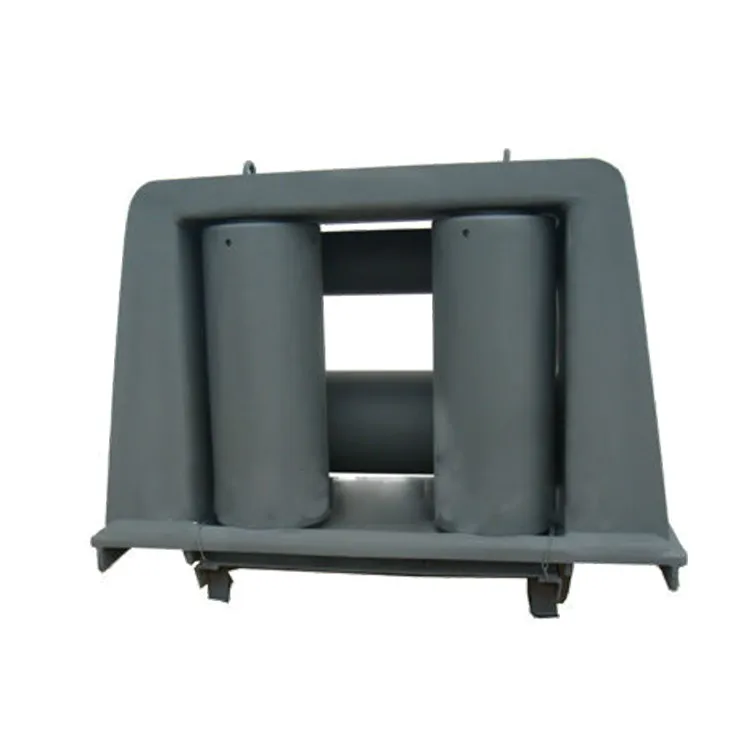

Marine boat rolling mill bearing boat ship chock fairlead
- Category: >>>
- Supplier: Taizhou FangRui Marine Equipment Co. Ltd.
Share on (60568796808):
Product Overview
Description
Product Description
1> Material selection:
Q235 steel plate
2> Excellent after-sales service:
A> 1 years warranty again the manufacture defect of domestic main ports, offer lifetime consultation on problems occurred.
B> Report on the making process.
Technical requirements:
| NOMINAL DIA | FRAME | |||||||||||||||||
| B | B1 | b | b1 | b2 | D | D1 | D2 | D3 | H | h | h1 | h2 | L | L1 | I | I1 | I2 | |
| 140 | 310 | 2355 | 150 | 69 | 20 | 90 | 140 | 120 | 80 | 480 | 275 | 130 | 40 | 515 | 805 | 335 | 120 | 60 |
| 160 | 360 | 405 | 175 | 82 | 22 | 110 | 160 | 140 | 90 | 515 | 290 | 145 | 45 | 570 | 890 | 365 | 135 | 65 |
| 180 | 410 | 455 | 200 | 95 | 24 | 135 | 180 | 150 | 100 | 560 | 315 | 155 | 50 | 620 | 960 | 390 | 145 | 70 |
| 200 | 460 | 505 | 225 | 108 | 26 | 2160 | 200 | 160 | 110 | 590 | 330 | 170 | 60 | 675 | 1049 | 420 | 160 | 80 |
| 250 | 565 | 610 | 280 | 133 | 30 | 200 | 250 | 200 | 130 | 715 | 415 | 195 | 75 | 825 | 1303 | 520 | 210 | 105 |
| 315 | 670 | 715 | 330 | 159 | 34 | 240 | 300 | 240 | 160 | 870 | 520 | 220 | 90 | 980 | 1562 | 620 | 260 | 130 |
| NOMINAL DIA | FRAME | APPLICABLEWIRE ROPE DIA | OPENING DIA (LONG*WIDE) | WEIGHT kg | |||||||
| I3 | I4 | R | T | t1 | t2 | t3 | t4 | ||||
| 140 | 50 | 20 | 40 | 12 | 10 | 16 | 6 | 20 | 18 | 148*195 | 187 |
| 160 | 50 | 20 | 45 | 14 | 10 | 18 | 8 | 22 | 22.4 | 150*200 | 277 |
| 180 | 50 | 20 | 50 | 16 | 10 | 20 | 10 | 24 | 25 | 150*199 | 387 |
| 200 | 50 | 20 | 60 | 18 | 12 | 22 | 10 | 26 | 28 | 152*204 | 510 |
| 250 | 60 | 25 | 75 | 20 | 14 | 26 | 12 | 30 | 35.5 | 199*253 | 900 |
| 315 | 60 | 25 | 90 | 22 | 16 | 30 | 14 | 34 | 42.5 | 253*302 | 1232 |
