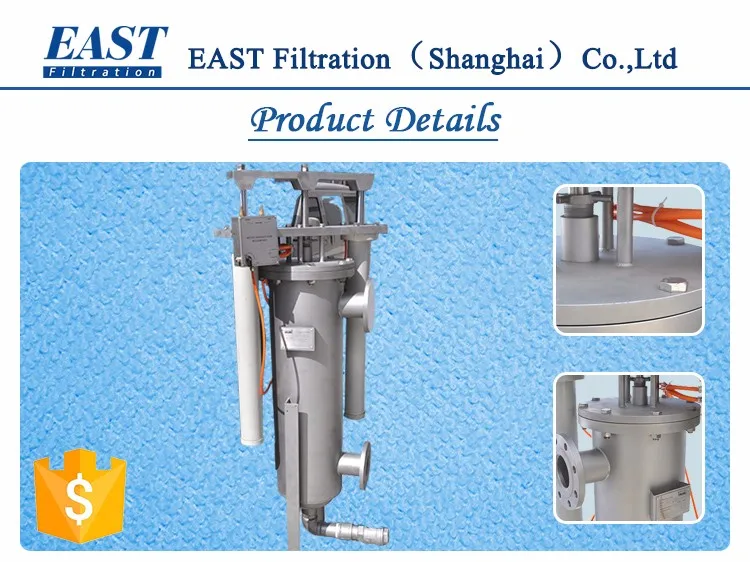

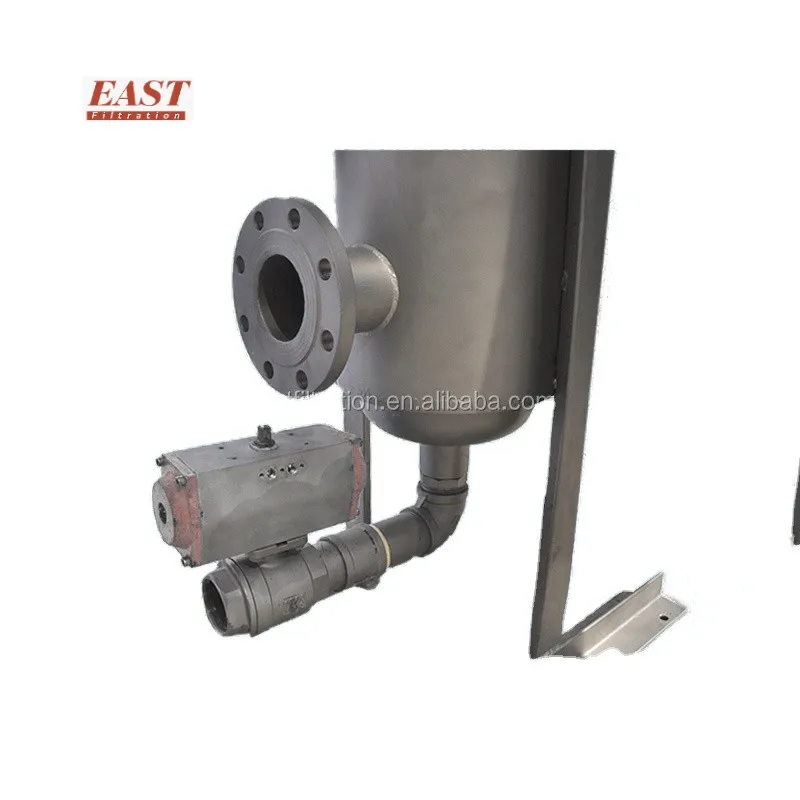

304SS/316LSS Plate Scraping Self-Cleaning Filter
Product Description
Working Principle:
- Automatically remove the particles and impurities from the filter element internal surface by mechanical plate scraping.
- Adopt patent design plate which have spring round plate to scap particle by removing up and down.
- Short discharge time,only 0.7 second. Surely online filtration, online clean and discharge.
Technical Features
- It's designed for filtration highly viscosity liquid.
- Pressure difference can be 7.7bar.
- Absolutely online filtration,online clean and online discharge waste water.
- Highly filtration precision,can be 15 micron.
- Easy operation and maintance.
- Very short discharge time, only 0.7 second ,less liquid loss.
- Pneumatic drive which anti-explosion.
- Air driven, more energy efficient.
Technical Parameter
Material | SS304, SS316L |
Max flow rate | 48 m3/h (@ 100 um) |
Filtration precision | 15-1000 micron |
Max working temperature | 160℃ |
Max working pressure | 1.0 Mpa |
Blow-off control | time control |
Control type | pressure and time composite control |
Max Viscosity | 100000 cps |
Blow-off time | 10-60 s |
production process
advantage
Customized Option
EAST supply varieties of customized options to meet further filtration needs, improve filter process and operate OE.
♦ Adopt inner layer to filter conduction oil ( 2 kg/cm2) or hot water ( 4 kg/cm2), keep temperature and transmission performance.
♦ Anti-explosion design, save when filter flammable and combustible liquids.
♦ Food grade surface polish which easy cleaning.
♦ With arm design to assist cover, easy to maintenance.
♦ Various modular combinations to meet larger flow rate requirements.
♦ Removable filter car to filter in different position flexibly.
