Manufacturer of RBK 2000 Control Transformer 2000VA With Terminal Block

Share on (60568848926):


Price:

Quantity:


Product Overview

Description

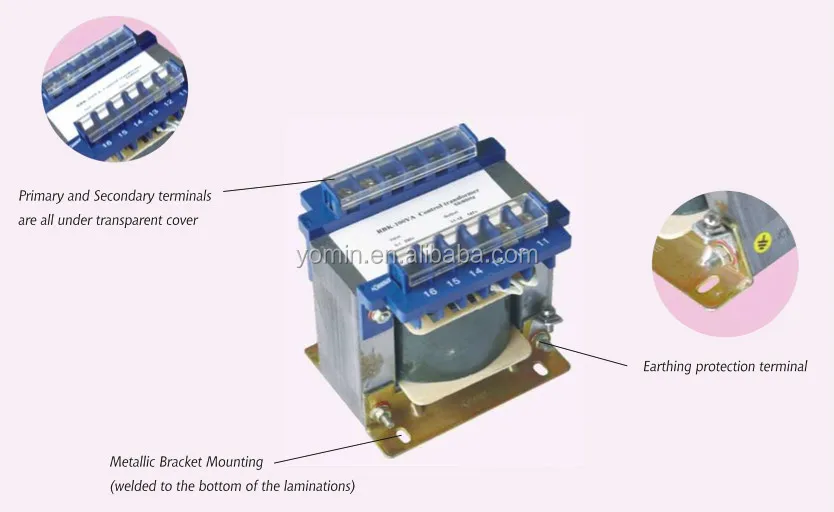

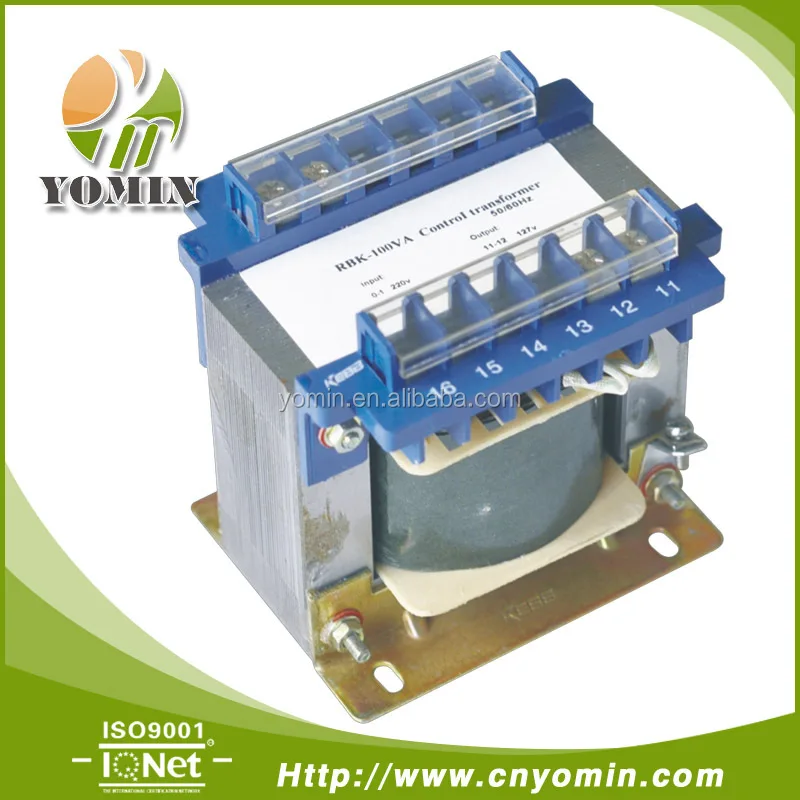

Manufacturer RBK-2000 control transformer 2000VA


with terminal bolock    Model:RBK-2000


bk-60-2



Product Description


Toroidal Transformers offer many advantages over standard laminated power





transformers. Toroidals provide quiet, efficient operation with very low stray magnetic





fields. Their small size and weight support a package that is easy to design into any





application.





Advantages of Toroidal Transformer:



  • A toroidal transformer weighs about half as much as conventional transformer with the same capacity and heat rise. The main materials used in transformer are copper and steel, both of which are getting scarcer with cost increases as a consequence.

  • No impregnation is needed to keep the laminates quiet so this potential environmental hazard is avoided.

  • The toroidal transformer fits into a smaller space, which allows chassis plates and enclosures to be smaller with less material used.


Snip20141018_1





Technical parameters






  • Capacity.............................................................................2000VA

  • Frequency..........................................................................50/60Hz

  • Voltage Combination.........................................Pls.see selection form.

  • Winding Material...............................................................100% Copper

  • Terminal Block Connection..............................................Provided

  • Metallic Bracket Mounting................................................Provided

  • Standards.........................................VDE0550,IEC204-1,IEC61588,EC439

  • Sample Service..................................................................Pay to Provide

  • Quality Assurance.............................................................24 months

  • Item Condition....................................................................Brand-New

















































































ItemCapacityVoltage CombinationCase Qty.
Model(VA)Primary(V)/Secondary(V)(Pcs)
RBK-5050

440/220;240/24;220/24;


220-380/110-60-48-24,


380/220-110


24
RBK-10010024
RBK-15015016
RBK-20020012
RBK-2502506
RBK-3003006
RBK-4004004
RBK-5005004
RBK-7007001
RBK-100010001
RBK-150015001
RBK-200025001

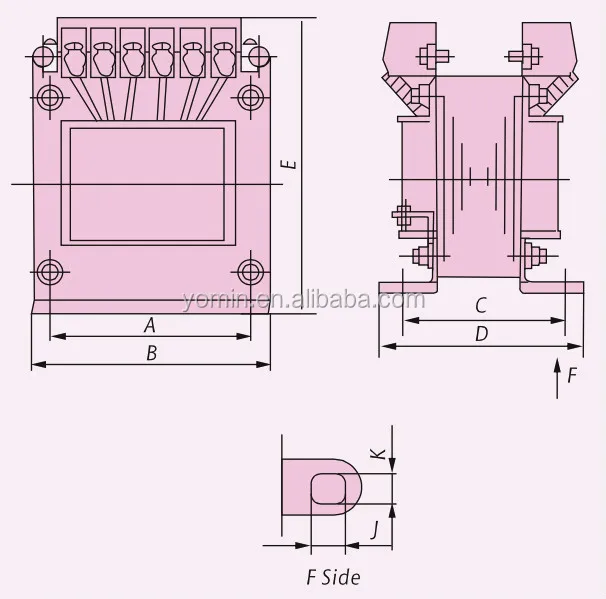

Dimension and wiring


 Snip20141018_2
