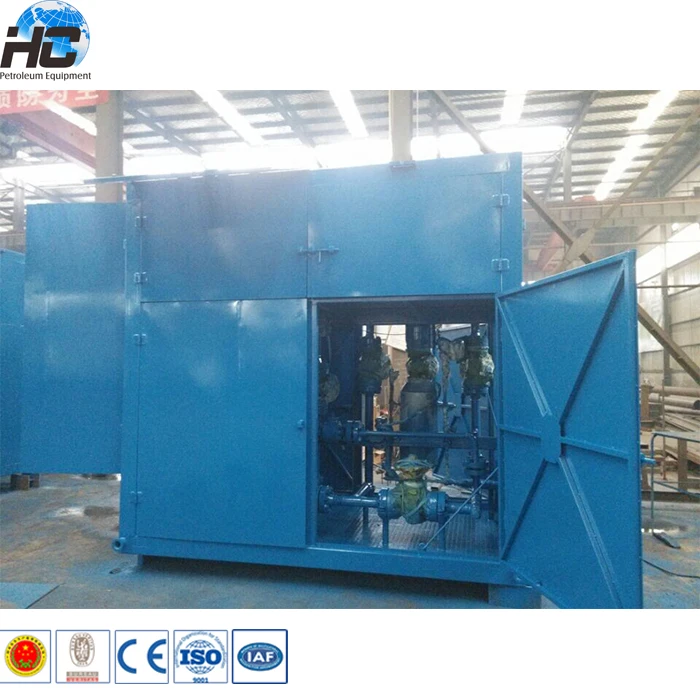

High quality filter desander / dual pot sand filter unit for liquid sand separation
Product Description
Dual-pot sand filter is used to remove sand and other solid particles from oil and gas well effluent to prevent erosion of downstream equipment. Typical applications for the unit include completion clean up and maximum sand-free rate tests. Dual pot sand filter is typically located after the wellhead, flowhead or upstream of the choke manifold.

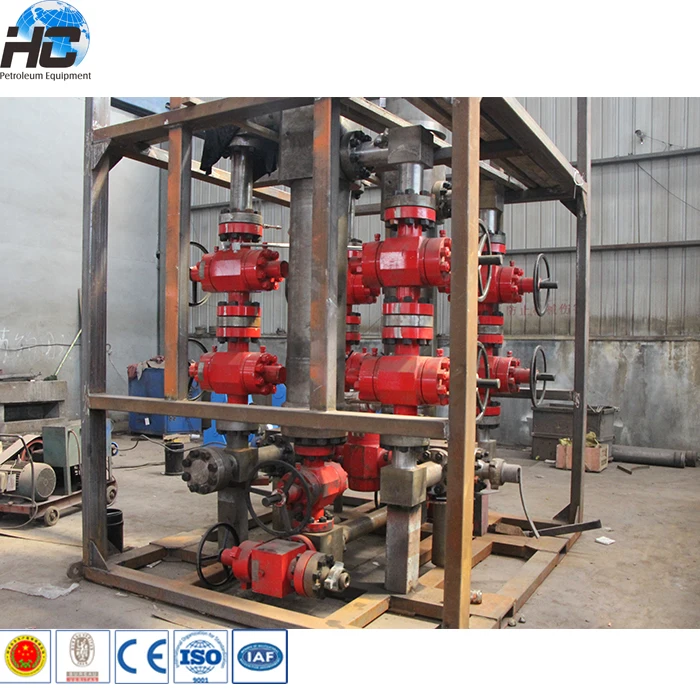

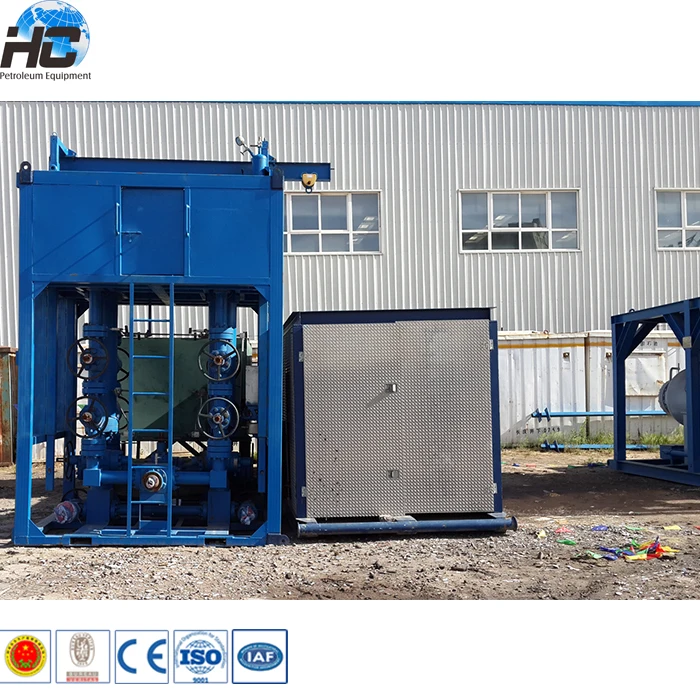

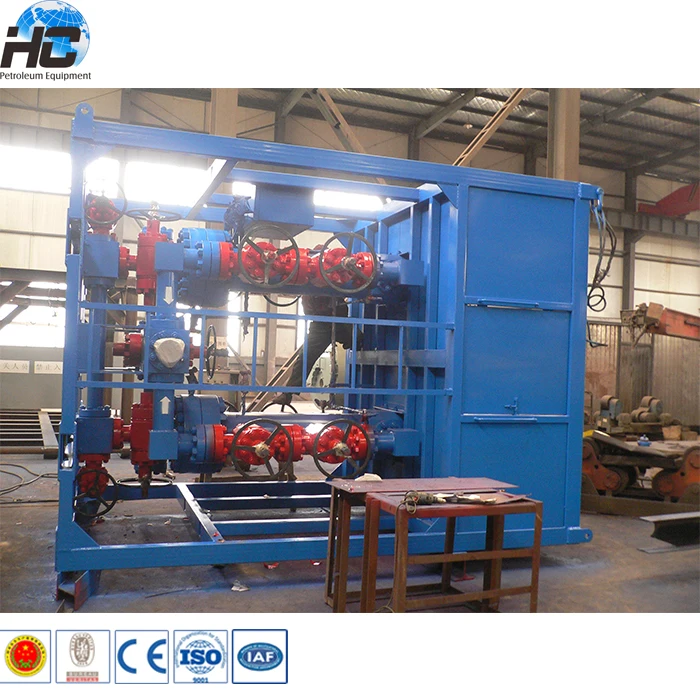

Dual pot sand filter consists of two filter pots, one manifold and one sand jetting system. The frame-mounted pots have lifting support for convenient filter replacement. Both of two pots can be on stream at same time. Normally, one vessel is in use, another is being cleaned by sand jetting system.

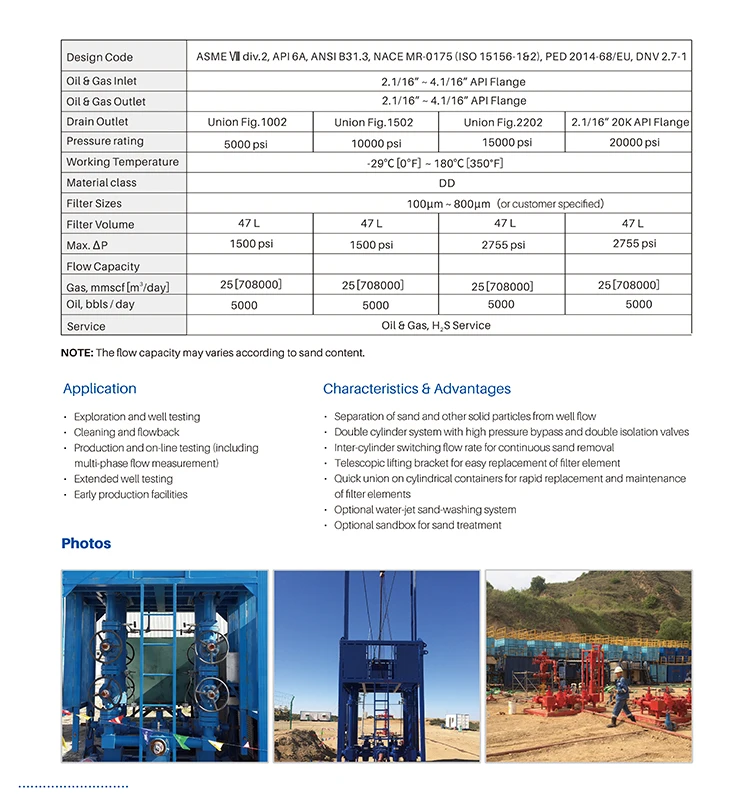

The technical parameters of dual pot sand filter unit :
Design Code | ASME VIII div.2, API 6A, ANSI B31.3, NACE MR-0175 (ISO 15156-1&2), PED 2014-68/EU, DNV 2.7-1 | |||
Oil & Gas Inlet | 2.1/16” ~ 4.1/16” API Flange | |||
Oil & Gas Outlet | 2.1/16” ~ 4.1/16” API Flange | |||
Drain Outlet | Union Fig.1002 | Union Fig.1502 | Union Fig.2202 | 2.1/16” 20K API Flange |
Pressure rating | 5000 psi | 10000 psi | 15000 psi | 20000 psi |
Working Temperature | -29℃[0°F] ~ 180℃[350°F] | |||
Material class | DD | |||
Filter Sizes | 100μm ~ 800μm | |||
Filter Volume | 47 L | 47 L | 47 L | 47 L |
Max. ΔP | 1500 psi | 1500 psi | 2755 psi | 2755 psi |
Flow Capacity |
|
|
|
|
Gas, mmscf[m3/day] | 25[708000] | 50[1416000] | 75[2124000] | 100[2832000] |
Oil, bbls / day | 5000 | 5000 | 5000 | 5000 |
Service | Oil & Gas, H2S Service | |||
Application of our dual-pot sand filter
Exploration and appraisal well testing
Cleanup and flowback
Production, in-line testing (including multiphase flow metering)
Extended well testing
Early production facilities
Features & benefits dual-pot sand filter
Separates sand and other solid particles from the well stream
Dual pot system with high pressure by-pass and dual isolation valves
Switching flow between pots for continuous sand removal

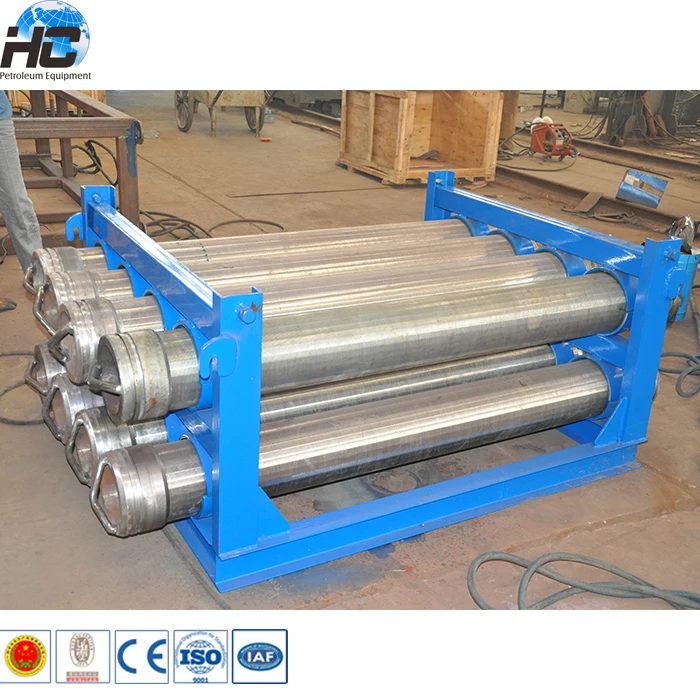

Telescopic lifting support for convenient filter replacement
Quick union on pot vessels for rapid filter replacement & maintenance
Optional water jet sand flushing system
Optional Sandbox for sand disposal
Simple to operate
Eliminates erosion on choke manifold and downstream process equipment
Enables high rate well testing & production
