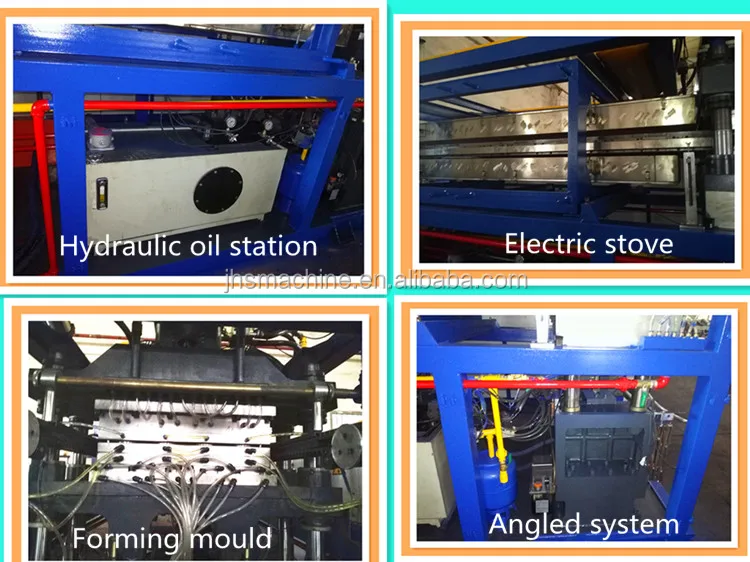

Automatic Cup Making Machine is new equipment, which has been developed and produced with many years of machine producing experiences of our company, it uses stable system and pneumatic technology to control together, its operation is stable, noise is small, mold locking ability is strong and quality is high. It mainly consists of formed machine, material rack, material receiving machine and screen controlled by electricity.
1. The machine is completely automatic, productive speed is fast. Different products can be produced with different molds.
2. It uses import famous brands of electric and pneumatic fittings, so the operation is stable, quality is reliable and life is long.

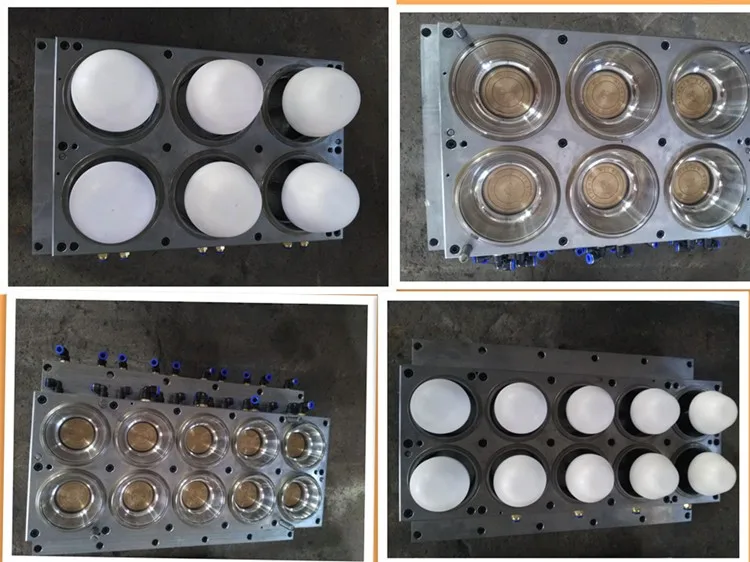

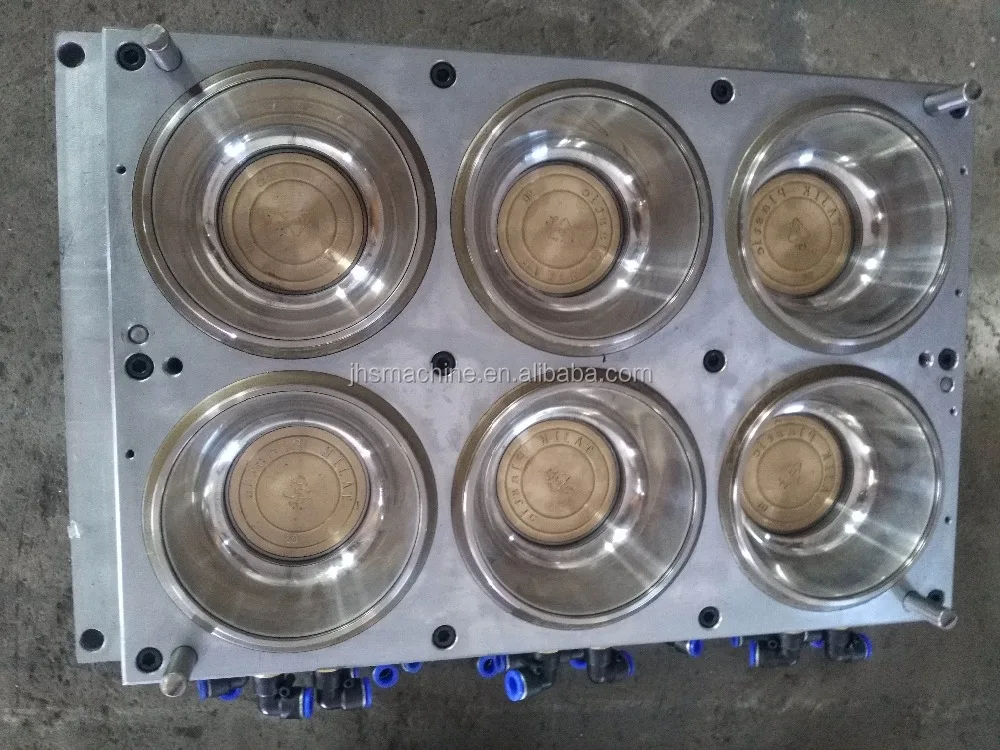

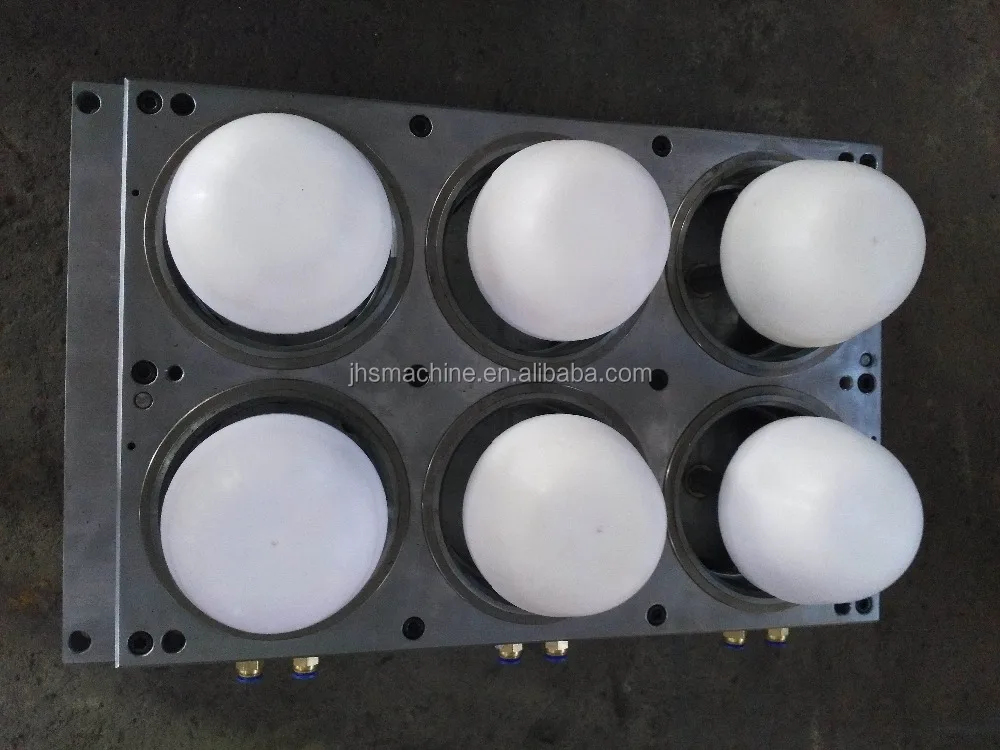

3. The design of the mold is advanced and special, heat the thermoplastic plastic flake board and put on the mold, pull the piston, give the pressure to the air, keep the flake board close to the inside of the mold to form, then, cut and automatically blow the product. The structure of the whole machine is compact, one mold has all the functions, like pressure giving, forming, cutting, cooling, and finished product blowing, so the process is short, quality of the finished product is high and matches with national sanitary standard.
Main technical parameter:
Sheet material
PP.PS.PE.PET
Sheet width
800-900mm
Sheet thickness
0.3-2mm
Max.Forming Area
850*600
Max.Forming depth
140-220mm
Forming Pressure
0.5-0.8MPA
Productivivty
10-35 time/min
Heating Power
75KW
Motor Power
35KW
Total Weight
7T
Water Temperature
>30 degree
Machine dimension
6.8*2*2.2M
FAQ
1.How many years have your company established?
Our company have been established for 10 years more.
2.Who's your machine quality main controller?
Technical engineer is our boss,he control the important core technology.
3.Are you manufactue or trading company?
We are manufactue,we have over 50 staffs in our workshop.
4.Can we go to your factory for visiting?
Sure,welcome to come to our factory and give some good advice to us.
5.We don't have time to go to your factory,but how can we know if your are
trading company or manufacture ?
It is easy to know,if you are on internet,we could open cam to video chat with
you,we could take you to visit our factory on line.
6.How&When can I get the price?
Email us your inquiry or communicate online, state your specifications (product,
material, size, quantity etc).
We usually quote within 24 hours. Please call us orinform in your email when
it is urgent, we will regard your inquiry priority.
