F202 FH202 SH201 32A 63A Residual Current Circuit Breaker RCD
- Category: >>>
- Supplier: Yueqing Fly Electric Co. Ltd.
Share on (60568973257):
Product Overview
Description
F202 FH202 32A 63A Residual Current Circuit Breaker RCCB
Product Description
1.Product Description
FH202 series Residual Current Circuit Breaker without over current protection conforms to the standards of GB16916.1, IEC1008, BS4293 etc. It is used in the circuits of AC 50~60Hz, single phase 230V(220V), three phases 400V (380V) in industrial & mining enterprises, commercial buildings and housing for protection of personal electric shock hazard and electric equipment and for unfrequent switchover of circuits under normal conditions.
2.Features
| Type and specification | Rated Current | Rated Voltage | Rated operating current | Residual operating current range | Rated conditional short circuit current | ||
| F202 | 2 poles | 16A,25A, | AC230V | 0.03A,0.1A,0.3A | O.5In~In | 3000A to 6000A | |
| 4poles | 16A,25A,32A,40A, 63A,80A,100A | AC 400V | 0.03A,0.1A,0.3A | O.5In~In | 3000A to 6000A | ||
3.Dimension

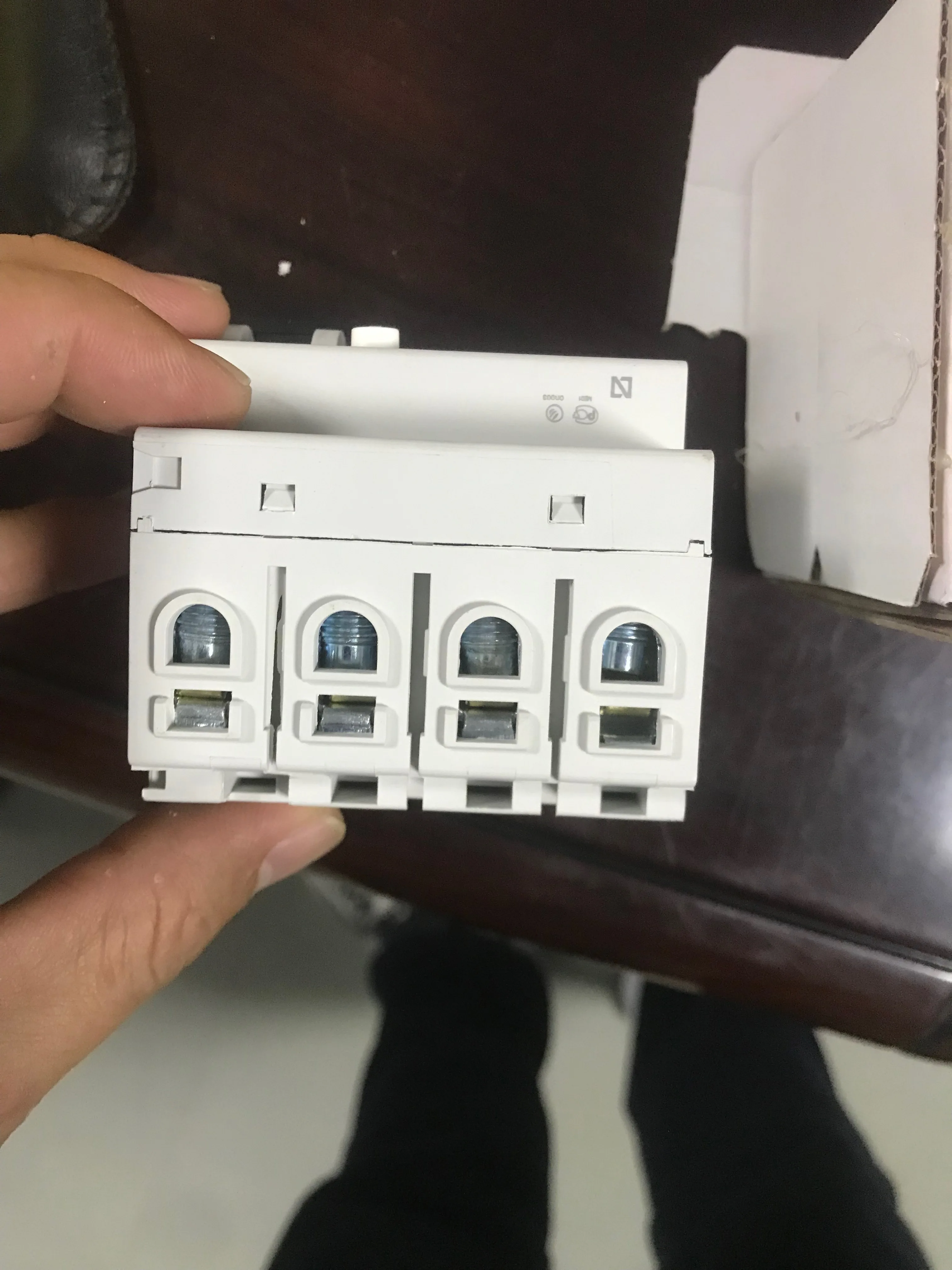

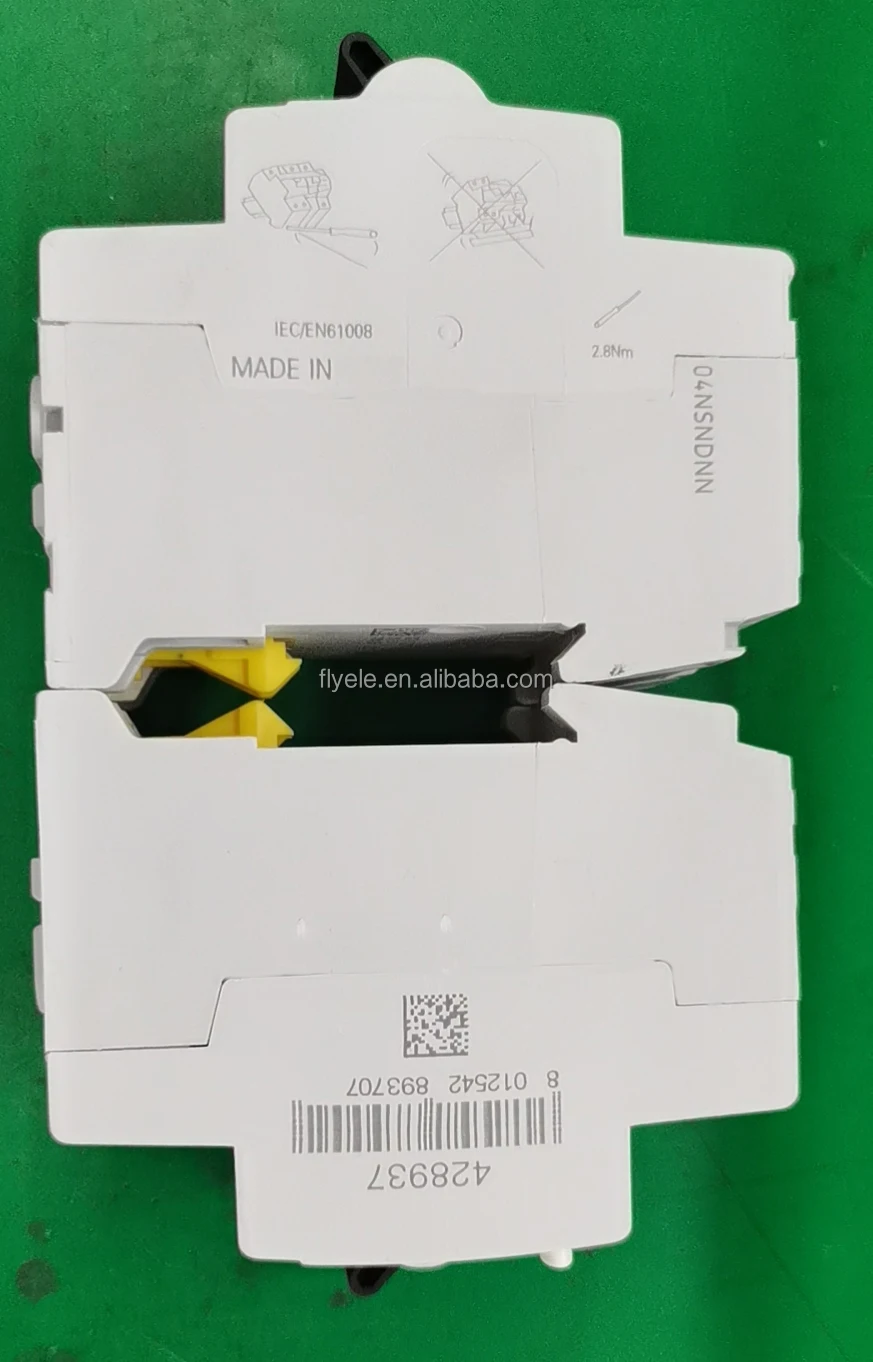

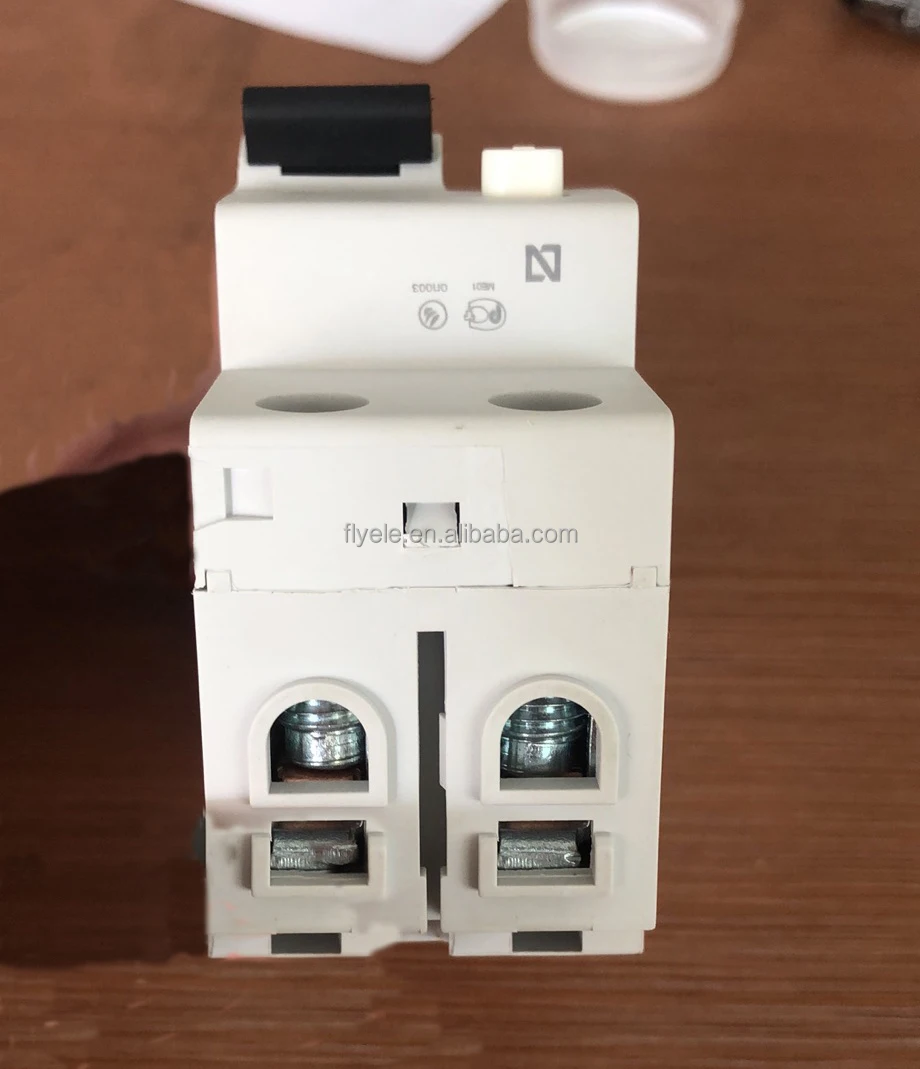

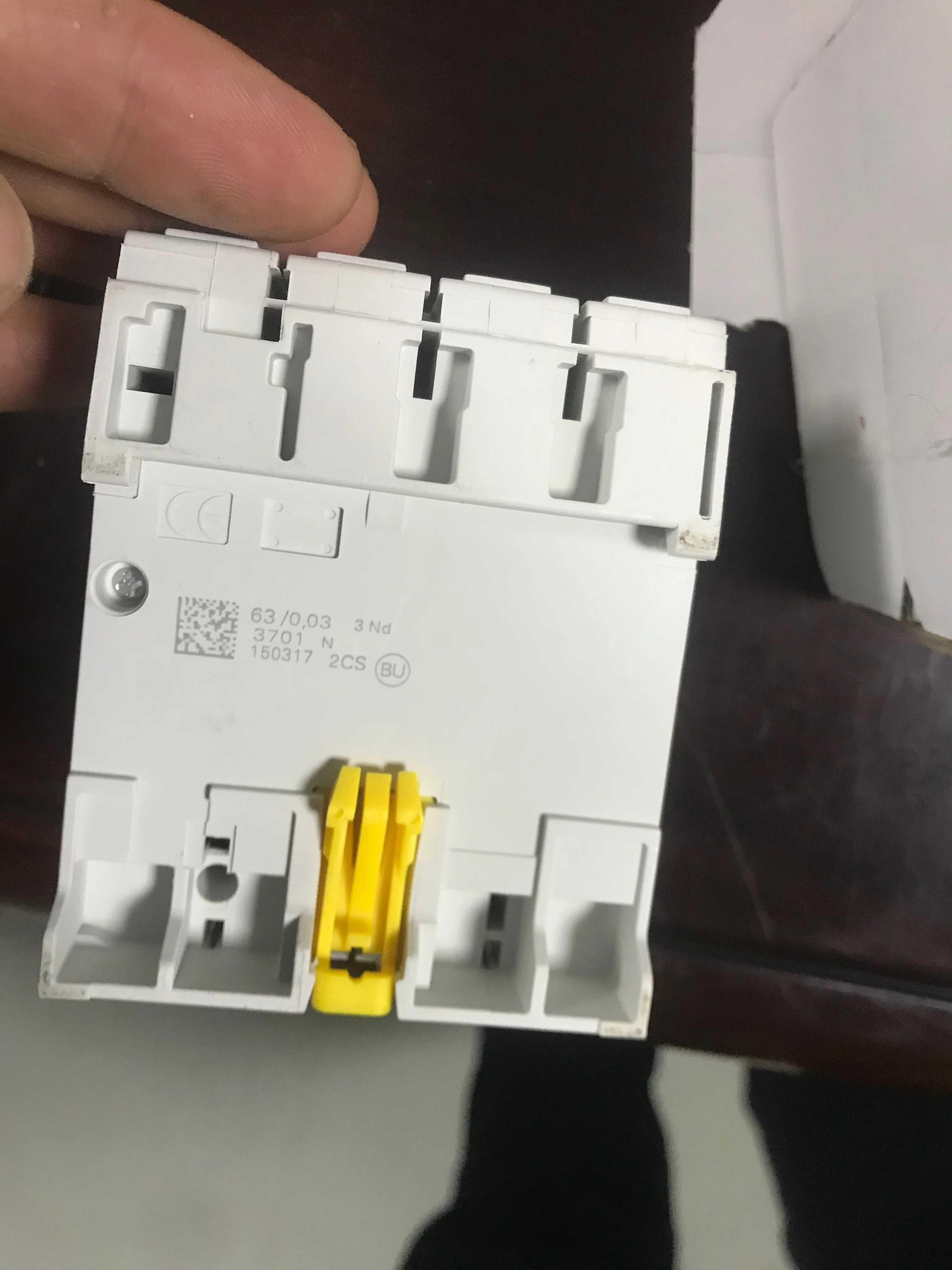

Product show

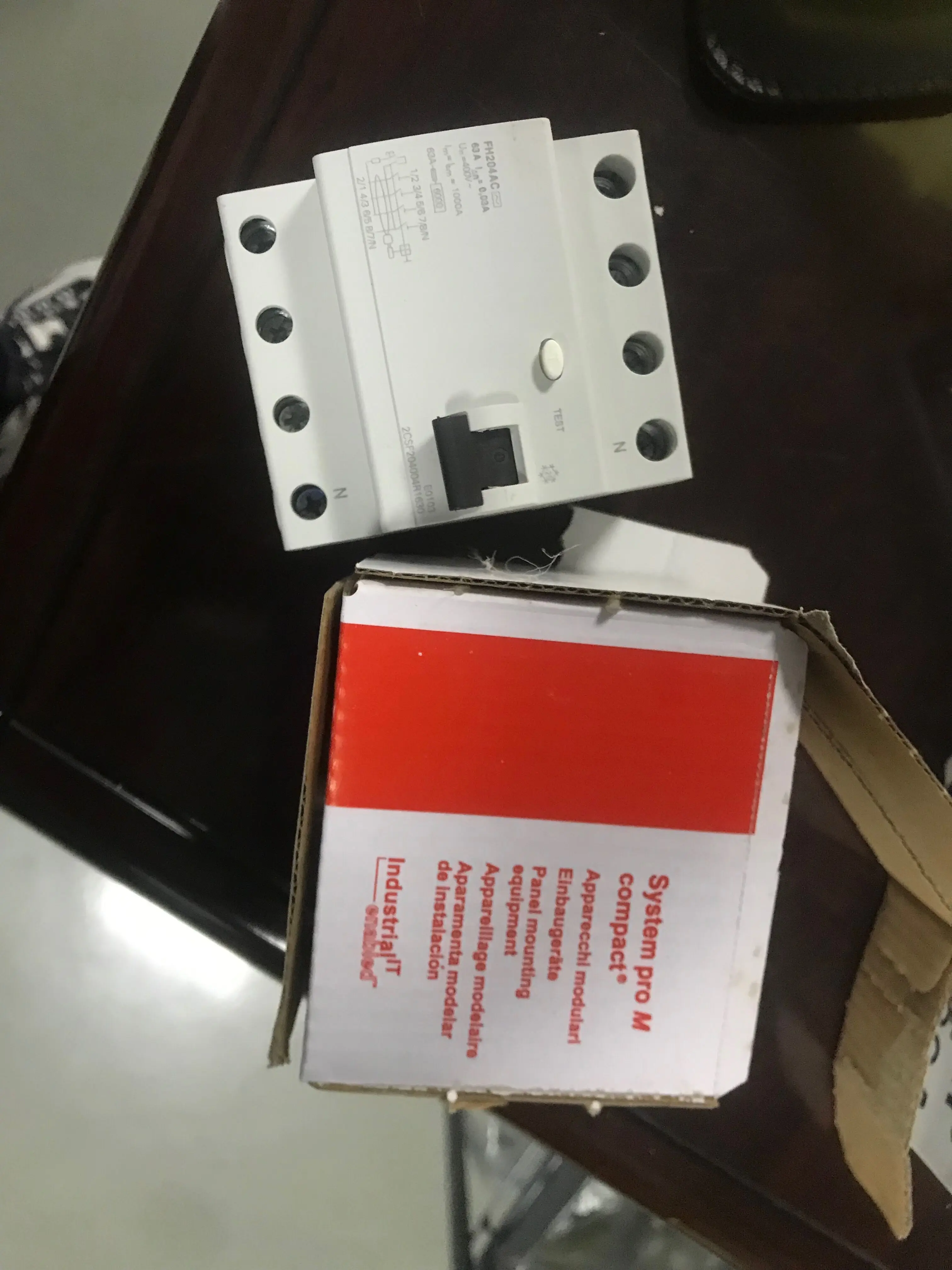

Packaging & Shipping
1piece in one box, 100pcs in one carton.
