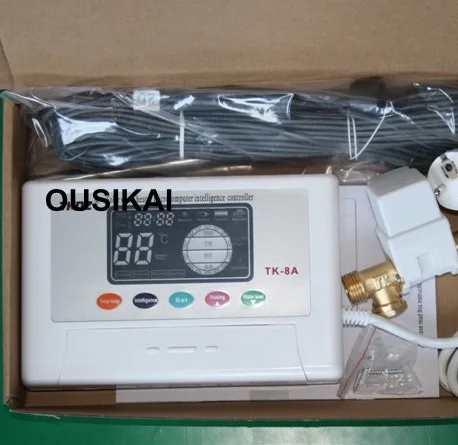

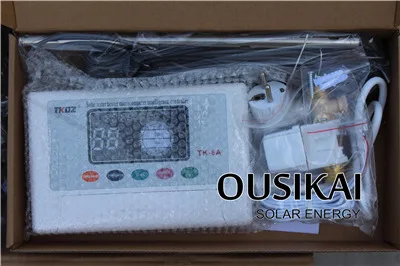

Micro computer auto controller for Non pressurized solar water heater

1, Technical datas:

<1> Power: 220VAC±10%

<2> Size: 20x13x3.6cm

<3> Temperature detective precision: ±2°C

<4> Temperature detect range: 0~90°C

<5> Power loss: <5W

<6> Auto control supercharging pump/Electric heating belt ≤ 500W

<7> Intelligent heating  ≤ 2000W

2, Main functions:

<1> Beijing standard time

<2> Start self-checking

<3> Water temperature preset

<4> Water level preset

<5> Water insufficiency loading

<6> Temperature loading

<7> Constant water level coding

<8> Manual control

<9> Second time timing loading

<10> Second time timing heating

<11> Pipe heat keeping

<12> Pipe supercharging

<13> Constant temperature heating

<14> Electricity leakage protection

<15> Auto drainage

<16> High temperature loading protection

<17> Dry heating prevent

<18> Electric heating belt fire protection

<19> Power off memory

3, Payment

<1> T/T(wire transfer)

<2> L/C at sight

<3> 30% T/T in advance as deposit, the rest paid before shipment

<4> 30% T/T in advance as deposit, the rest paid against B/L copy

Other of our company controllor  products

Main including:

1. Compact solar water heaters system controllers

2. Split solar water heating system controllers
3. Solar swimming pool system controllers

4. Split solar water heating system working stations

5. MPPT controllers

6. Solar charger controllers

7. Light controllers

8. Copper fittings

9. Copper valve
