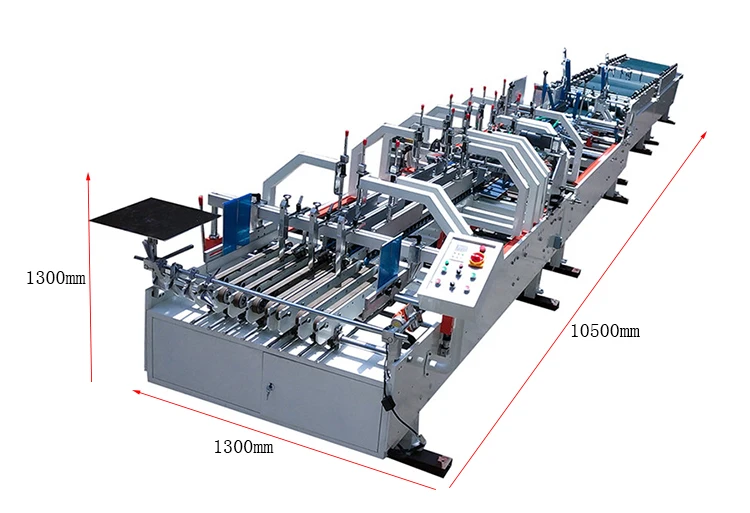

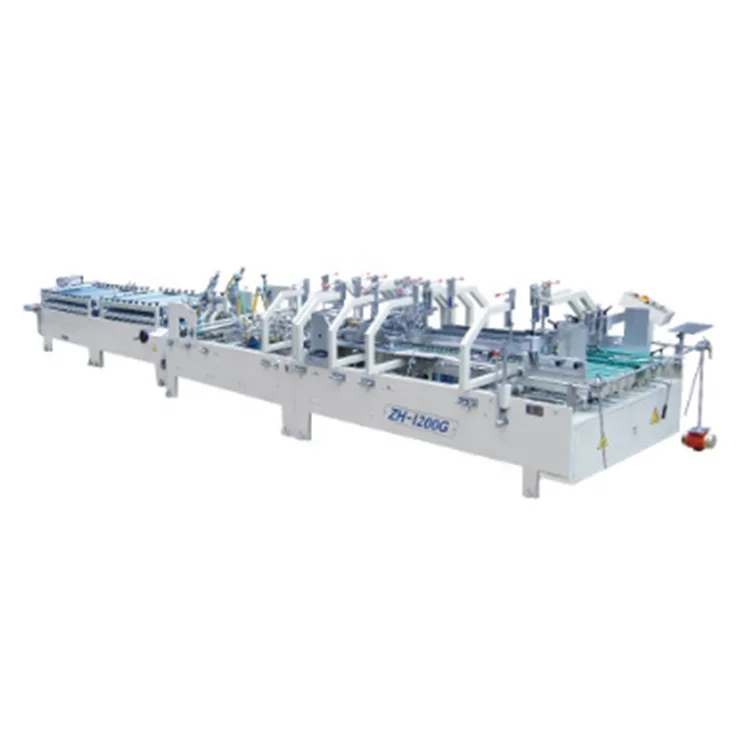

ZH 1200G automatic folder gluer lock bottom box folding and gluing machine
- Category: >>>
- Supplier: Wenzhou Zhantian Packing Machinery Co. Ltd.
Share on (60569087665):
Product Overview
Description
ZH-1200G is designed for large crash lock bottom box, pre-folding boxes and straight line boxes. The max paper board width is 1meter. The long folding part decreases the appearance of bell mouth. The belt of folding part is broadening belt, which play a rolein the bell mouth of E corrugated boxes. Collection part adopts waiting function. The motor speed is controllable, so it's morereasonable to collect boxes. It's ideal equipment for large carton box package. | |
Function | Single side gluing +double sides gluing |
Paper board | 200-800 g/m², N/E/F corrugated box |
Speed | 280 m/min |
Power | 6KW 380V |
Weight | 3000KG |
Package | 3 packages with wooden cases |
Delivery Time | 7-21 days |
MOQ | 1 set |
Loading port | NINGBO PORT, CHINA |
Payment | 3/7 by TT/ LC/ Western Union |
Shipping way | By sea/ truck/ train/ courier |

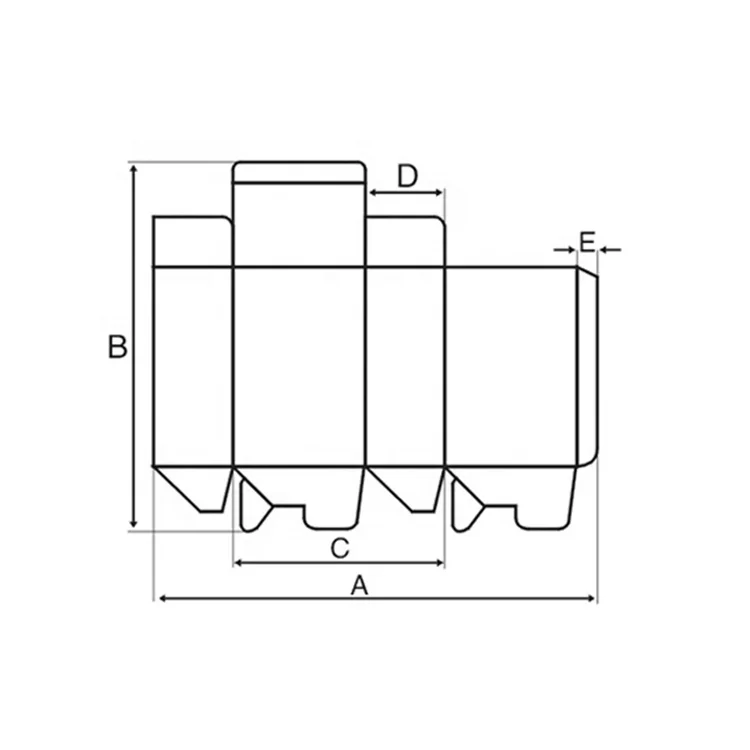

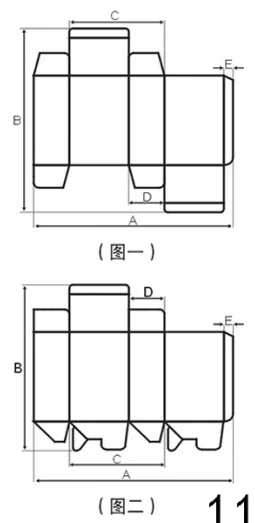

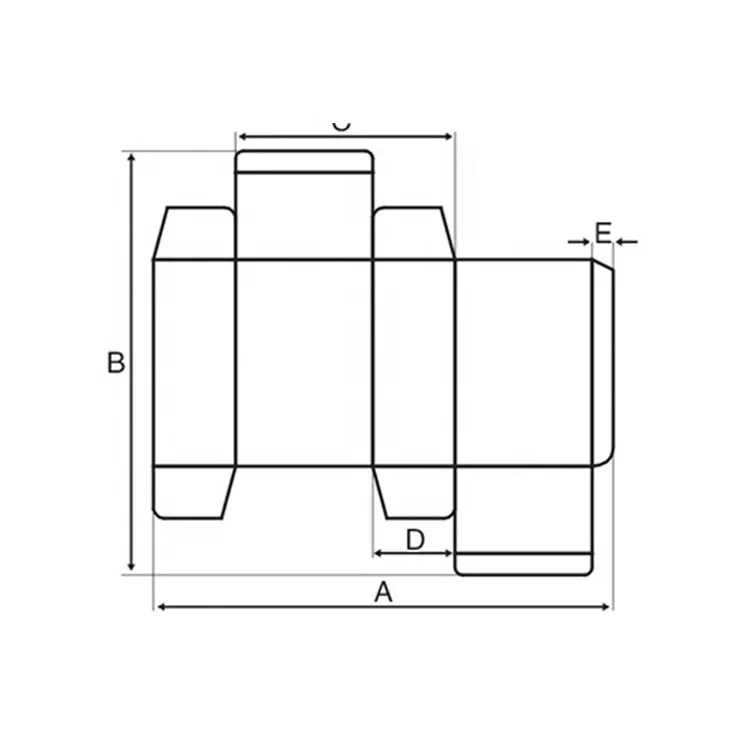

| Model | ZH-1200G | ||||
| Box Type | Straight Line Box | Pre-folding Box | Lock Bottom Box | ||
 | A Max | (mm) | 1000 | 1000 | 1000 |
| A Min | (mm) | 160 | 200 | 200 | |
| B Max | (mm) | 700 | 700 | 700 | |
| B Min | (mm) | 90 | 90 | 90 | |
| C Max | (mm) | 490 | 490 | 490 | |
| C Min | (mm) | 80 | 100 | 90 | |
| D Min | (mm) | 12 | 17 | 70 | |
| E Min | (mm) | 10 | 10 | 10 | |
Application
1.Q:What is the machine warranty?
A:One year.
2.Q:Does your machine with CE certificate?
A:Yes, issued by Italian organization
3.Q:What is the production time while placing order?
A:About20 days
4.Q:What is the delivery time?
A:15-30days after get the payment.
5.Q:Can your company handle shipping for customers?
A:Yes, just give us destination sea port or container yard
6.Q:Does the packing strong?
A:Yes, all packages are double-checking before delivery
7.Q:How about after-sales service process?
A: We offer life time A.S.S. Please feel free to contact after-sales department.
8.Q:Are you manufacturer or trading company?
A: We are manufacturer.
9.Q:Do you have machines in stock?
A: For standard model, we have a large quantity in stock. For special model,
we need 20-30 days to produce it for you.
10.Q:Do you inspect machines before packing?
A:Of course we do.we have QC department to debug the machine before packing
11.Q:What’s the payment term?
A:T/T 30% in advance, the balance paid before delivery.
We also accept payment via West Union and L/C.
12. Q: Do you accept factory visiting?
A: We are highly greeting for your visiting.
