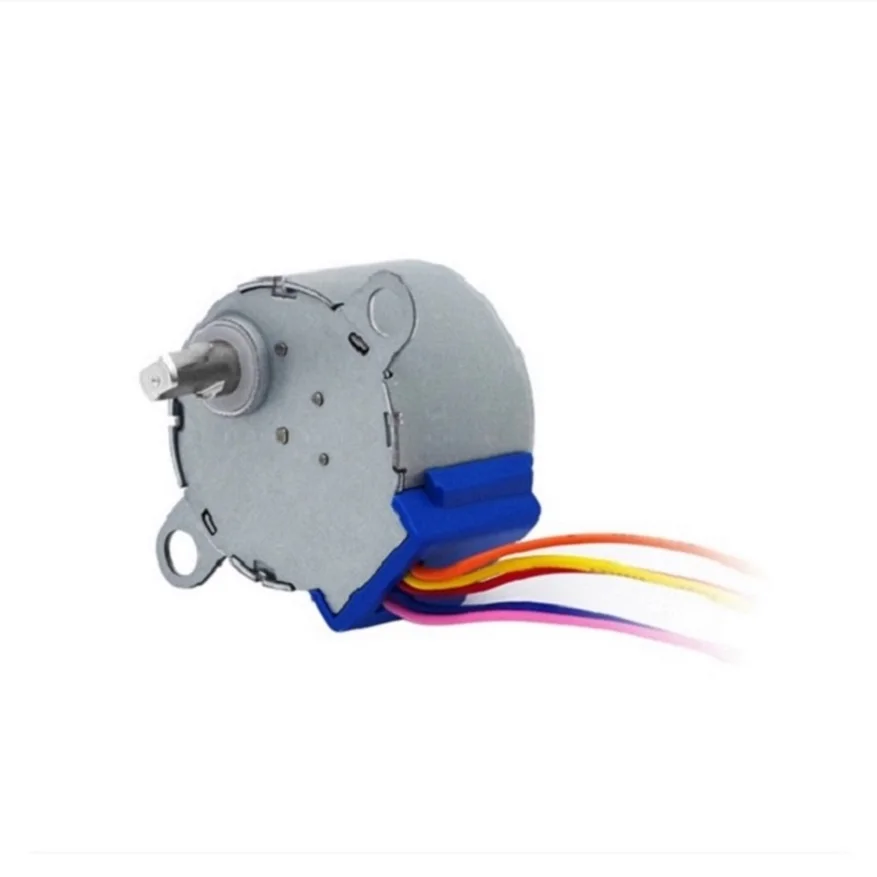

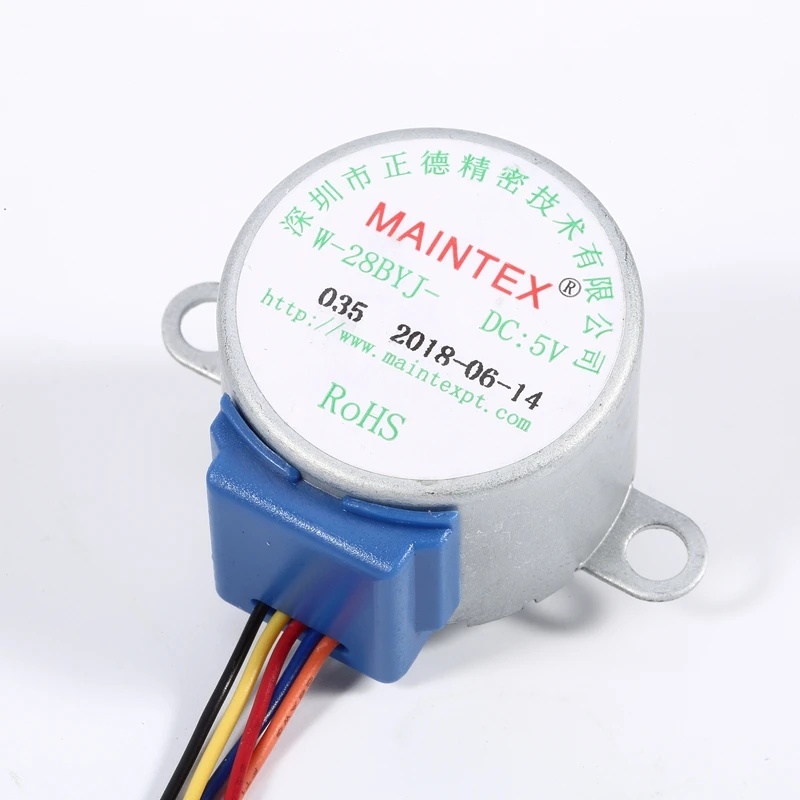

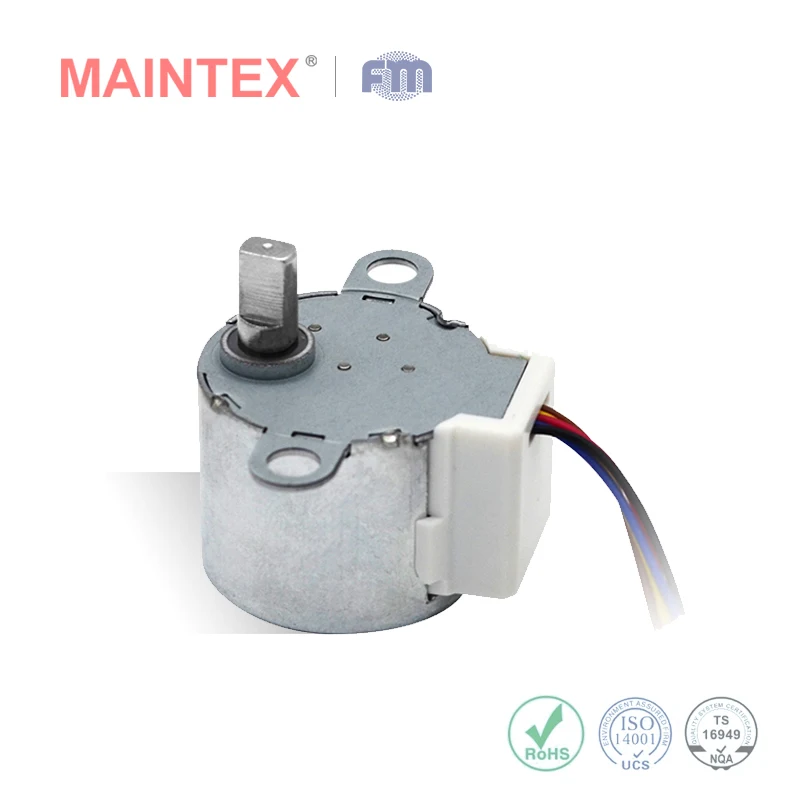

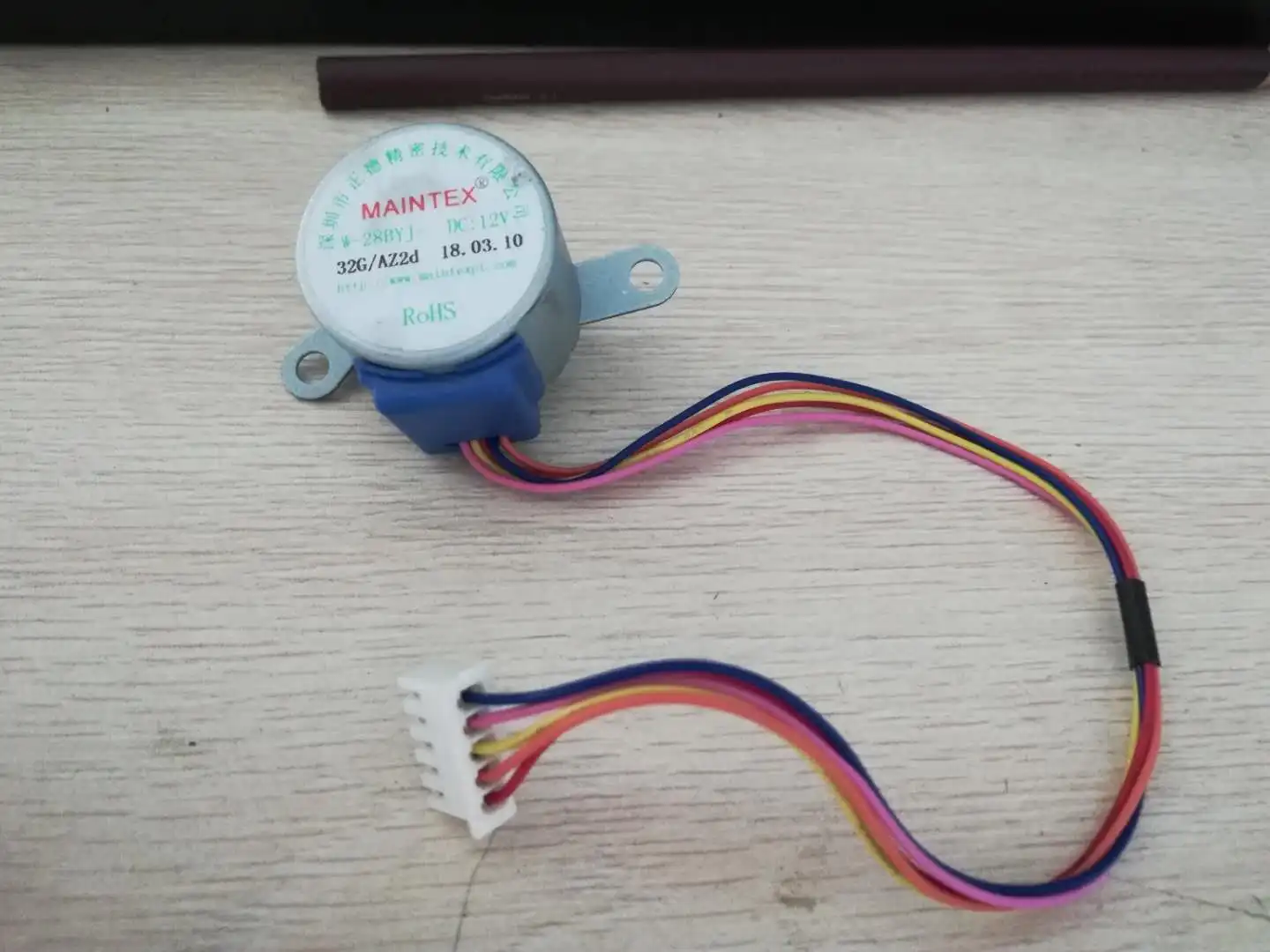

24BYJ28 with Spur Gear step Motor for Telescopic Equator,12v dc geared reducer stepper motor,PM gear reduction stepping motors
Product Description
Main Performance of 24BYJ28 with Spur Gear Motor for Telescopic Equator
Diameter: 24 mm
Step Angle: 11.25°
Voltage: 5V, customized.
Phase: 2
Excitation: 2-2
Parameter of 28BYJ28-022
| Driving Voltage | 12±10% V |
| Phase | 2 Phase |
| Lead Wire | 4 |
| Excitation | 1-2 |
| Reduction | 1/64 |
| Step Angle | 5.625° |
| Resistance | 300±10% Ω |
| Pull In Frequency | 500 Hz |
| Pull Out Frequency | 800 Hz |
| Pull In Torque | 30 mN.m |
| Detent Torque | 30 mN.m |
| Insulation Resistance | 50 MΩ |
| Dielectric Strength | 600 VAC/1mA/1s |
| Friction Torque | 60~294 mN.m |
| Insulation Grade | B |
| Temperature Rise | 60 K |
| Weight | 40 g |
| Noise | 40 dBmax |
parameter can be customized according to your actural demand.
Application of 28BYJ28 with Spur Gear Motor for Telescopic Equator
